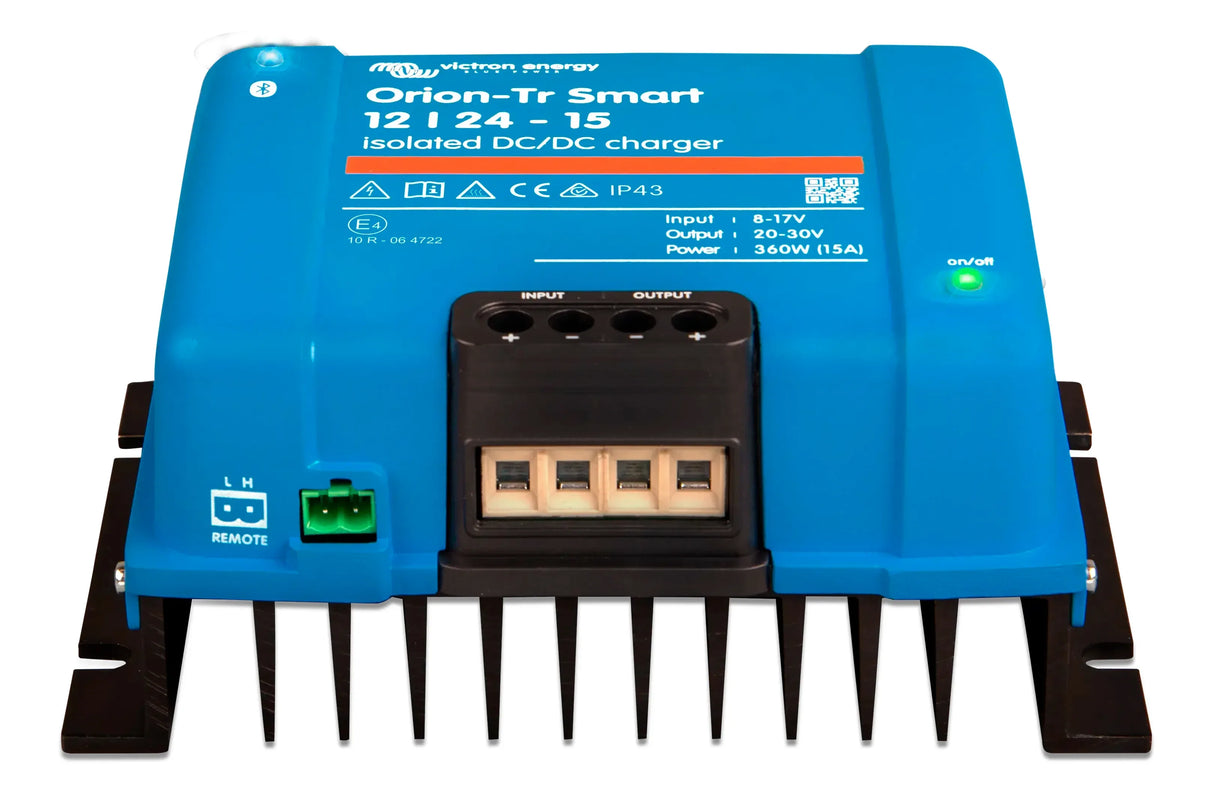

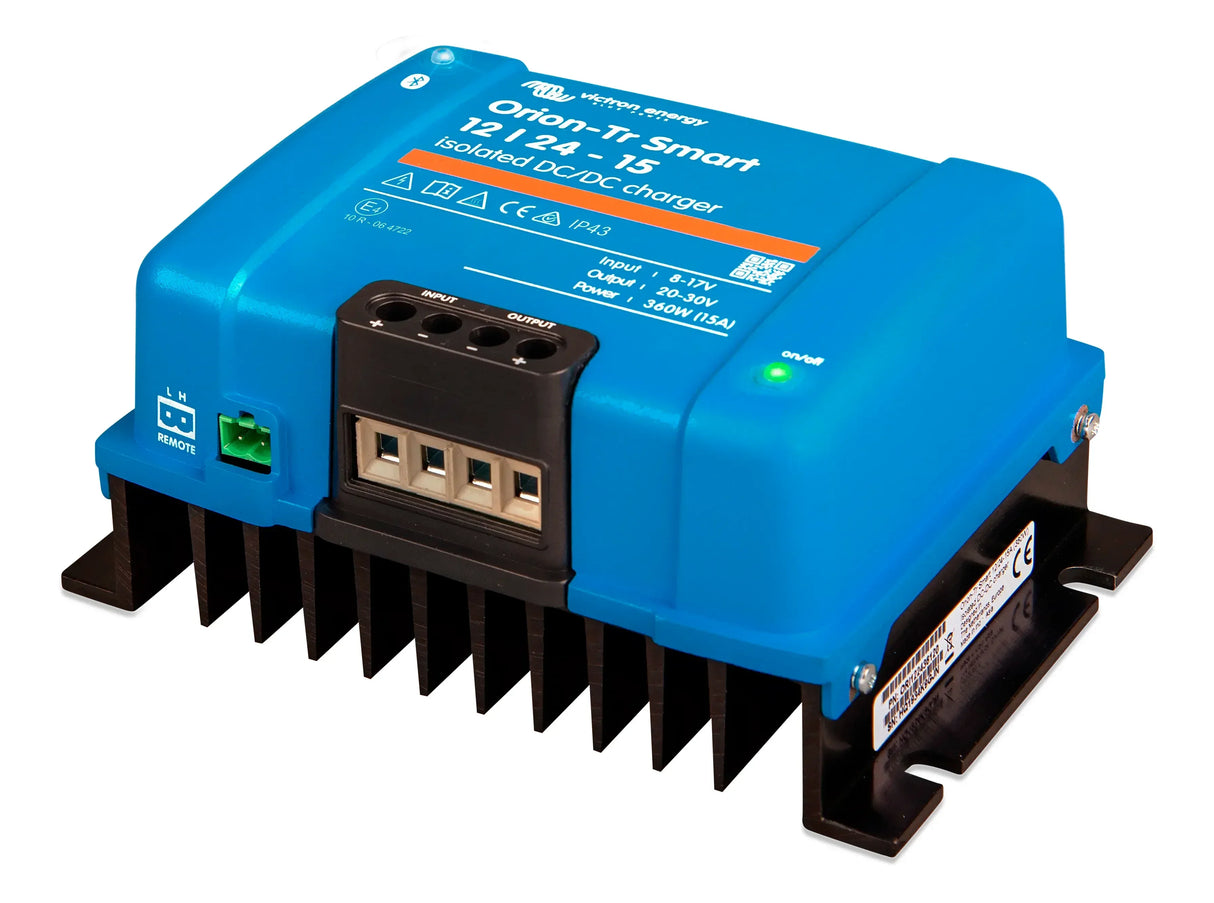

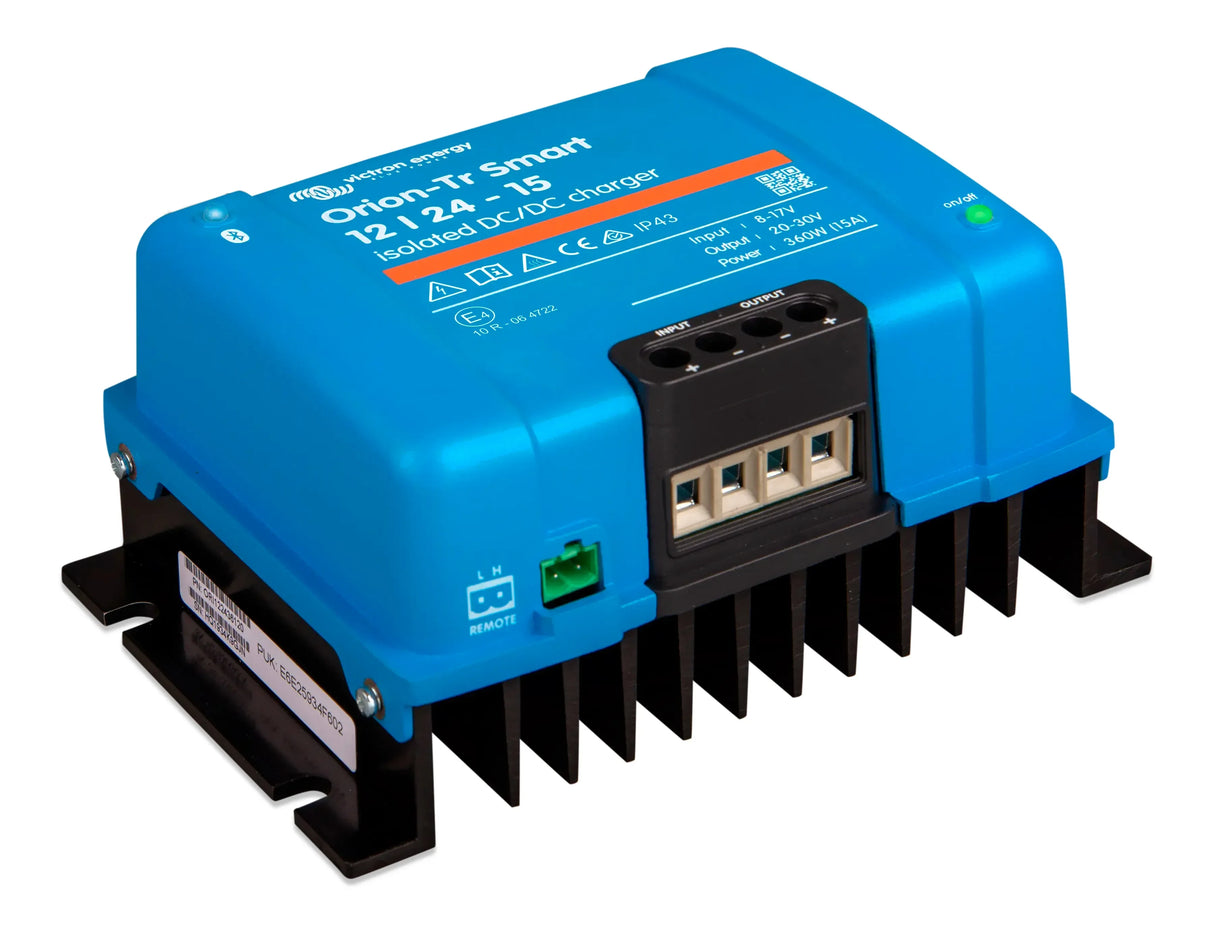

Victron Orion-Tr Smart 12/24V 15A DC-DC Charger
When you need a reliable and smart way to charge a 24V auxiliary battery from a 12V system, the Victron Orion-Tr Smart 12/24V 15A DC-DC Charger is an excellent choice. Compact yet powerful, this charger is designed for professional use, delivering precise, safe, and battery-friendly charging.
It features an adaptive 3-stage algorithm (Bulk – Absorption – Float) that adjusts to the battery’s condition to maximize lifespan. Compatible with both lead-acid and LiFePO₄ lithium batteries, it’s a versatile option for boats, motorhomes, and commercial vehicles.
Built-in Bluetooth makes it easy to monitor and configure the charger via the VictronConnect app from your phone or tablet. You can adjust charging voltages, set alarms, and toggle the charger on or off wirelessly.
Engine-run detection protects the starter battery by ensuring the auxiliary battery is only charged when the engine is running – especially important in lithium systems where consumption can exceed the alternator’s output.
Features:
• 3-stage adaptive charging algorithm
• Bluetooth with VictronConnect app support
• Compatible with lead-acid and lithium batteries
• For 12V → 24V systems
• Continuous output current: 15 A
• Rated power: 360 W
• Input voltage range: 8–17 V
• Adjustable output voltage: 20–30 V
• Efficiency: up to 88%
• Galvanic isolation: 200 V
• Operating temperature: –20 °C to +55 °C
• Full power up to 40 °C, then derating
• Dimensions: 130 x 186 x 70 mm
• Weight: 1.3 kg
Installation Note: Although compact, the unit has exposed terminals – always install in a splash-protected location. Not suitable for use with Rebelcell lithium batteries.
The Victron Orion-Tr Smart series is designed to meet the demands of modern electrical systems. If you're looking for a scalable, powerful, and fully configurable DC-DC charging solution, this is a dependable choice.
SAVE 32 €
Sale price
234,88 €
Regular price
267,39 €
Unit price /
Unavailable
Prices exclude VAT
