Raymarine Element 9 HV Multi-Function Display + HV-100 Transducer + Lighthouse map download

Knowledge is power! The new Raymarine Element series sonars provide extensive and detailed information from below the surface. Element series provides extremely accurate images using Hypervision 1.2 megahertz sonar technology. See fish, rocks, and vegetation in accurate detail, whether you are using the Downvision, Sidevision, or Realvision 3D view.

The package includes the new downloadable LightHouse map! You can choose your preferred map in Raymarine's online service following the included instructions. You can choose from such regions as Finland, Sweden, Denmark, Norway, Germany, France, Great Britain, Netherlands, or Italy. Further information on the map regions is available on the Raymarine website or through product support.

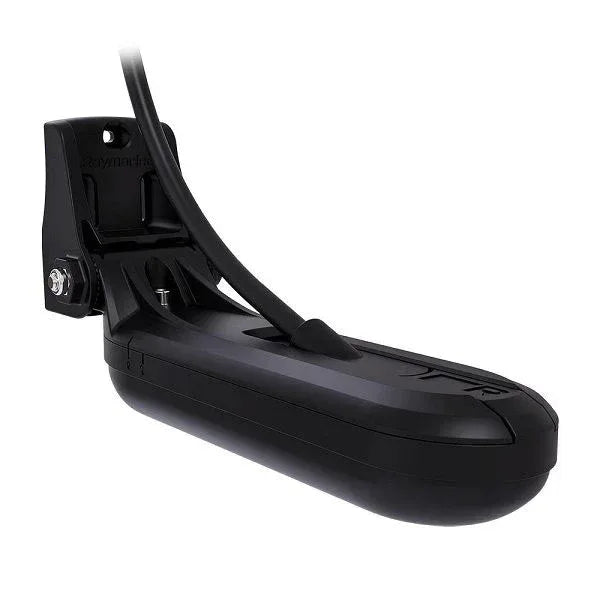

This bundle includes the new compact HV-100 all-in-one transom-mount transducer.

Transducer specifications:

• 1.2 MHz HyperVision Side/DownVision up to 40 meters
• 350 kHz Side/DownVision up to 183 meters
• 200 kHz High Chirp fish sonar up to 277 meters
• RealVision 3D view

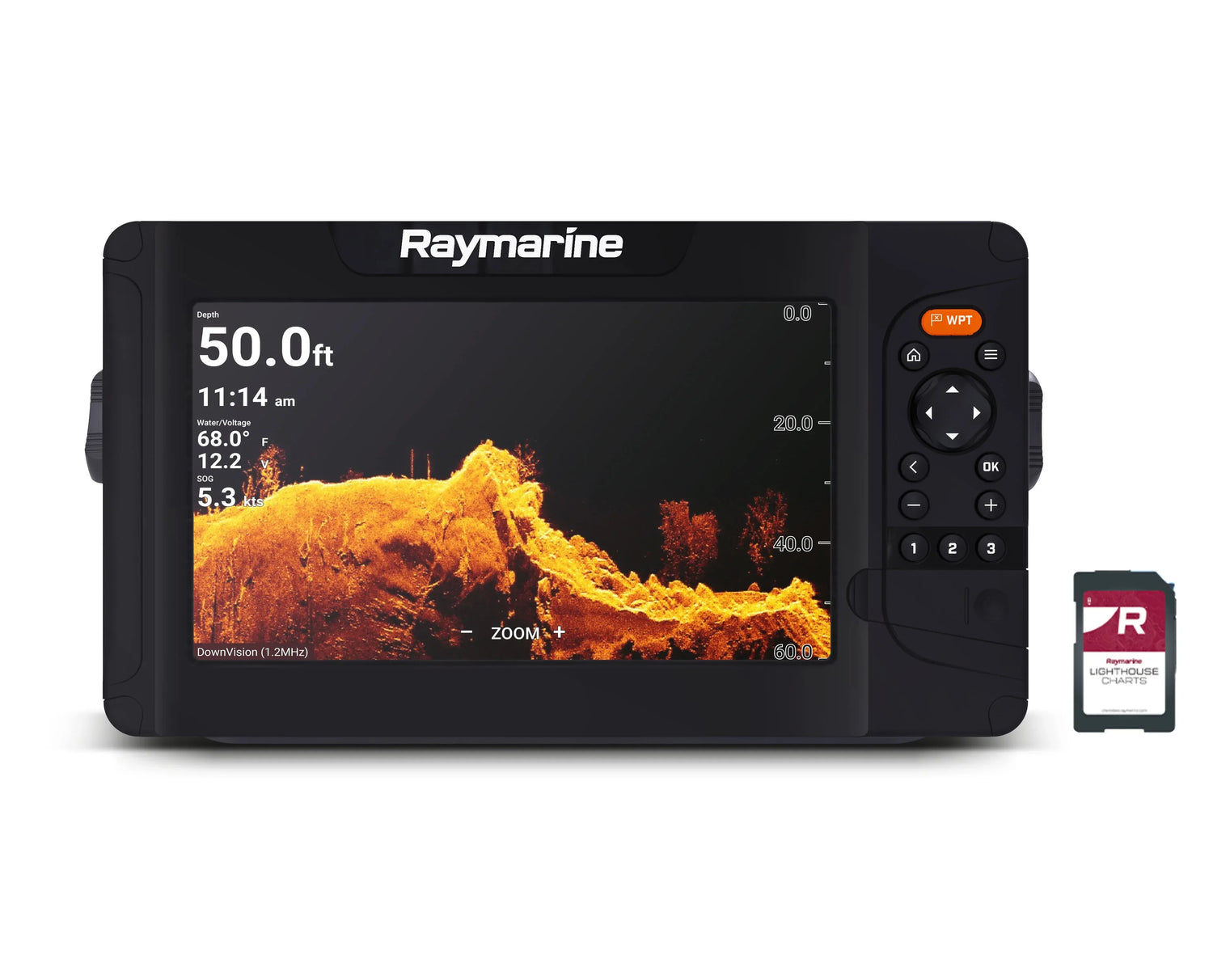

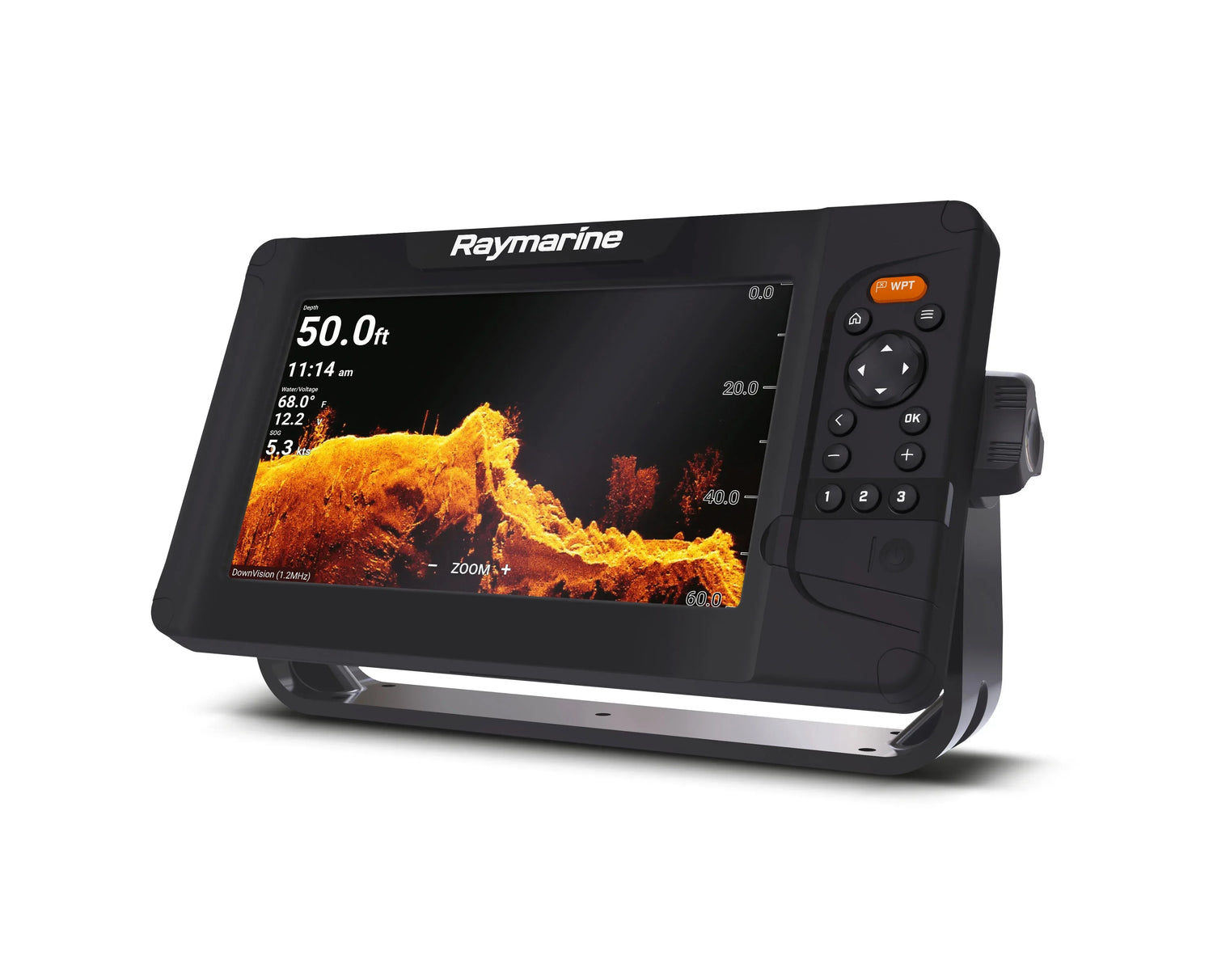

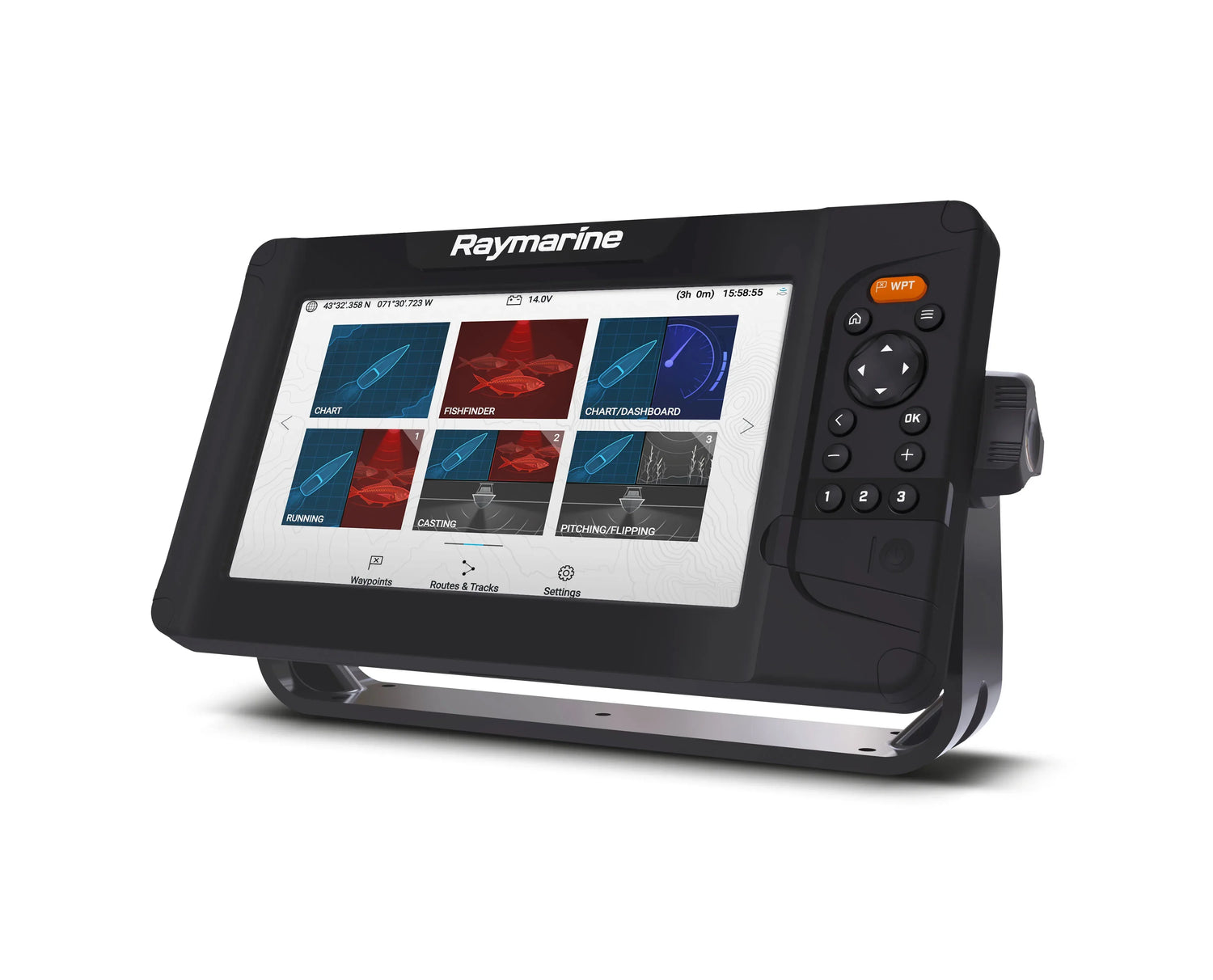

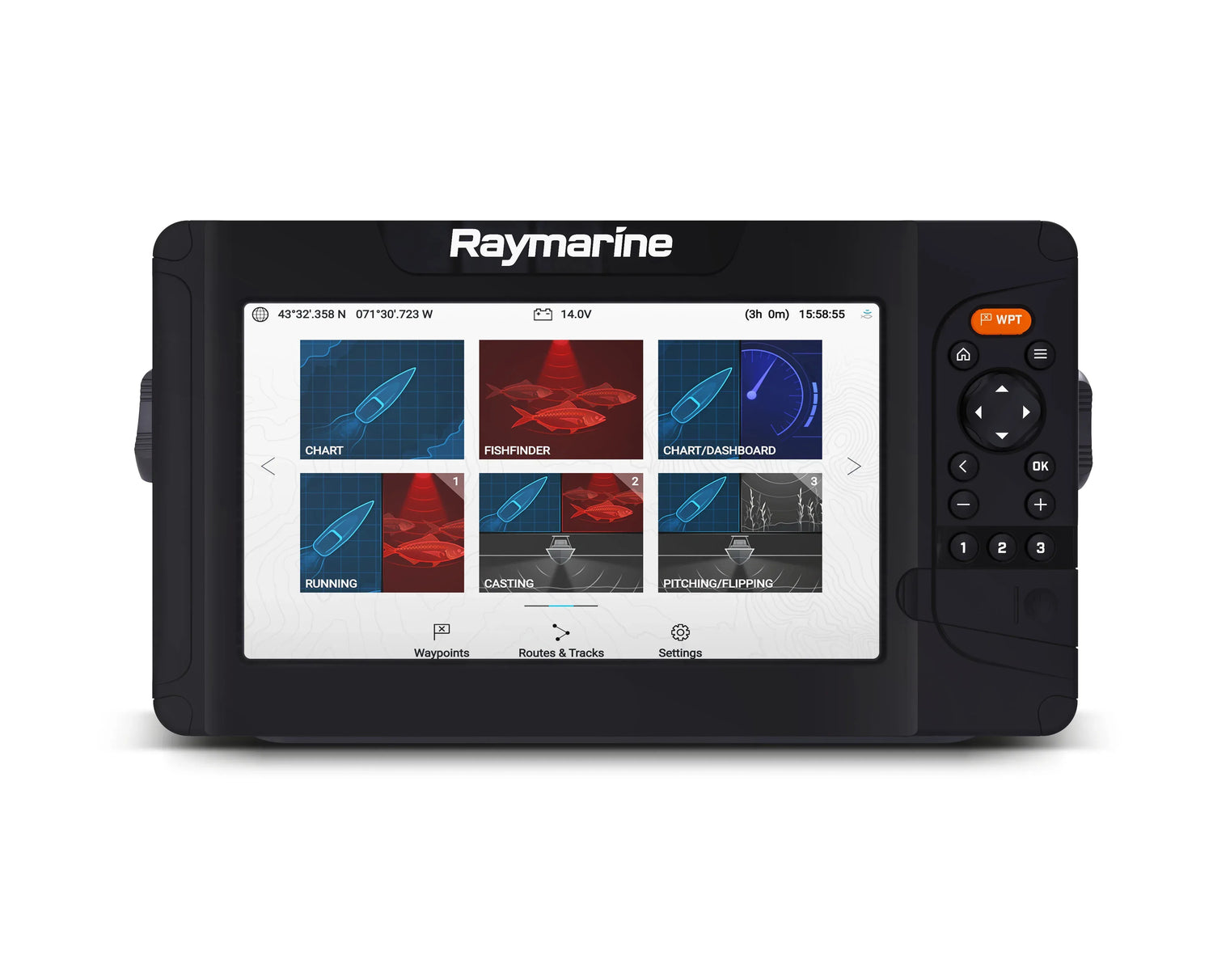

Multi-Function Display specifications:

• HyperVision, HV = direct connection to HV transducers.
• Ultra fast quad-core processor ensures smooth transitions in menus and on the map
• Three programmable buttons provide shortcuts to your most used pages
• NMEA2000 network for motor data, autopilot control, VHF
• Includes the new compact HV-100 all-in-one transom-mount transducer (6 meter cable)
• HyperVision™ CHIRP sonar offers the following: 1.2 MHz HyperVision Side/DownVision (40 m) - 350 kHz Side/DownVision (183 m) - 200 kHz High Chirp fish sonar (277 m) - RealVision 3D view
• RealBathy™ function allows you to create depth contour charts on empty memory cards


Technical specifications:

• 9.0" LCD, 800 x 480 WVGA
• Device dimensions: 287 x 161 x 62 mm
• Approx. weight 2.2 kg
• IPx6 and IPx7 protection
• 12V DC (8V to 16V DC), (max 12V DC) 20 W
• Built-in GPS/GLONASS
• CHIRP, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
• 15-pin HyperVision™ connection
• NMEA2000 ,1 x NMEA2000 port (DeviceNet microC), NMEA 2000 Networking
• Wi-Fi 802.11 b / g / n
• Bluetooth 4.0
• Compatible with the following maps, for example: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+


Included in the package:
New downloadable LightHouse map!
Element 9 HV display
power cable
HV-100 4-in-1 transom-mount transducer
Sunscreen (screen protector)

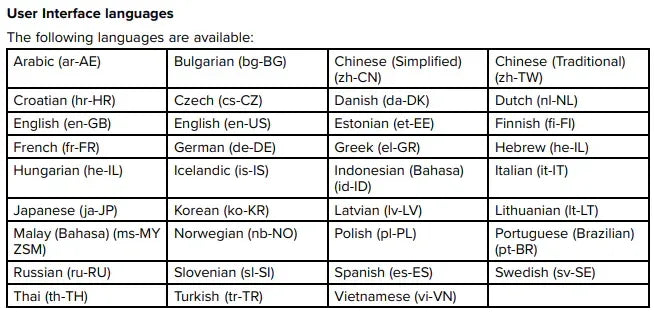

Languages: Finnish, Swedish, English, Russian, Bulgarian, Danish, French, Icelandic, Korean, Brazilian, Chinese, Dutch, German, Italian, Norwegian, Turkish, Arabic, Croatian, Greek, Japanese, Polish, Spanish
