Raymarine Element 12 S Combo Device w/out transducer + Northern Europe map

With the Raymarine Element 12 S combi device, you can freely enjoy open waters. Just choose your destination and let Element's fast and accurate 10 Hz GPS/GNSS guide you safely to your destination. Raymarine Element S is designed to provide simple, reliable, and affordable performance. The powerful quad-core processor offers quickly responsive performance, and Element's sunlight-viewable display provides map and navigation information in beautiful colors. Element S helps you stay on the right course with numerous user-friendly features, such as target AIS overlay, autopilot integration, and sailing instrument displays.

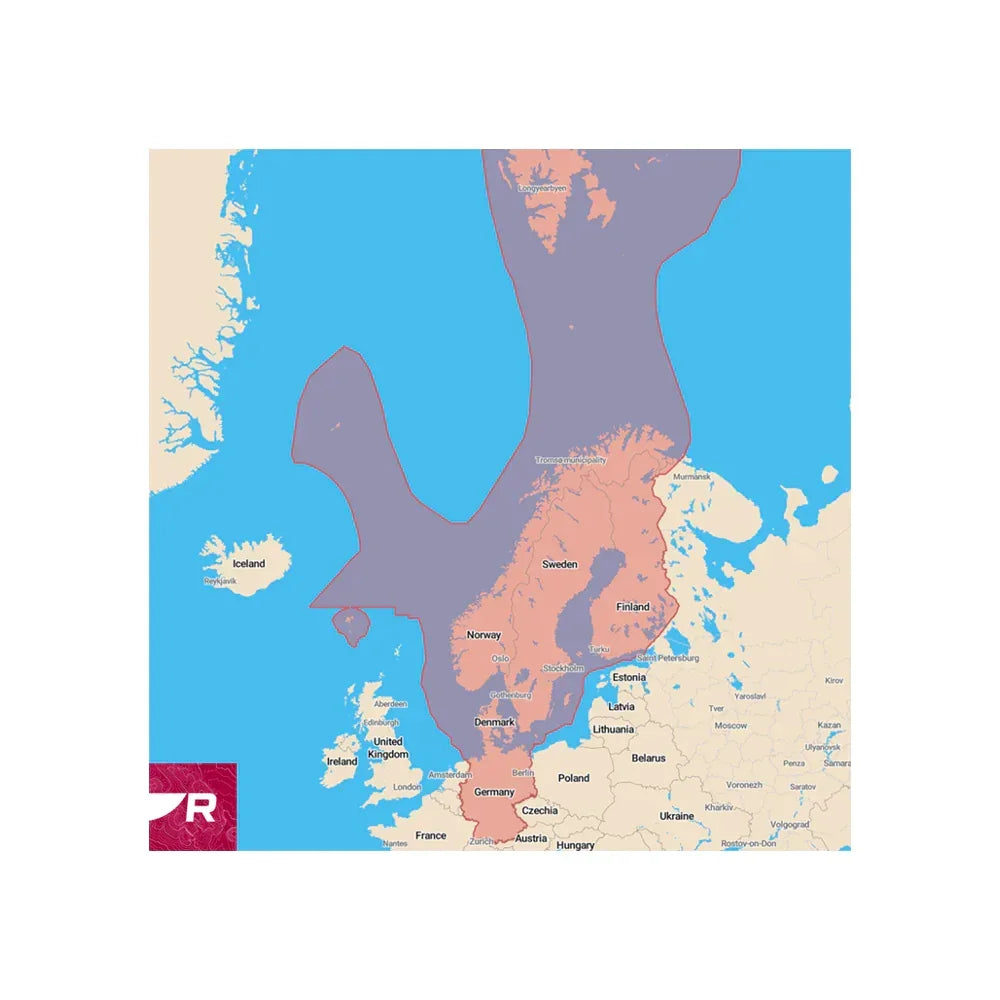

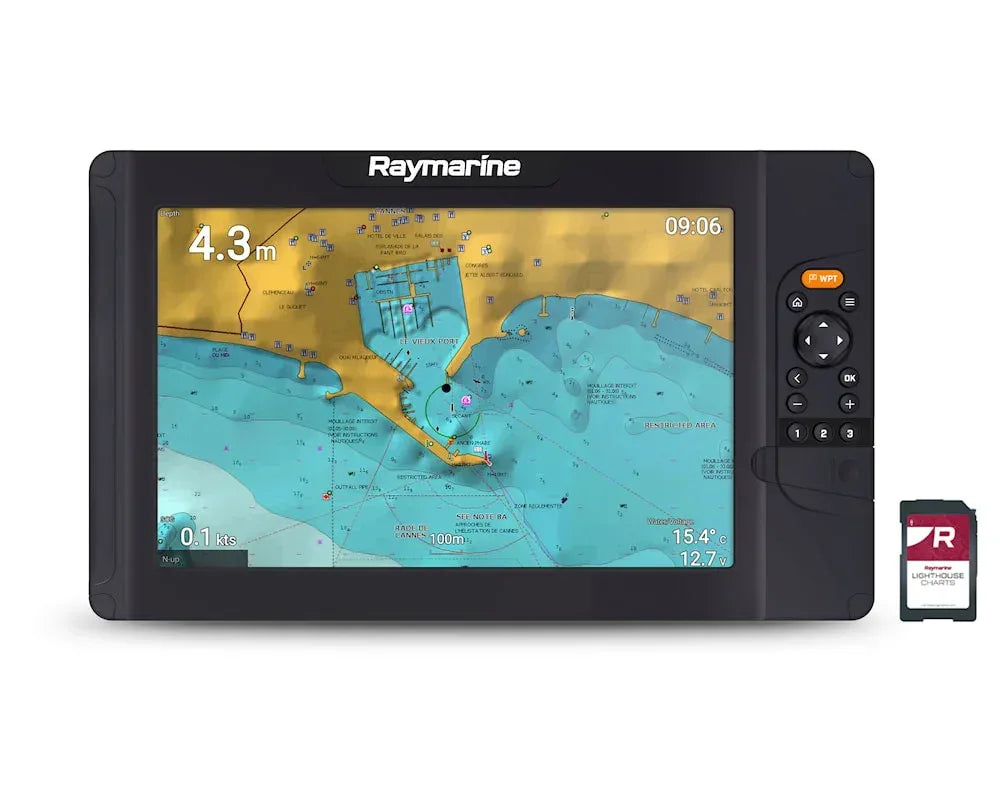

Includes the Northern Europe LightHouse chart card!
• The card comes preloaded with the entire Northern Europe region! (Estonia, Latvia, Lithuania, and Poland will be included in the spring 2023 map update)
• Made from official chart data
• Save your own depth contours using the RealBathy feature
• Customize the size of chart objects smoothly

Thanks to the simple LightHouse Sport OS interface, using the device is easy and straightforward. It can be easily tailored to your preferred boating style, whether it's sailing, motorboating, or fishing. The large waypoint button allows you to quickly and easily mark your favorite spots. With three programmable shortcut keys, you can access your favorite pages with a single press. Live menus allow you to customize maps while seeing real-time changes on the navigation display.

Note! Does not include a transducer, must be purchased separately. Compatible transducer: Raymarine CPT-S.

Features:
• Highly bright display for all weather conditions
• Leading quad-core processor enables instant chart updating and responsive performance
• Fast and accurate 10 Hz GPS/GNSS antenna
• Durable construction and Raymarine's three-year warranty (requires product registration)
• Supports Raymarine LightHouse™, Navionics, and C-MAP charts
• Navigates safely on busy waterways with optional wireless Quantum™ radar and AIS receiver

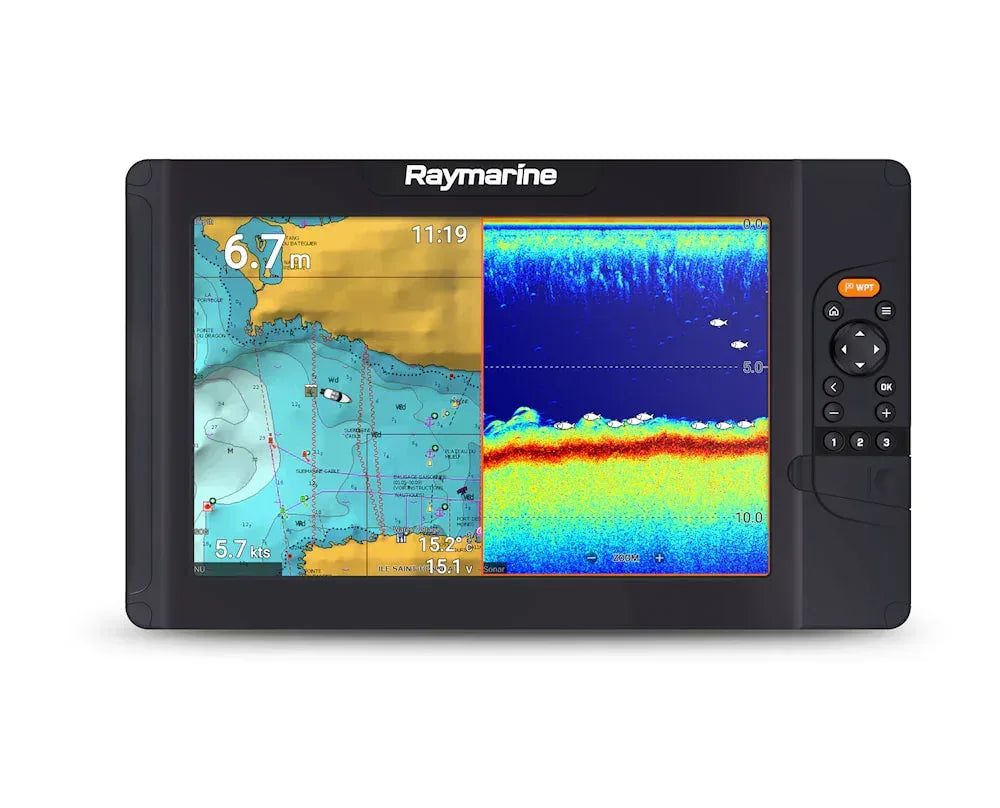

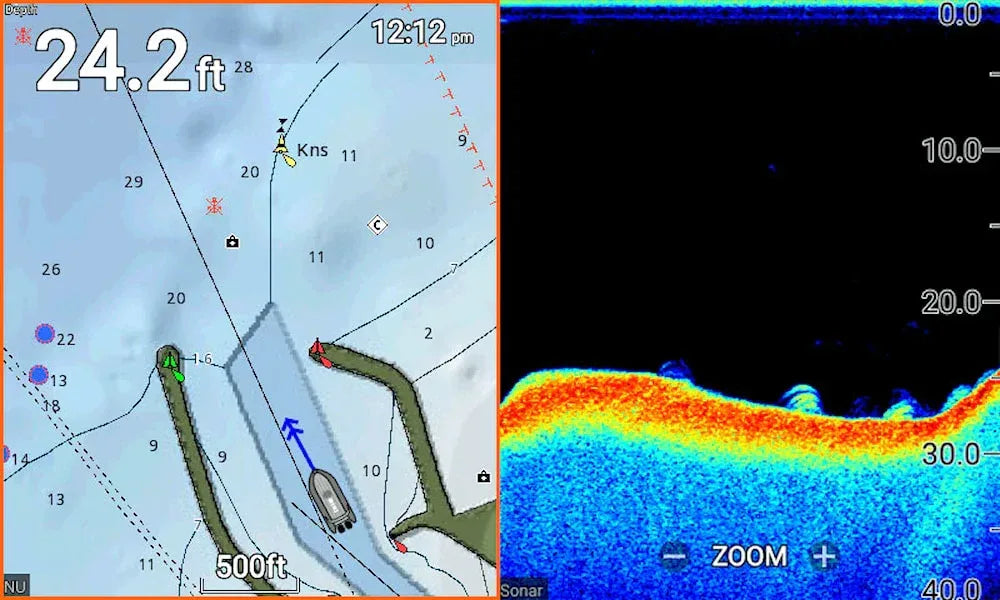

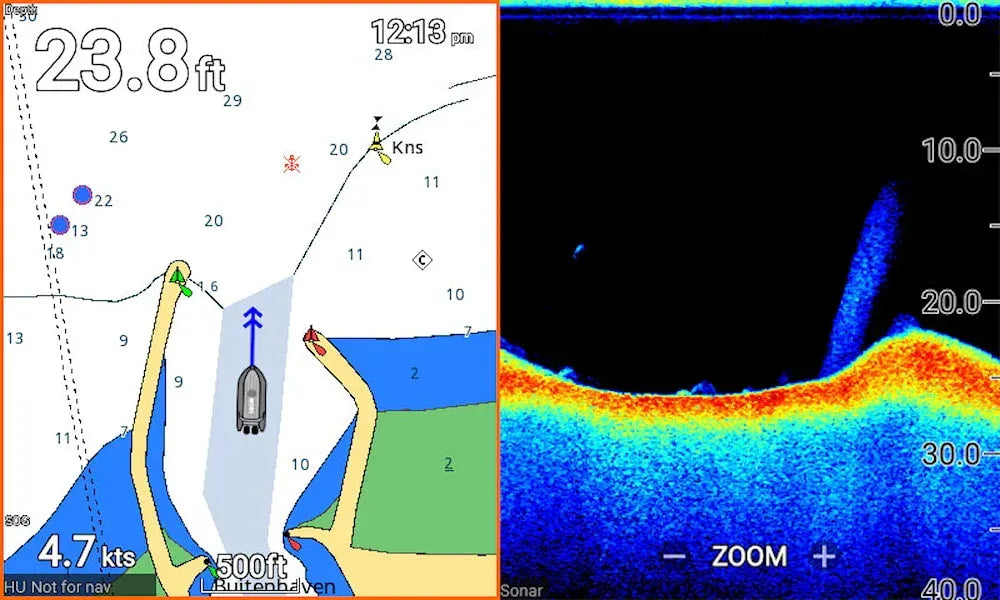

• Built-in High CHIRP sonar for depth and bottom contour imaging
• Map uncharted areas with personal Raymarine RealBathy™ sonar charts

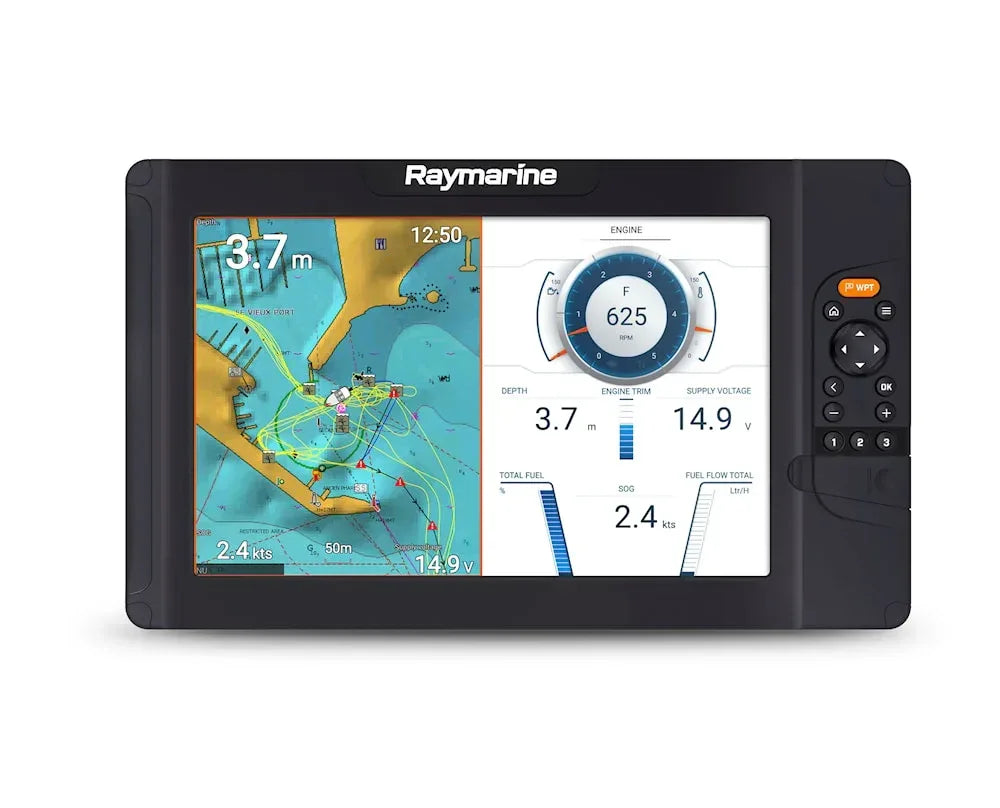

• Connects to NMEA2000-compatible AIS receivers, autopilots, sailing instruments, engines, tanks, and VHF radios

Technical Specifications:
• Voltage: 12 V DC (8–16 V DC)
• Power Consumption (max. 12 V DC): 25 W
• Display Size: 12.0-inch optically bonded LCD
• Display Resolution: 1280 x 800 WXGA
• Brightness: 1,500 nits
• Display Type: Non-touchscreen
• Overall Dimensions: 357 x 215 x 62 mm (L x H x D)
• Product Weight (lbs): 6.5
• Waterproofing: IPX6 and IPX7
• GNSS/GPS: Built-in GPS/GLONASS
• Sonar Type (built-in): Single channel High CHIRP sonar with 9-pin connector. Supports CPT-S transom-mount and through-hull transducers.
• Sonar Depth: CHIRP sonar = 274 m (900 feet)
• Radar: Wireless Quantum CHIRP compatible, Wi-Fi only
• Doppler Radar: Not applicable
• MARPA: Not applicable
• NMEA2000: 1 NMEA2000 port (DeviceNet microC)
• Supported NMEA2000 network features: INPUT: NMEA2000-compatible engines (max 2) | NMEA2000-compatible tank sensors (max 4) | Heading sensor (for chart stabilization)
• OUTPUT: GPS (for VHF and DSC emergency messages) Waypoints, routes, and XTE for autopilot. Sharing waypoints and route between Element displays
• SeaTalkng: A06045 DeviceNet adapter cable, female, 400 mm, required
• Wi-Fi: Wi-Fi - 802.11 b/g/n
• Charts: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, and C-MAP 4D MAX+ and compatible with all charts listed in the Raymarine chart store.
• External Memory: 1 microSD card slot

Languages: Finnish, Swedish, English, Russian, Bulgarian, Danish, French, Icelandic, Korean, Brazilian, Chinese, Dutch, German, Italian, Norwegian, Turkish, Arabic, Croatian, Greek, Japanese, Polish, Spanish
