Raymarine CAM400 HD mini IP Marine Camera

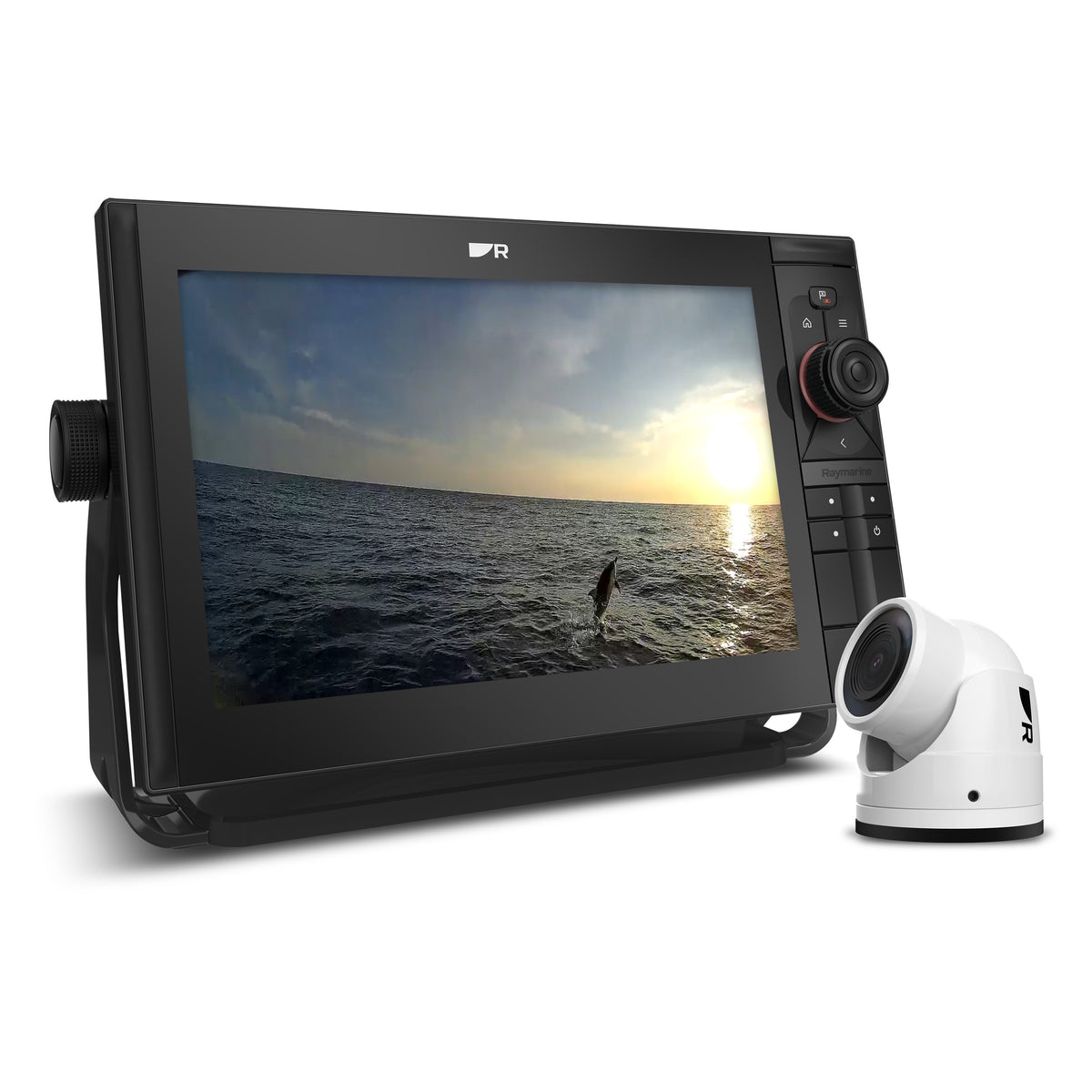

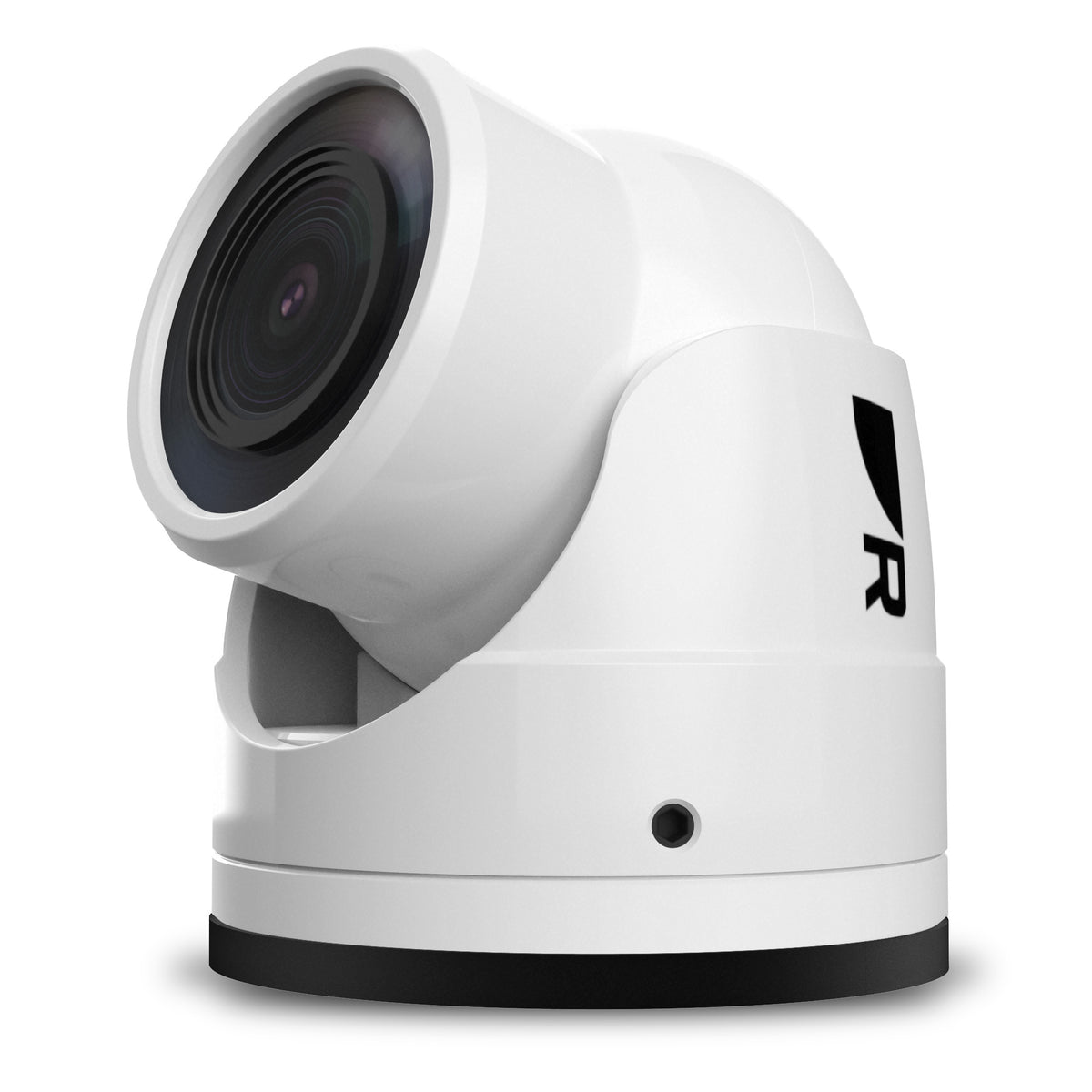

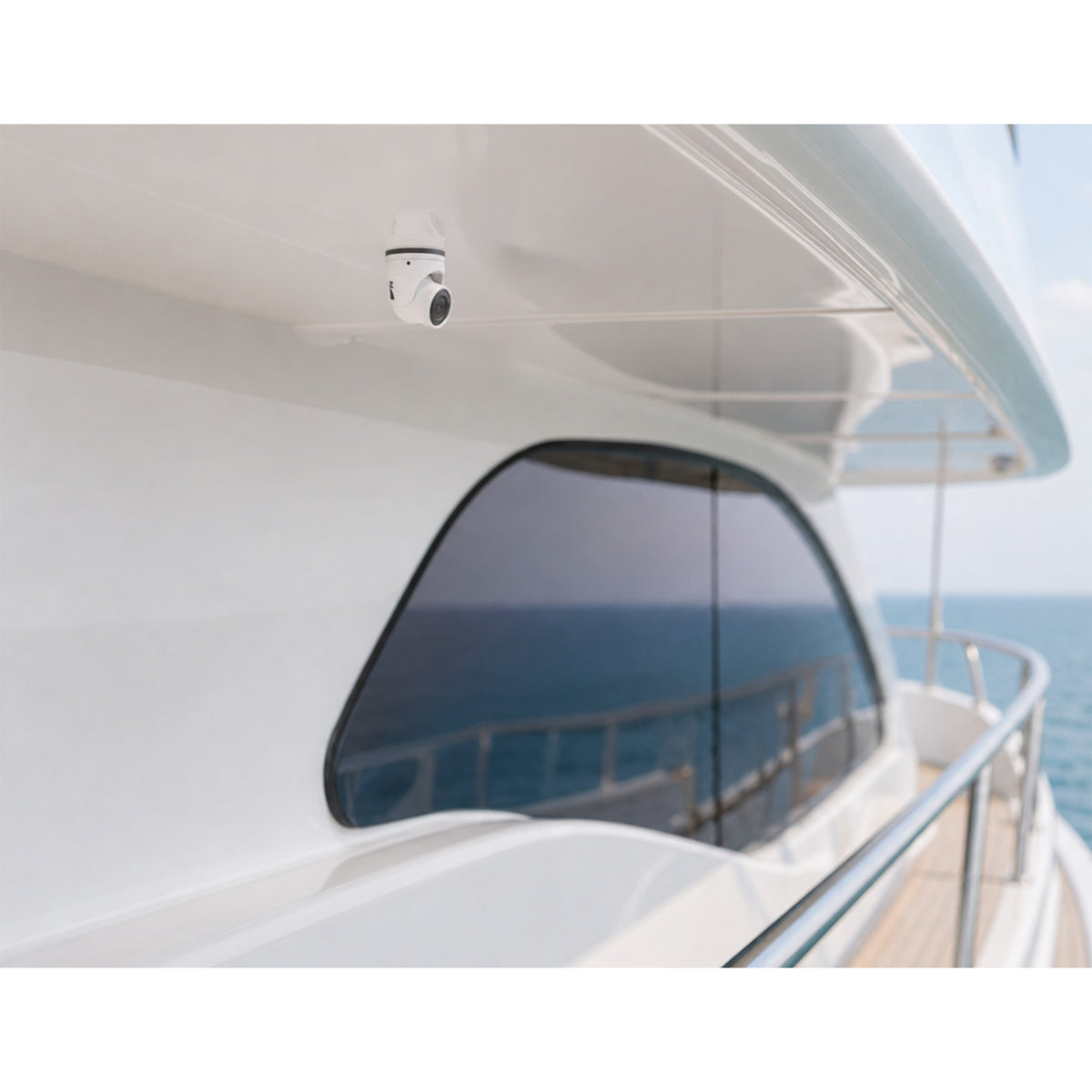

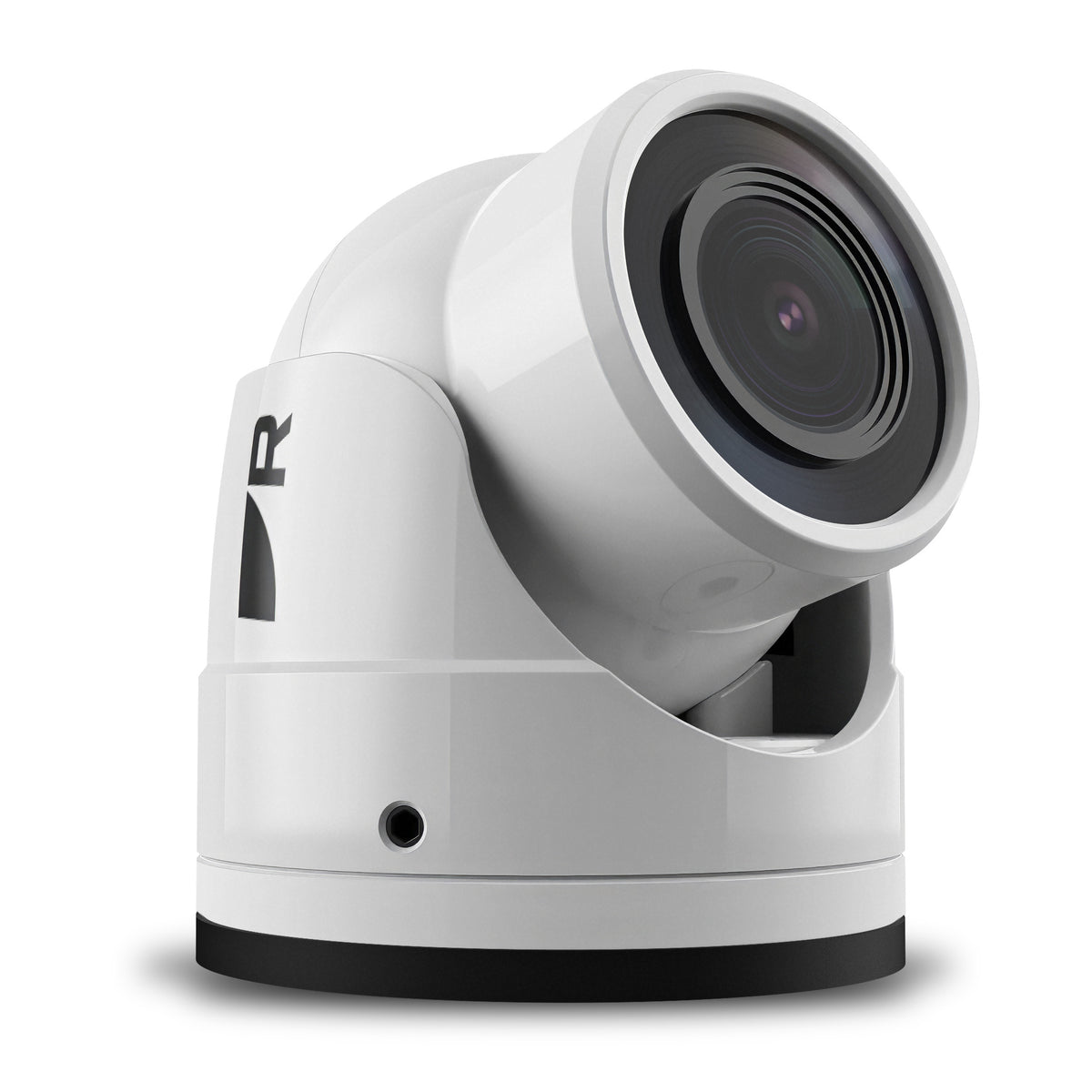

Raymarine CAM400 HD Mini IP Marine Camera is a compact boat camera that gives you a direct view of blind spots around your boat on a Raymarine Axiom or Axiom 2 chartplotter. Full HD video and a wide field of view make docking easier and allow you to monitor the deck, passengers and boat interior. Built-in infrared illumination means the camera can also be used in low-light conditions and darkness. Wide field of view day and night The 129.4-degree horizontal field of view covers a large area in front of the camera, allowing you to monitor areas such as the stern or your direction of travel from the helm. The camera delivers a resolution of 1920 x 1080 pixels, while the infrared illumination has a range of 10 metres. The CAM400 is suitable for permanent installation both above and below deck. Flexible installation in an Axiom system The camera can be powered either via PoE through the Ethernet cable or with a separate 12 V DC power supply. Image mirroring and rotation functions make it easier to install the camera in different positions. Raymarine CAM400 HD Mini IP Marine Camera can be used as a standalone camera or as part of a multi-camera system, while support for multiple video streams allows the camera feed to be viewed on network-connected devices. Can be expanded with augmented reality With the Raymarine AR200 sensor, sold separately, AIS targets, waypoints and chart information can be overlaid on the camera image on a compatible Axiom display. This function requires the camera and display to be connected to the same RayNet network, with the AR200 sensor connected to the same SeaTalk NG network as the display. The display must be running LightHouse 4 or LightHouse 5, software version 4.11.133 or later. Features: • Fixed-mount HD IP marine camera • Compatible with Raymarine Axiom and Axiom 2 chartplotters • Suitable as a docking aid and for monitoring blind spots and areas around the boat • Full HD resolution: 1920 x 1080 pixels • 1/2.8” CMOS image sensor, 2.07 megapixels • Field of view: 129.4° horizontal, 69.9° vertical and 153.6° diagonal • Built-in 850 nm infrared illumination, range 10 m • Adjustable frame rate: 1–30 fps • Three video streams, supports H.264 and MJPEG • Supports ONVIF Profile S • Image mirroring and rotation functions for different installation positions • Power supply: 12 V DC or PoE, IEEE 802.3af Type 1 Class 2 • Nominal power consumption: 2.1 W; maximum power consumption with infrared illumination: 5 W • Water rating: IPX6 and IPX7 • Operating temperature: -20 °C to +60 °C • Dimensions: height 80.8 mm, width 64.5 mm and depth 70.48 mm • Weight: 420 g • Augmented reality functions with a separate AR200 sensor and compatible Axiom system
