Raymarine AXIOM 2 12" Combo Device w/out Transducer + Northern Europe Map

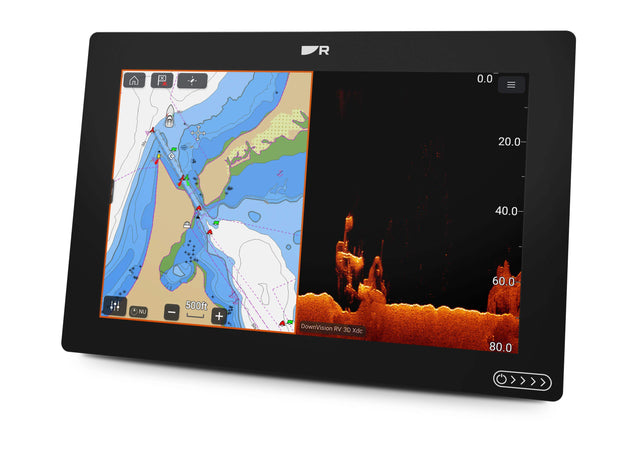

Raymarine AXIOM 2 12" Combo Device w/out Transducer + Northern Europe Map is a powerful and flexible solution for those who want to combine navigation and sonar in a system tailored to their own needs. The large 12-inch display provides maximum overview of charts, routes, and sonar views.

The six-core processor combined with the LightHouse operating system delivers very fast and smooth performance. Browsing charts, planning routes, and managing different views happens without delay, improving both overview and comfort on the water.

The included Northern Europe map makes the unit ready to use immediately. You get detailed charts of waters in Sweden, Finland, and nearby areas without additional purchases, making it suitable for both inland and coastal use.

The high-quality IPS touchscreen with 1800 nits brightness provides excellent visibility even in strong sunlight. The HydroTough™ surface repels water and ensures reliable operation even in wet conditions.

Features:
• 12" IPS touchscreen (1280 × 800), brightness 1800 nits
• Includes Northern Europe Map
• LightHouse OS – fast and easy-to-use interface
• Six-core processor
• Built-in GPS (GPS, GLONASS, BeiDou)
• 64 GB internal memory + microSD card slot
• RayNet Ethernet (10/100/1000 Mbit)
• Wi-Fi and Bluetooth
• NMEA 2000 compatible
• Waterproof rating: IPX6 / IPX7
• Operating temperature: -25°C – +55°C

Sonar support (transducer required):
• RealVision 3D: 70 W / 350 kHz
• SideVision: 70 W / 350 kHz
• DownVision: 35 W / 350 kHz
• CHIRP High: 100 W / 200 kHz
• Traditional sonar: 50/200 kHz (600 W, requires separate transducer and adapter cable)

Compatibility and expansion:
• Compatible with Raymarine radar, sonar, and cameras
• Supports engine data (e.g. Mercury, Yamaha, Suzuki)
• Supports over 30 apps
• Route planning and synchronization via mobile app over Wi-Fi

Package includes:
• AXIOM 2 12" Combo Device
• Northern Europe Map
• Mounting bracket and hardware
• Sun cover
• Gasket for flush mounting
• Power cable and NMEA 2000 cable
• Documentation
