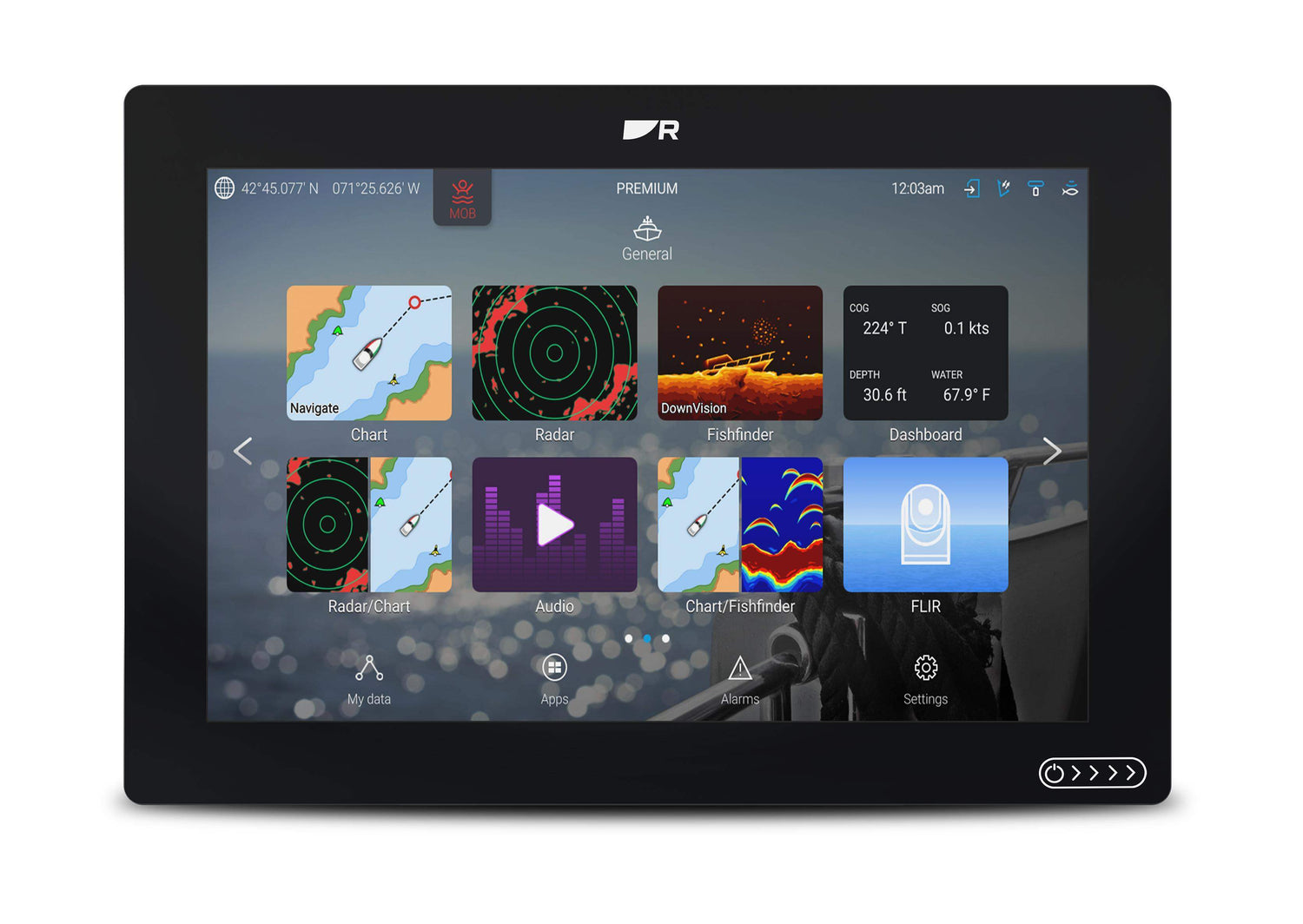

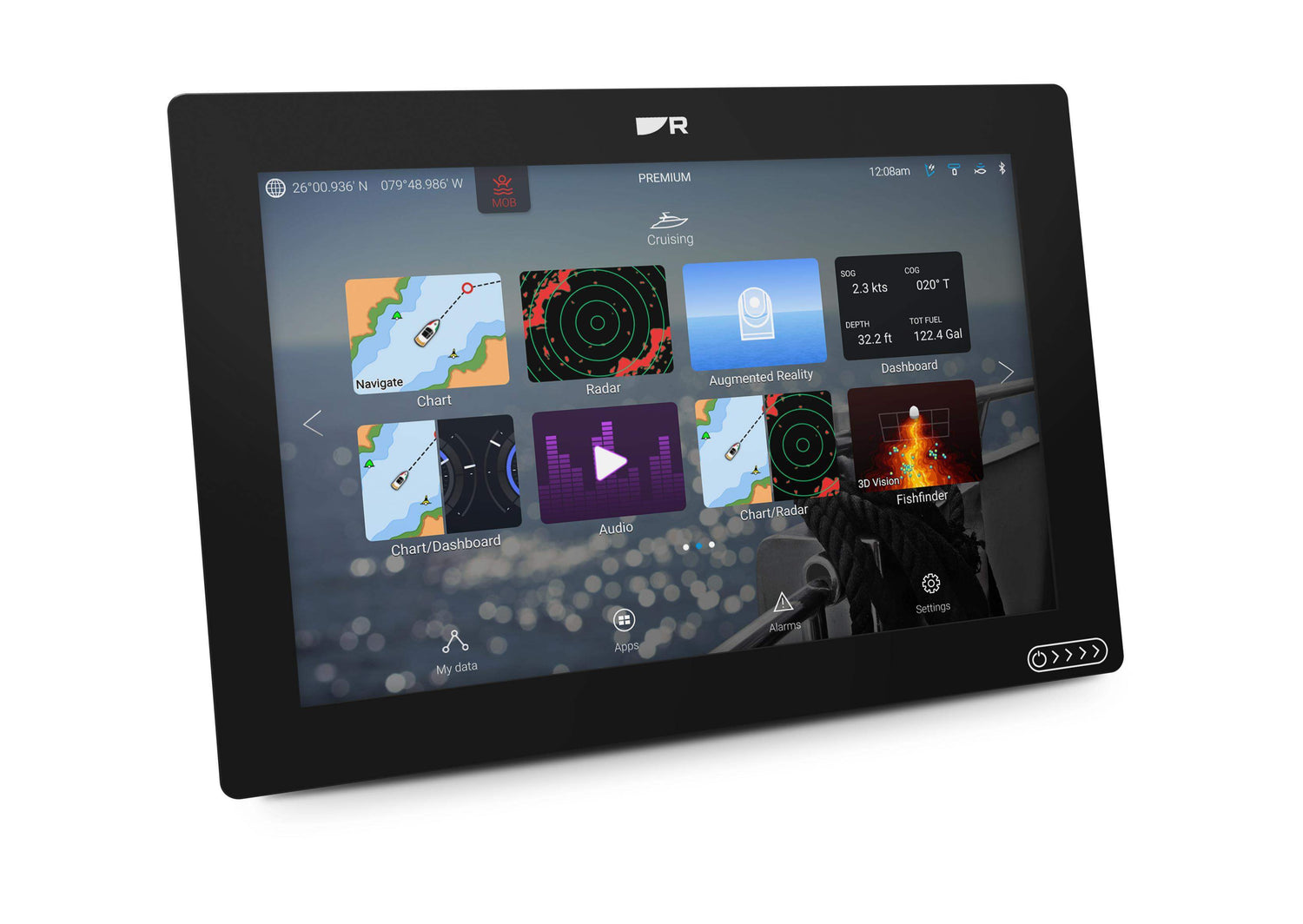

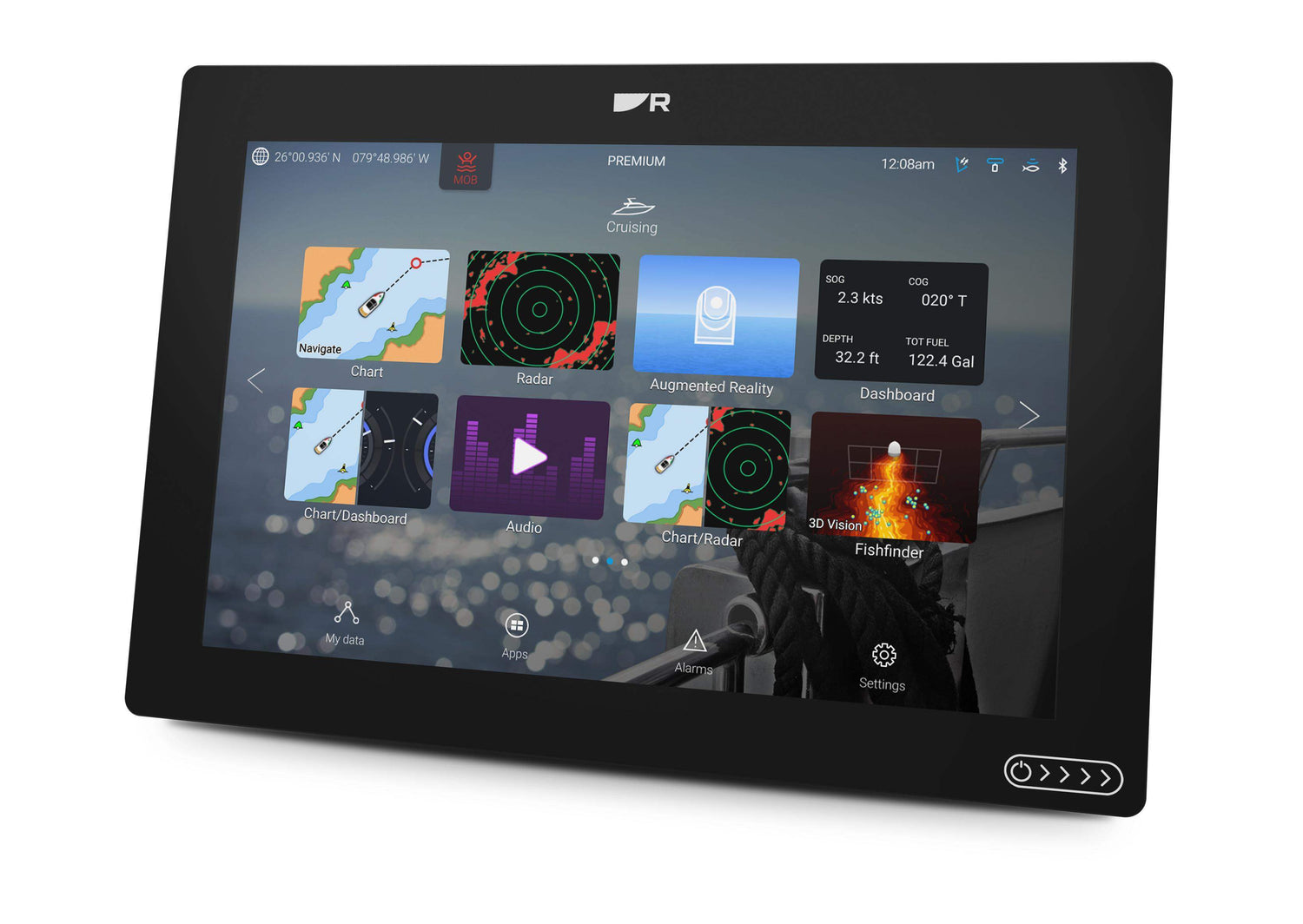

Raymarine AXIOM 2 12" Combo Device w/out Transducer

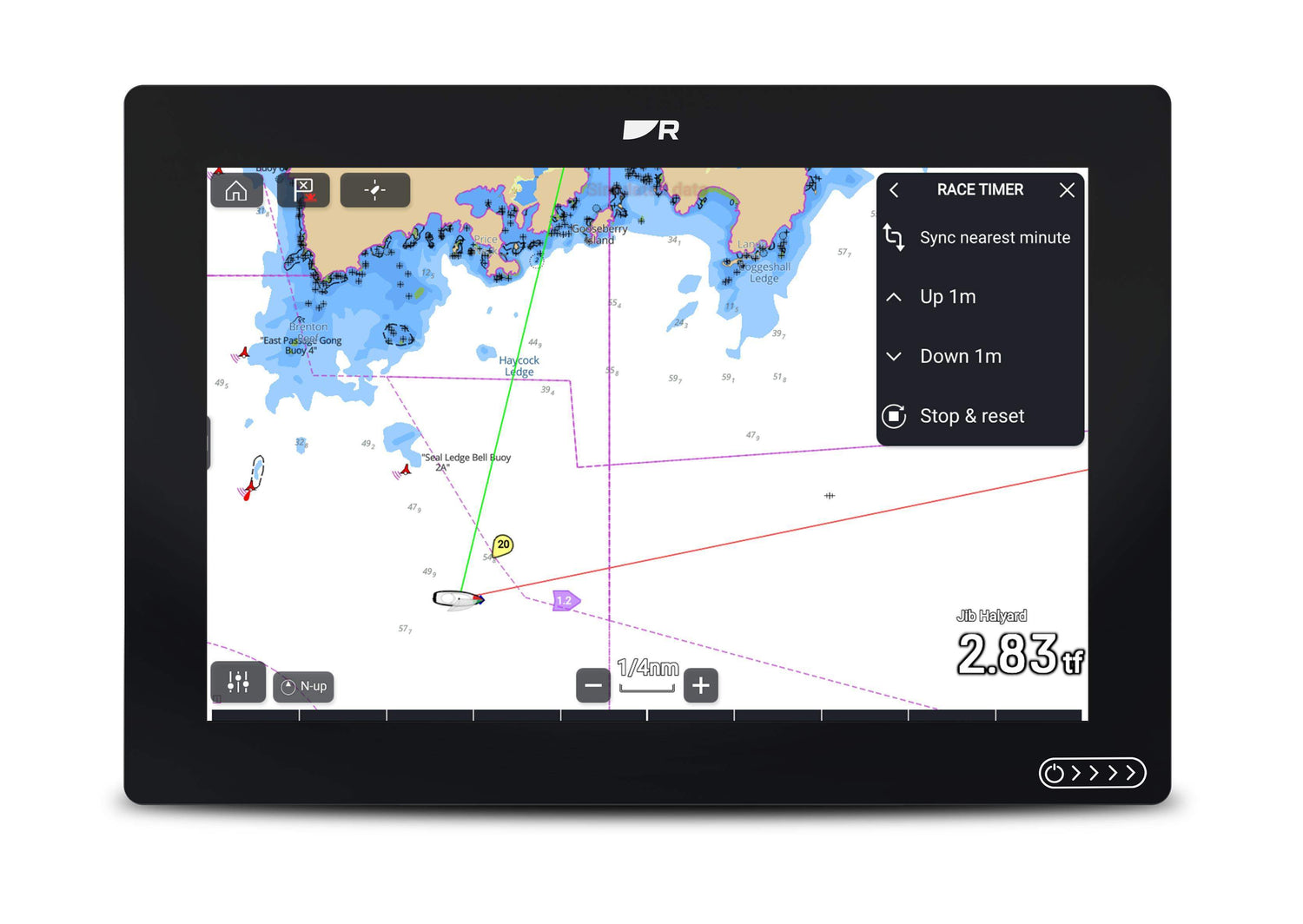

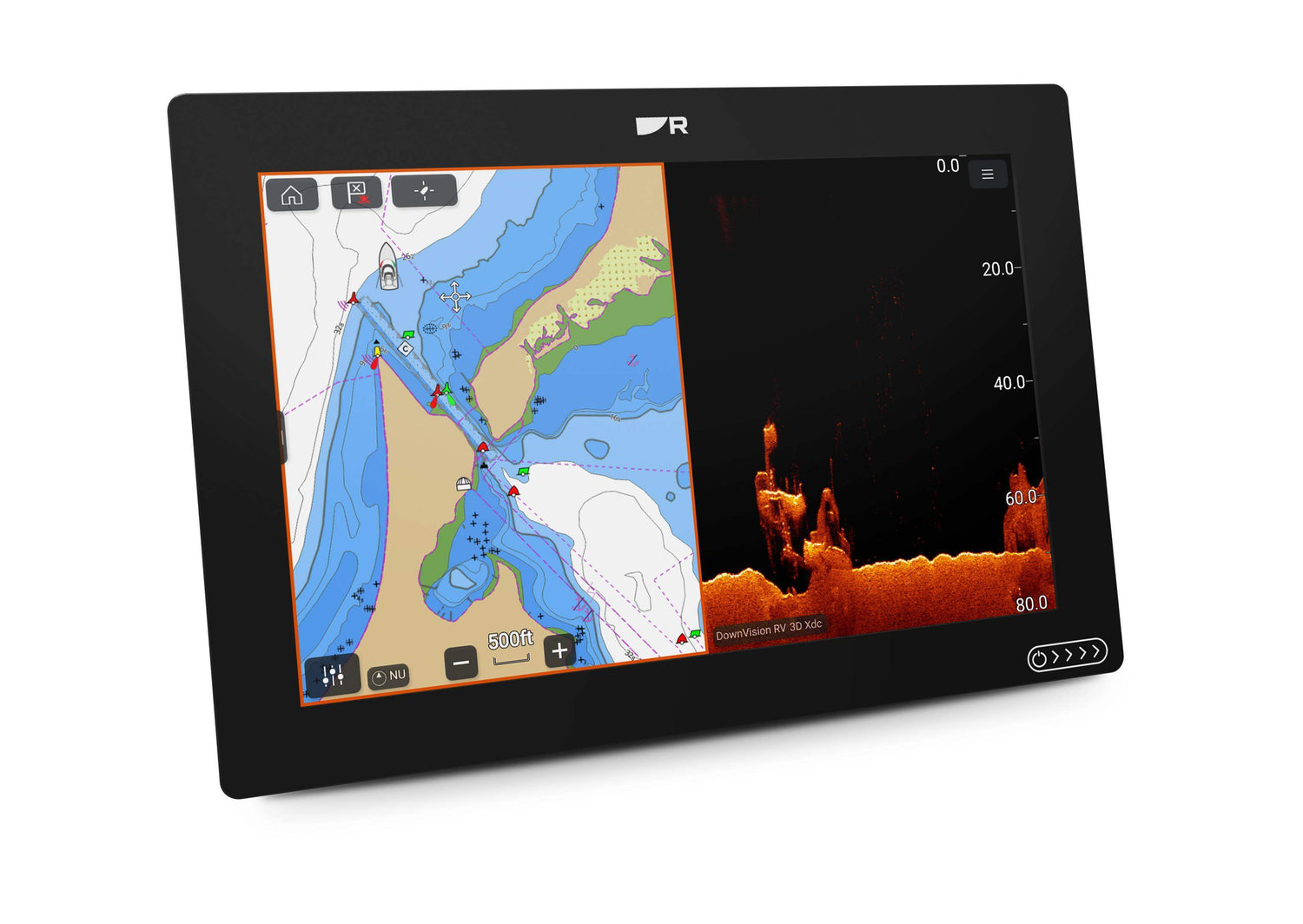

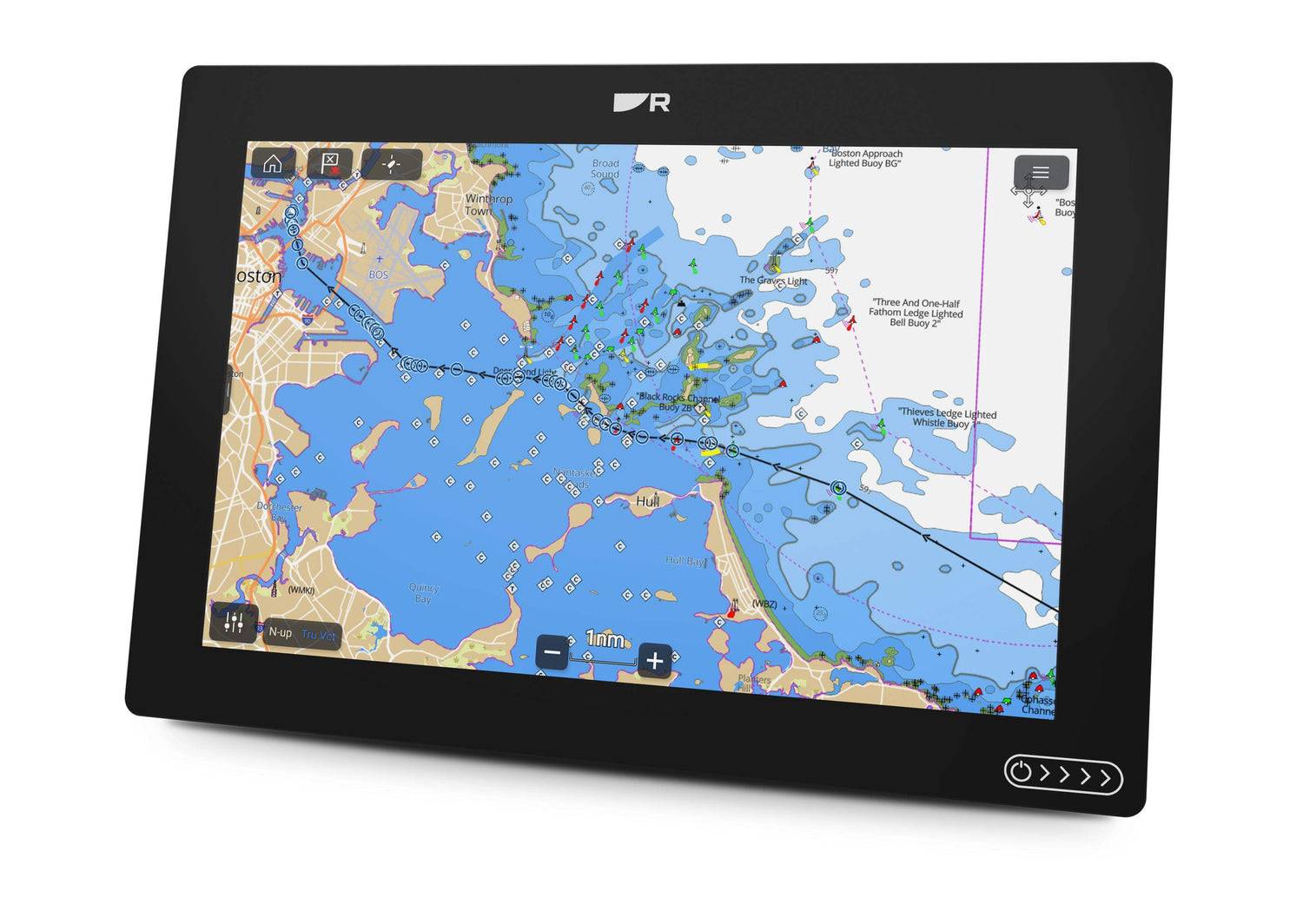

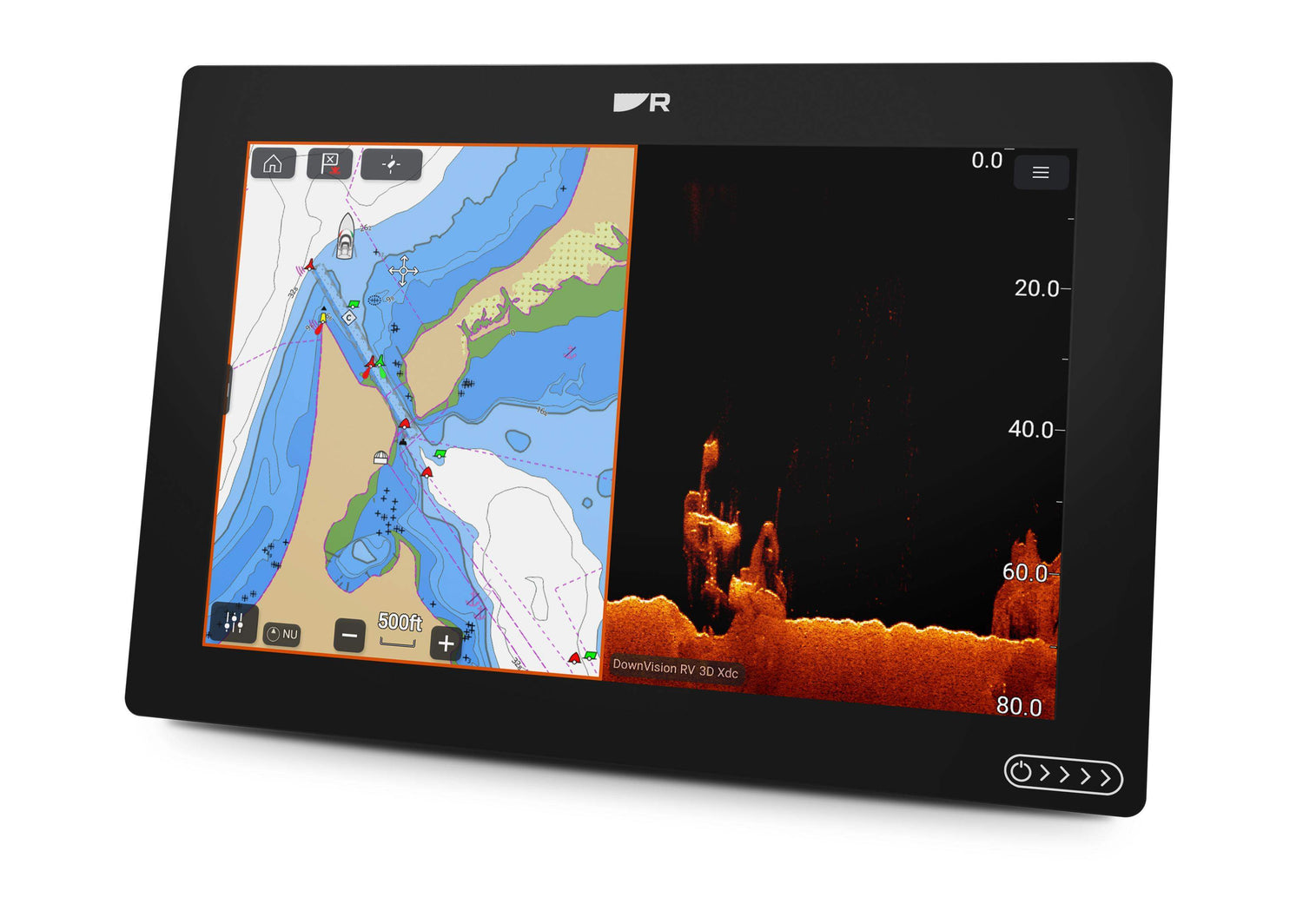

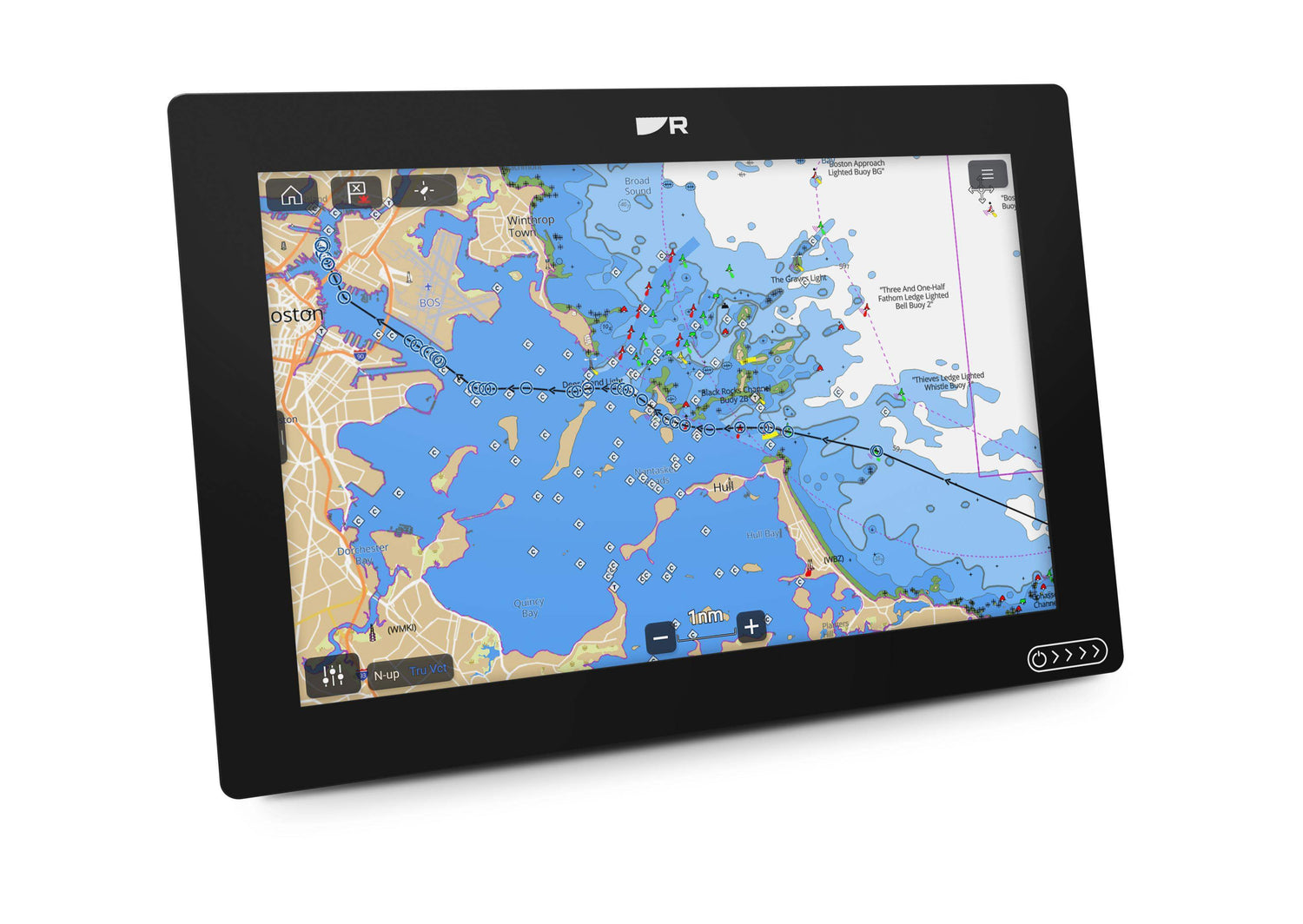

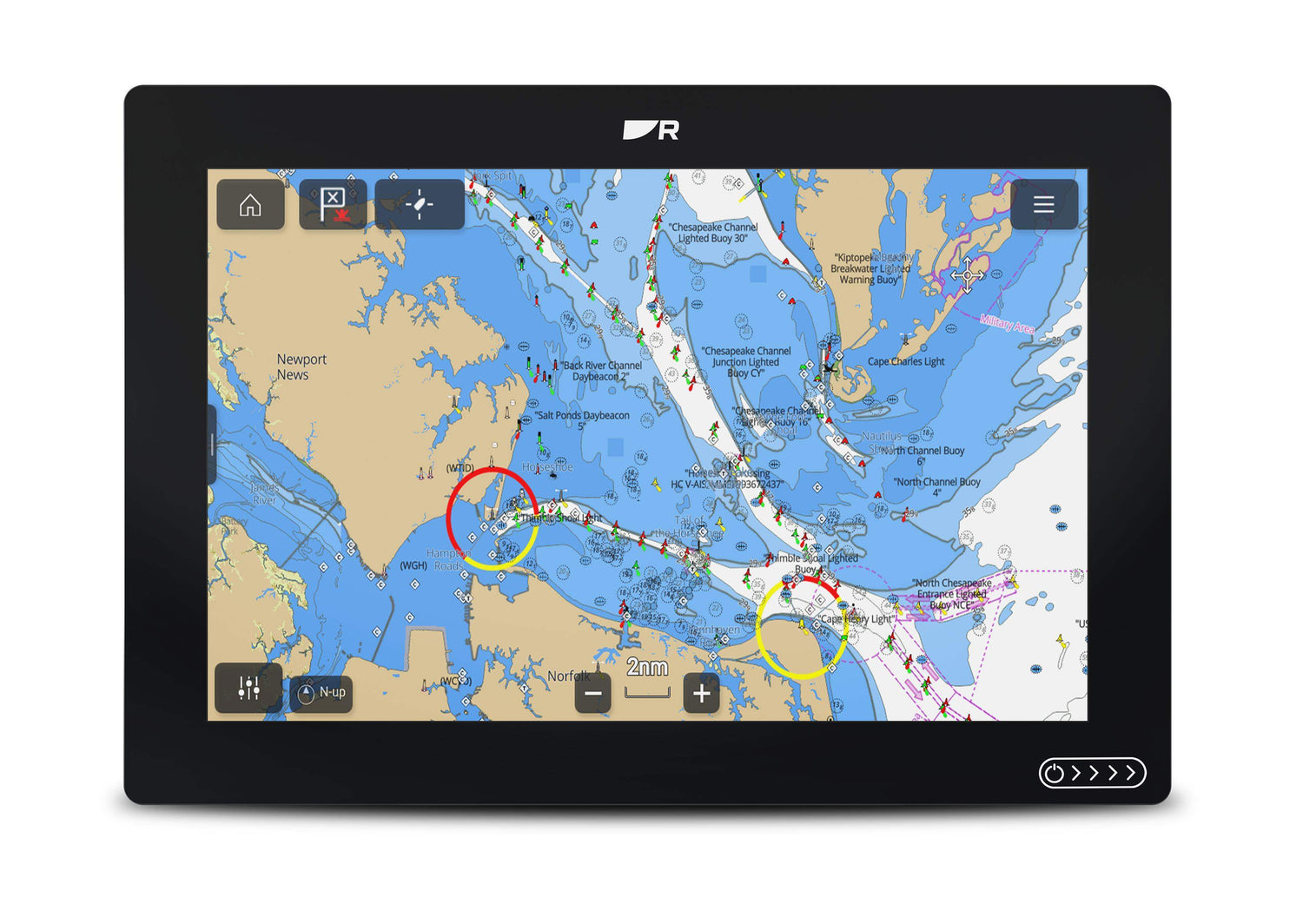

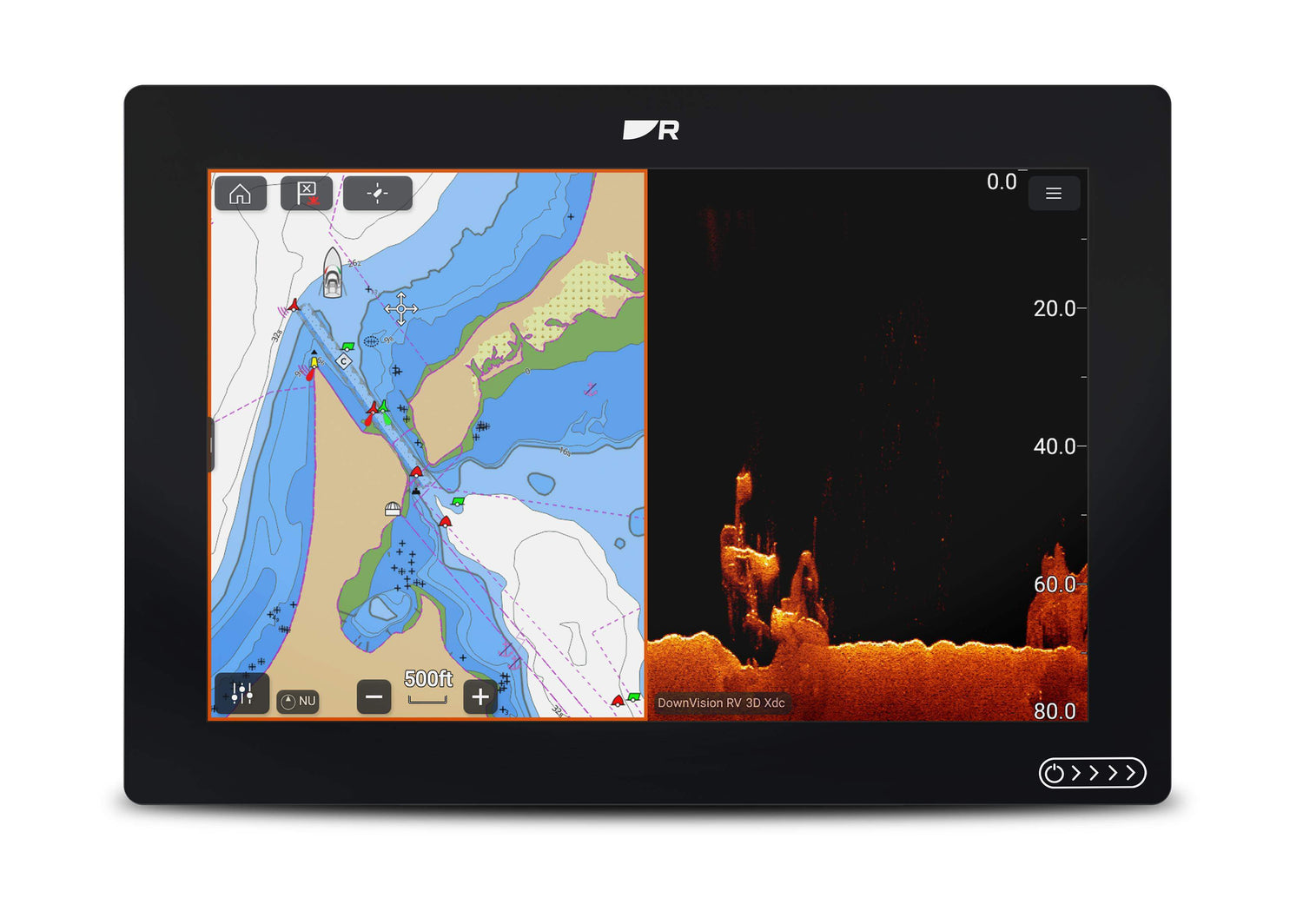

Raymarine AXIOM 2 12" Combo Device w/out Transducer is a powerful and flexible solution for boaters who want to combine navigation and sonar in a system tailored to their own needs. The large 12-inch display provides plenty of space to show charts, sonar views, and system data with a clear overview.

The six-core processor combined with the LightHouse operating system delivers very fast and smooth performance. Browsing charts, planning routes, and managing different views happens without delay, contributing to both safety and ease of use on the water.

The high-resolution IPS display with 1800 nits brightness offers excellent visibility even in direct sunlight. The HydroTough™ surface repels water and ensures the touchscreen works reliably even in wet conditions.

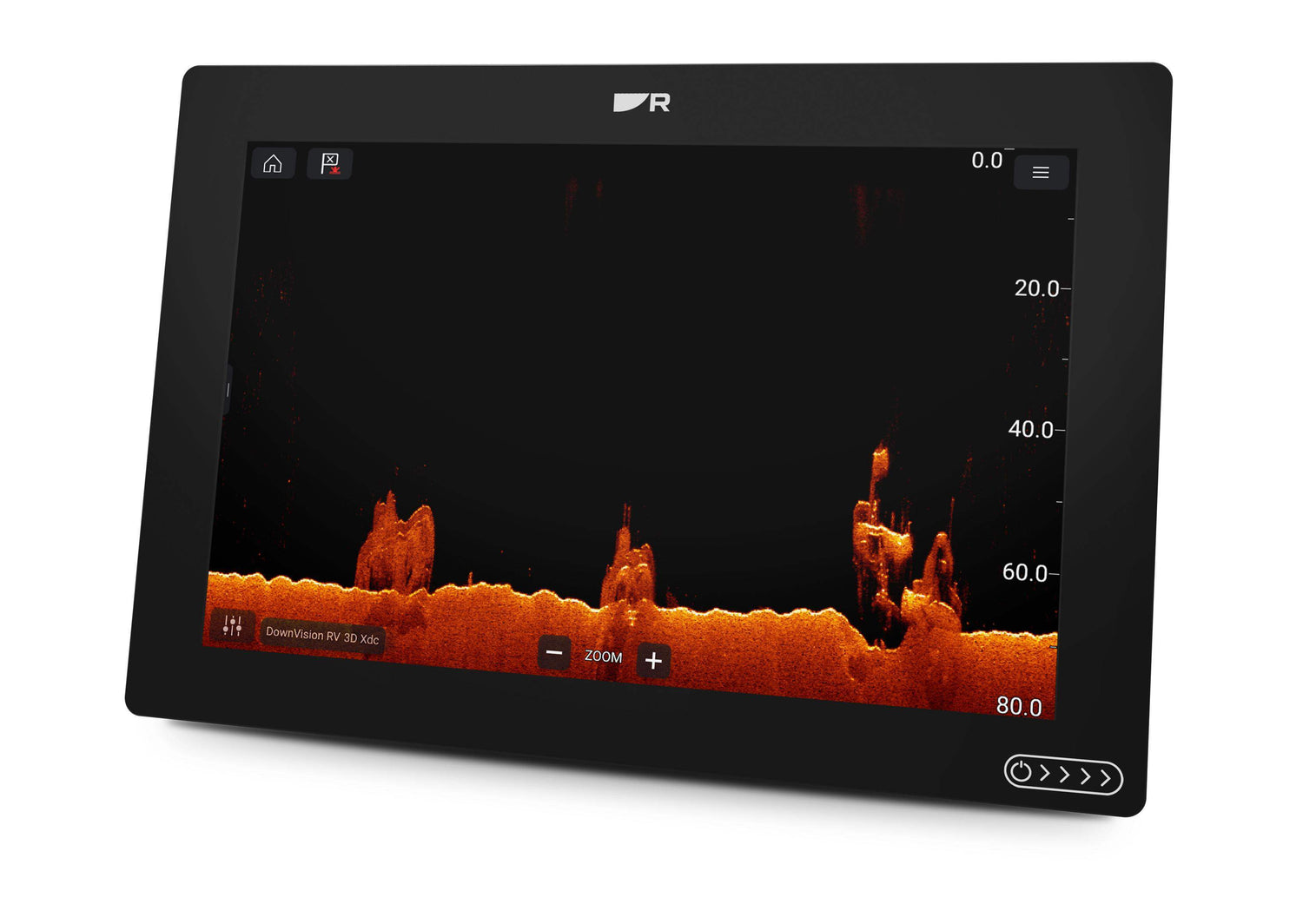

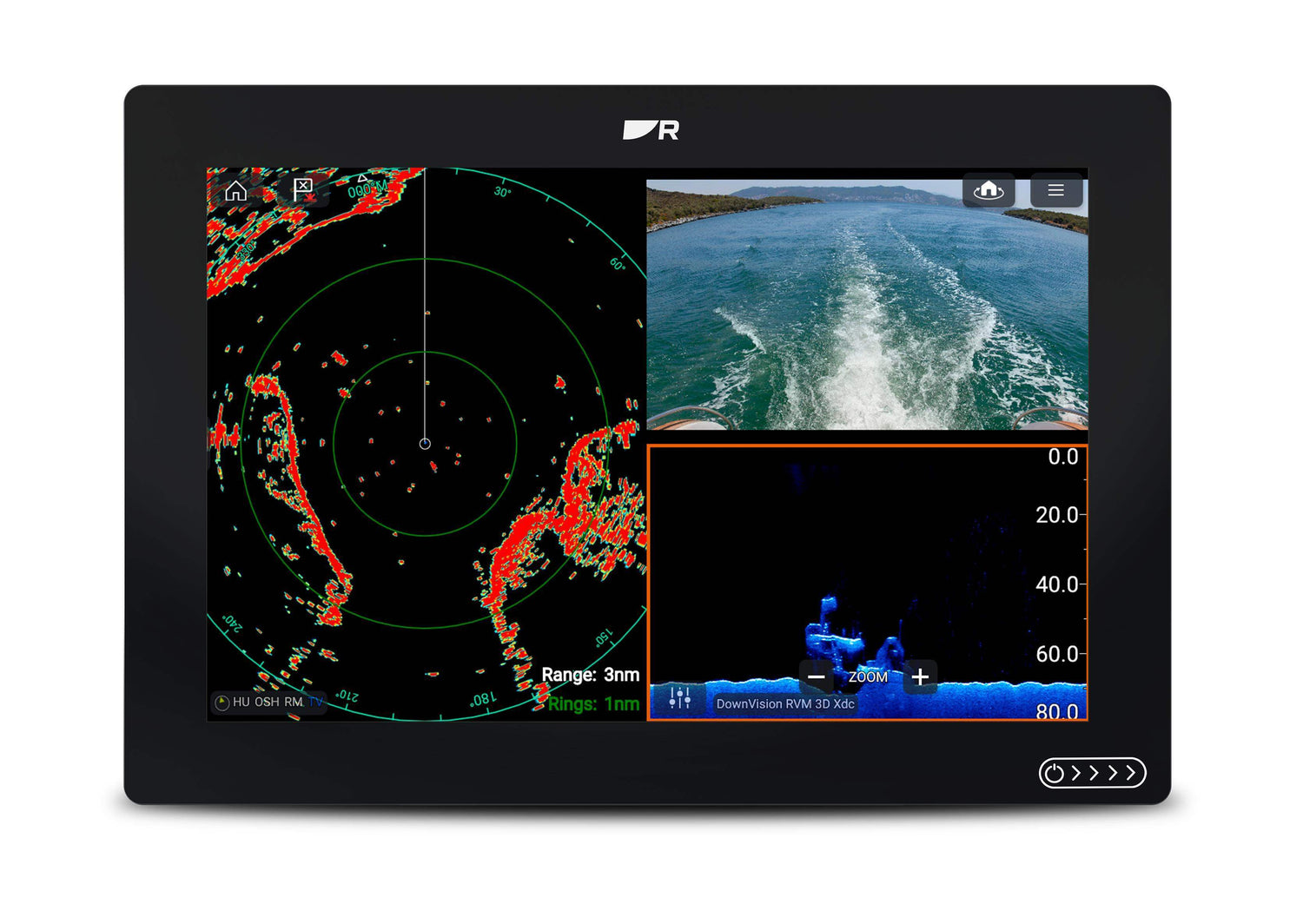

The unit acts as the central hub of your boat, integrating navigation, sonar, radar, cameras, and engine data into one interface. Since this model is delivered without a transducer, you can choose a sonar solution that best fits your fishing style.

Features:
• 12" IPS touchscreen (1280 × 800), brightness 1800 nits
• LightHouse OS – fast and easy-to-use interface
• Six-core processor
• Built-in GPS (GPS, GLONASS, BeiDou)
• 64 GB internal memory + microSD card slot
• RayNet Ethernet (10/100/1000 Mbit)
• Wi-Fi and Bluetooth
• NMEA 2000 compatible
• Waterproof rating: IPX6 / IPX7
• Operating temperature: -25°C – +55°C

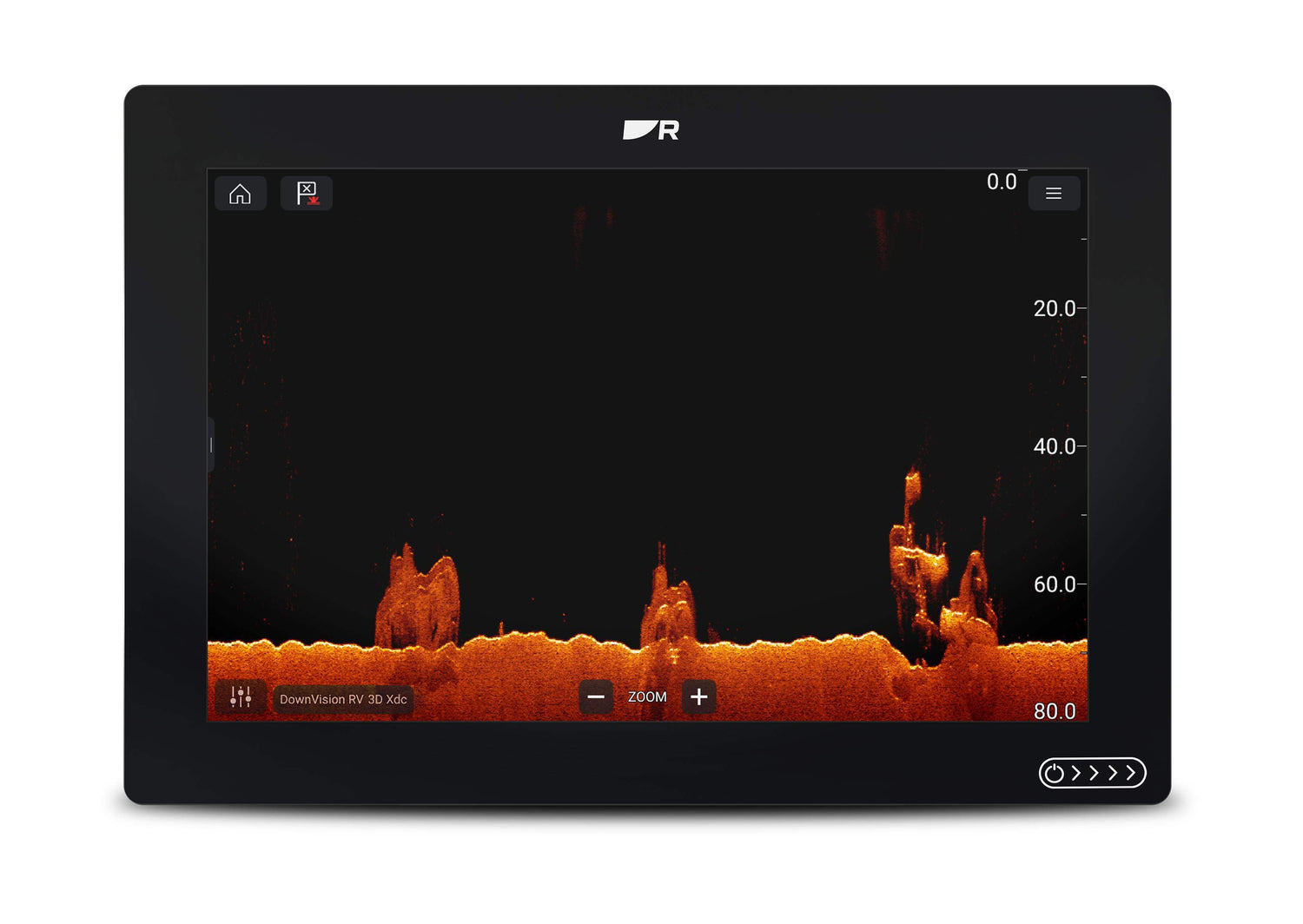

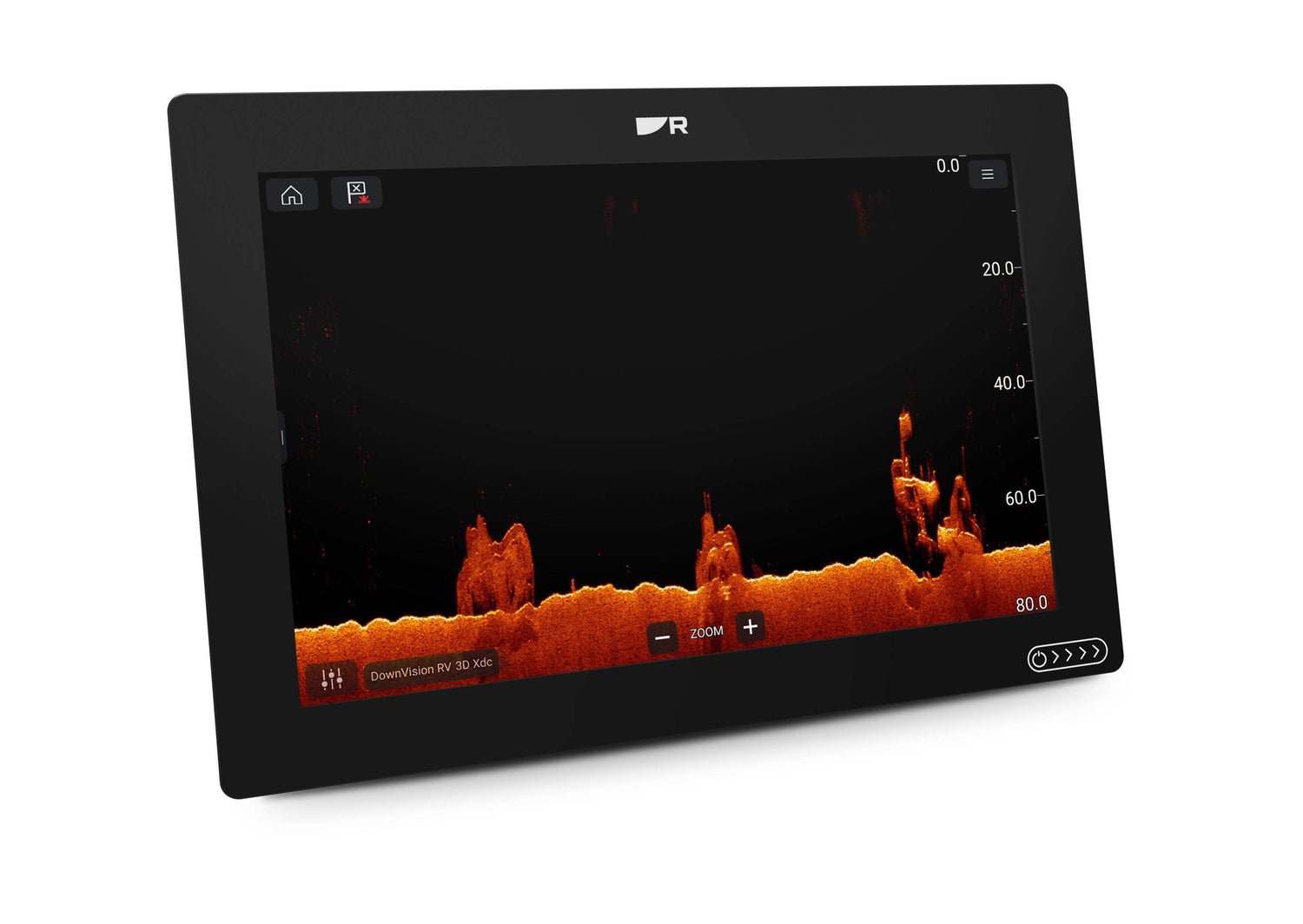

Sonar support (transducer required):
• RealVision 3D: 70 W / 350 kHz
• SideVision: 70 W / 350 kHz
• DownVision: 35 W / 350 kHz
• CHIRP High: 100 W / 200 kHz
• Traditional sonar: 50/200 kHz (600 W, requires separate transducer and adapter cable)

Compatibility and expansion:
• Compatible with Raymarine radar, sonar, and cameras

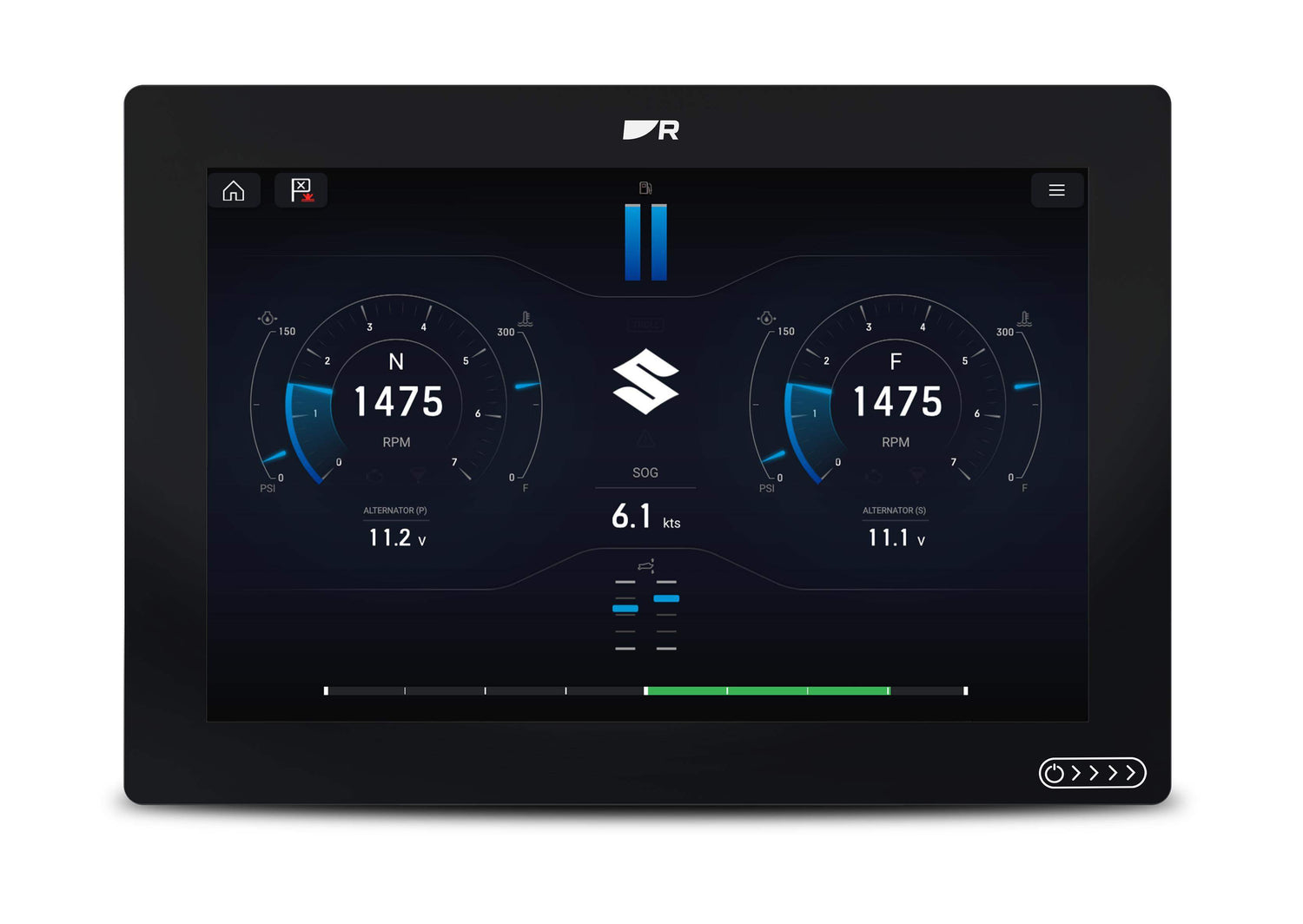

• Supports engine data (e.g. Mercury, Yamaha, Suzuki)

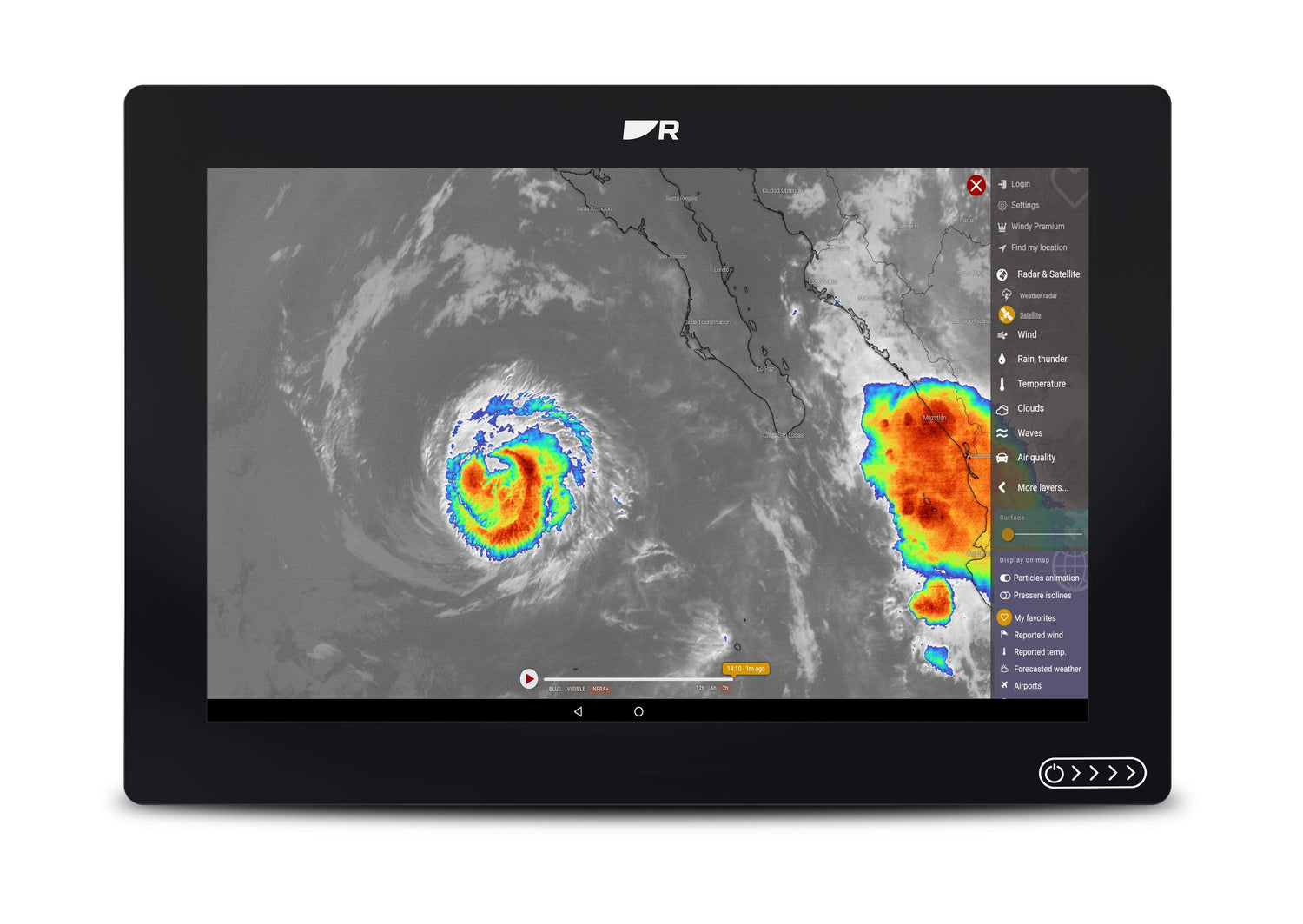

• Supports over 30 apps

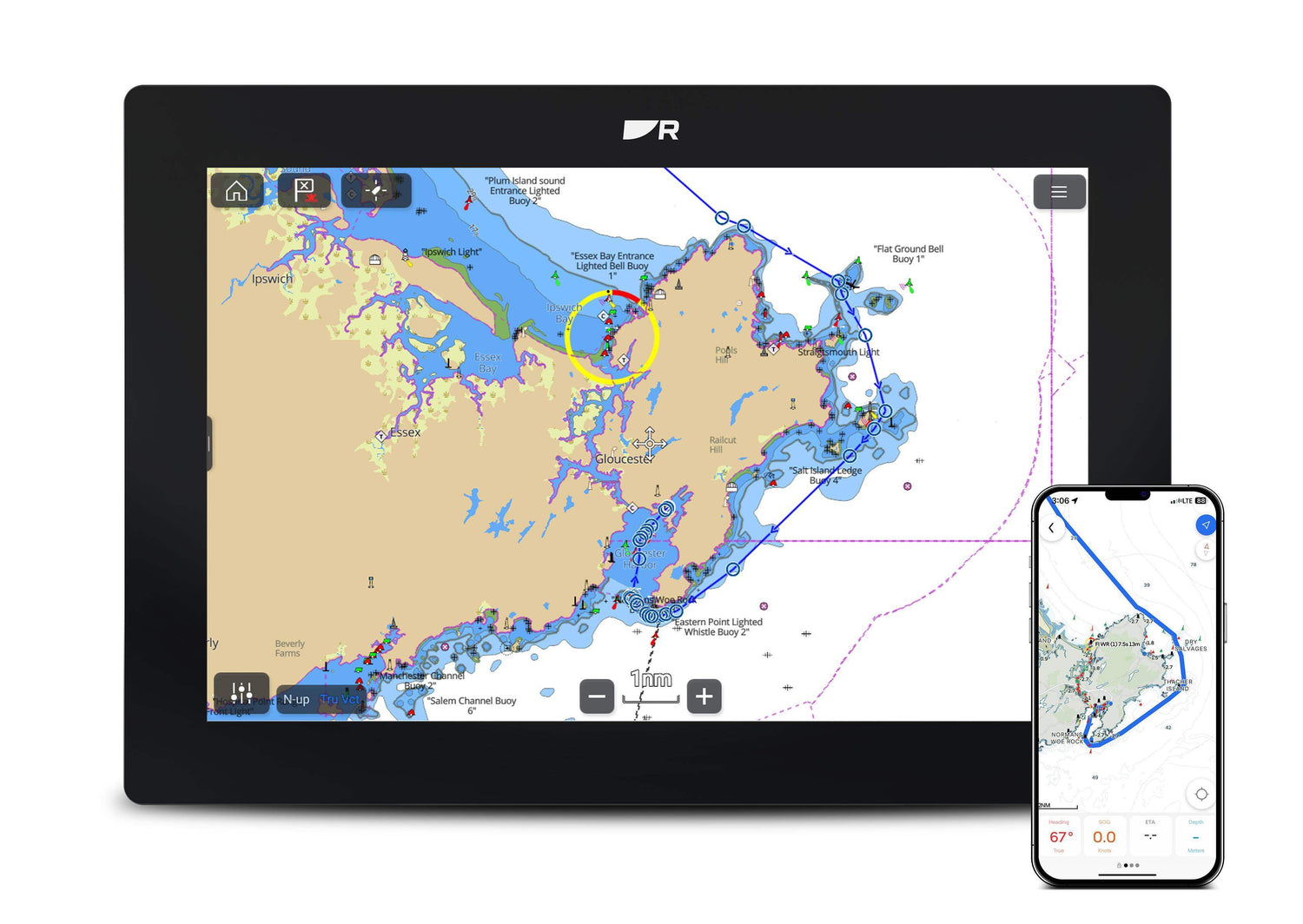

• Route planning and synchronization via mobile app over Wi-Fi

Package includes:
• AXIOM 2 12" display
• Mounting bracket and hardware
• Sun cover
• Gasket for flush mounting
• Power cable and NMEA 2000 cable
• Documentation

Fishing experts at your service. Feel free to ask — we’re happy to help! 🎣
