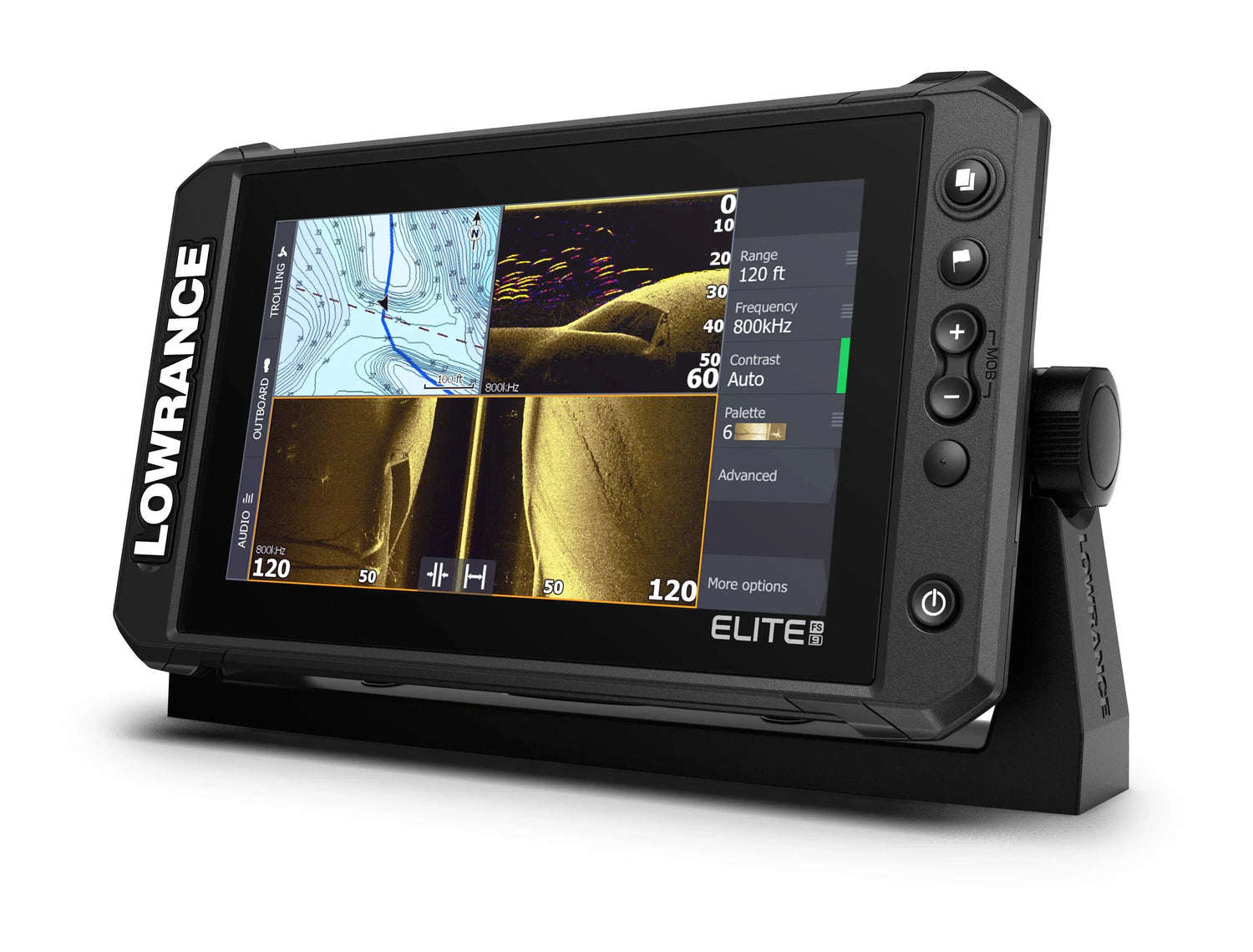

Lowrance Elite FS 9" Combination Device with Active Imaging 3-in-1 Transducer

Lowrance Elite FS – the perfect electronic system for any fishing boat.

The new Lowrance FS (Fishing System) allows you to fish even more easily than before with the option to use the revolutionary sonar technologies of Lowrance, such as Active Target™ live sonar, Active Imaging™ 3-in-1 sonar transducer, FishReveal™. In addition to full support for the NMEA2000 network, Lowrance Elite FS is also introducing Ethernet networking, which allows you to versatile networking options and connectivity with peripherals. With your Elite FS device, you can connect to and control autopilots, bow-mounted electric trolling motors, radars, VHF radios, and SonicHub®2 sound systems, and even monitor your boat's engine data. Build the perfect fishing system for your boat around an Elite FS device!

The new touch-screen equipped Elite FS device has Lowrance's familiar and easy to use interface. The clear, high-resolution screen of Lowrance Elite FS is the best screen seen so far in an Elite range device. The flat glass screen with anti-reflective coating offers excellent visibility in all conditions.

Lowrance Elite FS was built to make your fishing and echo sounding easier than ever before. The device supports Active Target™ live sonars and extremely accurate Active Imaging™ transducers, and features FishReveal™, built-in Genesis Live mapping, and many other features that make fishing easier. Connect an Active Target™ live sonar to your Elite FS device to view extremely precise and detailed underwater images in real time. The Active Target ™ Live sonar allows you to see your lure, the fish that follow it, and their reactions. You can even identify individual species. The new Active Target™ Live sonar takes fishing to a whole new level!

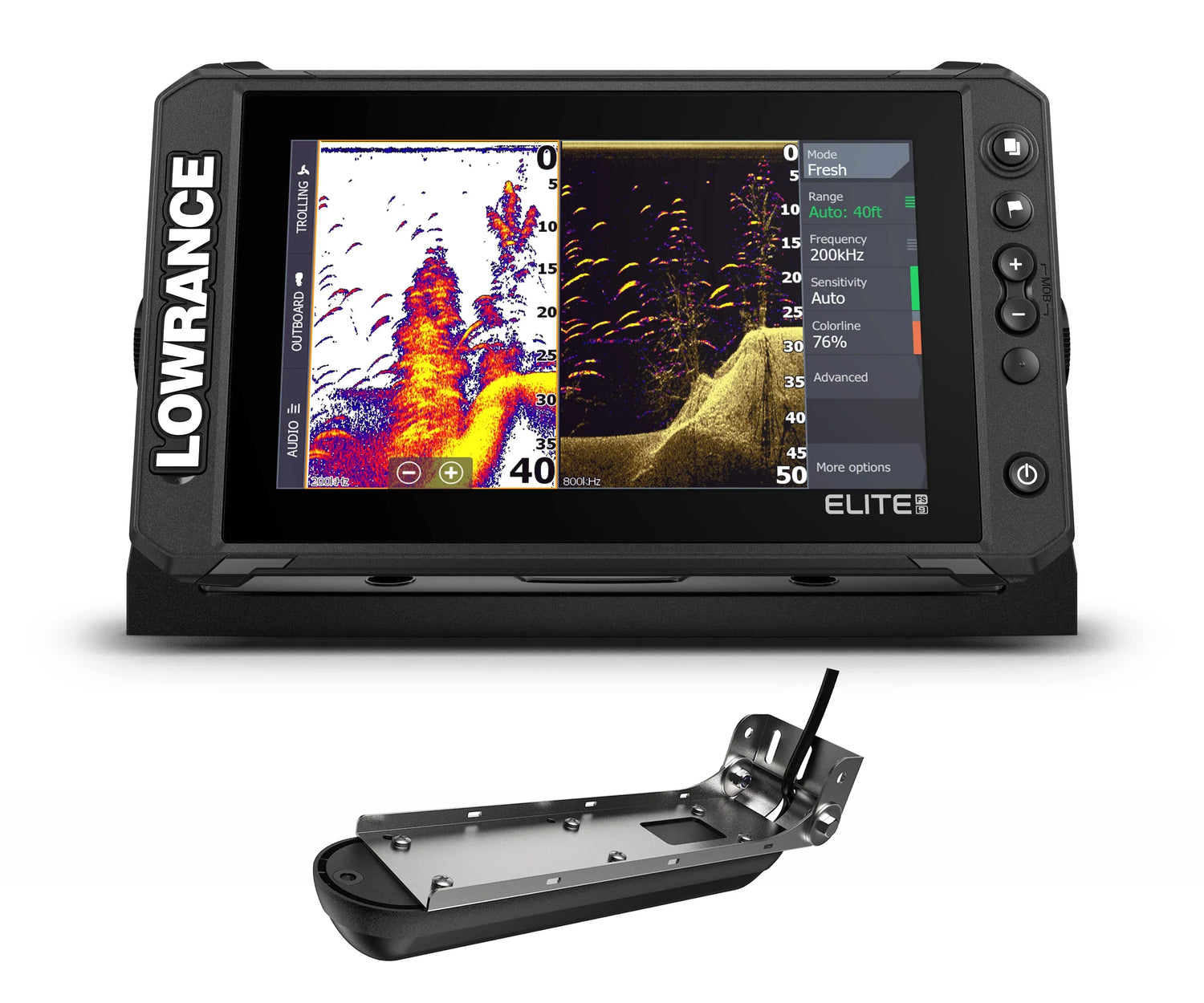

Lowrance Elite FS is delivered with the Active Imaging™ 3-in-1 sonar transducer (CHIRP, SideScan, and DownScan) that allows you to see extremely clear and very precise images of fish and structures with a better range than any other structure imaging technology. The transducer also features the Fishreveal™ function that is only available in Lowrance devices. Fishreveal™ combines the best features of CHIRP ja DownScan Imaging™ sonar technologies to allow you to easily identify fish among bottom structures.

Lowrance Elite FS offers you information that ensures easy and safe boating. You can easily monitor and manage the map, autopilot, depth readings, location data, battery voltage, and other critical information on one screen, which means that you will always have access to a quick overview of the current situation. Elite FS also includes a programmable key that you can use to quickly select your favorite function or screen. Elite FS is easy to use and effortless to install, and it complies with the modern requirements set for boat electronics, whether you are a recreational boater or a serious angler.

The powerful Elite FS also offers better navigation performance, as it includes C-MAP Easy Routing + Navionics® Autorouting and real-time Genesis Live mapping. With the built-in real-time Genesis Live mapping function, you can also create your own maps of your favorite fishing spots or lakes without existing detailed maps. You can record your own, even more accurate maps, where the outlines are presented at up to 15-cm precision in real time on the screen of your sonar. Map data can be recorded onto existing C-MAP map data or on an empty memory card.

Specifications:

• Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan) compatible
• Active Target™ Live compatible
• Livesight™ Live compatible (requires a PS-1 module)
• Compatible with Lowrance HALO radars
• Compatible with Lowrance Outboard Pilot
• Data transfer networks: NMEA 2000 (Micro-C) x1 and Ethernet x1
• Black (9-pin) transducer port
• C-MAP® Genesis Live
• Smart phone notifications
• FishReveal™
• C-MAP® Easy Routing, Navionics Autorouting functions
• Quick and easy to use
• Clear screen with better resolution and wider viewing angle
• Built-in CHIRP and Broadband Sounder®
• Lowrance Ghost® electric trolling motor control via touch screen
• MotorGuide® Xi3 and Xi5 electric trolling motor control via touch screen
• Power-Pole® shallow water anchor control via touch screen
• Built-in Wi-Fi and Bluetooth connectivity
• SonicHub®2 compatible
• NMEA 2000® motor support
• Improved surface noise suppression allows you to see more fish near the surface
• Quick access menu allows you to access system settings with a single click
• Micro SD card slot (max. 32GB)
• Storage space: 3,000 waypoints, 100 routes & 100 tracks
• Easy flush-mount or stand
• Waterproofing IPX7
• Screen resolution 800 x 480
• Operating temperature range -15°C...+55°C
• Operating voltage 12v DC (10.8–17VDC)
• Typical power consumption 2.0A (9” device)
• Language options: Finnish, Swedish, English (UK & US), Afrikaans, Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (Brazil & Portugal)

Included in the box:
• Elite FS combo device and screen shield
• Active Imaging™ 3-in-1 transom-mounted transducer
• Mount
• Power cable and fuse
• User manuals (Finnish manual available at www.lowrance.com)
