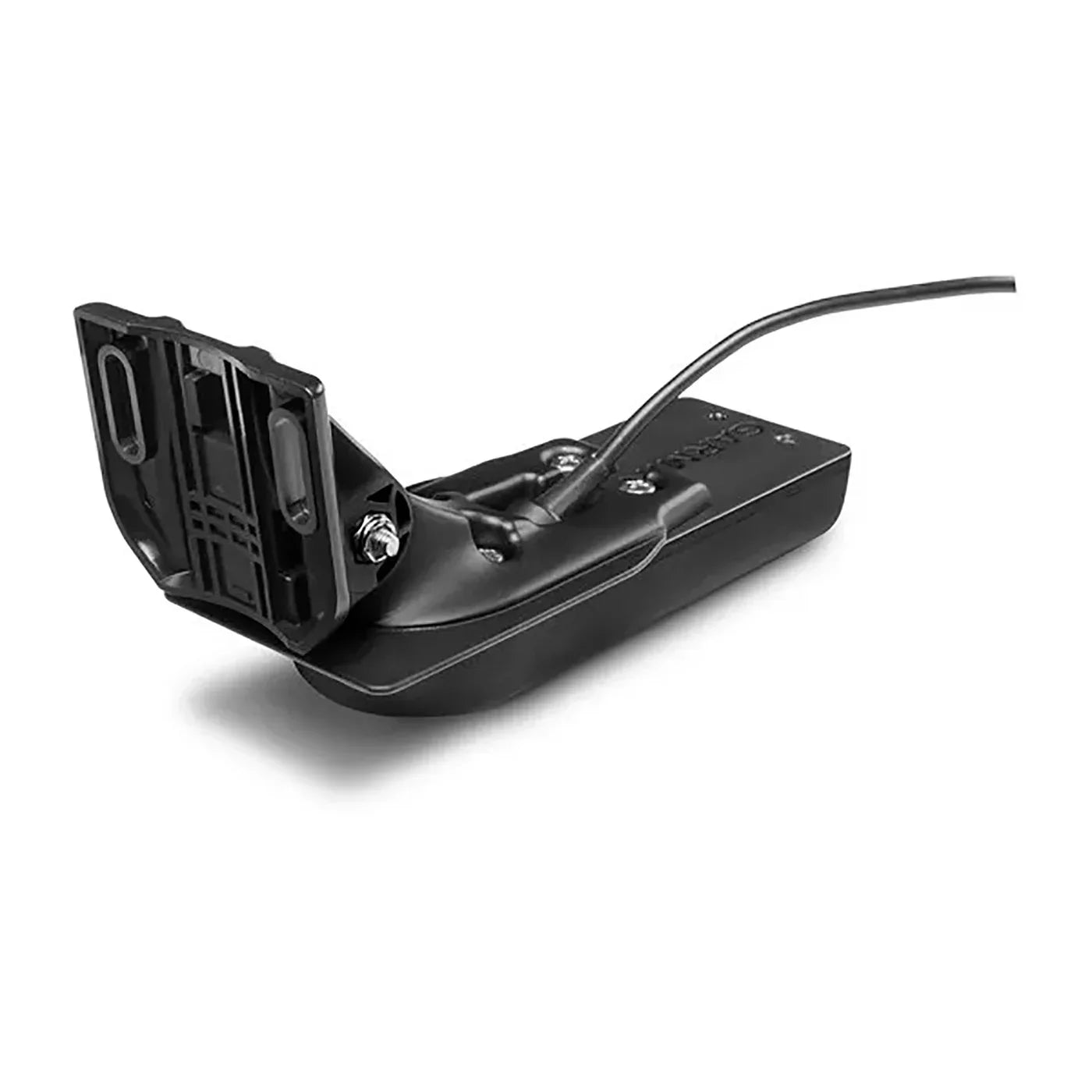

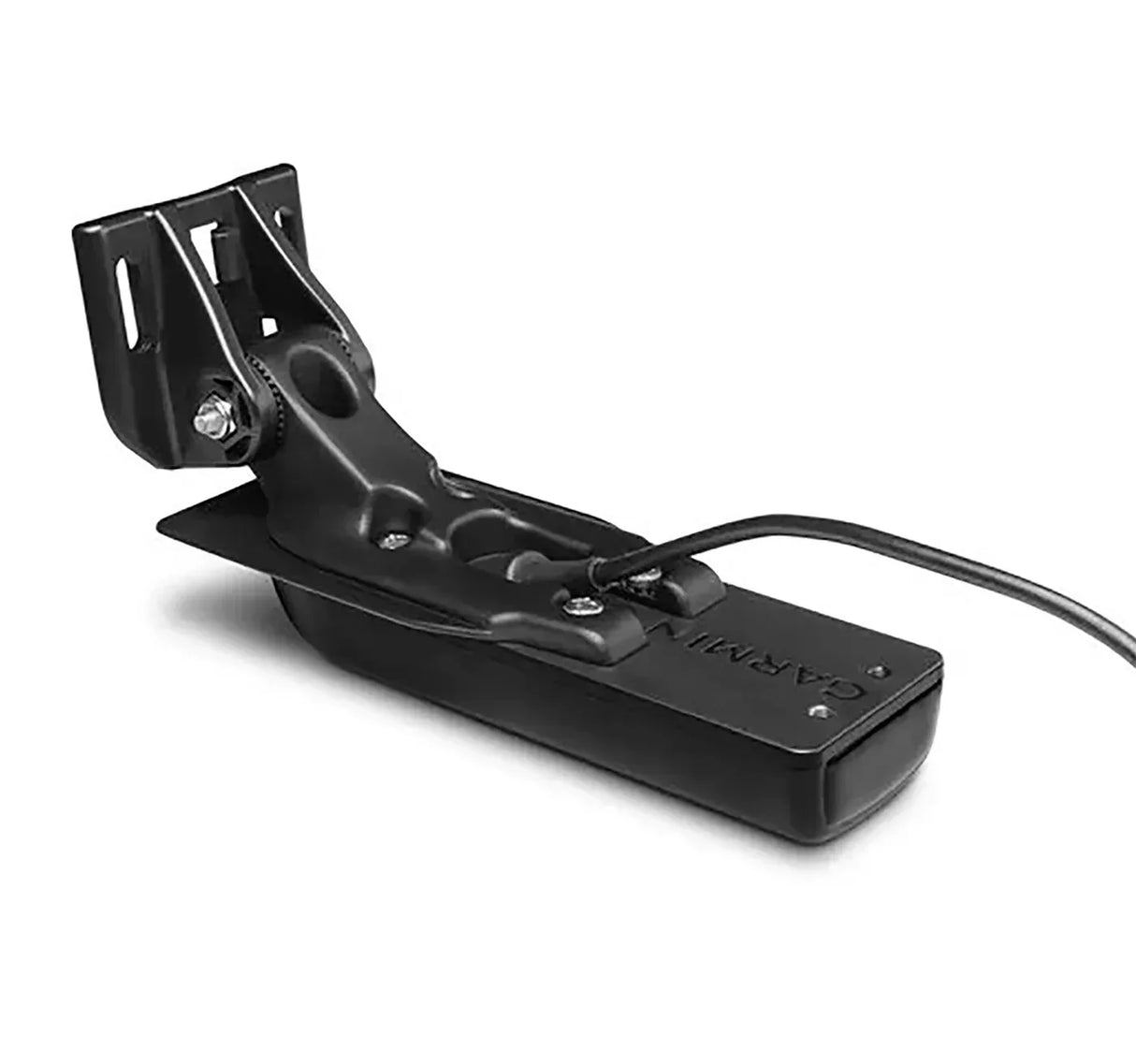

Garmin GT54UHD-TM Transducer

The Garmin GT54UHD-TM transducer is extremely precise. The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar — all in one transducer.Ultra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 60 meters (200’) below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 meters (500’). It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.• One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar• High wide CHIRP traditional sonar provides remarkably clear target separation and definition• See incredibly detailed images of fish and structure up to 60 meters (200’) below your boat with 800 kHz ClearVü sonar• Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 meters (500’)• Easy-to-install, compact, all-in-one design includes transom and trolling motor mountsTechnical specifications:• Frequency: CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz); UHD SideVü 1,200kHz (1020-1230 kHz); CHIRP SideVü 455 kHz (425-485 kHz)• Power: CHIRP Traditional 350 W; ClearVü/SideVü 350 W• Beam width: CHIRP: 24–16°• ClearVü: 0.94° x 60° @ 800 kHz• SideVü: 1.62° x 50°• UHD SideVü: 0.441° x 52° @ 1200 kHz• Maximum depth: CHIRP: 240 meters (800’); ClearVü 60 meters (200’); SideVü 150 meters (500'); UHD SideVü 35 meters (125')• Depth and temperature• Number of pins: 12• Cable length: 6 meters• Supported deadrise/Transom angles: 0–70°Included in the box:GT54UHD-TM• Transom mount• Trolling motor mount• Mounting hardware• Documentation
341,83 €
Prices exclude VAT

Delivery 5-10 arkipäivää

View shipping methods

Secure payment methods

View payment methods

Additional details

Description

The Garmin GT54UHD-TM transducer is extremely precise. The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar — all in one transducer.

Ultra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 60 meters (200’) below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 meters (500’). It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.

• One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
• High wide CHIRP traditional sonar provides remarkably clear target separation and definition
• See incredibly detailed images of fish and structure up to 60 meters (200’) below your boat with 800 kHz ClearVü sonar
• Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 meters (500’)
• Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

Technical specifications:
• Frequency: CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz); UHD SideVü 1,200kHz (1020-1230 kHz); CHIRP SideVü 455 kHz (425-485 kHz)
• Power: CHIRP Traditional 350 W; ClearVü/SideVü 350 W
• Beam width: CHIRP: 24–16°
• ClearVü: 0.94° x 60° @ 800 kHz
• SideVü: 1.62° x 50°
• UHD SideVü: 0.441° x 52° @ 1200 kHz
• Maximum depth: CHIRP: 240 meters (800’); ClearVü 60 meters (200’); SideVü 150 meters (500'); UHD SideVü 35 meters (125')
• Depth and temperature
• Number of pins: 12
• Cable length: 6 meters
• Supported deadrise/Transom angles: 0–70°

Included in the box:

GT54UHD-TM
• Transom mount

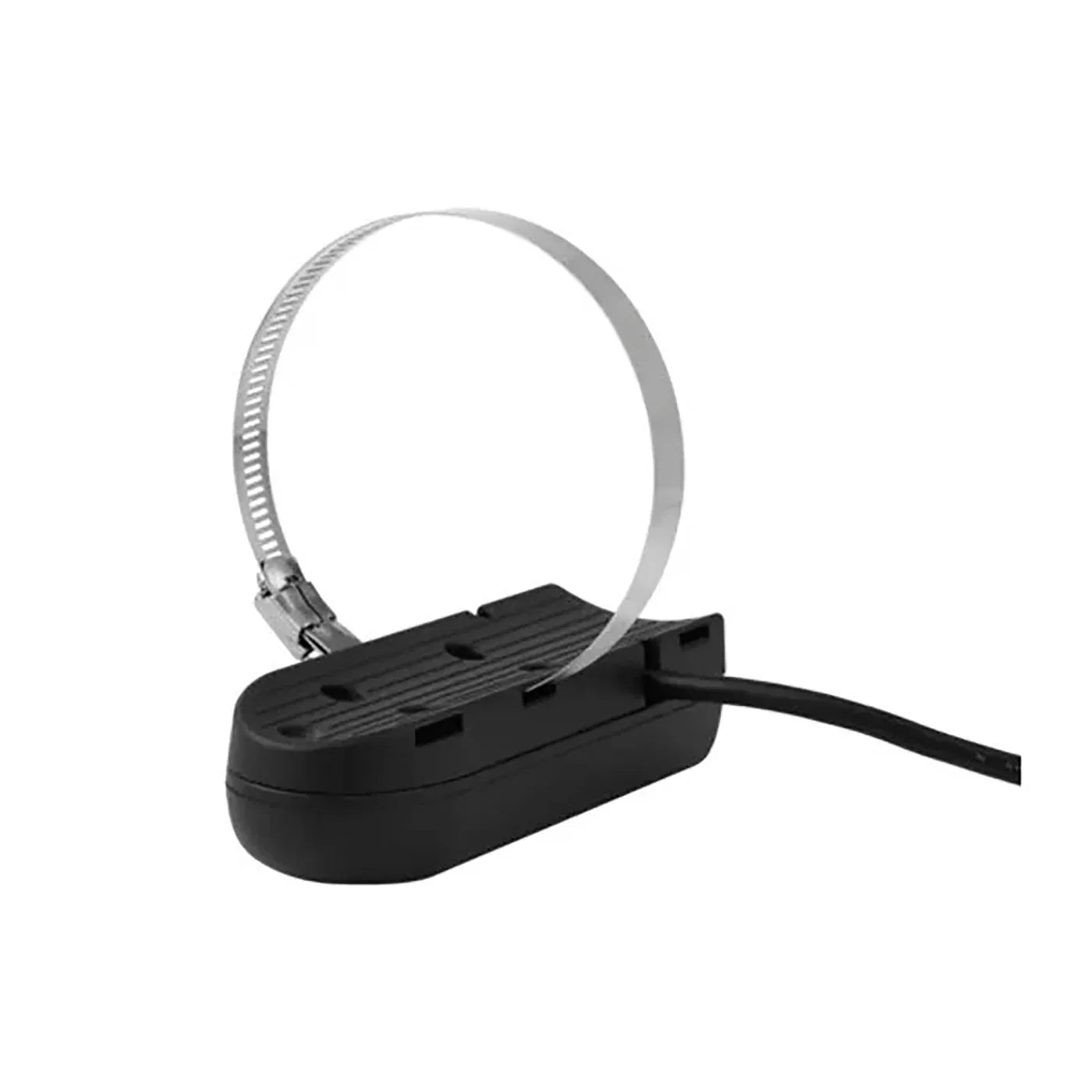

• Trolling motor mount
• Mounting hardware
• Documentation
