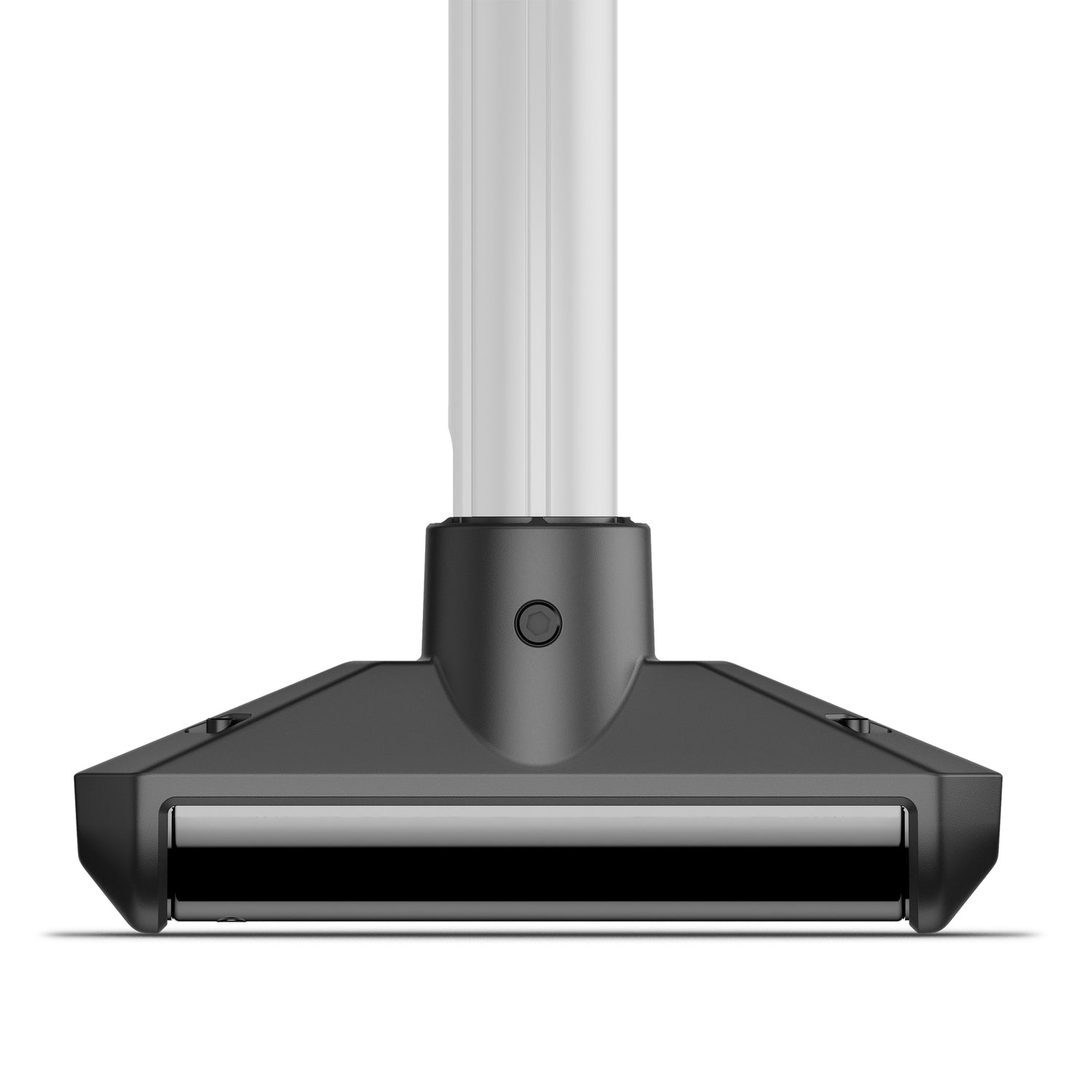

Garmin GT360UHD 360 Degree Transducer

Garmin GT360UHD 360 Degree Transducer takes sonar technology to a new level, revealing the underwater world more precisely than ever before. This powerful 360° OneVü transducer displays the area around the boat from a bird’s-eye view in both 2D and 3D perspectives, allowing you to see fish, structures, and bottom contours at a glance without constantly rescanning the area.

When the transducer is mounted on a Spy Pole (sold separately), you can examine a large area around the boat with exceptional precision. The GT360UHD can scan an area up to the size of a football field and save the image directly onto the map. True Motion GPS technology keeps the sonar image accurately positioned even when the boat is moving, making it easier to locate fishing spots and return to the exact same locations with precision.

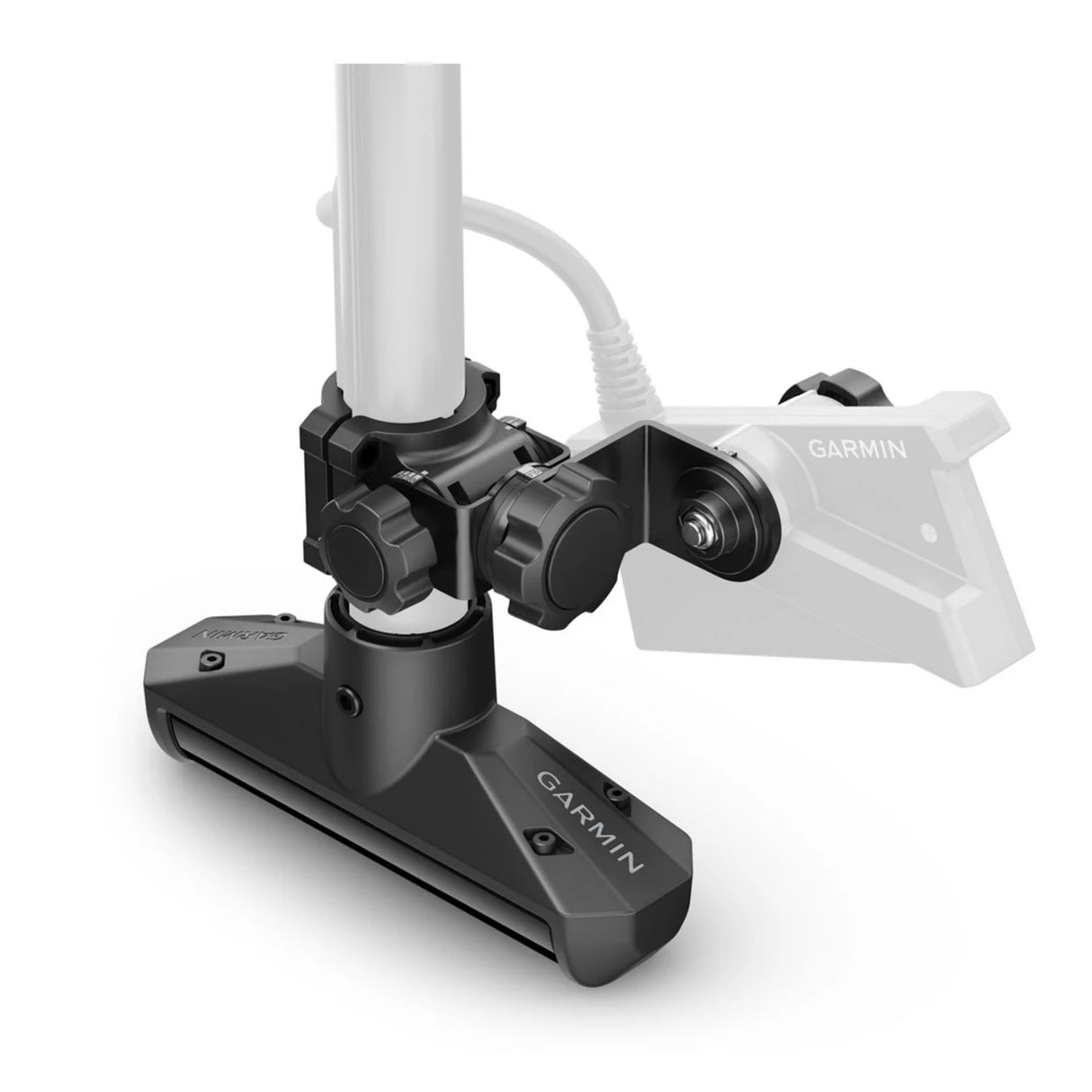

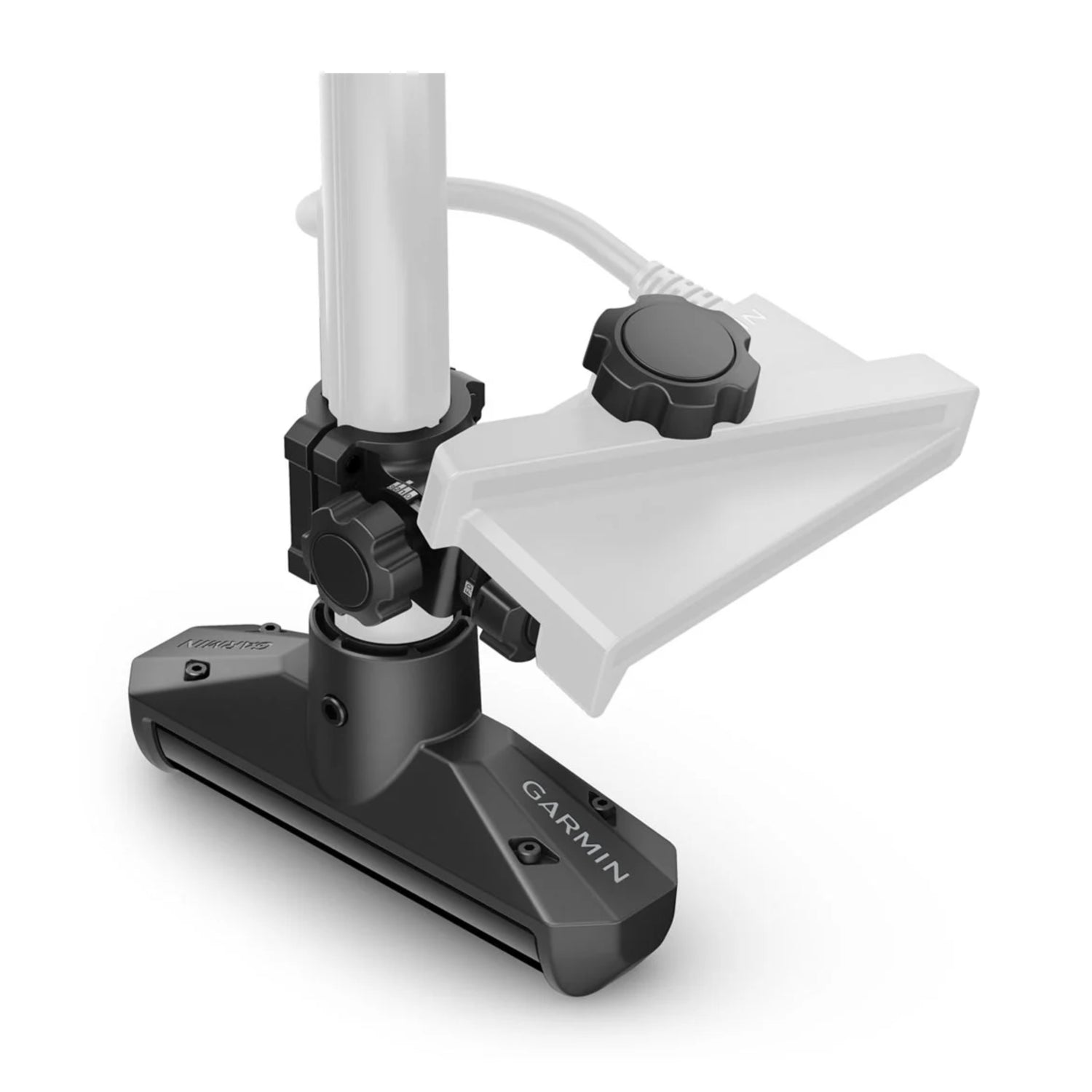

GT360UHD works seamlessly with compatible Garmin chartplotters. Through the display’s controls, you can adjust the sonar frequency, scanning mode, and color palette to match your fishing style. The transducer also supports the LiveScope system, allowing the live sonar image to be displayed on top of the OneVü image. This creates a new type of 3D view where you can simultaneously see both the wider area around the boat and fish movements in real time.

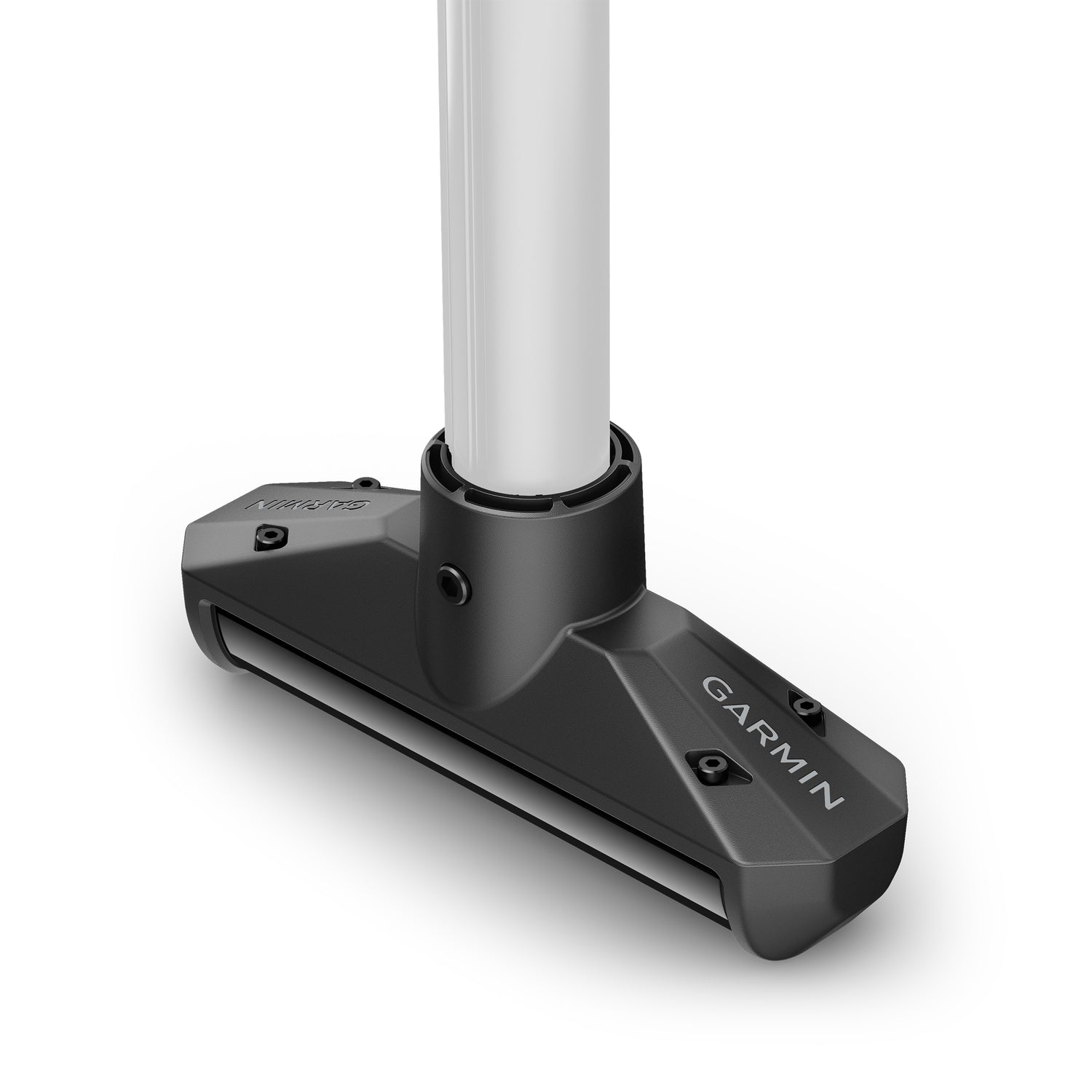

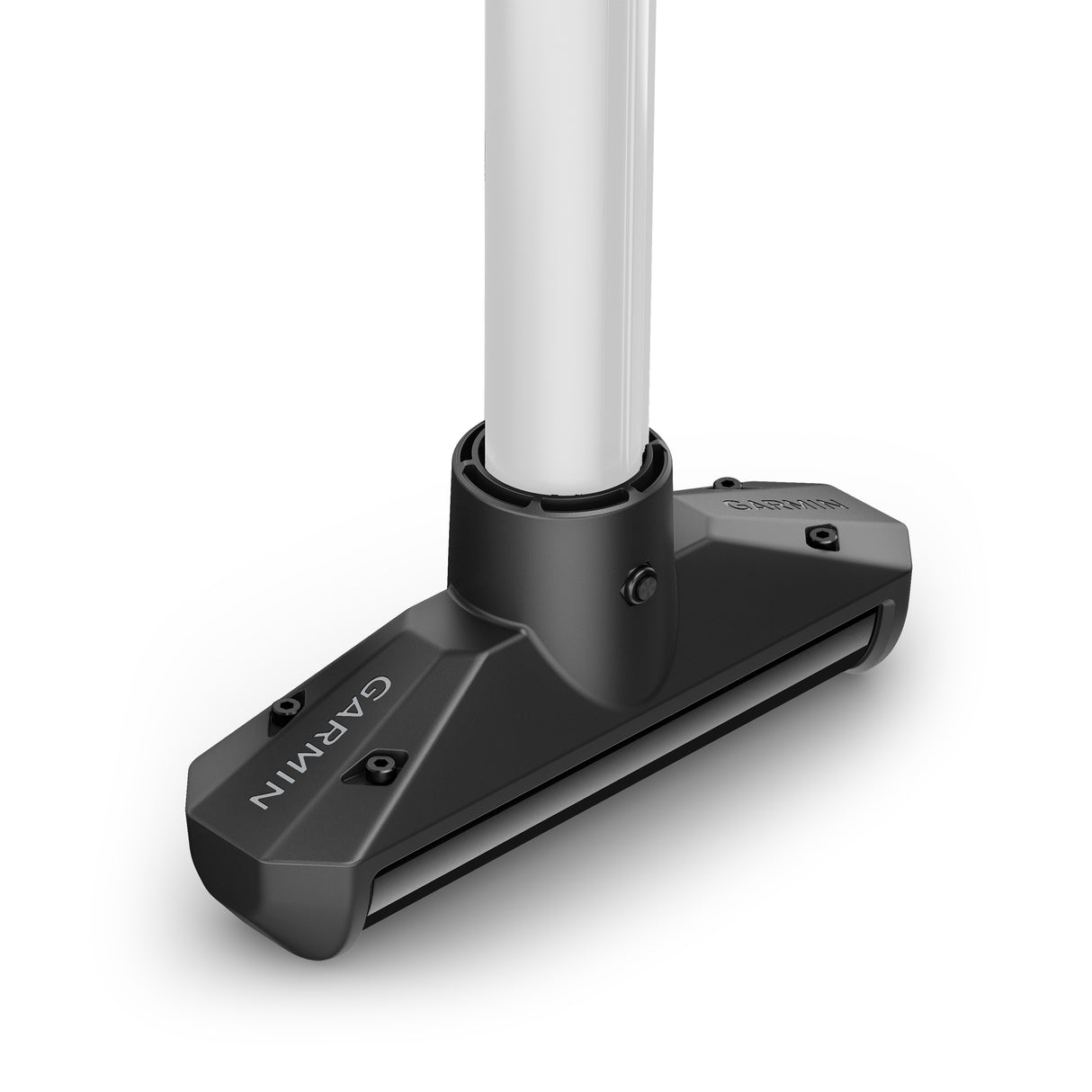

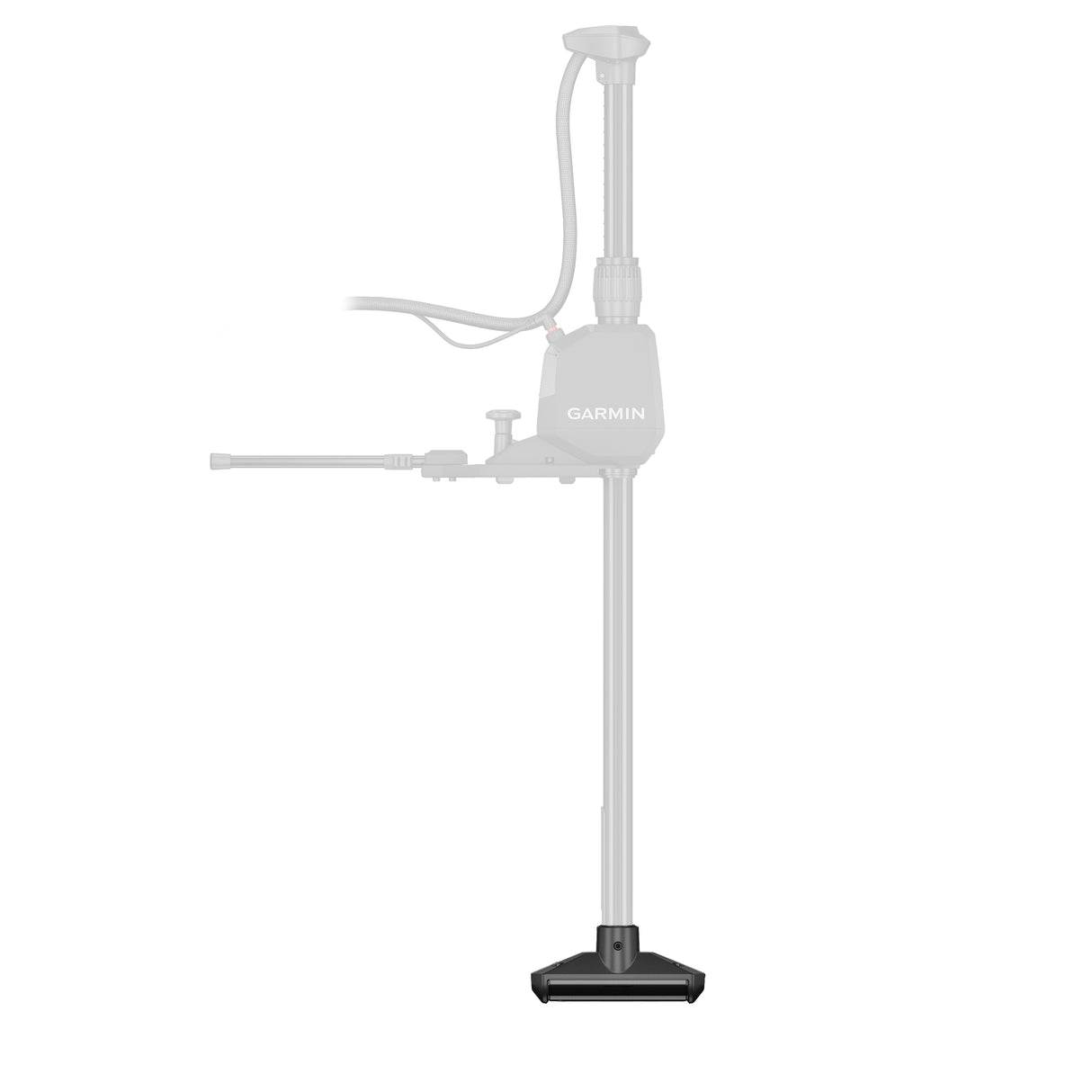

Installation is designed to be as simple as possible. The transducer is mounted on a Spy Pole and the cables are routed neatly through the pole tube, protecting the cables while providing a clean installation on the boat.

Features:
• 360° OneVü sonar shows the area around the boat in a bird’s-eye view
• 2D and 3D views of the underwater environment
• Scans an area up to the size of a football field
• True Motion GPS keeps the scan accurately positioned
• LiveScope compatibility with overlaid live sonar view
• Multiple scanning modes: automatic, manual, and continuous
• Easy mounting on a Spy Pole bracket

Technical specifications:
• Transducer frequency: OneVü / SideVü 455 kHz, 800 kHz, 1,070 kHz
• Power: 500 W
• Beam width: 0.52 × 52 (1,000 kHz), 0.64 × 35 (800 kHz), 1.1 × 52 (455 kHz)
• Maximum depth: 100 ft (455 kHz), 40 ft (1 MHz)
• Maximum range: 500 ft (455 kHz), 200 ft (1 MHz)
• Cable length: 6.2 m
• Measures: depth and temperature
• Number of pins: 12
• Dimensions (with mount): 216 × 58 × 97 mm

Compatible Garmin chartplotters:
• Garmin ECHOMAP UHD2 SV chartplotters
• Garmin ECHOMAP Ultra 2 chartplotters
• Garmin GPSMAP® 9000xsv chartplotters

Compatible app:
• ActiveCaptain® – Garmin’s free app for system management and updates

Package includes:
• GT360UHD 12-pin transducer
• Transducer mount for Spy Pole

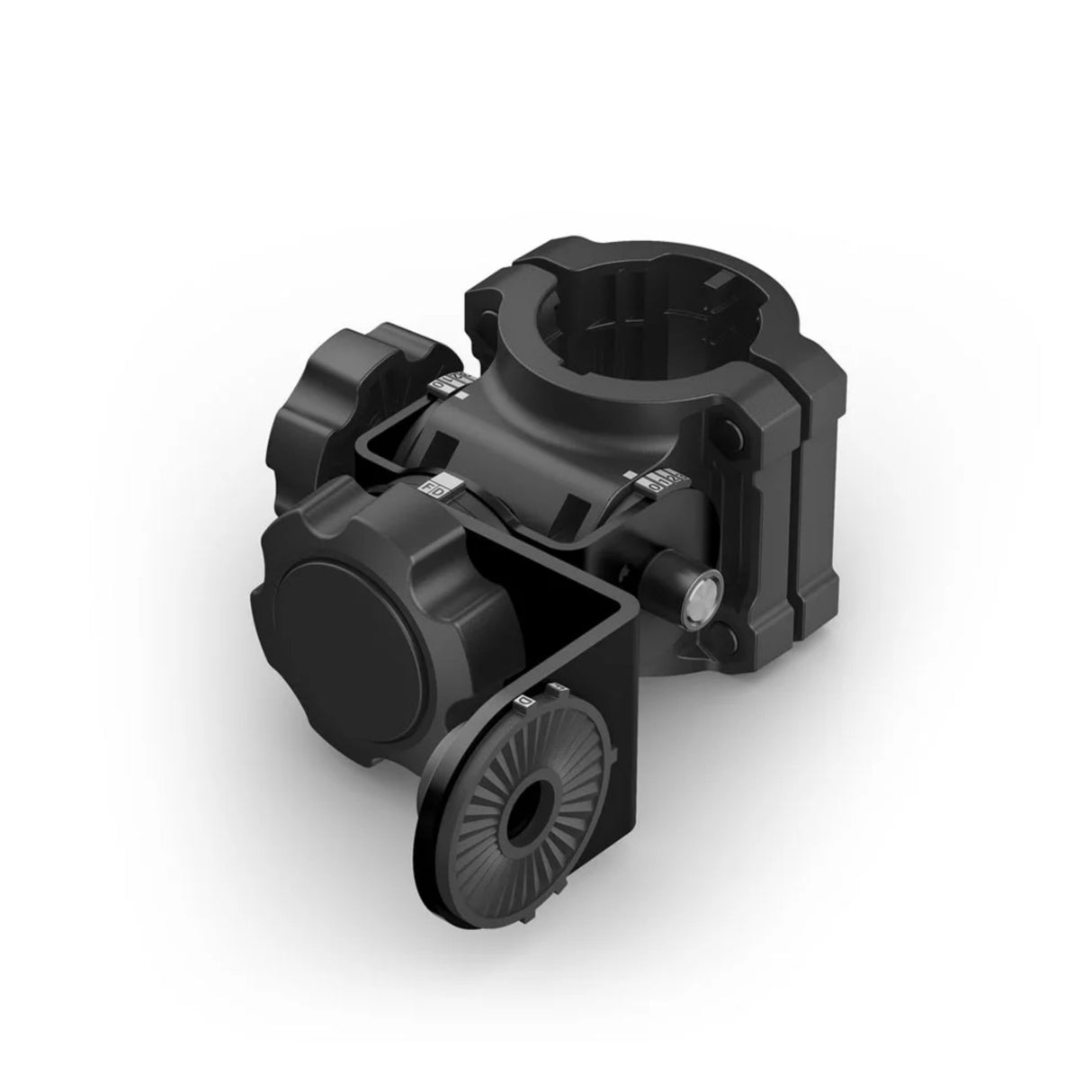

• Adjustable LiveScope perspective mount
• Dogbone stabilizer
• Mounting hardware
• User manual

Garmin GT360UHD 360 Degree Transducer helps you locate fish, structures, and bottom formations precisely around the boat. When you can see the entire fishing area at a glance, you can focus on what matters most – finding the fish and getting them into the boat.
