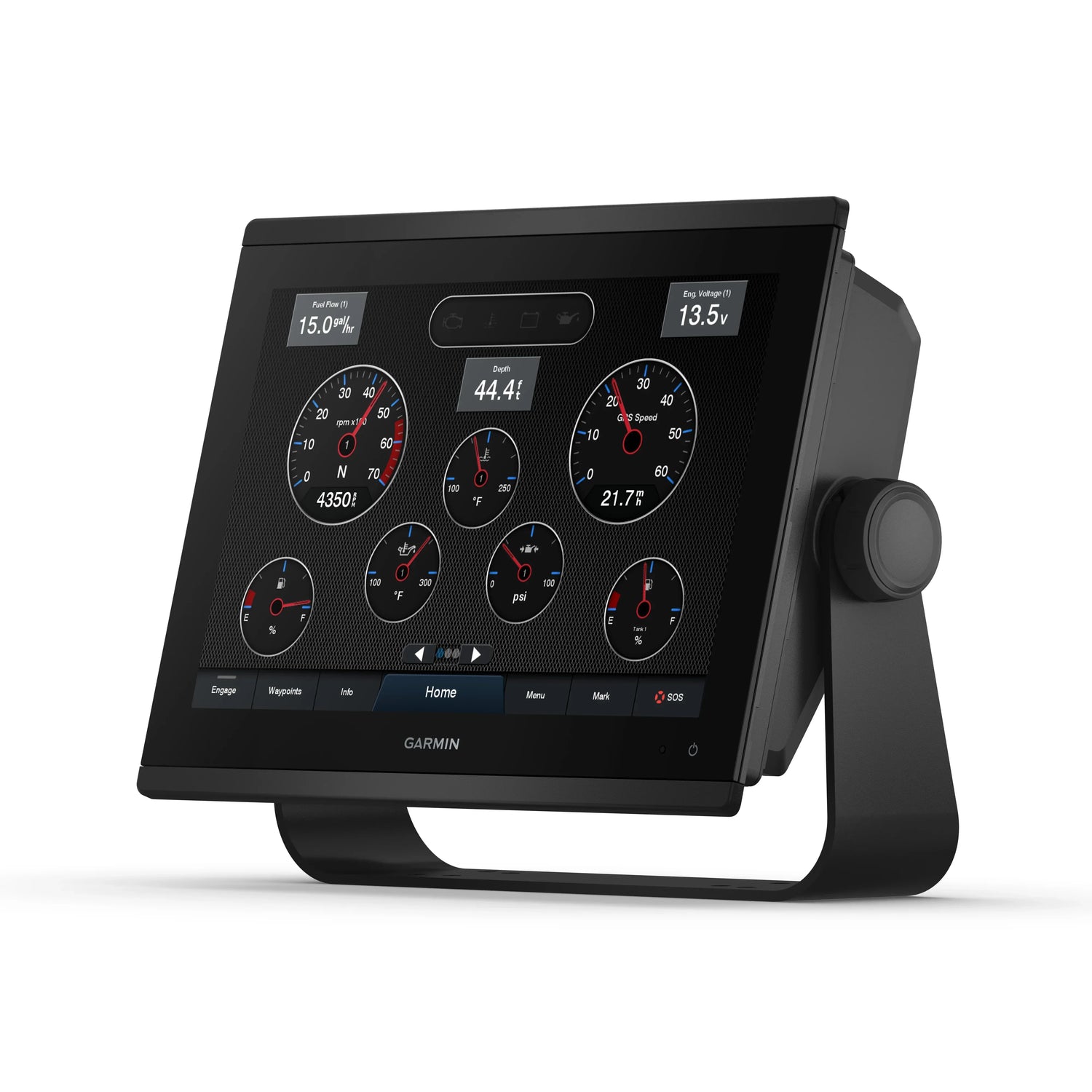

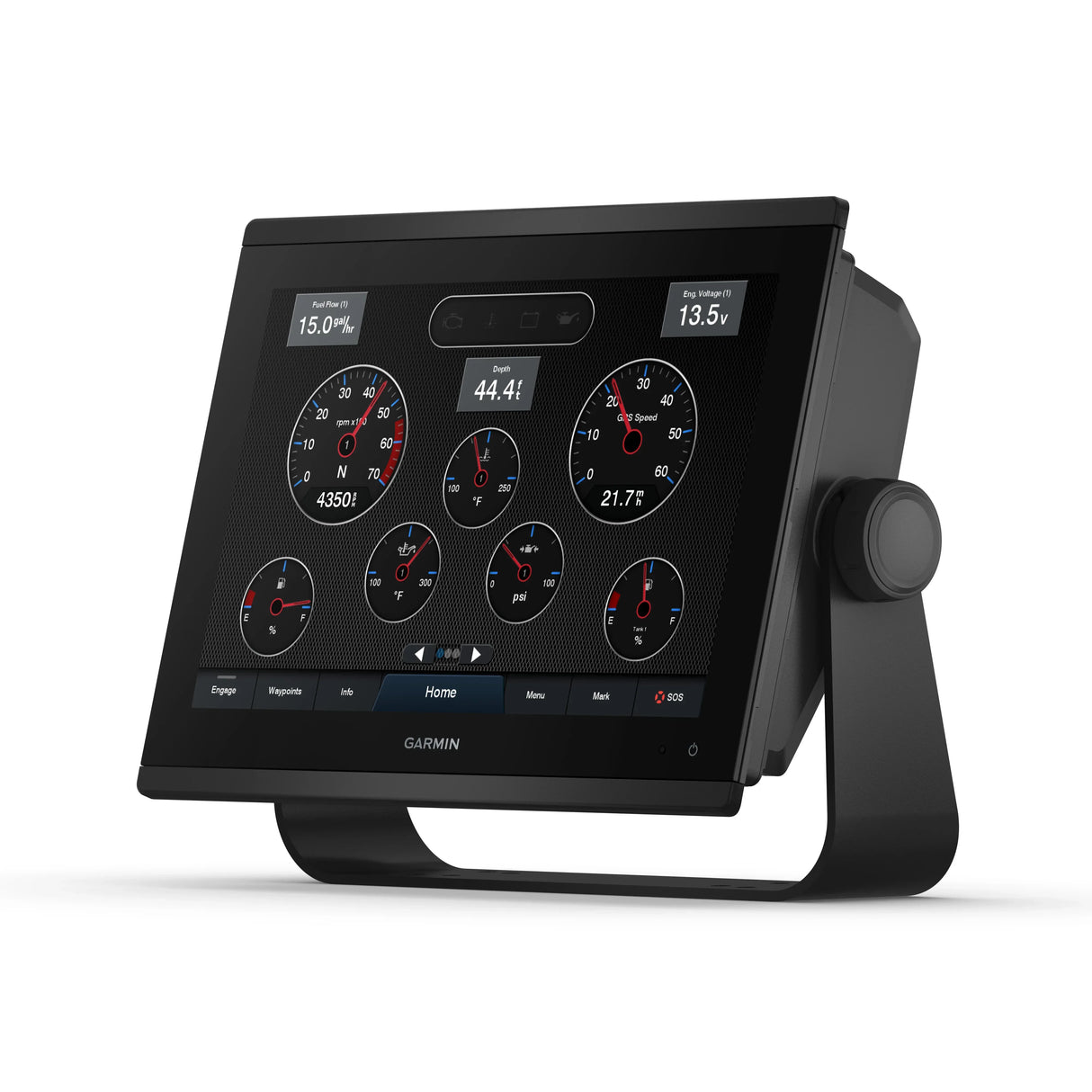

Garmin GPSMAP1223 Chart Plotter

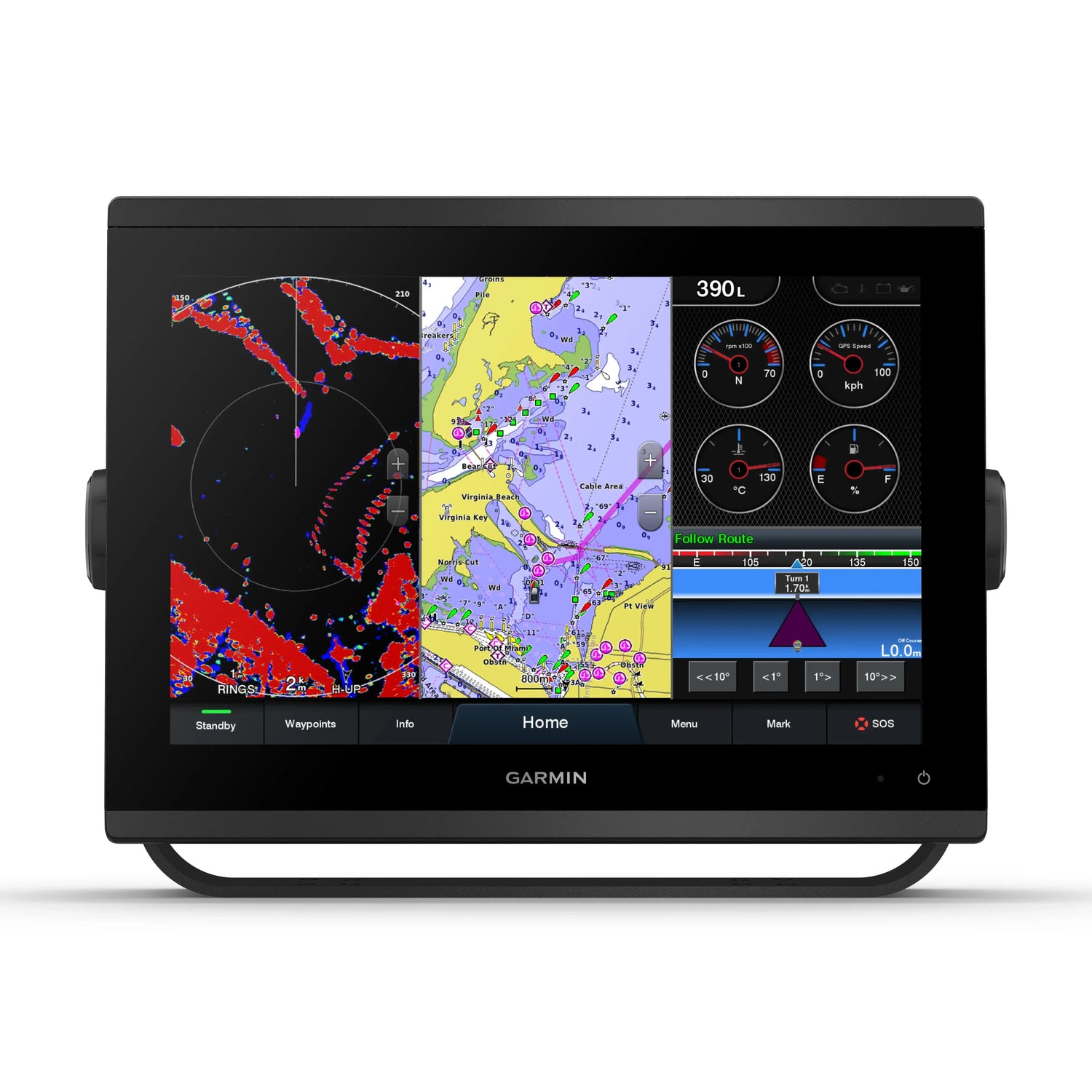

New Garmin GPSMAP chartplotters have sharper displays with more pixels than previous-generation devices. These devices can integrate seamlessly into your Garmin marine system due to their smaller size and improved performance. Support for the Garmin Marine Network allows you to share information, such as maps, user data, radar and IP camera video among different devices. NMEA 2000® and NMEA 0183 networks make it possible to connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity enables connections with Garmin Helm, BlueChart Mobile, and VIRB action cameras. The free Quickdraw Contours map software allows you to create unique high definition 0.3 meter contours. Share and download maps in the Garmin Quickdraw community. With the Garmin Sailassist™ sailing features you can view laylines, enhanced wind rose, and tide and drift data. Racing assistance includes race start line guidance and countdown.

As the device is Panoptix™ sonar compatible, you can pair it with a FrontVü scanning sonar to help you see and avoid submerged obstacles in real time. Integrated ANT® technology allows you to connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls. BlueChart® g3 Vision® maps (sold separately) offer new Auto Guidance functions, such as automatic guidance, waypoints, route review and modification, recommended speeds, etc.

Specifications:

• Dimensions 30.8 x 22.8 x 8.2 cm, 3.0 kg
• Panoptix compatible
• Waterproofing IPX7
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz high-sensitivity
• Display size 26.2 x 16.3 cm; 30.7 cm diagonal
• Display resolution, 1280 x 800 pixels, display type WXGA
• Accepts data cards: 2 microSD cards
• Track log: 50,000 points; 50 saved tracks
• Preloaded maps: Worldwide basemap
• Routes 100
• GCV™ Black Box sonar support
• Wireless remote compatible
• J1939 compatible

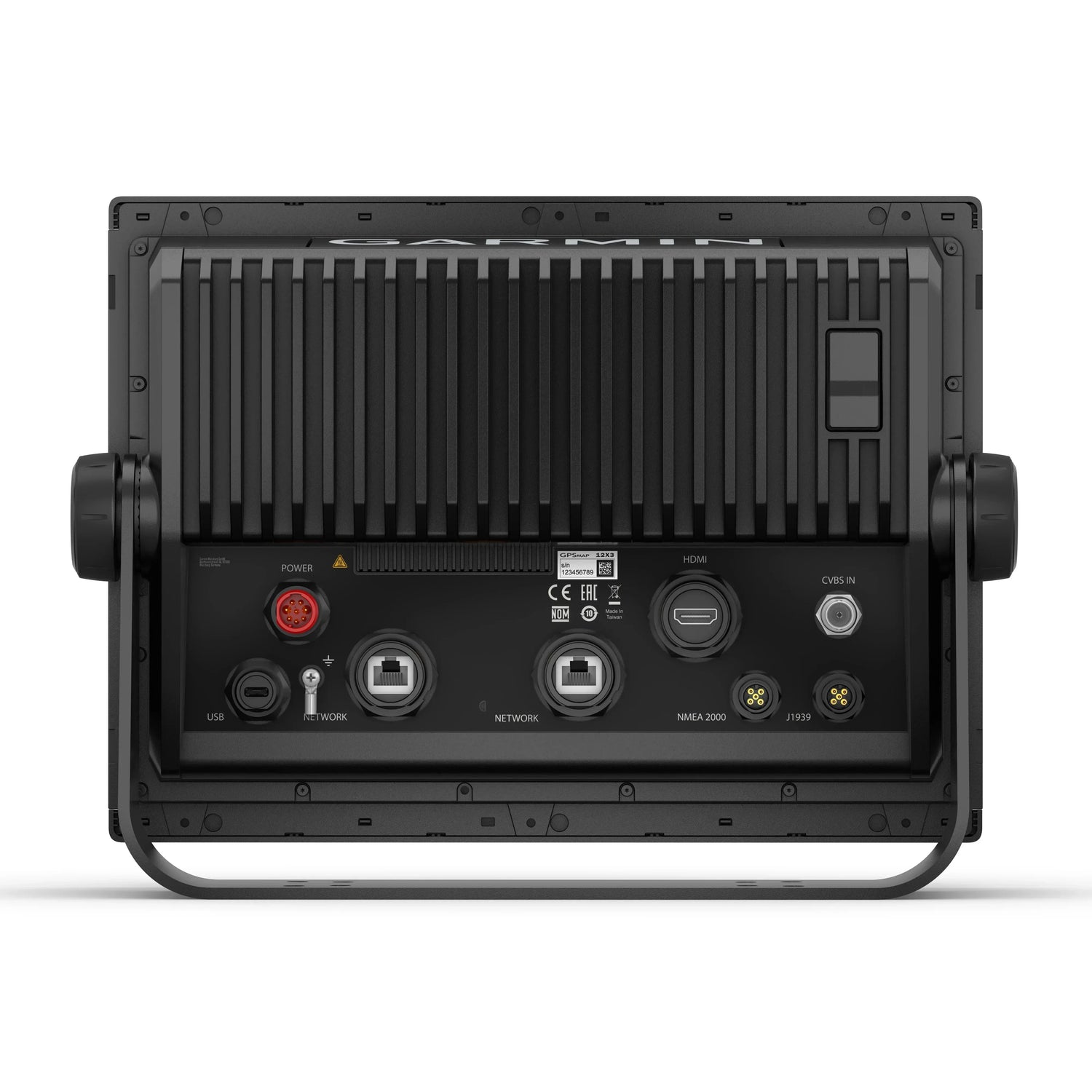

• Video inputs: 1 BNC, 1 HDMI
• ClearVü, SideVü, CHIRP support (with external black box, sold separately)
• ActiveCaptain compatible
• GRID™ (Garmin Remote Input Device) compatible

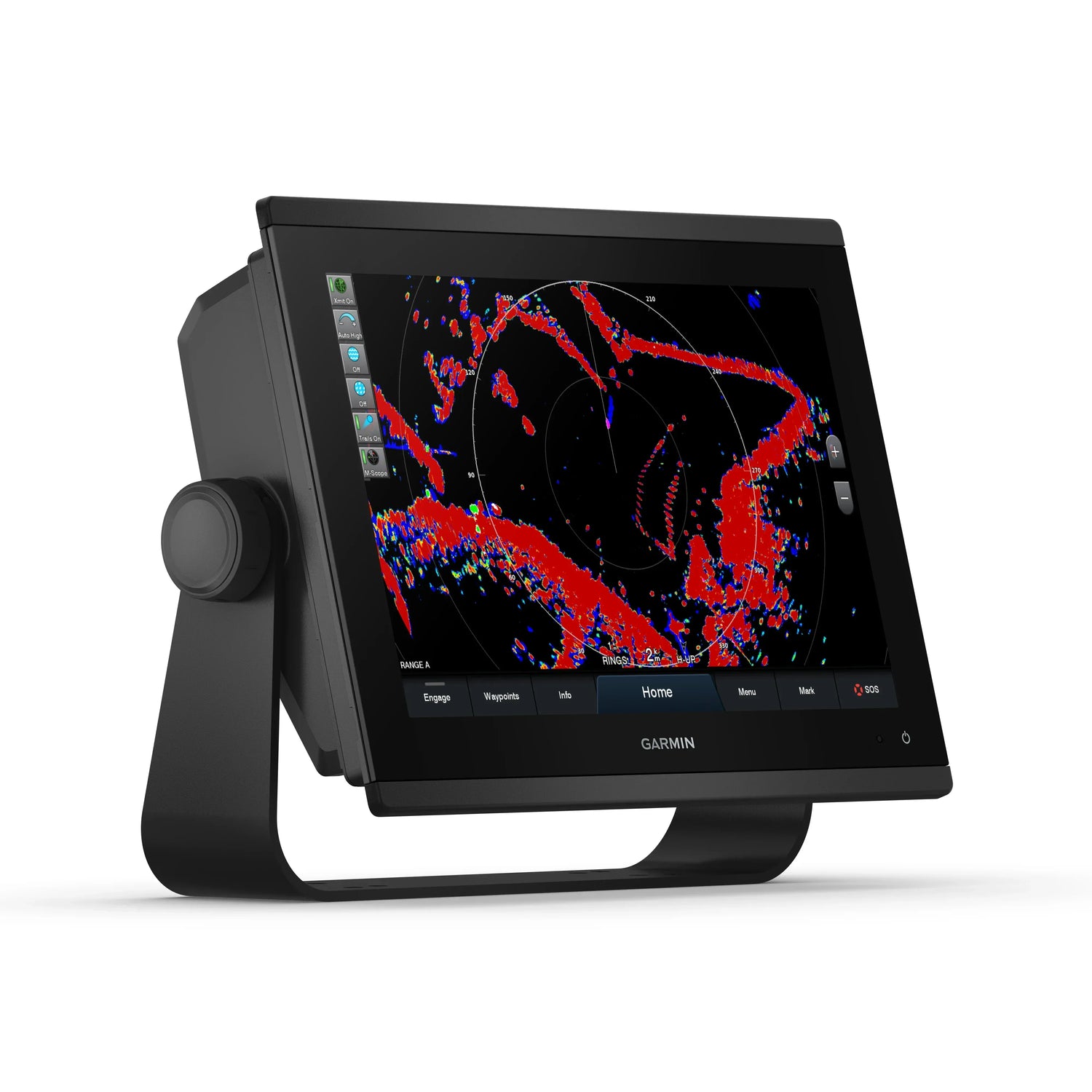

• Garmin radar compatible
• Supports DSC (displays position data from DSC-capable VHF radio)
• Garmin Marine Network™ ports: 1
• Polarized Support: Yes
• NMEA 0183 inputs: 1 (Differential), NMEA 0183 outputs: 1 (Differential)

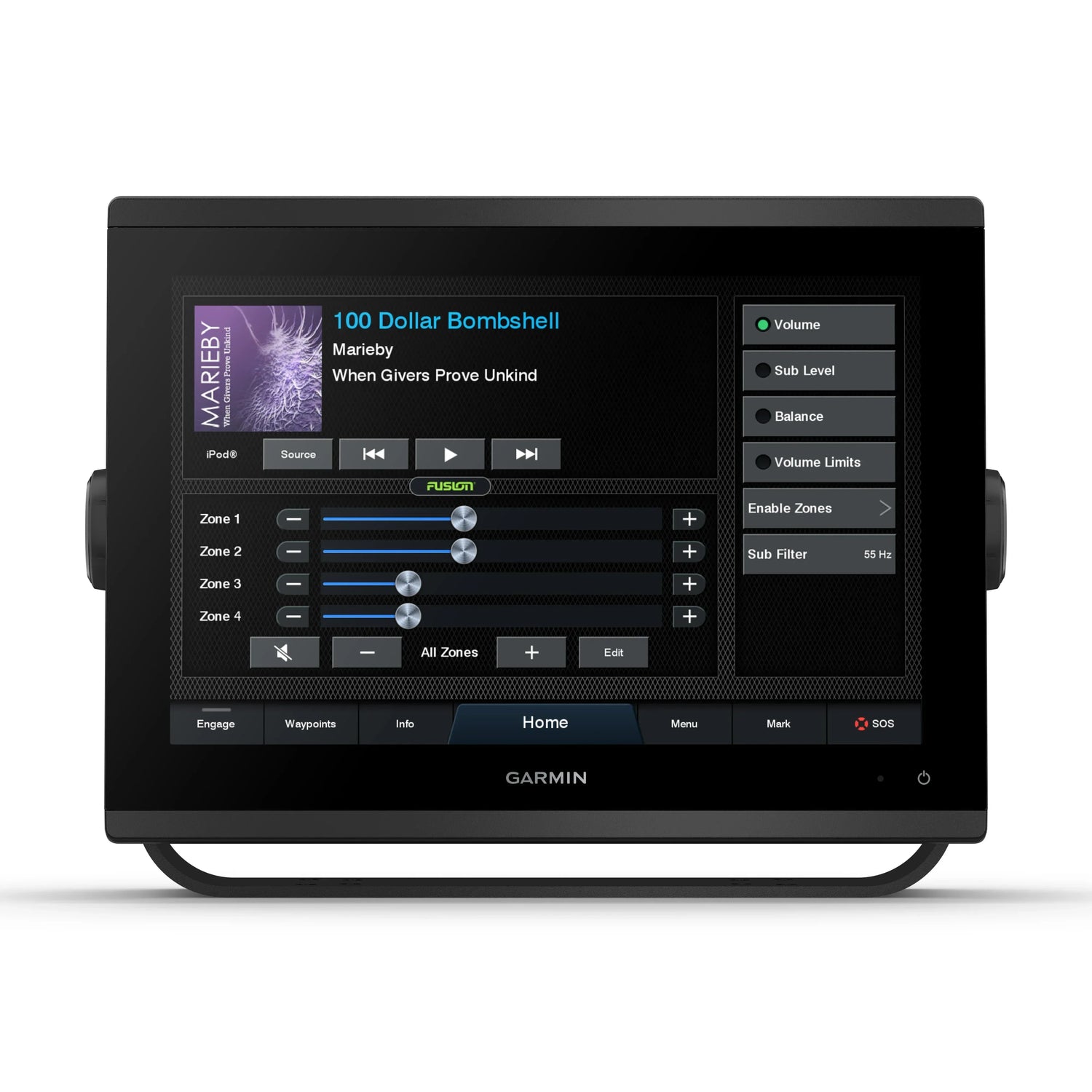

• Supports FUSION-Link™ compatible radios
• Wireless connections
• NMEA 2000® compatible
• Supports AIS (tracks target ships position)
• Garmin SmartMode compatible (customizable monitor presets)
• GSD™ Black Box sonar support
• Sailing Features
• Tide tables

Included in the box:
• GPSMAP 1223 plotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers

Language options: Arabic, Brazilian Portuguese, Bulgarian, Croatian, Chinese (simplified), Chinese (traditional), Czech, Dutch, Danish, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Thai, Turkish
