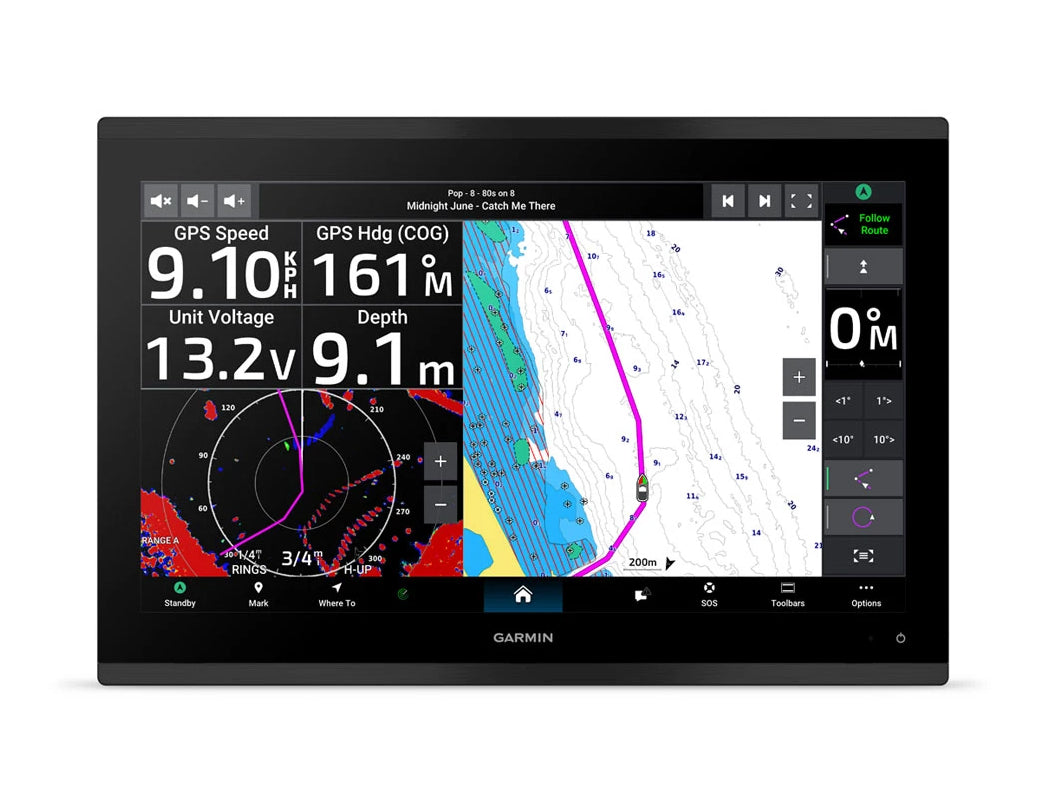

Garmin GPSMAP 9017 Chart Plotter

When only extreme performance, clarity, and reliability will do, the Garmin GPSMAP 9017 Chart Plotter is the answer. This premium 17-inch chartplotter combines a high-resolution 4K IPS touchscreen, frameless design, and advanced system integration to deliver a truly refined user experience. The screen remains easy to read even in direct sunlight and is built from durable materials for demanding marine conditions.

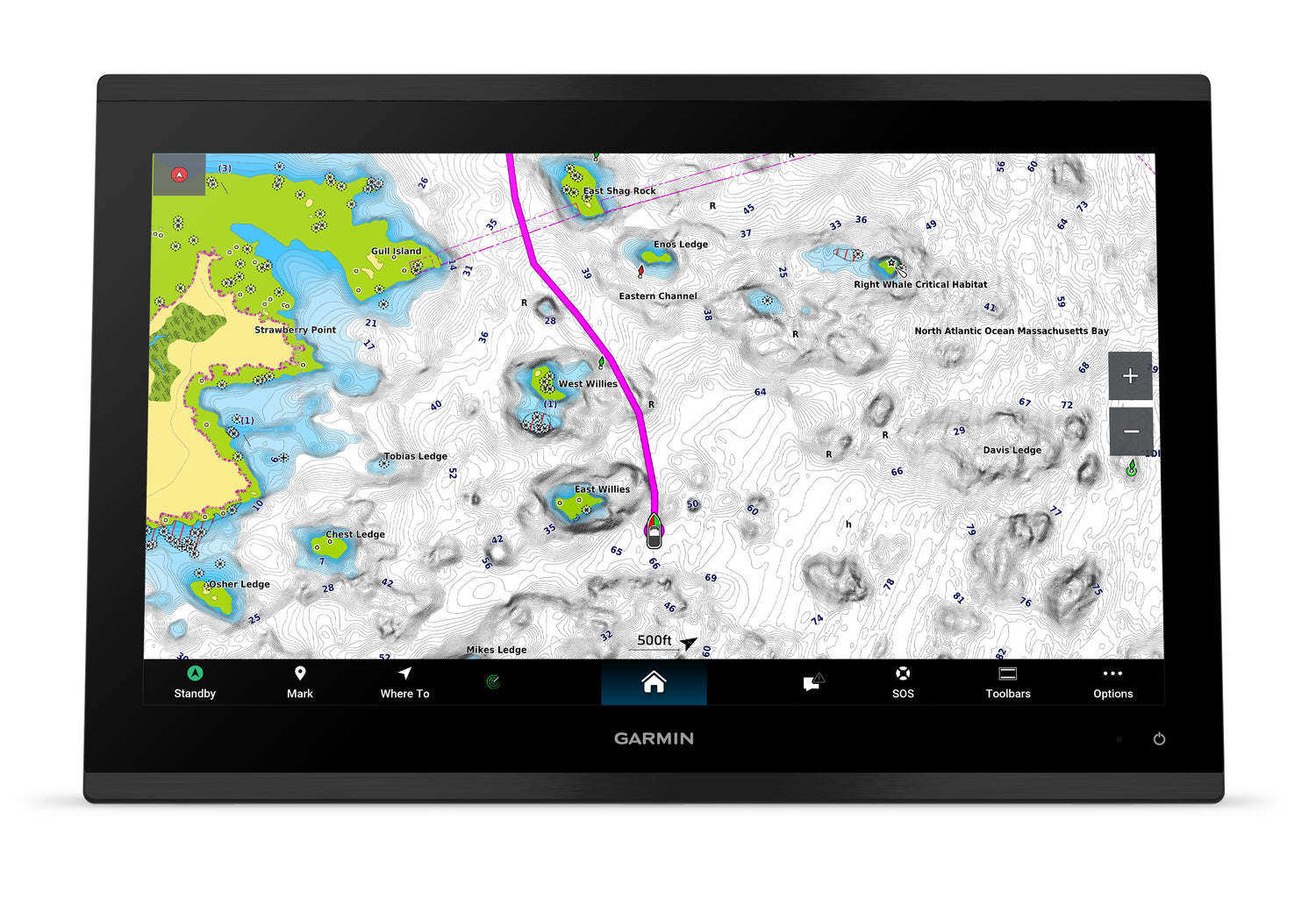

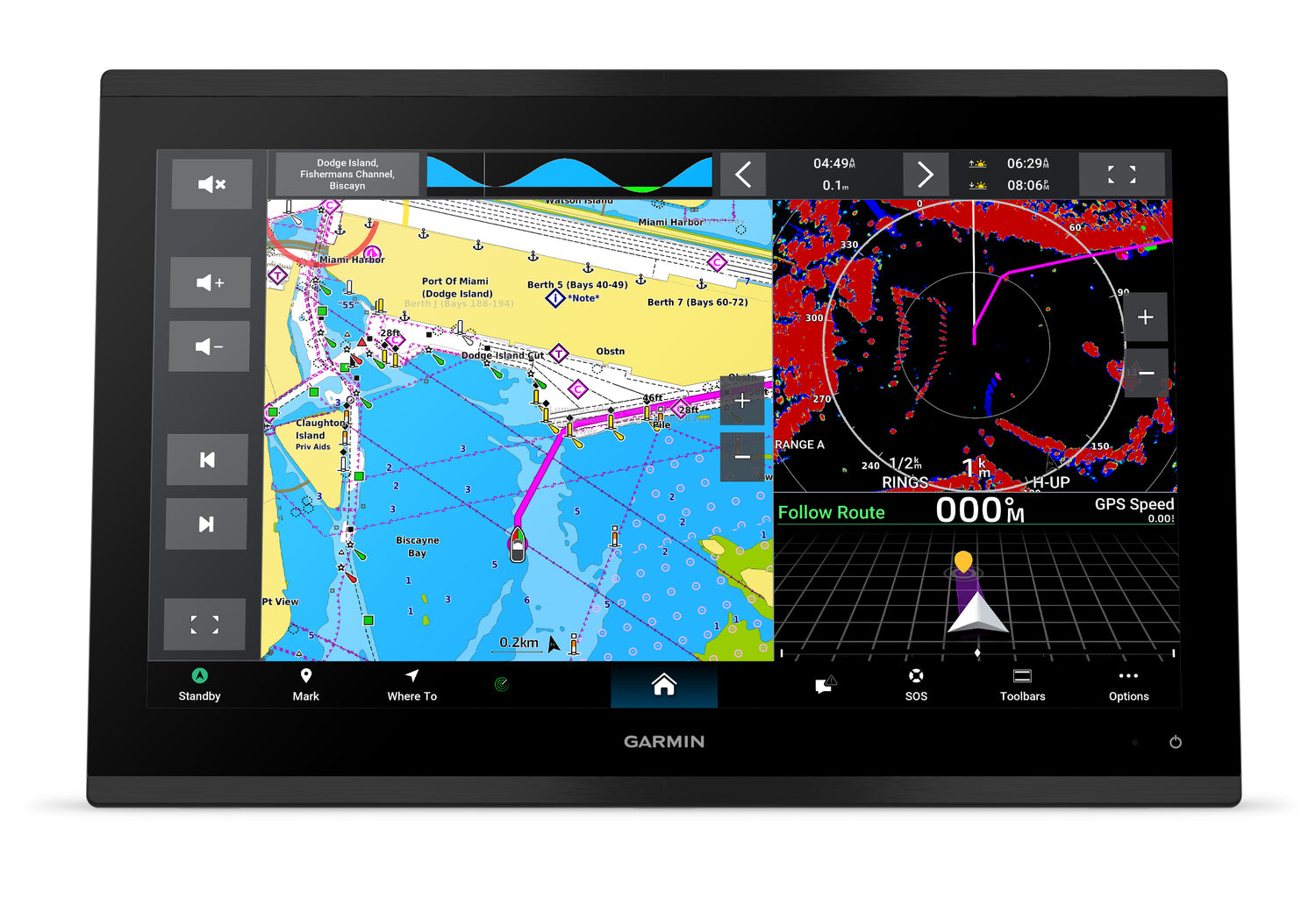

At its core is a powerful processor that renders maps and calculates Auto Guidance+ routes up to seven times faster than previous generations. This ensures fast and accurate navigation – even while underway.

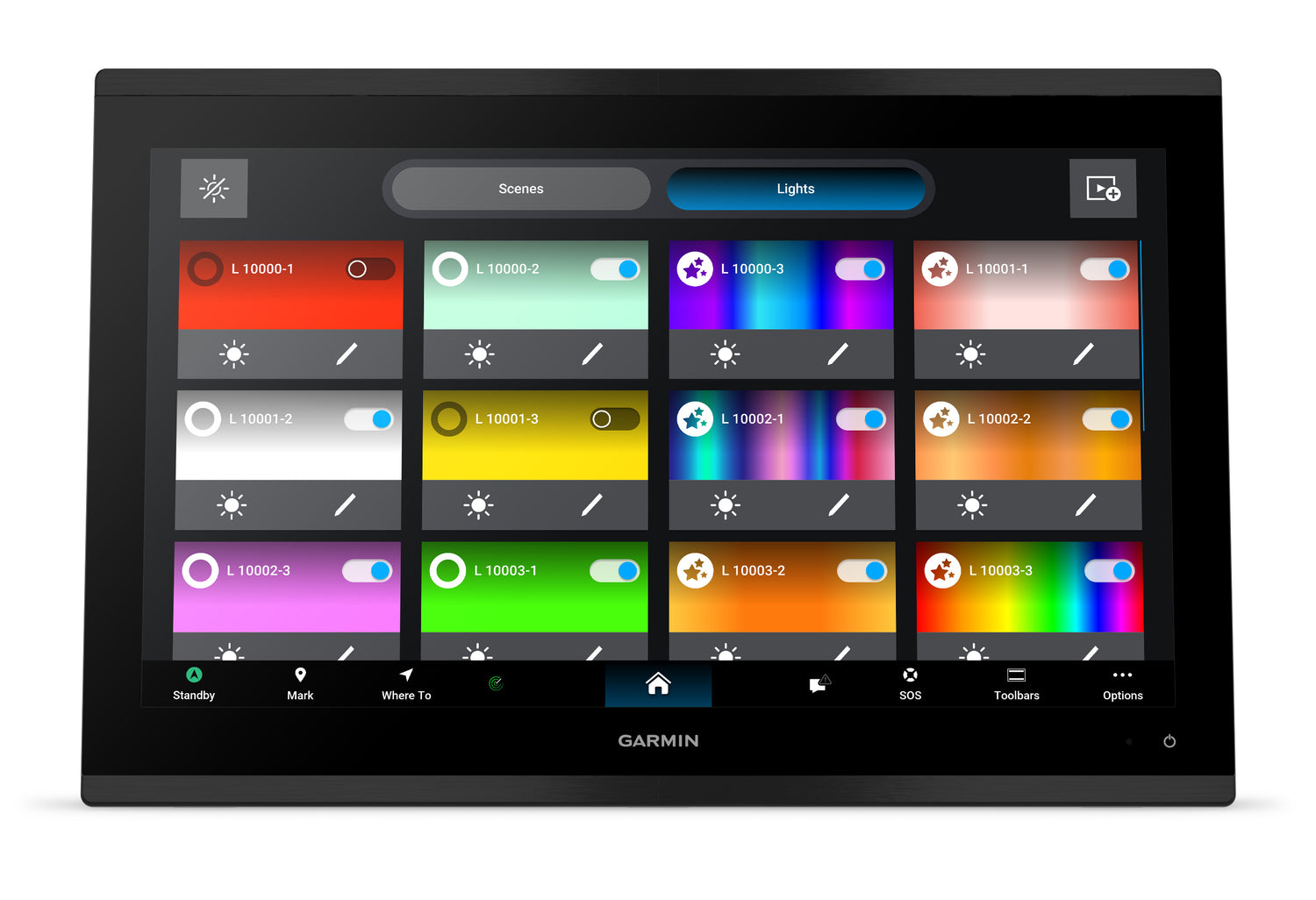

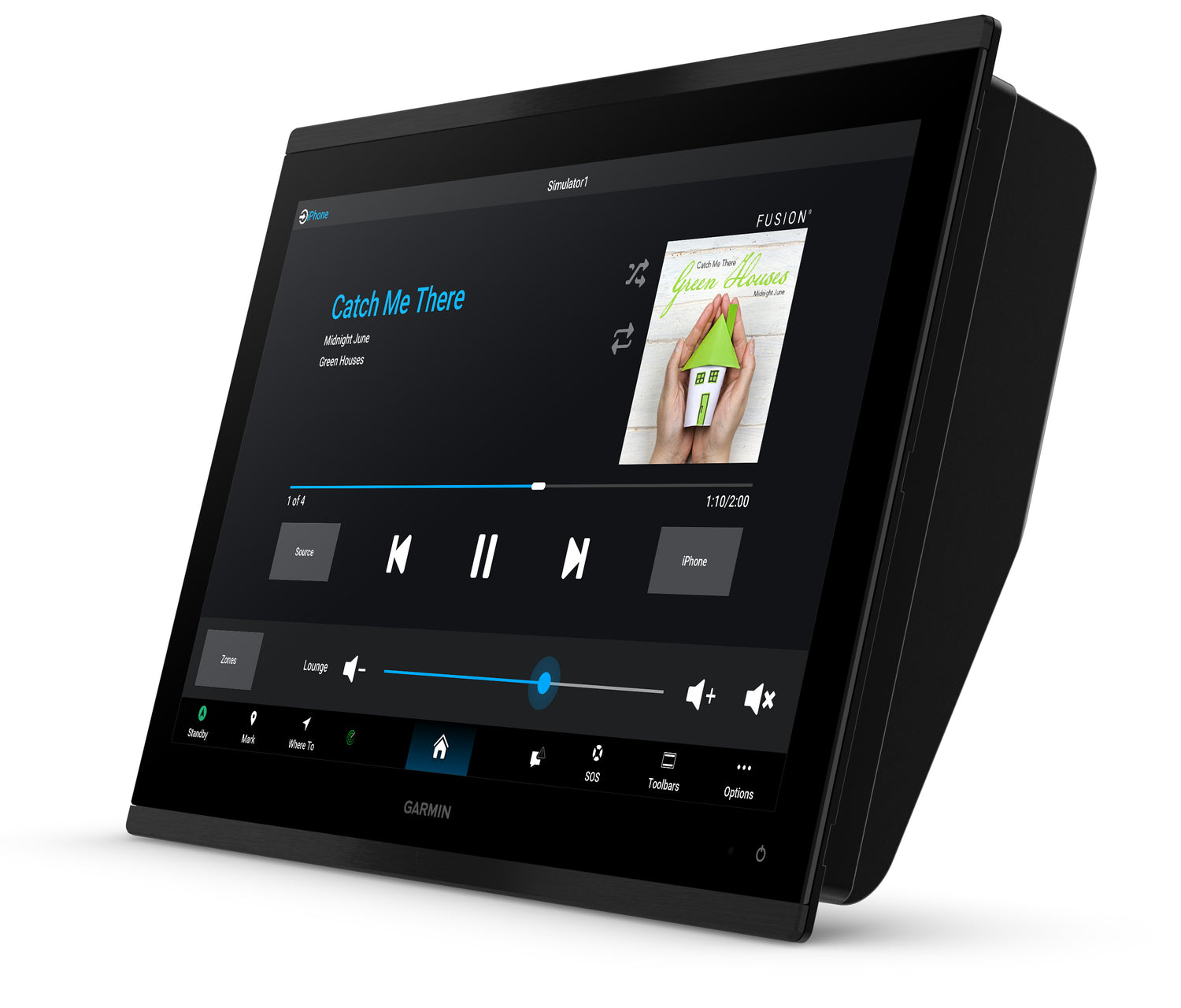

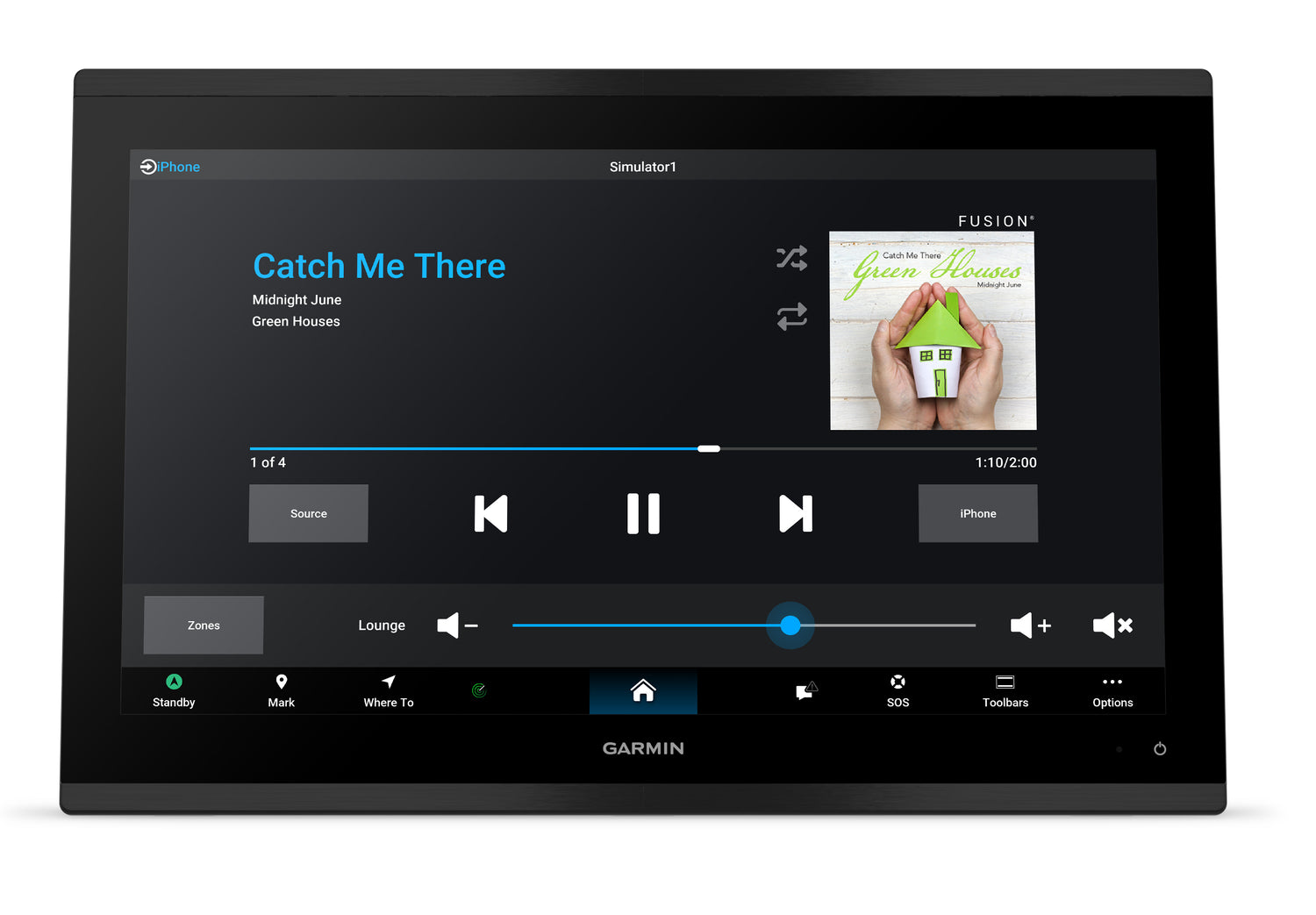

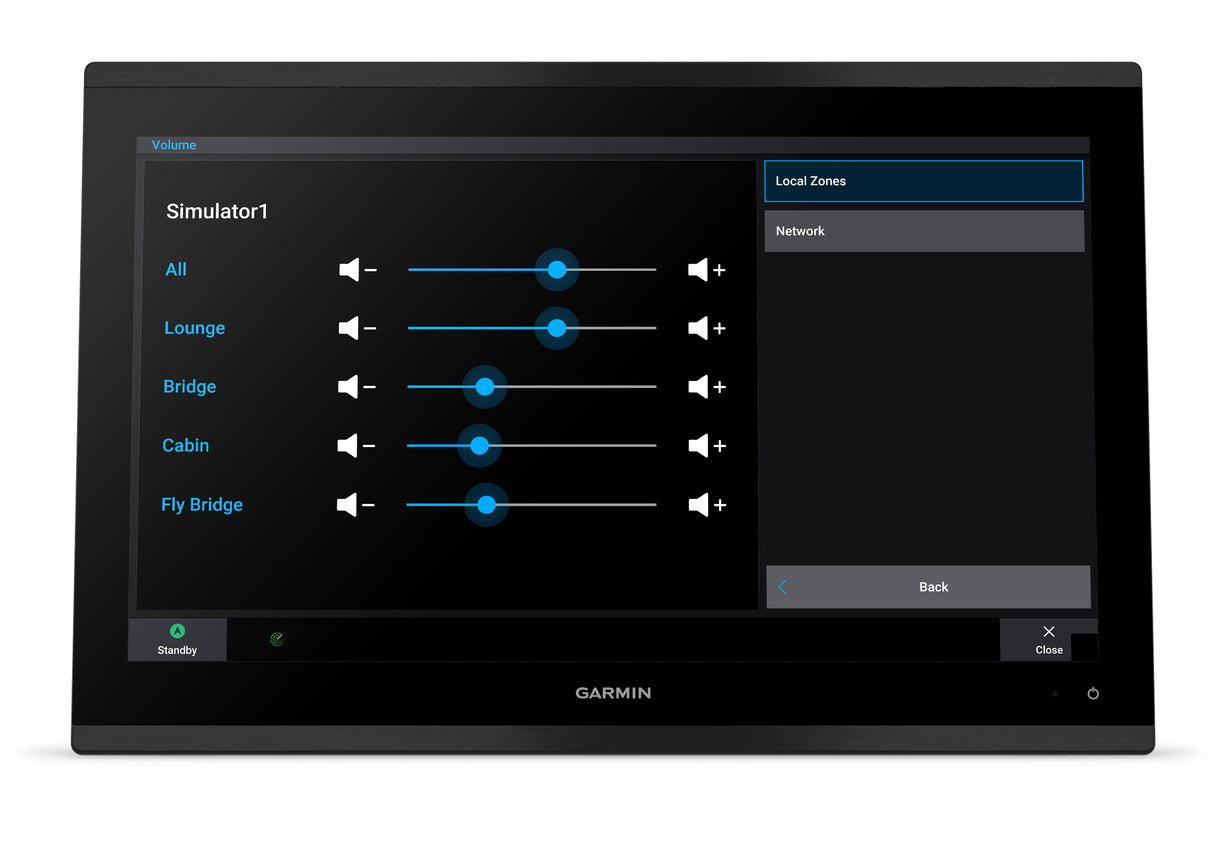

Thanks to Garmin’s BlueNet networking technology, all your boat’s electronics integrate seamlessly into one system. Chartplotters, radar, sonar, and cameras communicate instantly. You can also control onboard entertainment from a central location – with audio and video shared effortlessly across all screens and speakers.

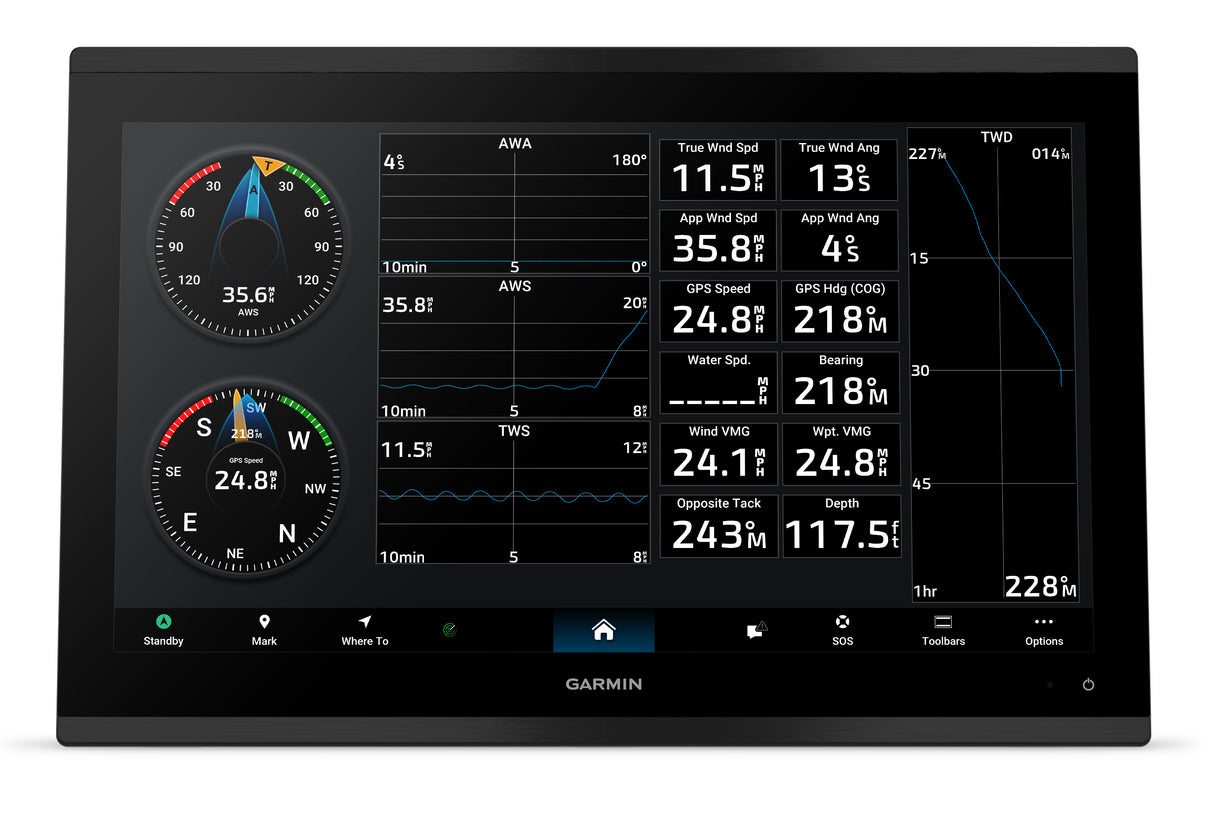

The GPSMAP 9017 is also a top-tier choice for sailors. With Garmin SailAssist tools like laylines, wind rose, polar diagrams, and tidal data, you get everything needed to optimize trim and course selection. The built-in 10 Hz GPS receiver supports multiple satellite systems and provides real-time, accurate positioning.

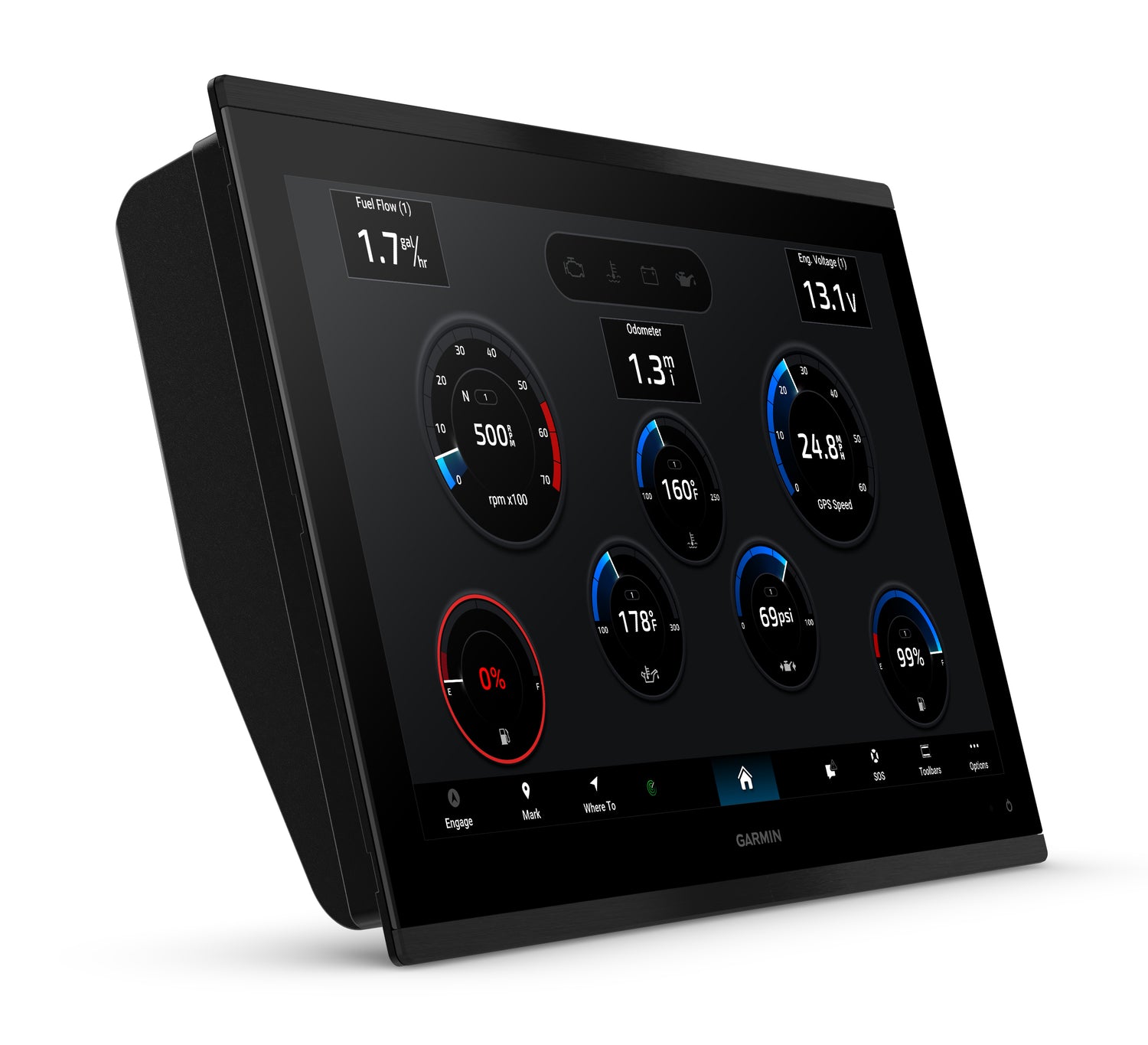

Control the device via smartwatch or voice commands, and manage updates wirelessly with the ActiveCaptain app. Thanks to NMEA 2000 support, you can connect engines, sensors, and additional displays into the same intelligent system.

Technical data:

General:
• Dimensions: 42.7 cm x 28.5 cm x 9.2 cm
• Weight: 5.90 kg
• Waterproof rating: IPX7
• Display: 17.25" IPS Mini-LED, 3840 x 2160 pixels
• Display area: 38.2 x 21.5 cm

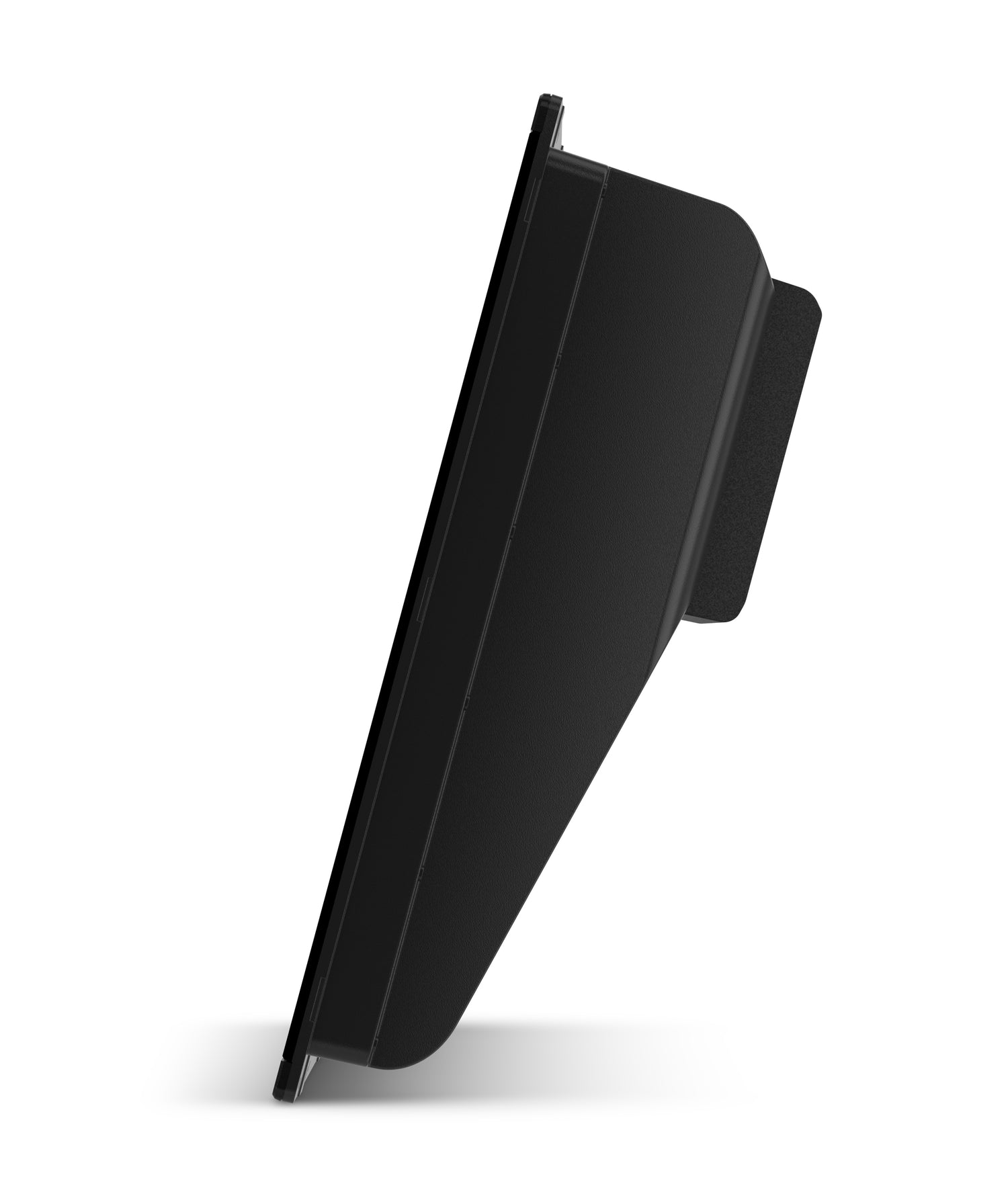

• Mounting options: flush mount, recessed mount

Charts and memory:
• 2 microSD card slots
• USB card reader support
• Waypoints: 5,000
• Track points: 50,000
• Saved tracks: 50
• Routes: 100

Positioning and satellite systems:
• GPS, GLONASS, Galileo, BeiDou
• Built-in 10 Hz receiver
• WAAS and multi-frequency support

Compatible charts:
• Garmin Navionics+, Navionics Vision+
• BlueChart g3, g3 Vision
• LakeVü g3, g3 Ultra
• TOPO 100K
• Raster maps, Garmin Quickdraw Contours

Sonar features (with accessories):
• Traditional dual frequency/beam sonar
• xCHIRP, RapidReturn
• ClearVü, SideVü
• Panoptix, LiveScope

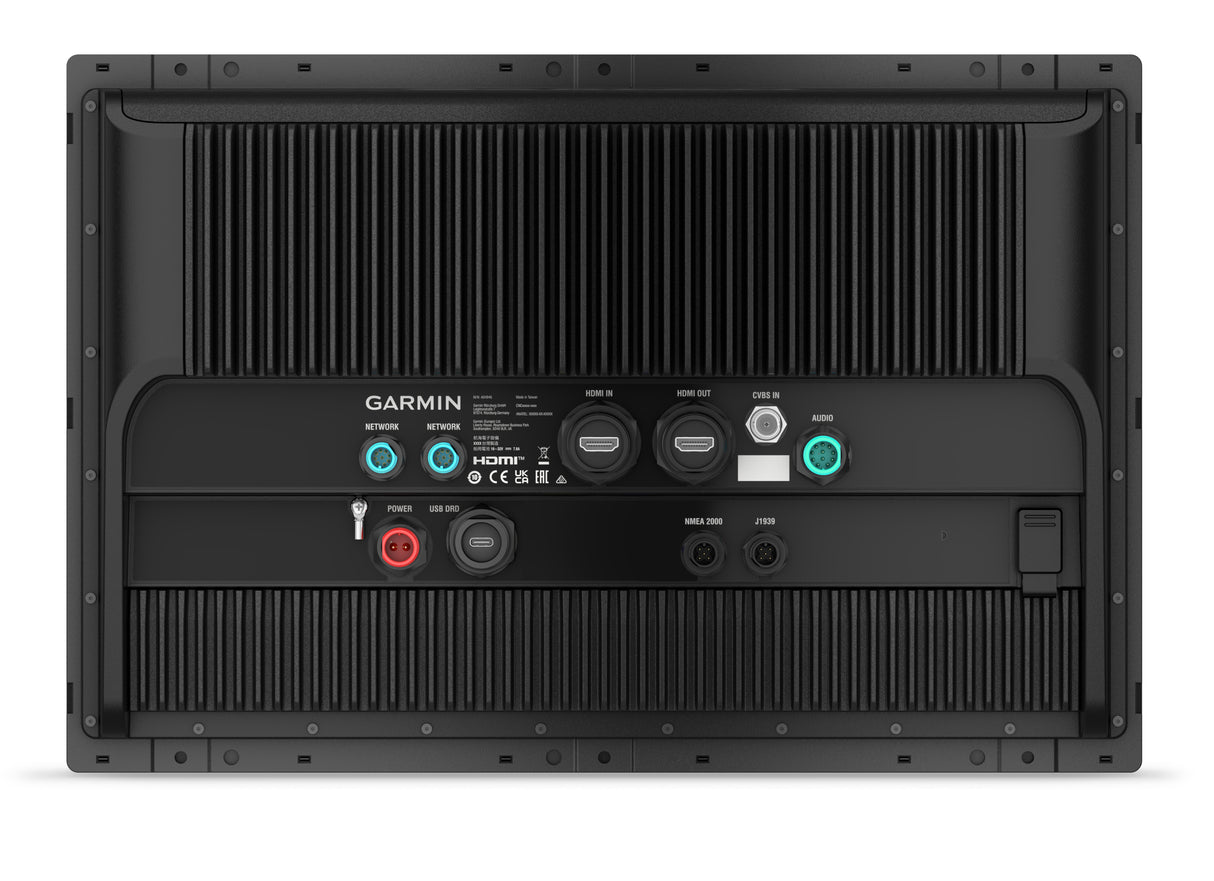

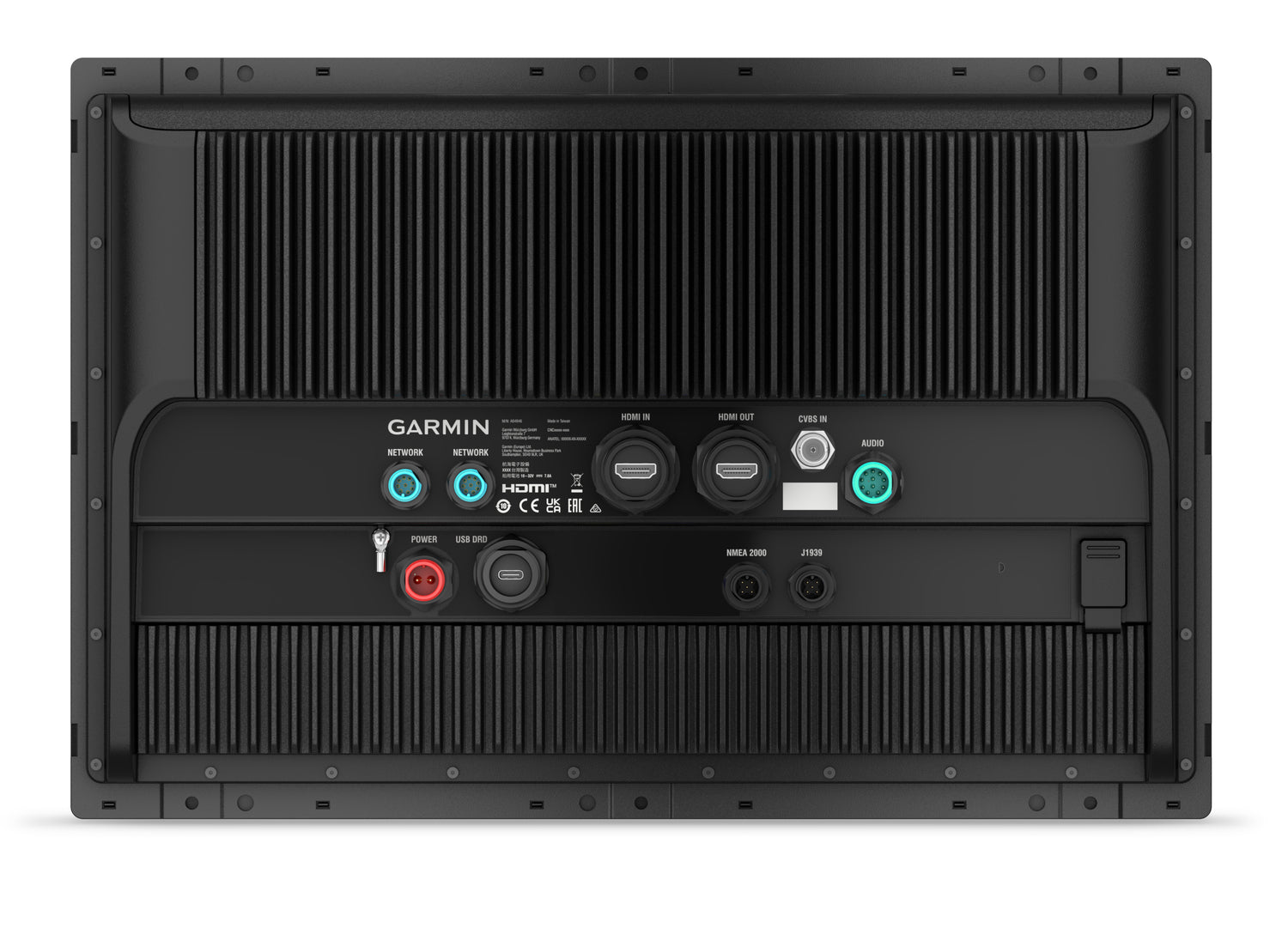

Connections and communication:
• NMEA 2000 and 0183
• HDMI in and out
• BNC video input
• USB-C, J1939
• Garmin BlueNet ports (2)
• ANT, Bluetooth, Wi-Fi (2.4 and 5 GHz)

Sailing features:
• Laylines, start line guidance, bow and heading lines
• Enhanced wind rose and true wind data
• Tidal and current info, time controls
• Polar diagrams for sail optimization

Smart features:
• Compatible with ActiveCaptain
• SmartMode and OneHelm
• Voice control and Garmin smartwatch integration
• Supports cameras and wireless remotes

Power supply:
• Input voltage: 10–32 VDC
• Typical consumption: 4.3 A (at 12 V)
• Max consumption: 52 W (at 10 V)

Package includes:
• Garmin GPSMAP 9017 Chart Plotter
• Power cable
• Device cable (2 m), T-connector for NMEA 2000 network
• Mounting bracket with knobs
• Flush mount kit
• Protective cover
• Trim caps
• User manuals

The Garmin GPSMAP 9017 Chart Plotter is everything a modern skipper could ask for – performance, control, and quality all in one powerful package. It's the heart of an intelligent marine system that makes every journey smoother and more enjoyable.
