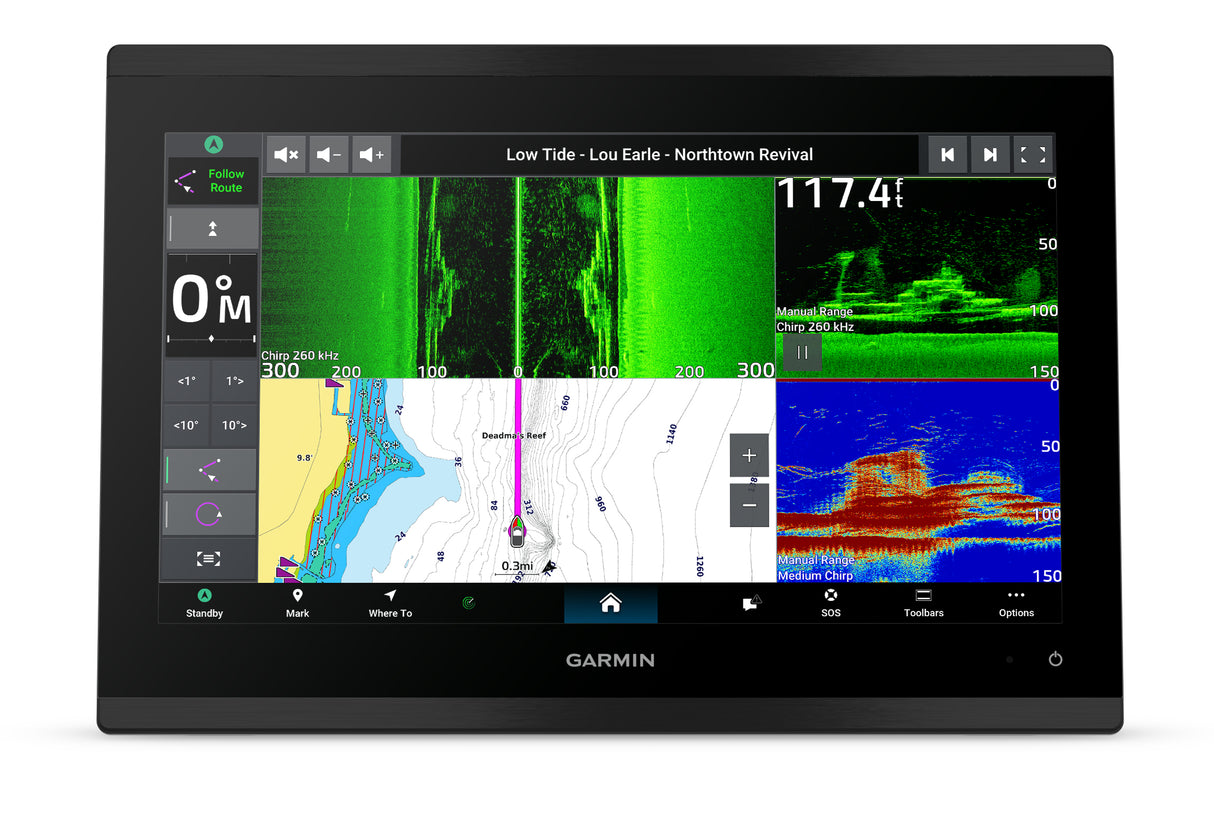

Garmin GPSMAP 9013xsv Combo Device

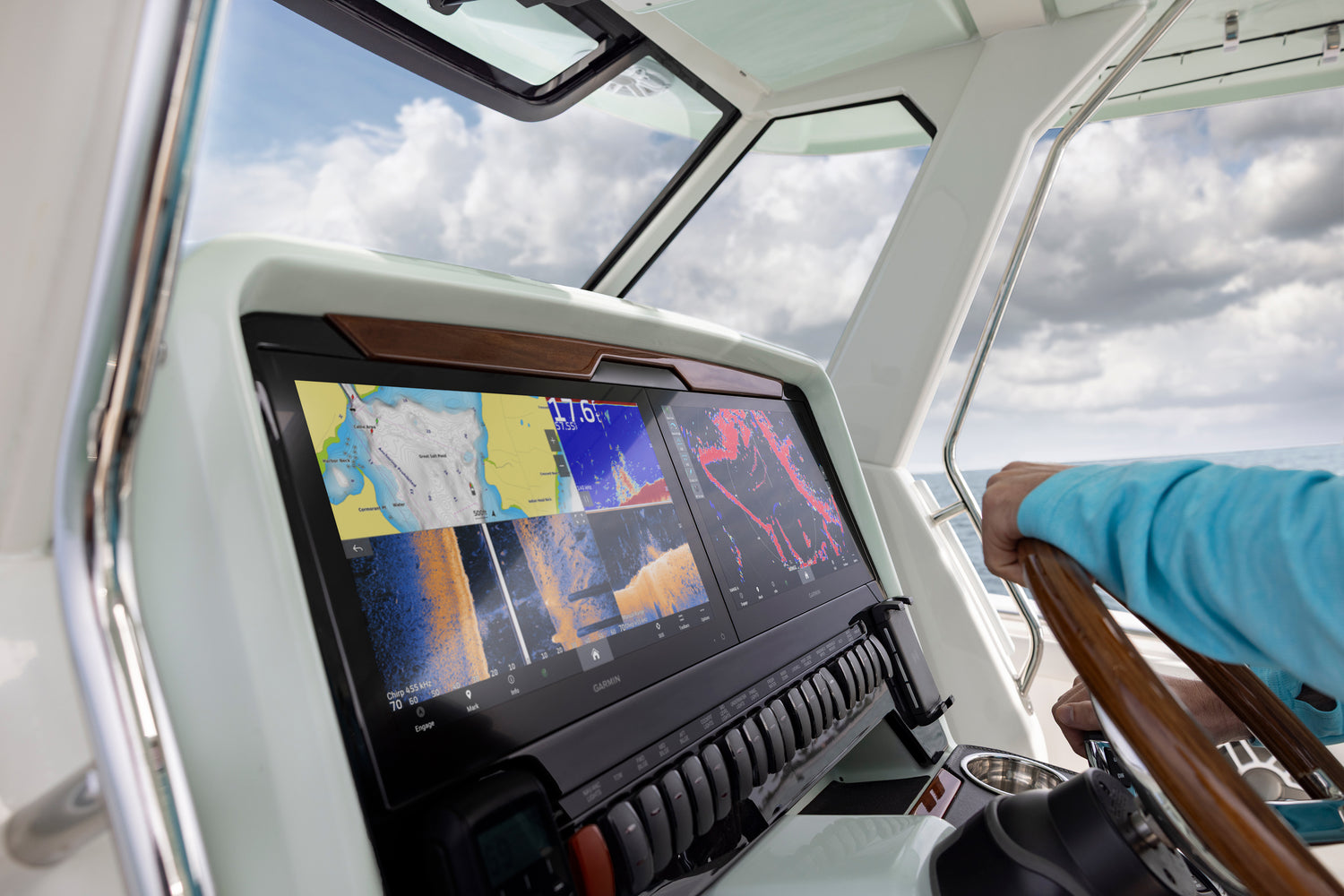

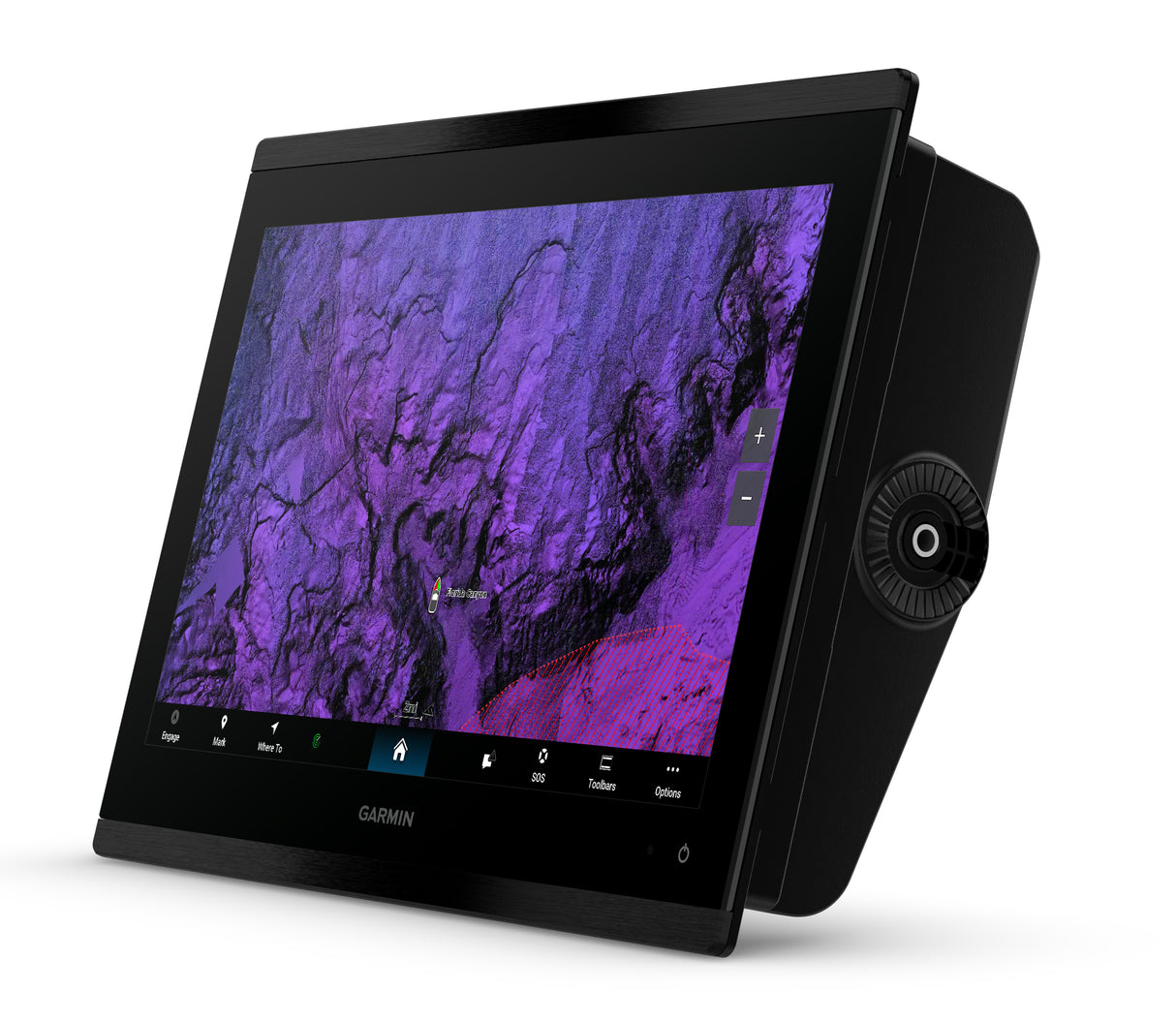

If your boat setup needs to be absolutely top-tier, the Garmin GPSMAP 9013xsv Combo Device is exactly what you’re looking for. This unit combines a large touchscreen with advanced technology to create a modern hub for navigation and fishing. Its frameless 4K IPS touchscreen is built from high-quality materials and remains crystal clear even in bright sunlight.

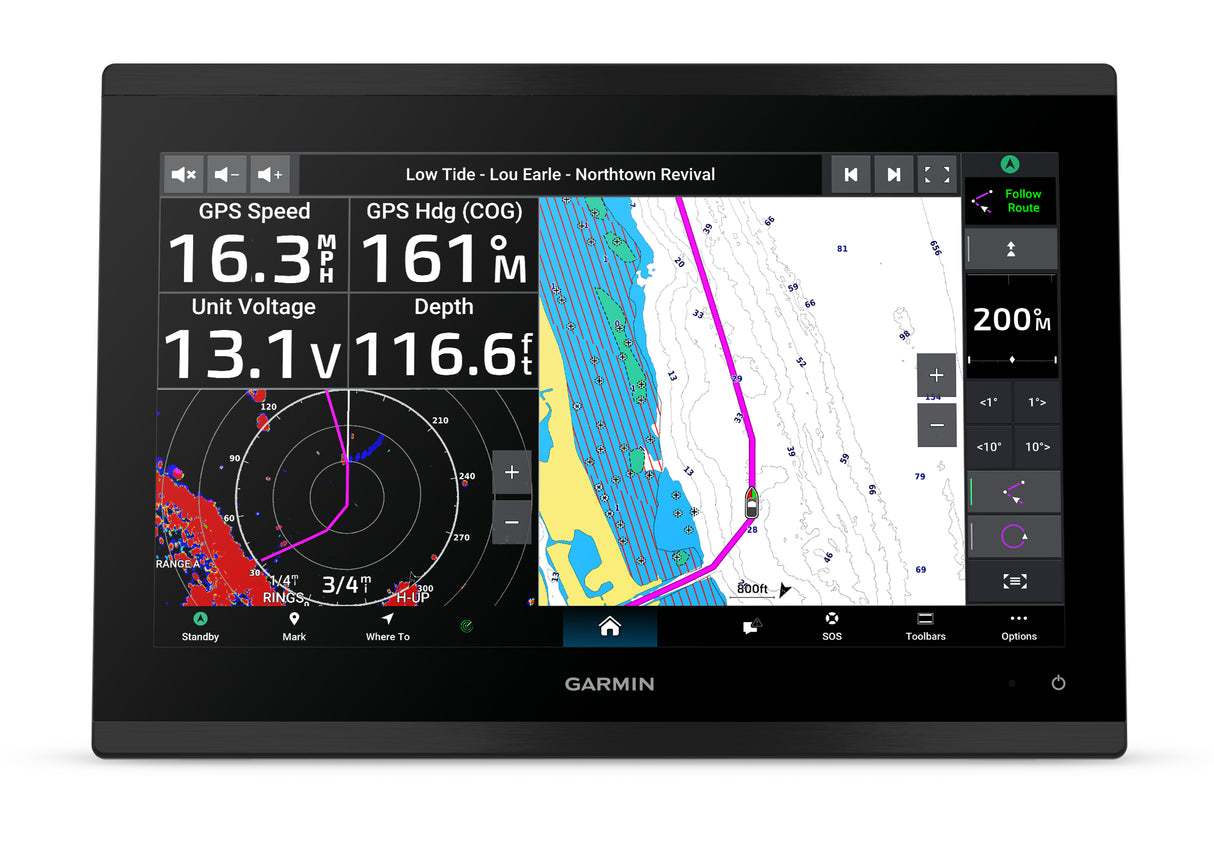

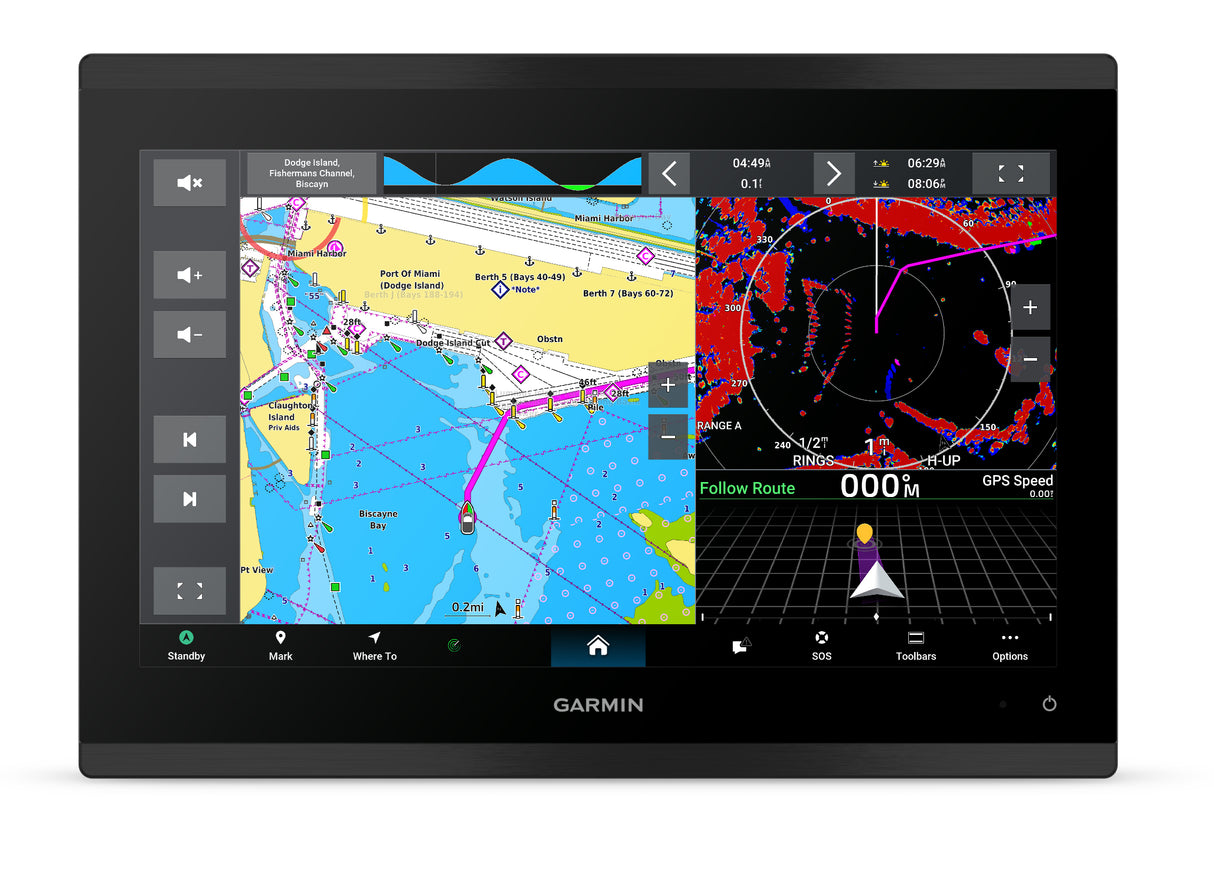

Powered by a processor up to seven times faster than previous models, maps render instantly. With Garmin Navionics+™ charts and Auto Guidance+™ routing, navigation is both accurate and effortless. Through the BlueNet™ network, multiple chartplotters, cameras, radars, and sonars can be seamlessly connected into one high-speed system.

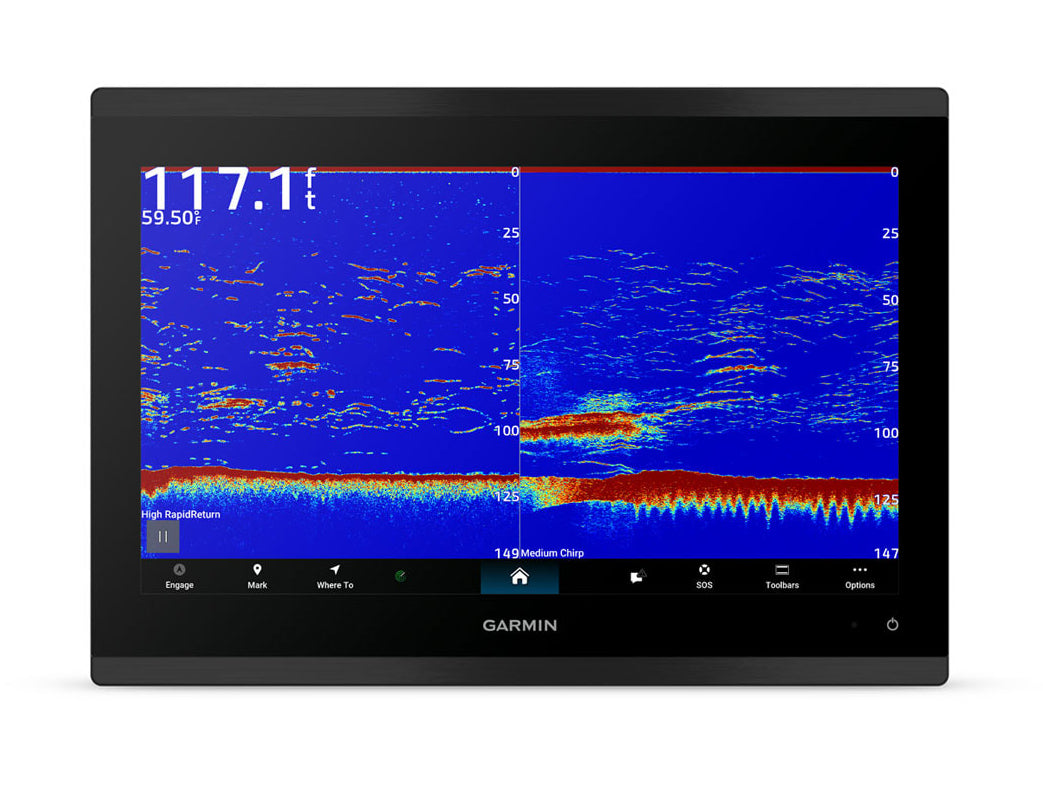

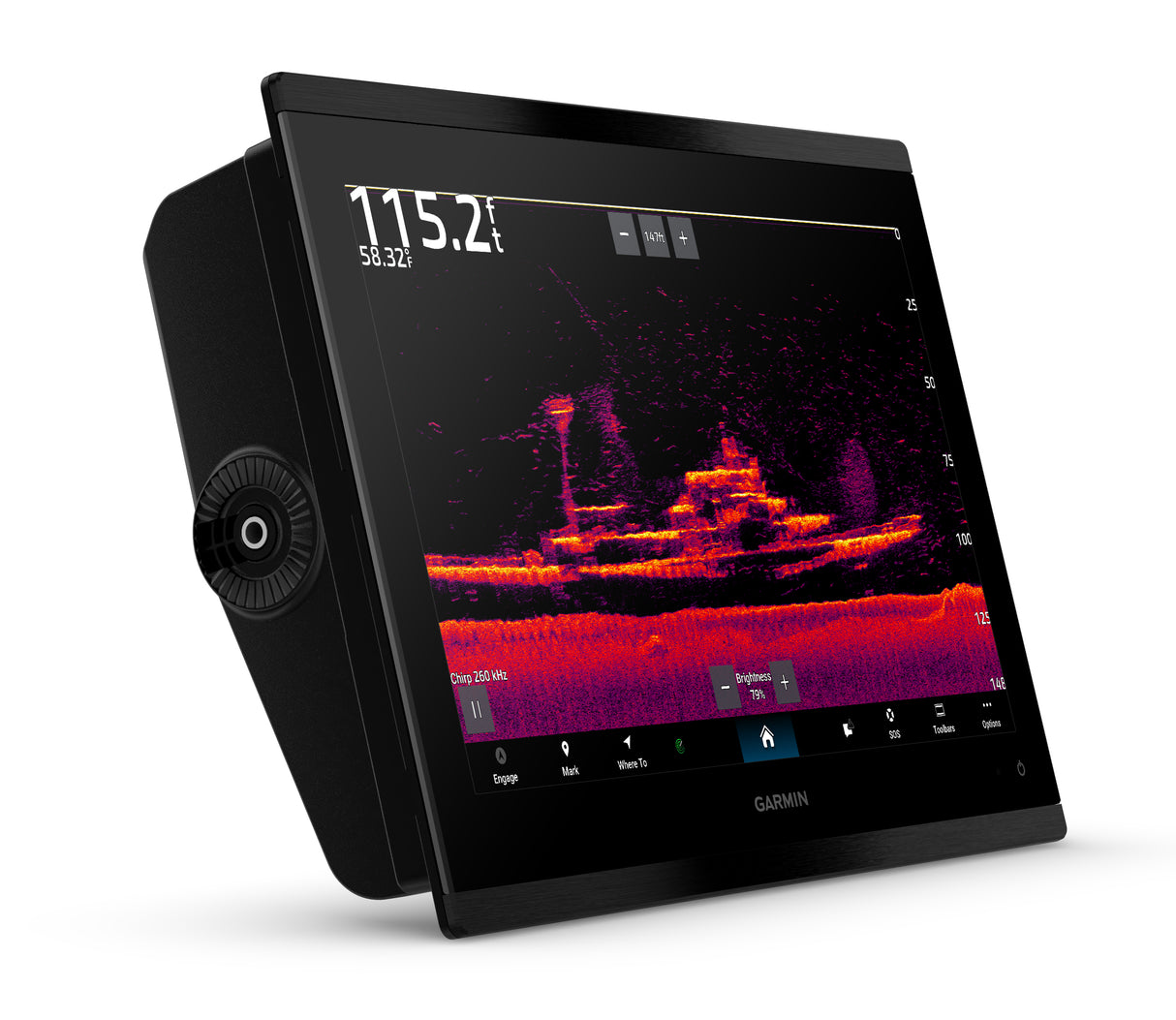

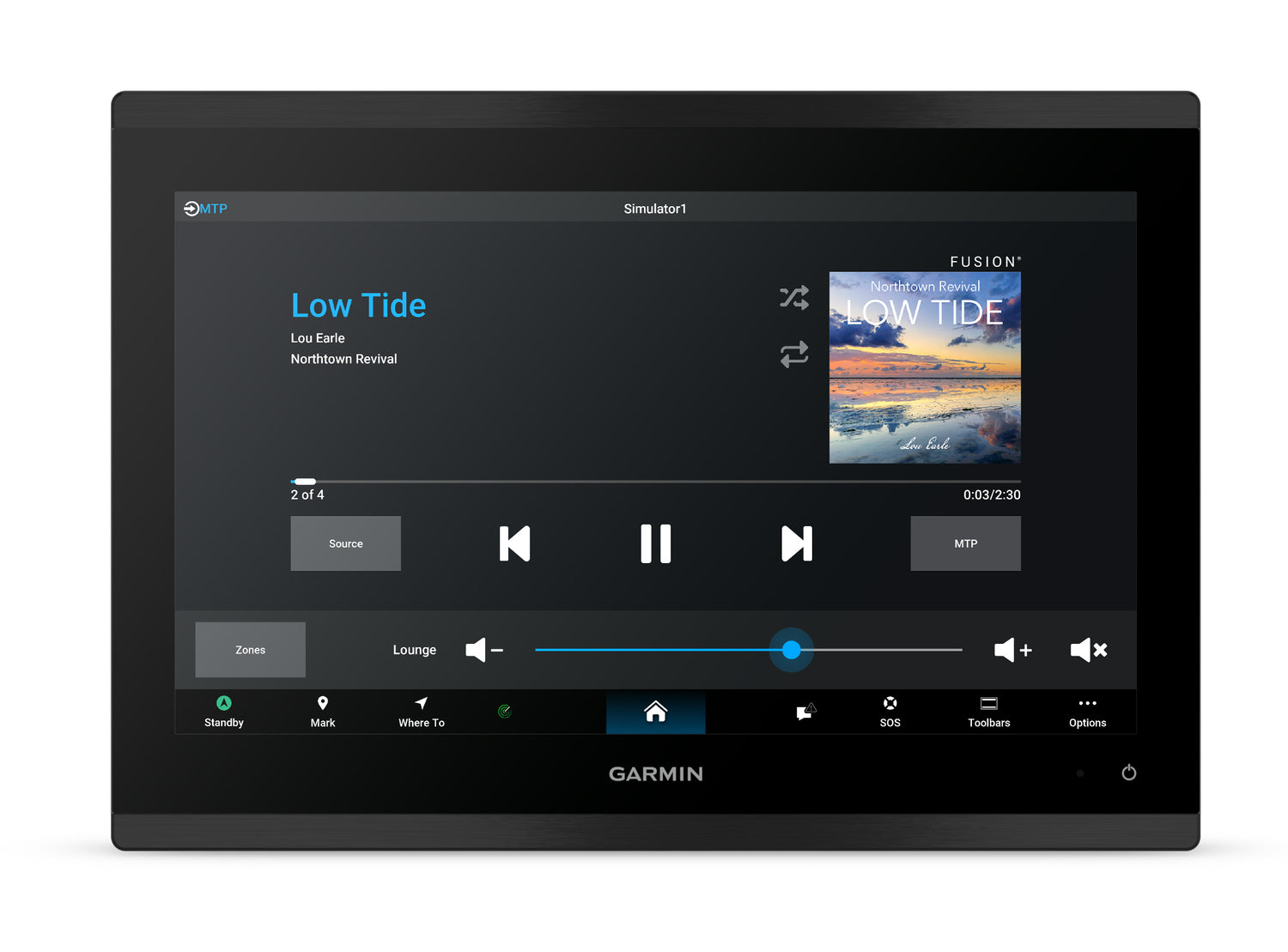

The xsv model features an integrated 1 kW xCHIRP sonar with Garmin’s RapidReturn™ technology, delivering HD imaging for fishing. You’ll see fish and bottom structure clearly separated for precision targeting. Entertainment mode allows sharing of audio and video across all screens and speakers onboard.

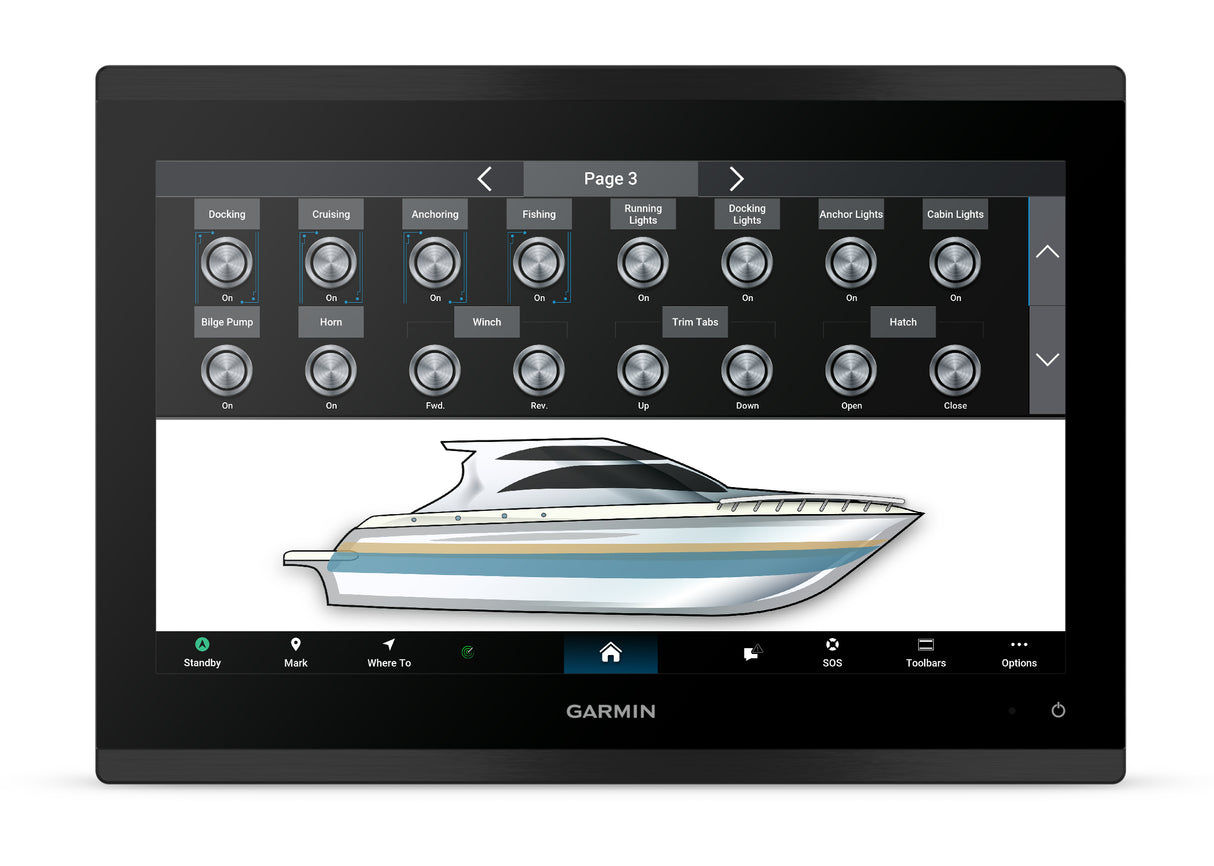

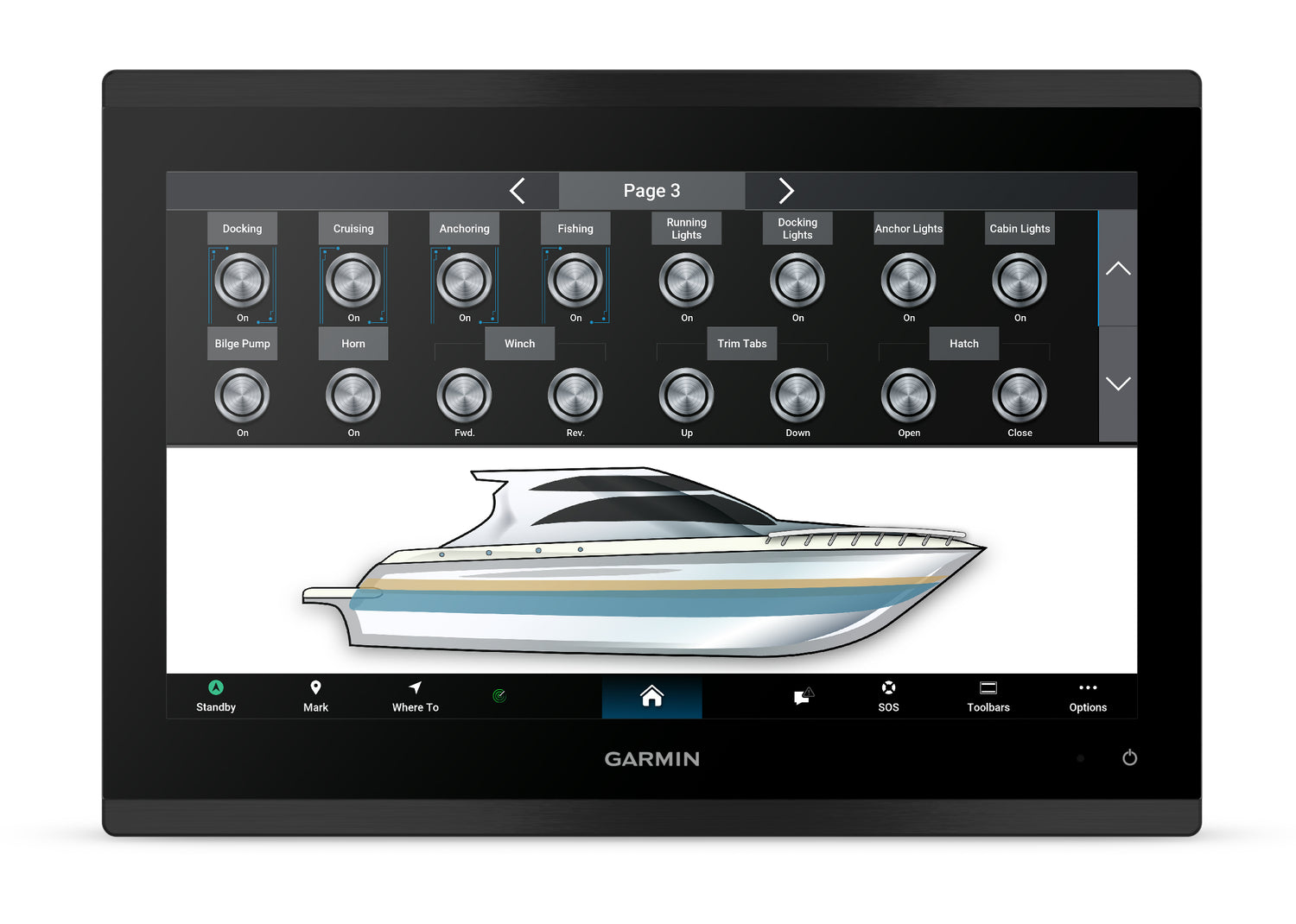

For sailors, the unit offers Garmin SailAssist™ features like laylines, start line guidance, wind rose, bow and heading lines, and polar diagrams for optimal trimming. It integrates with your boat's digital systems via the NMEA 2000® network and supports wireless updates via smartphone or tablet.

Technical data:

General:
• Dimensions: 33.5 cm x 23.4 cm x 9.1 cm
• Weight: 4.13 kg
• Waterproof rating: IPX7
• Display: 13.3″ 4K IPS Mini‑LED, 3840 × 2160 pixels
• Display area: 29.4 × 16.5 cm

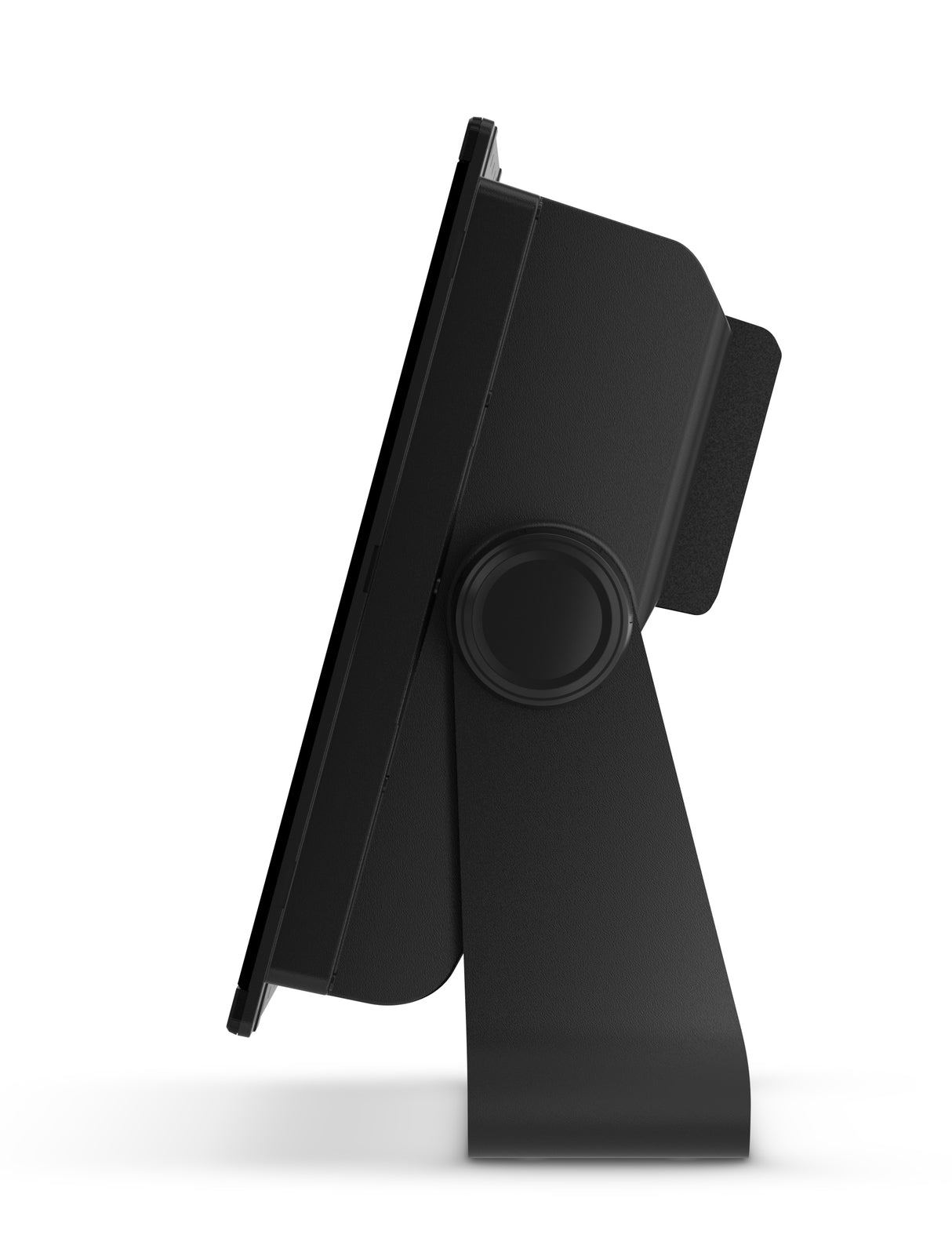

• Mounting options: standard, flush, or recessed

Charts and memory:
• 2 microSD™ card slots
• Supports USB card readers
• Waypoints: 5,000
• Track points: 50,000
• Saved tracks: 50
• Routes: 100

Satellite positioning:
• Supports GPS, GLONASS, Galileo, and BeiDou
• Built-in 10 Hz receiver
• WAAS and multi-frequency support

Compatible maps:
• Garmin Navionics+™, Vision+™
• BlueChart g3 and g3 Vision
• LakeVü g3 and g3 Ultra
• TOPO 100K
• Raster maps and Garmin Quickdraw Contours

Integrated sonar:
• xCHIRP technology
• RapidReturn technology
• ClearVü and SideVü (with accessories)
• Panoptix and LiveScope (with compatible devices)

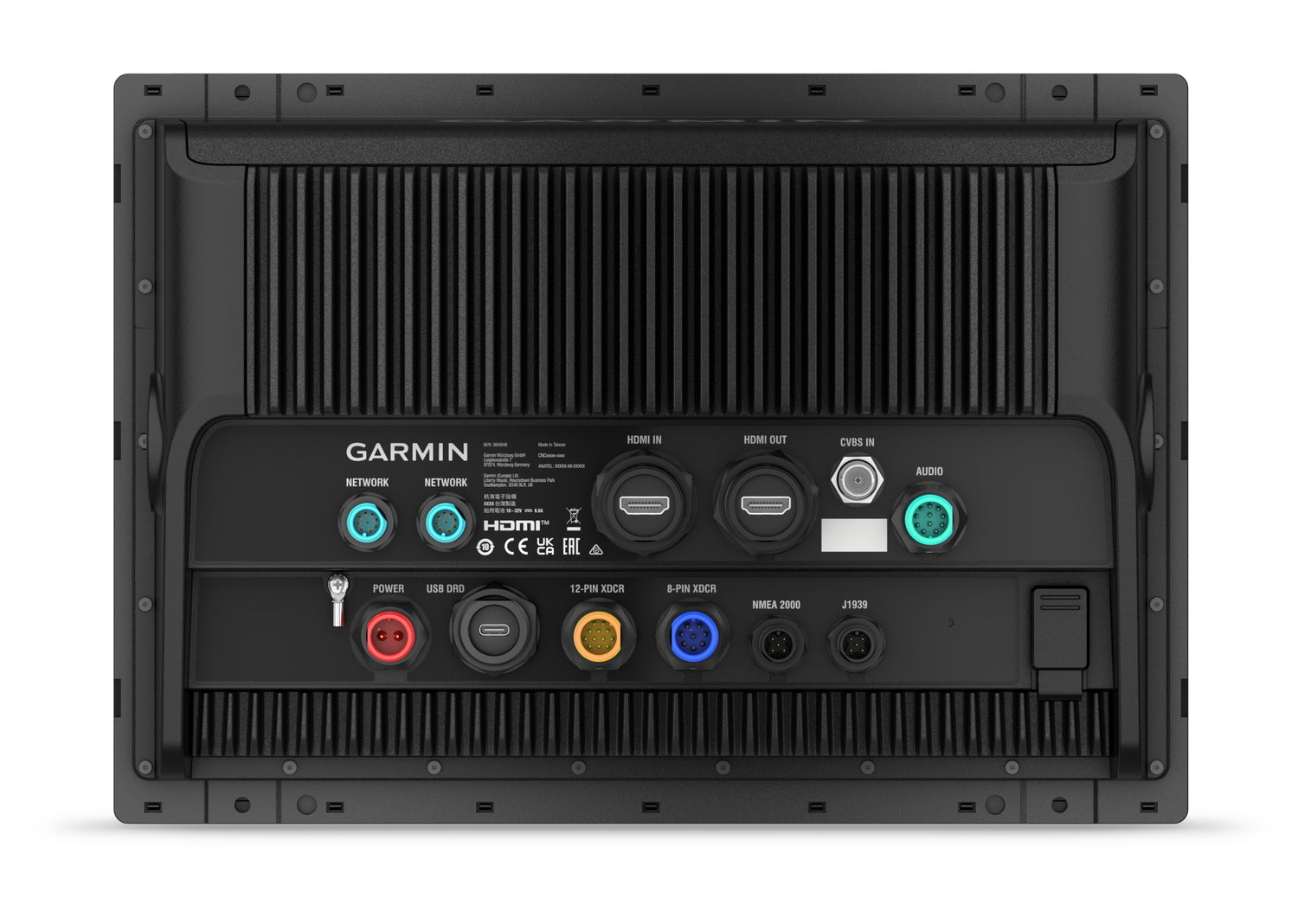

Connections and communication:
• NMEA 2000® and 0183
• HDMI in and out
• BNC video input
• USB‑C, J1939
• Garmin BlueNet™ ports (2)
• Bluetooth®, ANT®, Wi‑Fi® (2.4 GHz and 5 GHz)

Sailing features:
• Laylines, start line guidance, bow and heading lines
• Enhanced wind rose and true wind data
• Tide and current info, time controls
• Polar diagrams for sail optimization

Smart features and control:
• Compatible with ActiveCaptain®
• SmartMode and OneHelm™
• Voice control with compatible mic or smartwatch
• Supports cameras, smartwatches, and wireless remotes

Power supply:
• Input voltage: 10–32 VDC
• Typical consumption: 3.6 A (at 12 V)
• Max consumption: 44 W (at 10 V)

Package includes:
• Garmin GPSMAP 9013xsv Combo Device
• Power cable
• Device cable (2 m) and T-connector for NMEA 2000® network
• Mounting bracket with knobs
• Flush mount kit
• Protective cover
• Trim caps
• User manuals

The Garmin GPSMAP 9013xsv Combo Device offers a premium solution for navigation, fishing, and boat system control. Order yours today and take your marine electronics to the next level.
