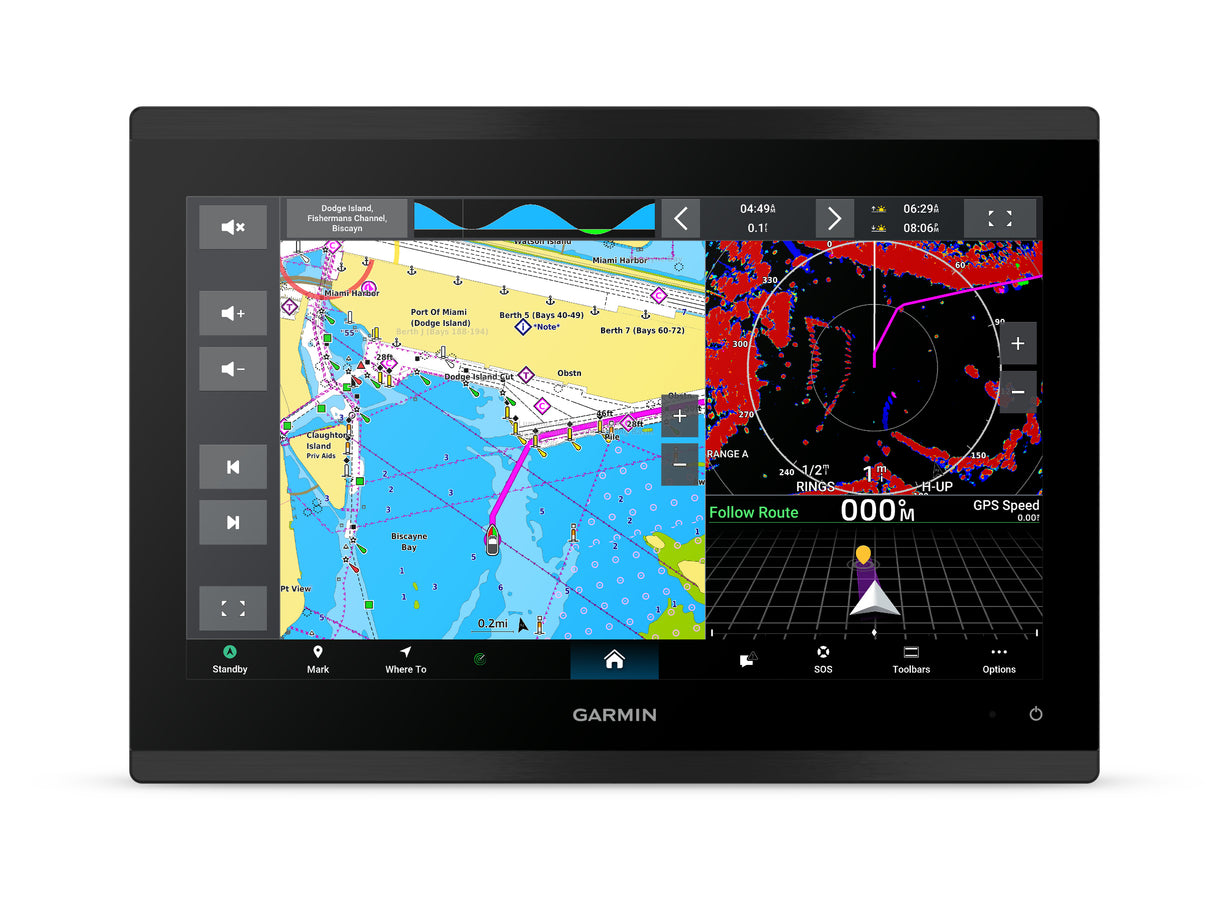

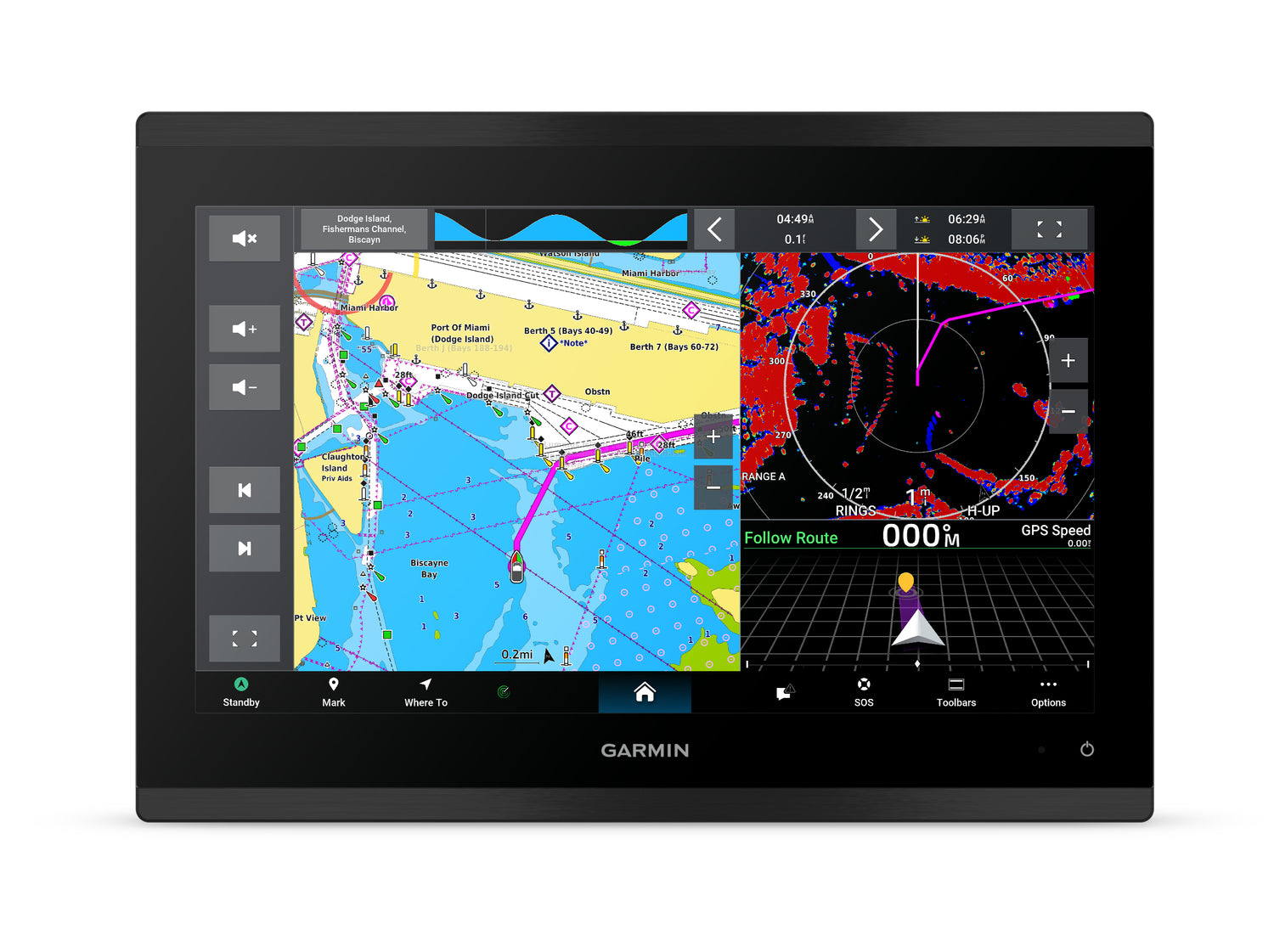

Garmin GPSMAP 9013 Chart Plotter

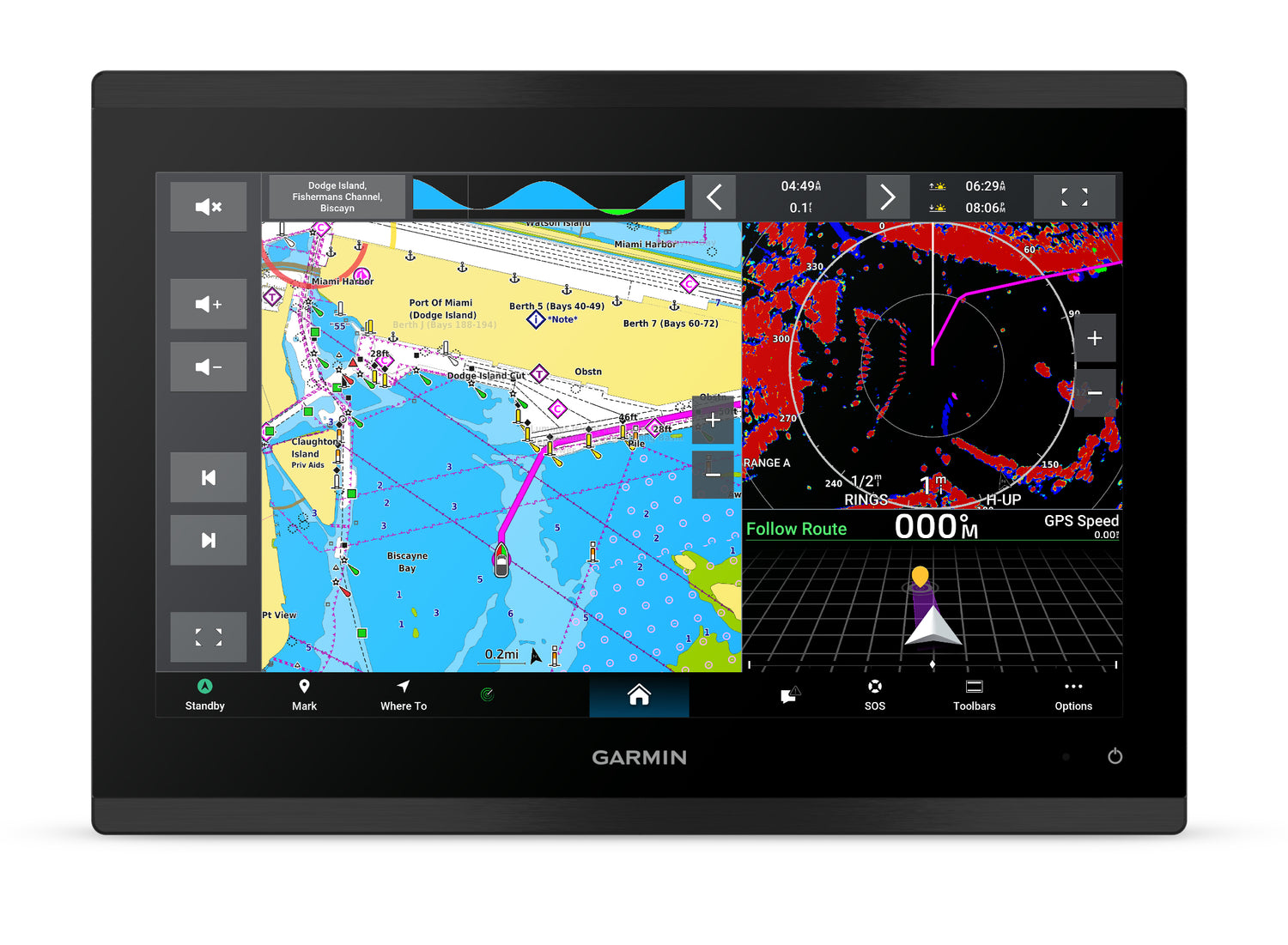

If you're looking for the very best in marine performance, the Garmin GPSMAP 9013 Chart Plotter delivers exactly that. This luxurious, high-precision chartplotter with touchscreen combines a 4K IPS display with cutting-edge technology for a seamless user experience. Its frameless design, premium materials, and ultra-bright screen ensure optimal visibility even in direct sunlight.

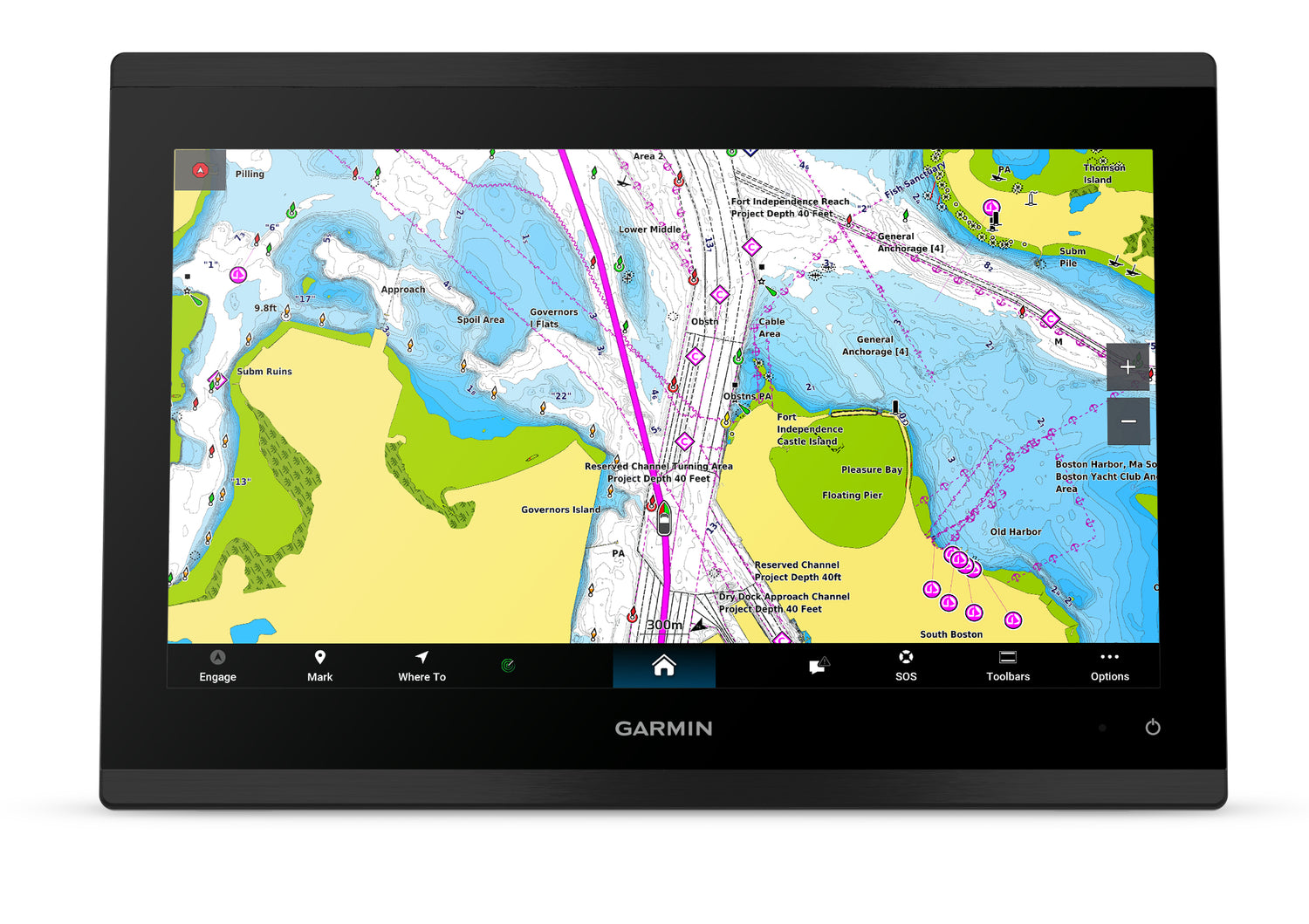

Under the hood is one of the most powerful processors on the market, drawing maps and calculating routes up to seven times faster than previous models. The chartplotter supports Garmin Navionics+ charts and Auto Guidance+, making route planning faster and easier than ever.

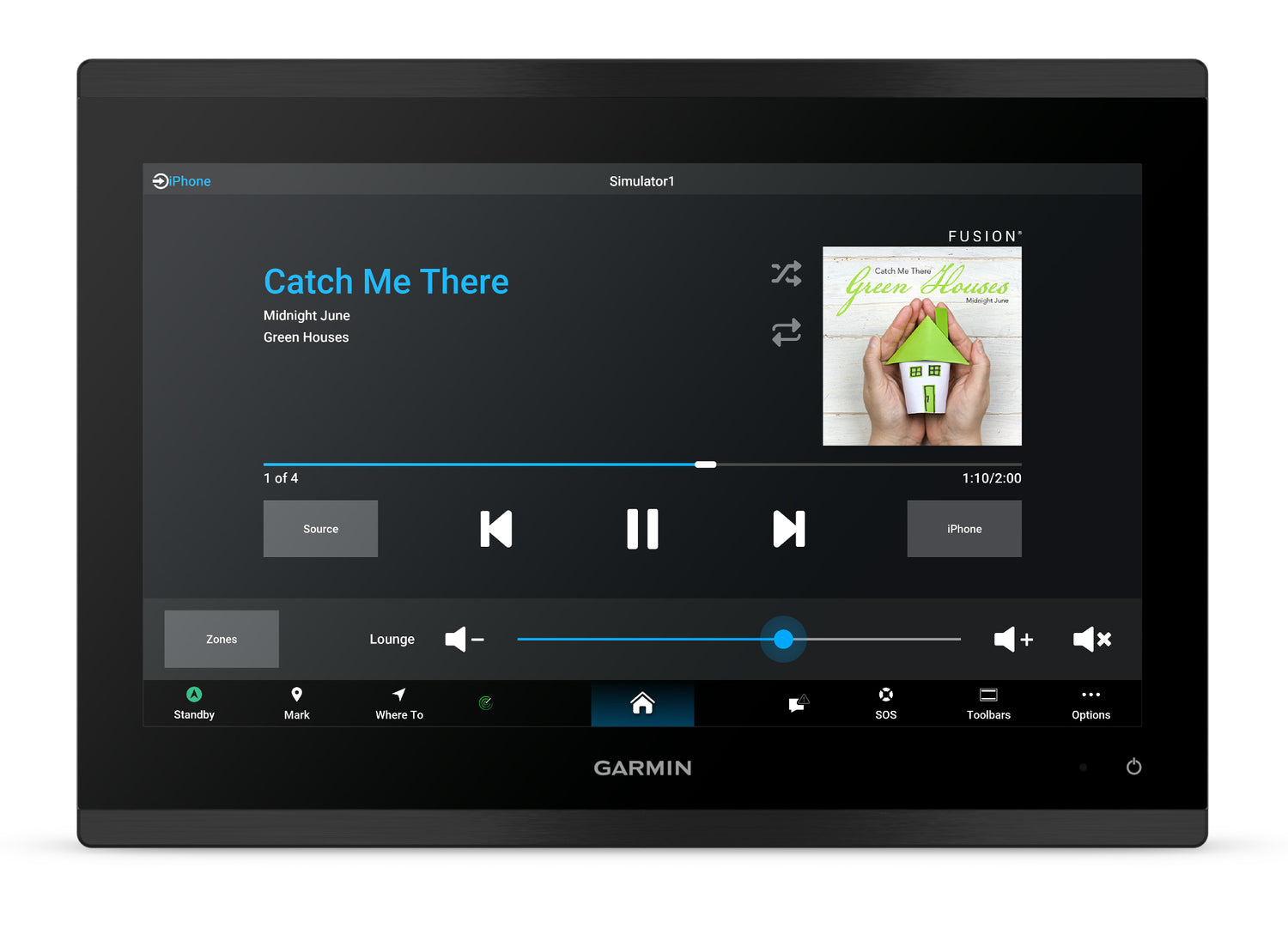

Thanks to Garmin BlueNet networking, you can link multiple chartplotters, cameras, radars, and sonar devices into one ultra-fast system. With full audio and video integration, you can centrally control onboard entertainment – all screens and speakers share the same content with zero hassle.

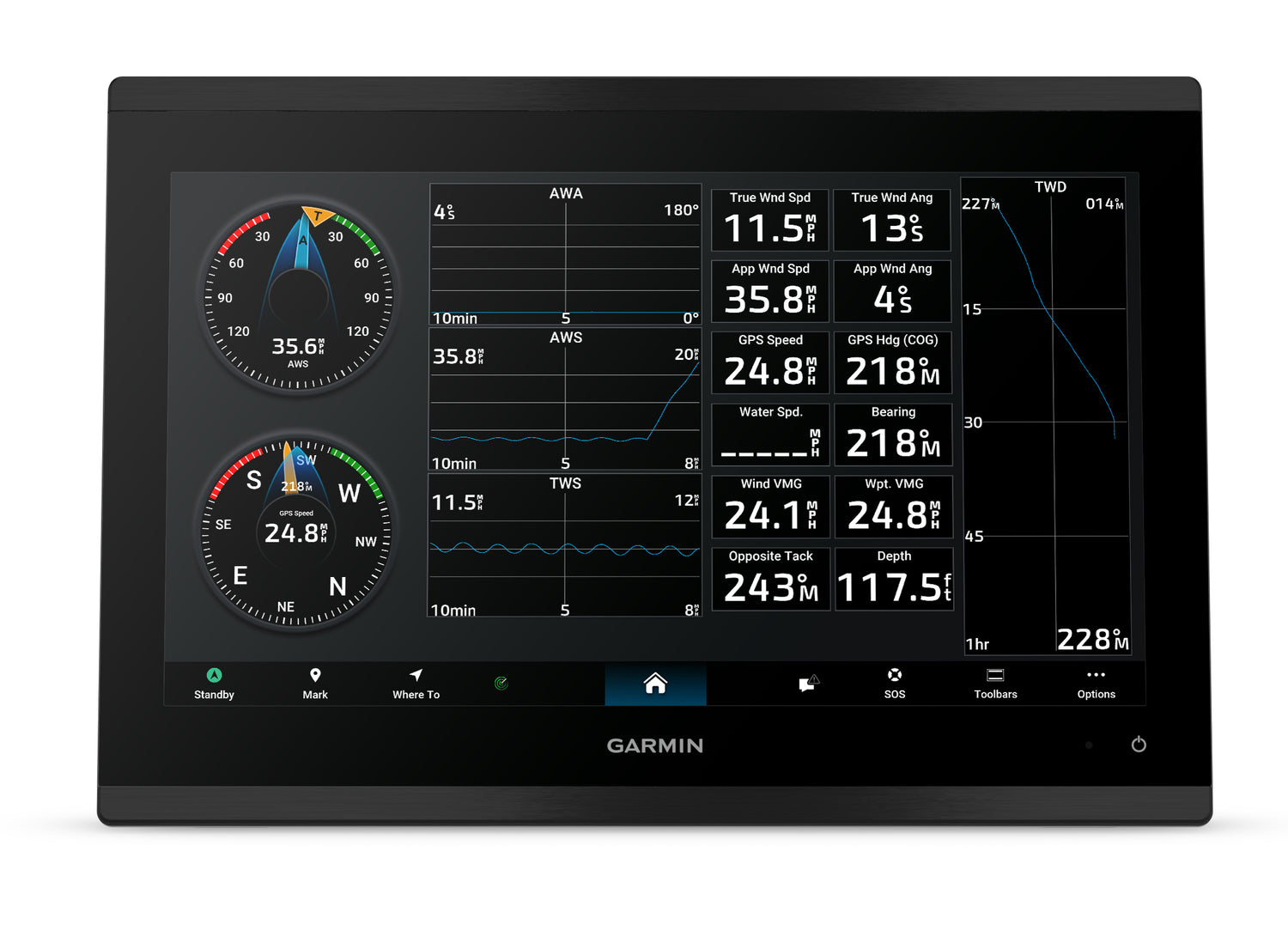

Garmin SailAssist features give sailors access to laylines, start line guidance, wind rose, and polar diagrams – ideal tools for optimizing sail trim and performance. The built-in 10 Hz GPS receiver supports multiple satellite systems for accurate positioning, and autopilot integration is smooth via the network.

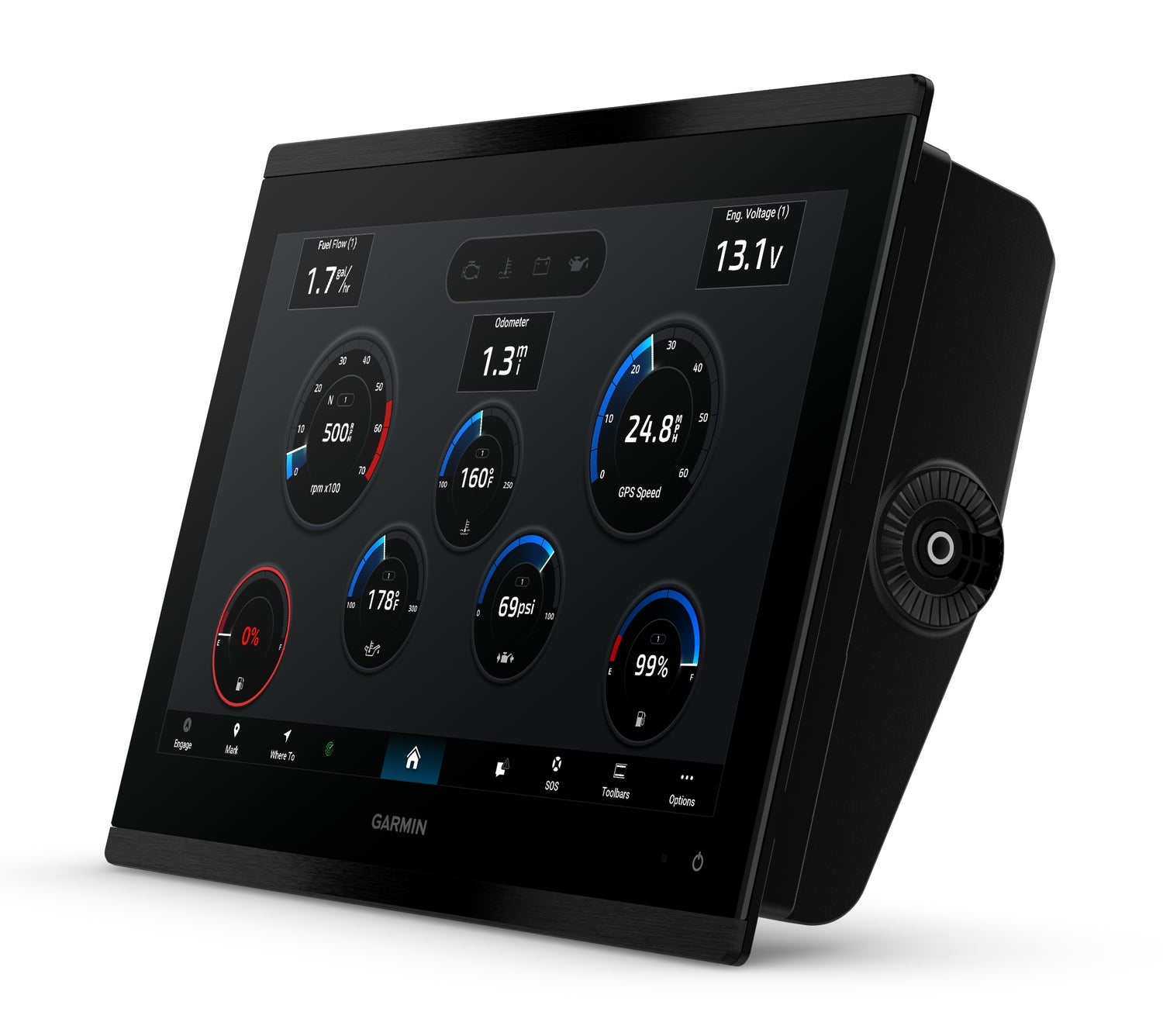

You can also control the unit using a smartwatch or voice commands, and manage updates wirelessly through the ActiveCaptain app. The GPSMAP 9013 is built to be the heart of a fully integrated system, connecting to engines, cameras, displays, and more via the NMEA 2000 network.

Technical data:

General:
• Dimensions: 33.5 cm x 23.4 cm x 9.1 cm
• Weight: 4.13 kg
• Waterproof rating: IPX7
• Screen: 13.3" IPS Mini-LED, 3840 x 2160 pixels
• Display size: 29.4 x 16.5 cm
• Mounting options: standard, recessed, flush mount

Charts and memory:
• 2 microSD card slots
• USB card reader support
• Waypoints: 5,000
• Track points: 50,000
• Saved tracks: 50
• Routes: 100

Positioning and satellite systems:
• GPS, GLONASS, Galileo, BeiDou
• Built-in 10 Hz receiver
• WAAS and multi-frequency support

Compatible charts:
• Garmin Navionics+, Navionics Vision+
• BlueChart g3, g3 Vision
• LakeVü g3, g3 Ultra
• TOPO 100K
• Raster maps, Garmin Quickdraw Contours

Sonar features (with accessories):
• Traditional dual frequency/beam sonar
• xCHIRP, RapidReturn
• ClearVü, SideVü
• Panoptix, LiveScope

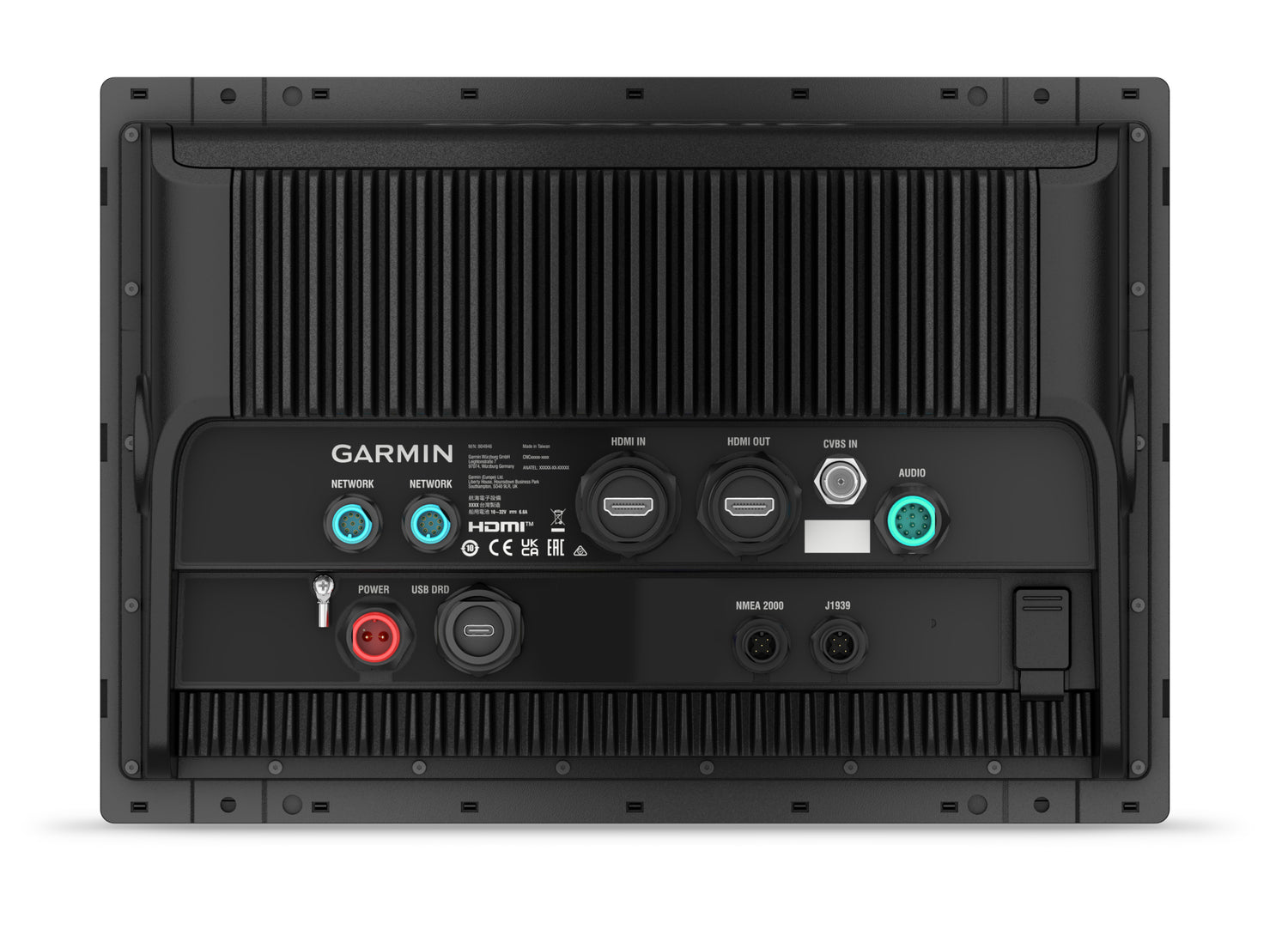

Connectivity and communication:
• NMEA 2000 and 0183
• HDMI in/out
• BNC video input
• USB-C, J1939
• Garmin BlueNet ports (2)
• ANT, Bluetooth, Wi-Fi (2.4 and 5 GHz)

Sailing features:
• Laylines, start line guidance, bow and heading lines
• Enhanced wind rose and true wind data
• Tidal and current data, time controls
• Polar diagrams for sail optimization

Smart features:
• Compatible with ActiveCaptain
• SmartMode and OneHelm
• Voice control and Garmin smartwatch integration
• Compatible with cameras and wireless remotes

Power supply:
• Input voltage: 10–32 VDC
• Typical consumption: 3.6 A (at 12 V)
• Max consumption: 44 W (at 10 V)

Package includes:
• Garmin GPSMAP 9013 Chart Plotter
• Power cable
• Device cable (2 m) and T-connector for NMEA 2000 network

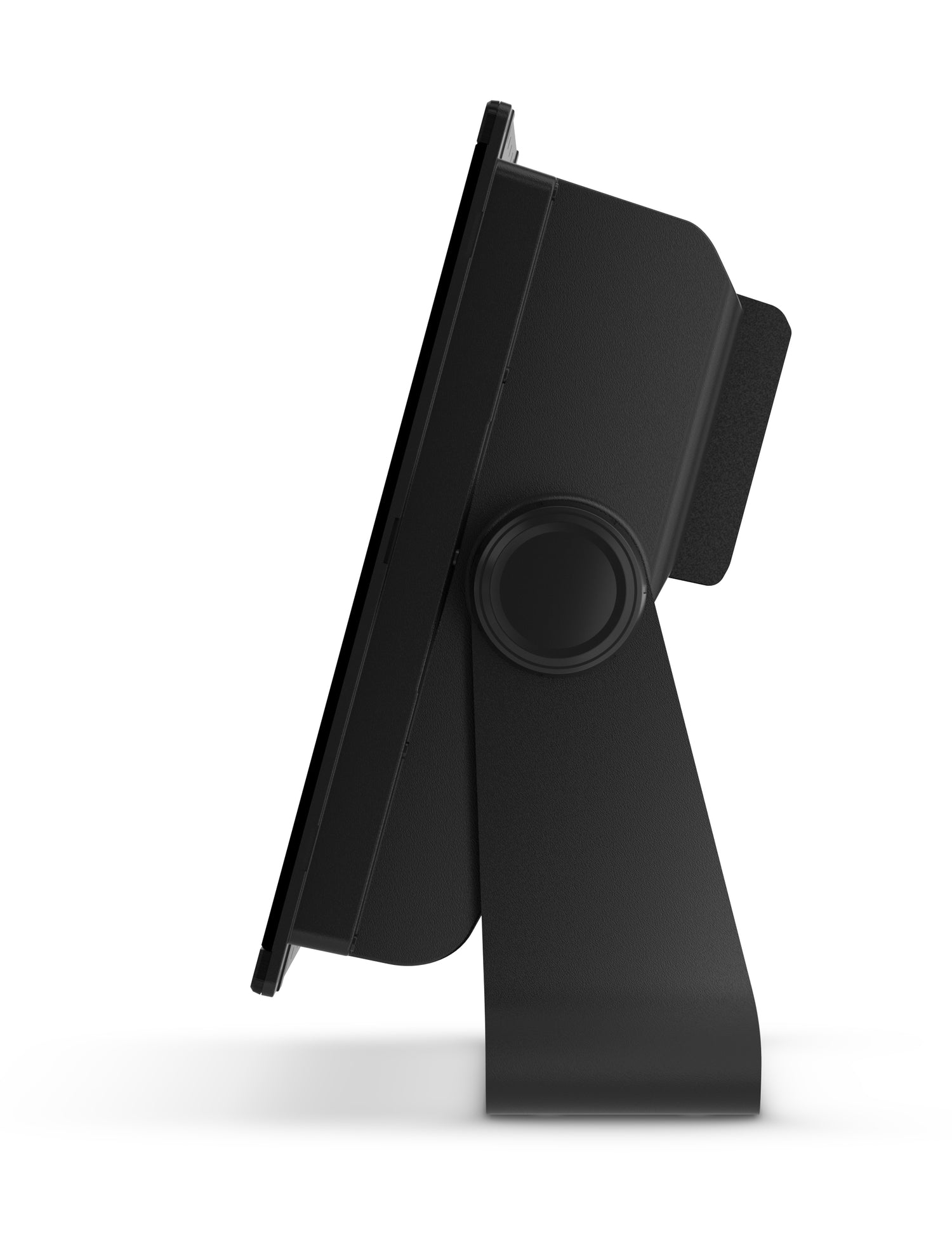

• Mounting bracket with knobs
• Flush mount kit
• Protective cover
• Trim caps
• User manuals


The Garmin GPSMAP 9013 Chart Plotter is your solution if you value clarity, control, and advanced technology in one device. Order yours now and experience the difference of navigating with complete confidence – in any condition.
