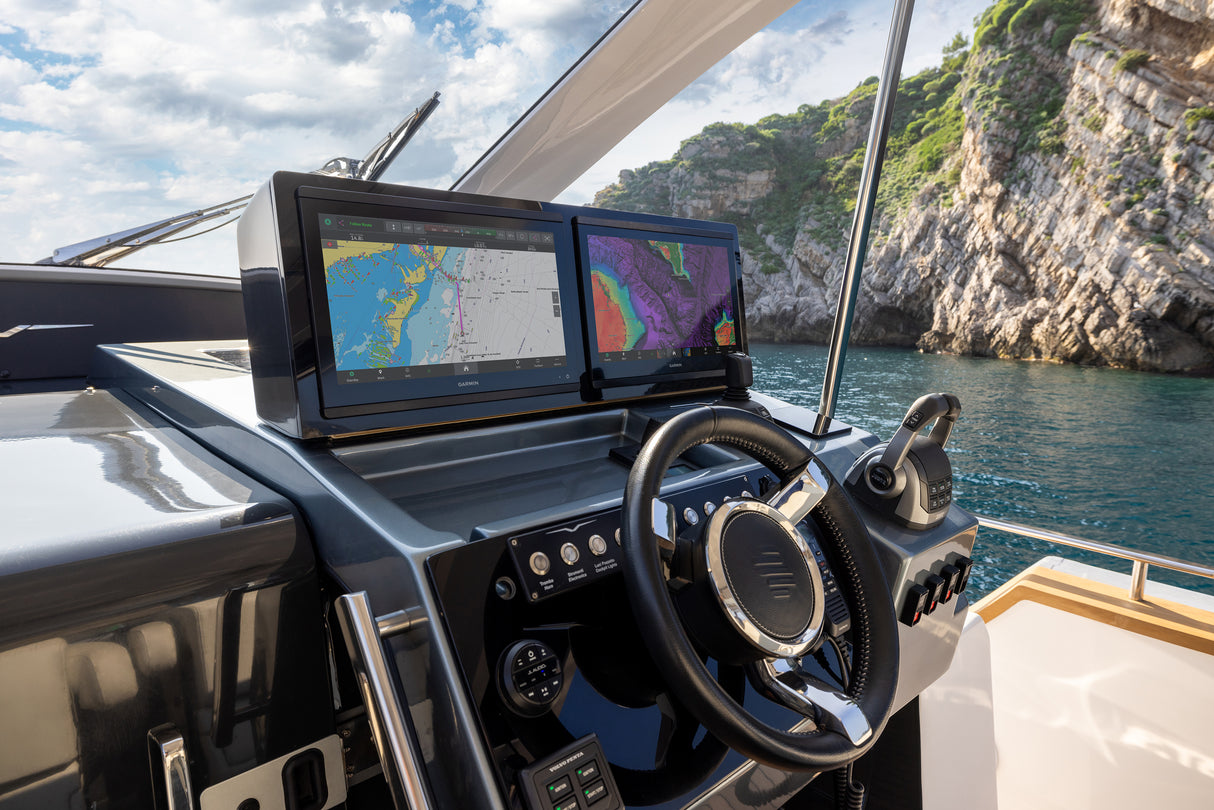

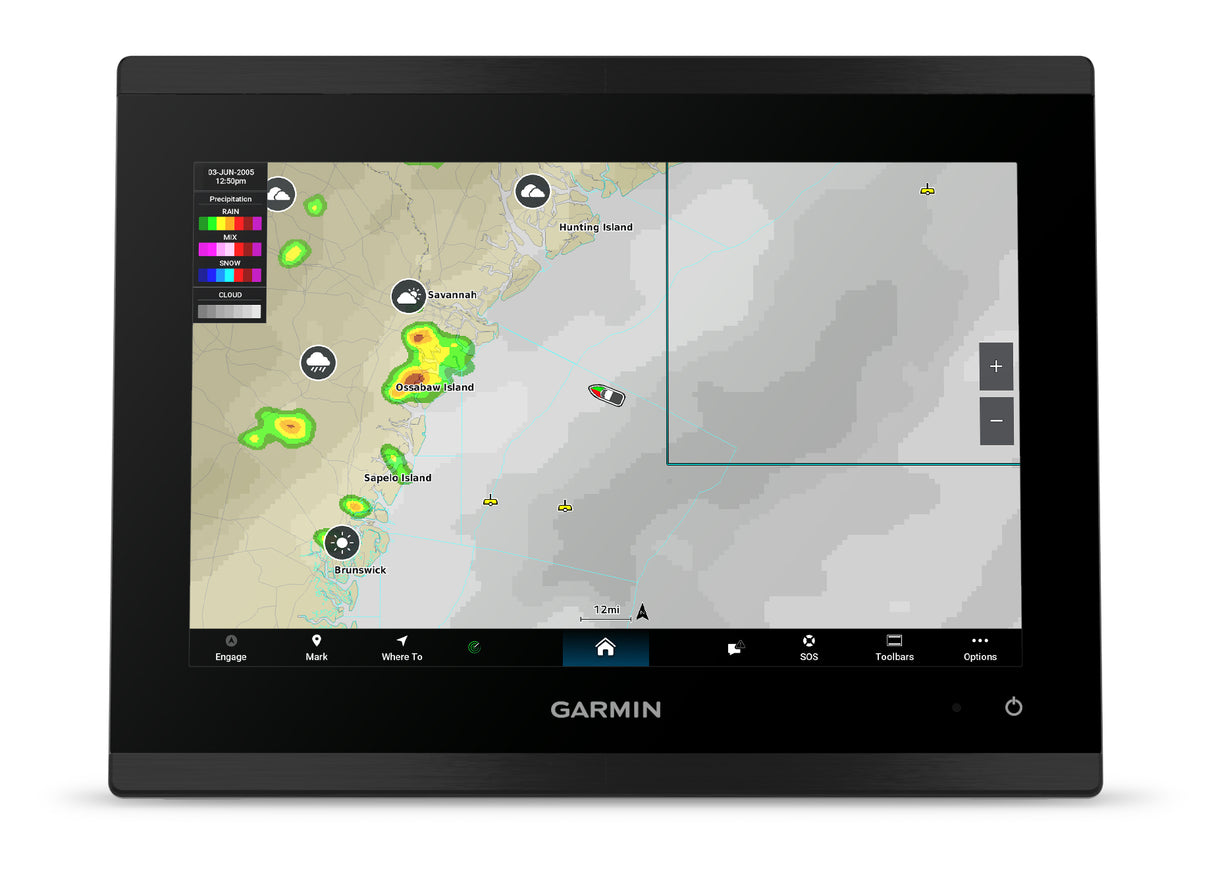

Garmin GPSMAP 9010 Chart Plotter

If your boat deserves only the best, the Garmin GPSMAP 9010 Chart Plotter takes navigation and fishing control to a whole new level. This premium device combines a sleek, frameless glass display with the most advanced technology on the market – delivering a seamless experience in all conditions.

The bright IPS touchscreen is easy to read even in direct sunlight. Beneath the surface, an ultra-fast processor draws maps and calculates routes up to seven times faster than previous generations. The chartplotter supports Garmin Navionics+ charts and Auto Guidance+ route planning, making navigation both simple and precise.

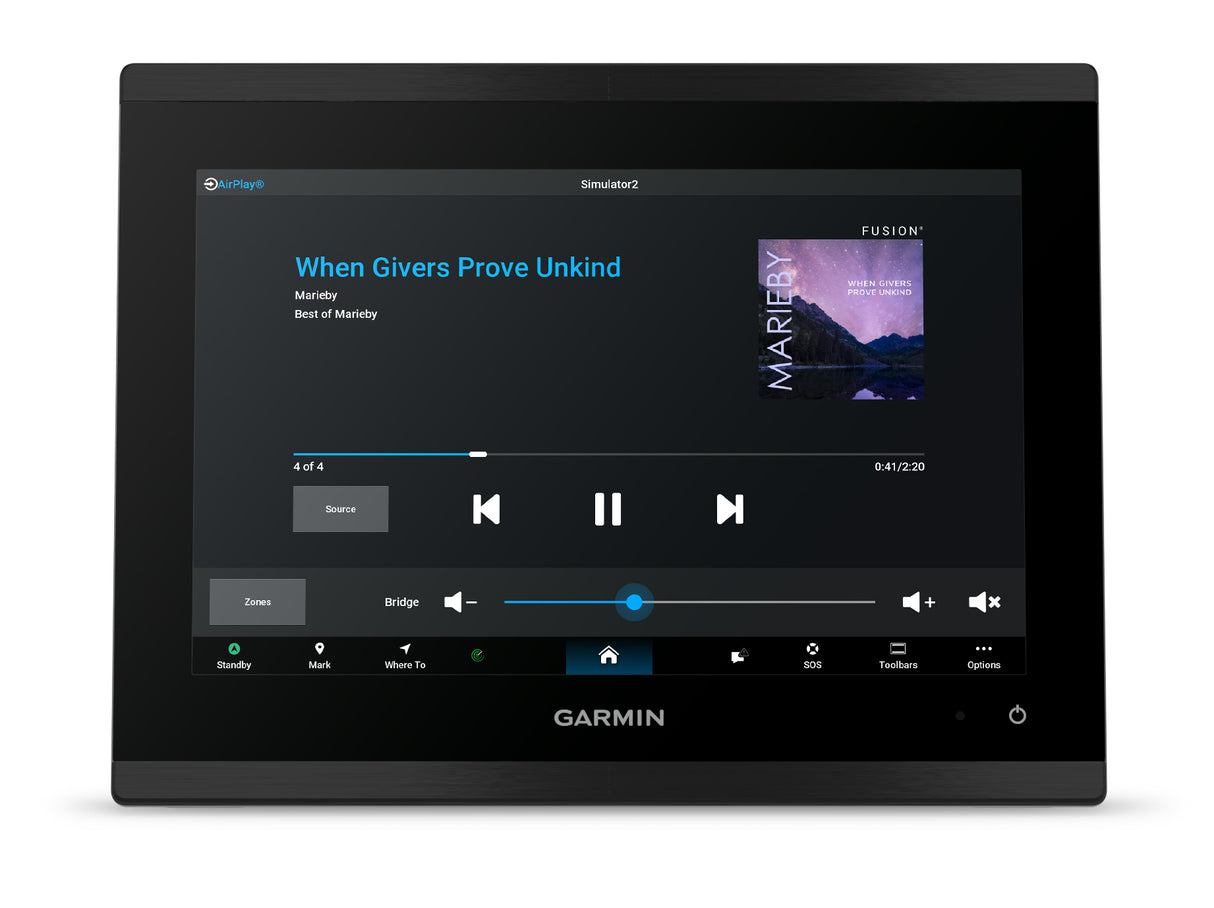

Garmin BlueNet networking provides gigabit-speed connectivity for linking multiple chartplotters, cameras, radars, and sonars. The system works seamlessly together and adapts smoothly to your boat’s setup. You can even control audio and video centrally and share content across all screens and speakers.

For sailors, it offers Garmin SailAssist features like laylines, start line guidance, polar diagrams, and advanced wind data. You can also integrate the chartplotter into your boat’s automation system via the NMEA 2000 network and monitor engines, systems, and accessories from a central point.

Technical data:

General:
• Dimensions: 26 cm x 20 cm x 9.1 cm
• Weight: 2.52 kg
• Waterproof rating: IPX7

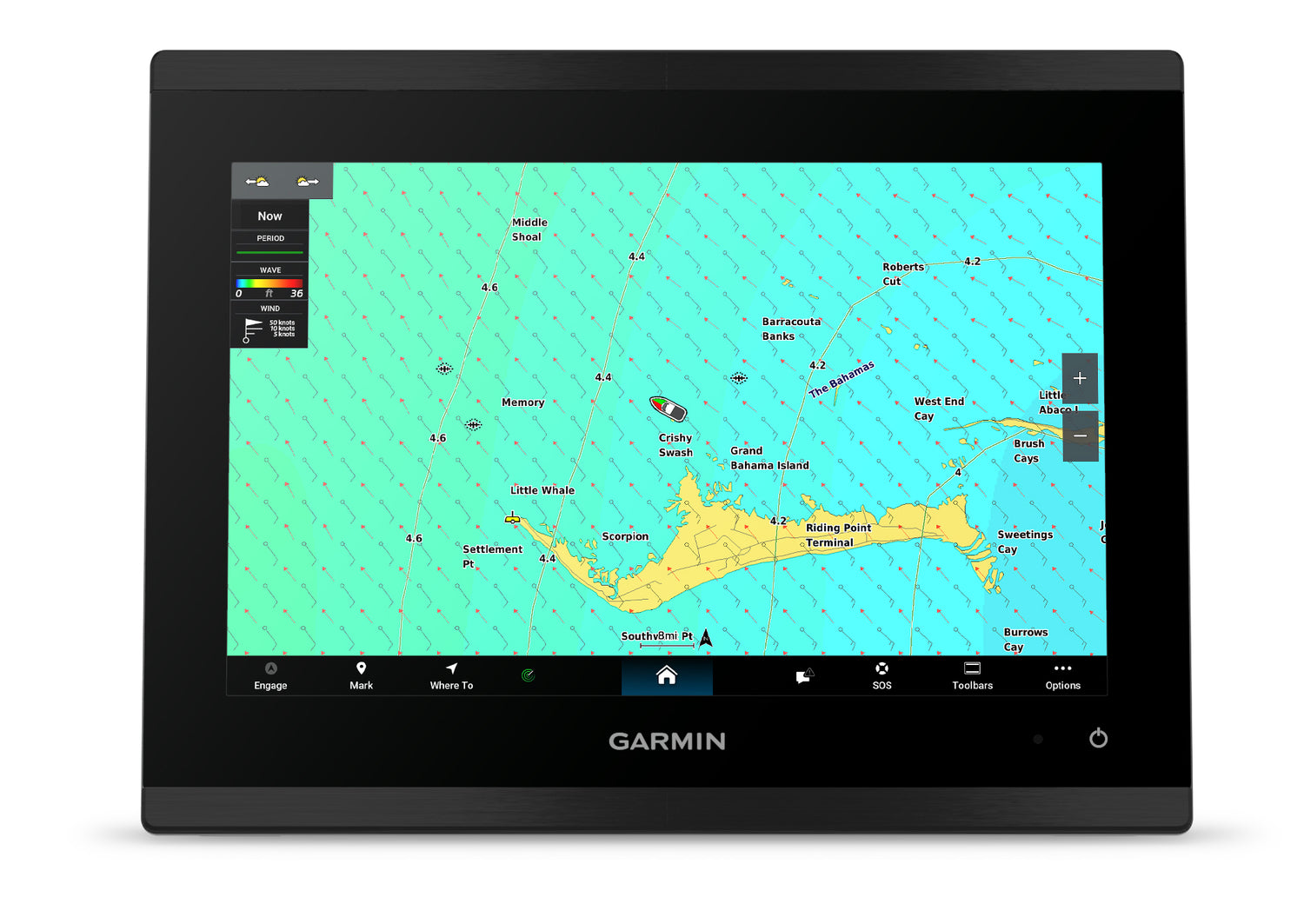

• Display: 10.1" WUXGA IPS touchscreen, LED backlight
• Display size: 21.7 x 13.6 cm
• Resolution: 1920 x 1200 pixels

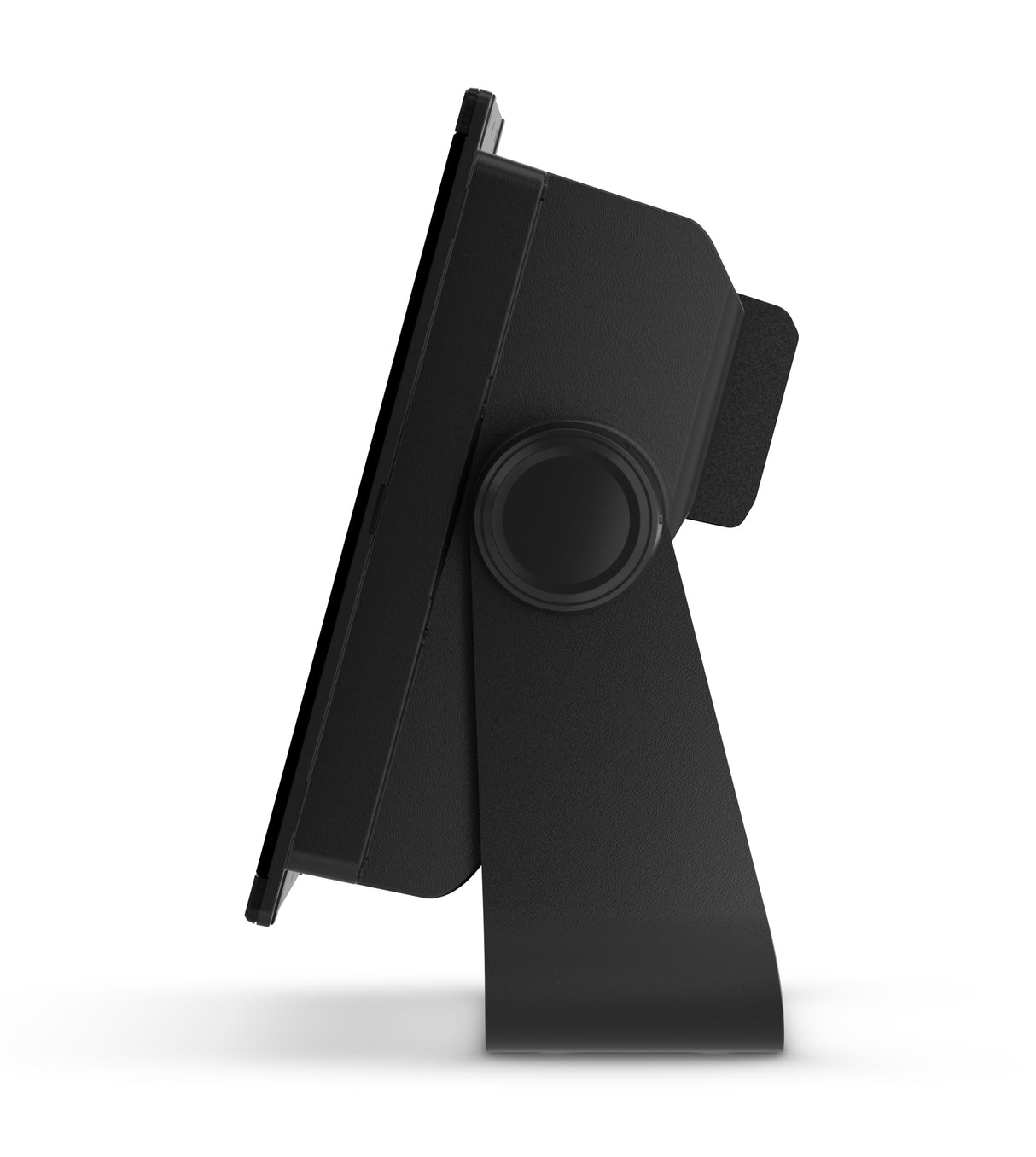

• Mounting options: standard, flush, or recessed

Charts and memory:
• 2 microSD card slots
• Waypoints: 5,000
• Track points: 50,000
• Saved tracks: 50
• Routes: 100

Positioning and satellite systems:
• Built-in receiver: GPS, GLONASS, Galileo, BeiDou
• Receiver: 10 Hz, WAAS support and multi-frequency systems

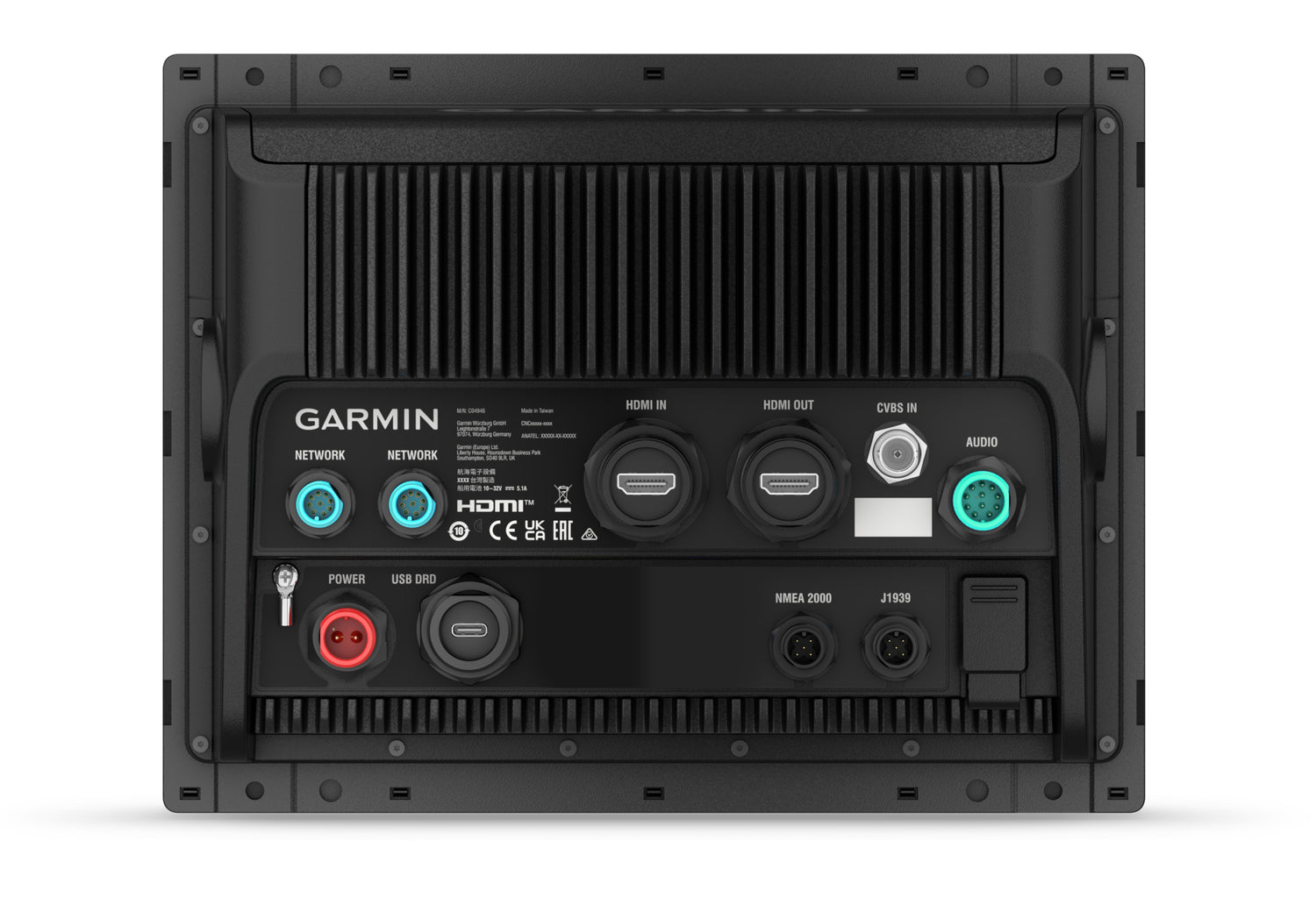

Compatibility and connections:
• NMEA 2000 and 0183
• Garmin BlueNet ports: 2
• USB-C, HDMI in/out, BNC video input
• J1939 port
• Bluetooth, ANT, Wi-Fi (2.4 GHz and 5 GHz)

Sonar features (requires compatible Black Box unit):
• Traditional dual-cone sonar
• xCHIRP technology
• RapidReturn
• ClearVü
• SideVü
• Panoptix and LiveScope

Sailing features:
• Laylines, start line guidance, enhanced wind rose
• Heading and course lines, true wind data
• Tide and current info, time controls
• Polar diagrams for sail trimming

Smart features:
• Compatible with ActiveCaptain
• Voice control via quatix smartwatch or microphone
• OneHelm, SmartMode, wireless control
• Compatible with Garmin watches and cameras

Power supply:
• Operating voltage: 10–32 VDC
• Typical consumption (12 V): 2.8 A
• Max consumption: 29 W (at 10 V)

Package includes:
• GPSMAP 9010 Chart Plotter
• Power cable
• Device cable (2 m) and T-connector for NMEA 2000 network
• Mounting bracket with knobs
• Flush mount kit
• Protective cover
• Trim caps
• User manuals

The Garmin GPSMAP 9010 Chart Plotter blends cutting-edge technology, lightning-fast performance, and seamless connectivity into one of the smartest solutions in marine electronics. When full control and reliability matter – this device delivers. Order now and elevate your navigation experience.
