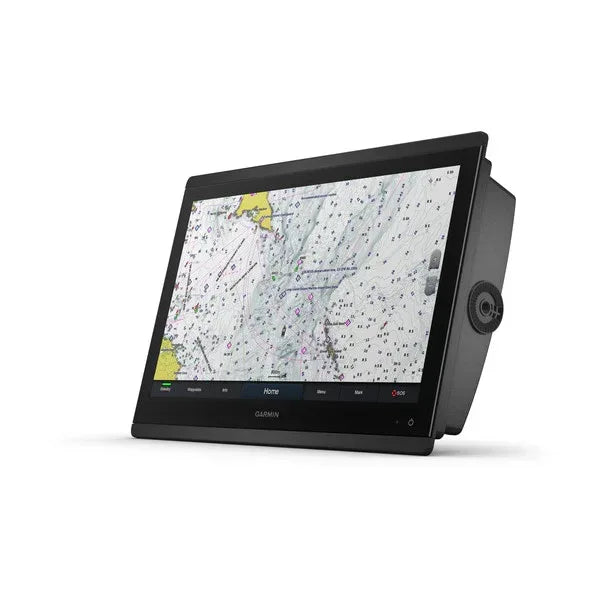

Garmin GPSMAP 8416xsv Combo Device

16” touchscreen chartplotter/sonar combo with Full HD in-plane switching (IPS) display.

Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8416xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 16” full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flush-mounted or mounted flat edge-to-edge to create a sleek glass helm look. Built-in support for the full suite of Garmin sonar capabilities. Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network. Includes ANT® technology and Wi-Fi® networking.

Garmin SailAssist™ feature provides critical sailing data and displays prerace guidance for racers.
SmartMode™ station controls enable quick, one-touch access to the information you need.

NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.

The GPSMAP 8416xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.

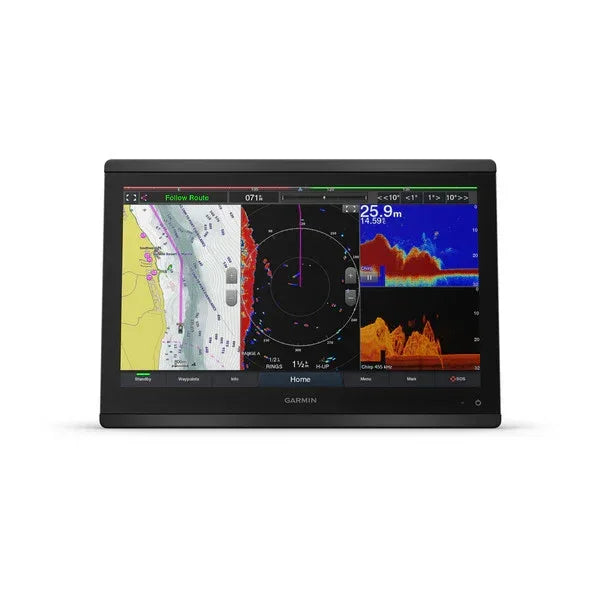

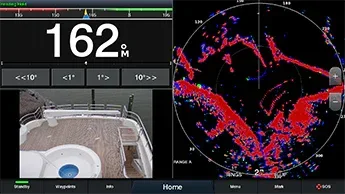

Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.

To help you make informed decisions, the Garmin SailAssist feature provides critical data displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.

Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.

Key features:
• Physical dimensions: 15.1" x 10.3" x 3" (38.5 cm x 26.3 cm x 7.6 cm)
• Display size: 13.6" x 7.7"; 15.6" diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal)
• Display resolution: FHD; 1920 x 1080 pixels
• Display type: touchscreen IPS display (anti-glare finish)
• Weight: 9.6 lbs (4.4 kg)
• Water rating: IPX7

Supported frequencies dependent on transducer:
• Traditional: 50/200, 77/200, 83/200
• Single channel CHIRP: 40–250
• Dual channel CHIRP: 40–250
• SideVü/ClearVü: CHIRP 260/455/800
• Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760–880 kHz
• Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060–1,170 kHz

Included in the box:
• GPSMAP 8416xsv
• Power cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector
• Bail mount with knobs
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation

Note! Transducer not included!

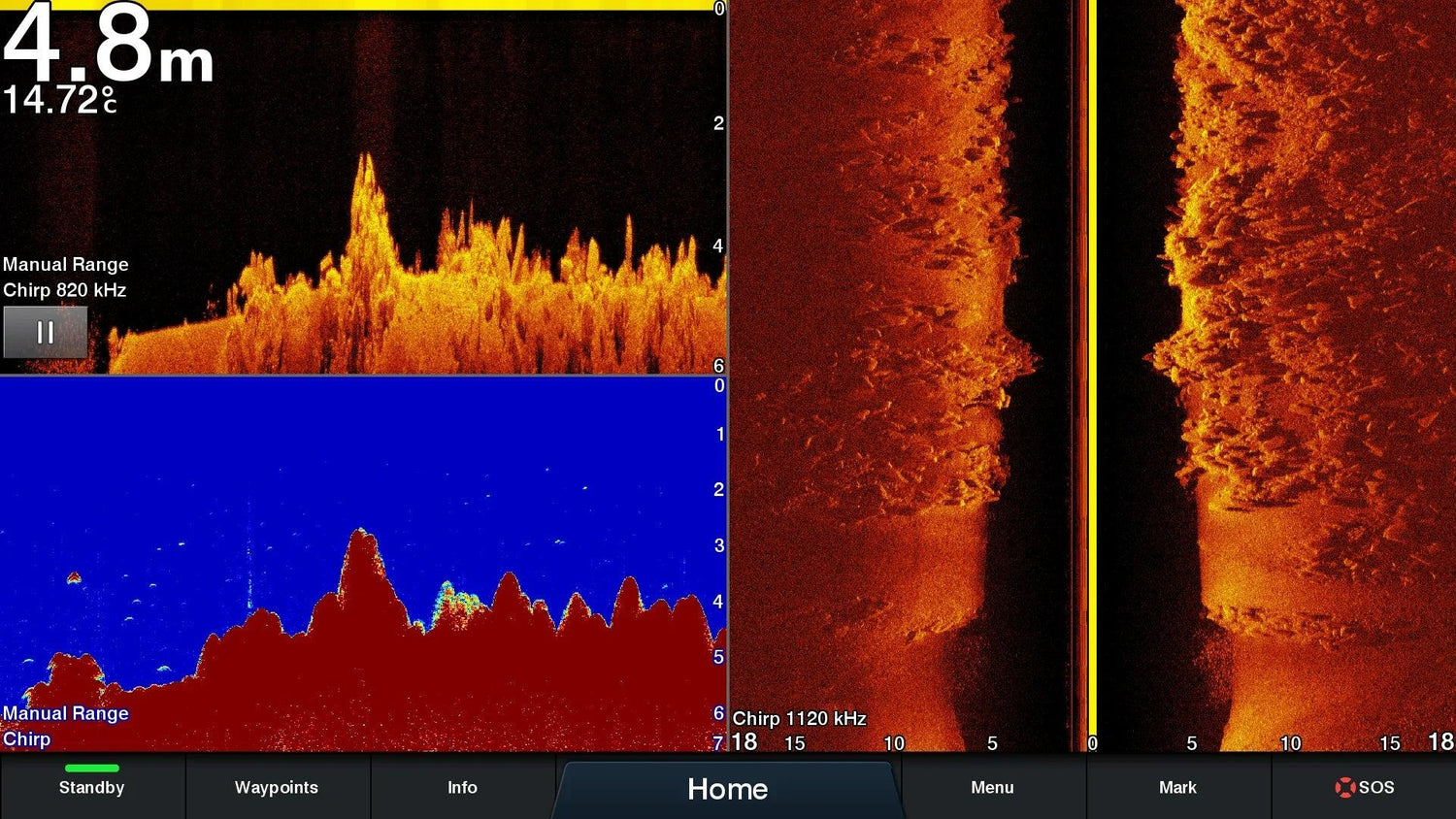

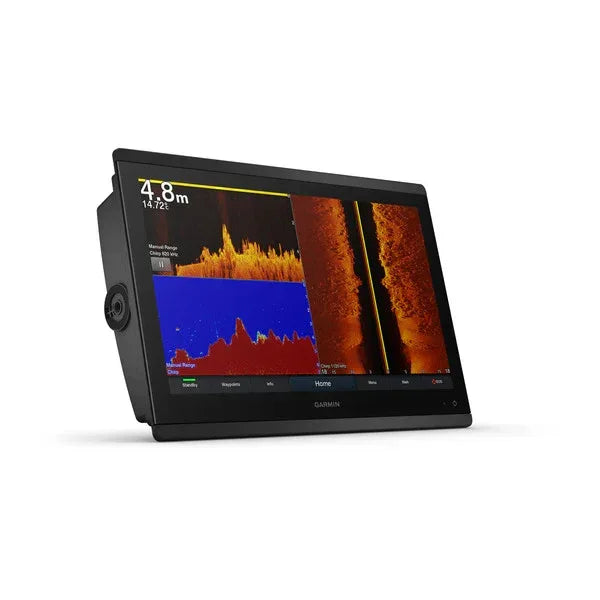

The GPSMAP 8416xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).

Languages: Arabic, Brazilian, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Slovakian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Ukraine
