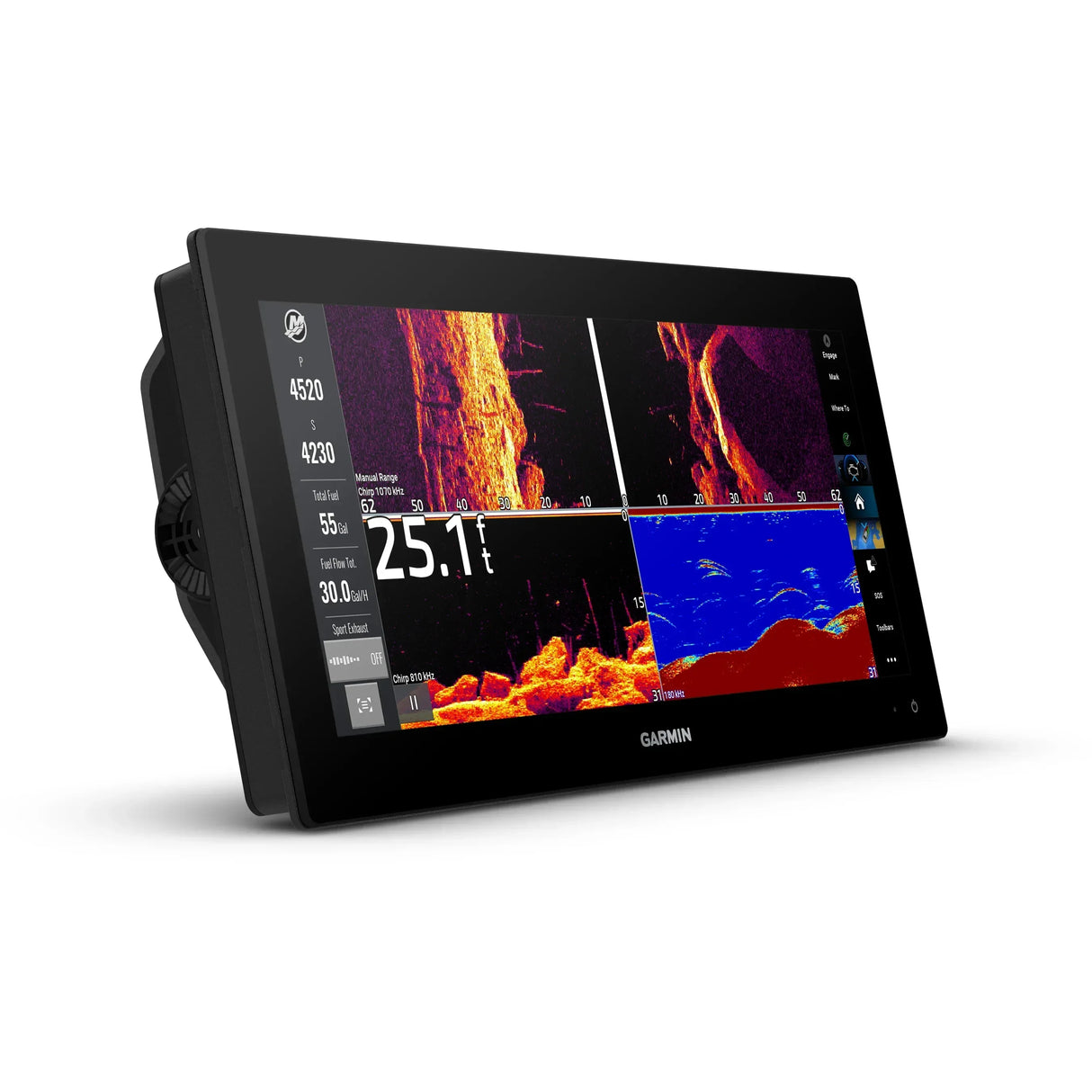

Garmin GPSMAP 1523xsv Combo Device

When you want to see more, plan with precision, and take full control of your boat at the highest level, choose the Garmin GPSMAP 1523xsv Combo Device. Its impressive 15-inch glass-bonded IPS display delivers striking clarity – even through polarized sunglasses. This chartplotter is far more than just a navigation tool; it's a smart command center that unites premium sonar capabilities, seamless networking, and intuitive usability. If your goal is to elevate your boating experience to a whole new level, this device is built for you.

Elegantly streamlined with a 15-inch glass-bonded screen, the GPSMAP 1523xsv redefines your horizon. The extra-wide, high-resolution IPS touchscreen is 74% wider and has more pixels than standard 9-inch plotters. Route planning is made easier with Garmin Navionics+ charts, featuring depth shading and more. It supports Ultra High-Definition SideVü and ClearVü scanning sonars as well as traditional 1 kW CHIRP sonar (transducer sold separately). Through Garmin OneHelm, you can connect a wide range of compatible devices like Panoptix and LiveScope sonars, autopilots, radar, cameras, and multimedia systems via NMEA 2000®, NMEA 0183, J1939 engine networks, and Garmin Marine Network. It also syncs seamlessly with other Garmin gear like the quatix® smartwatch, wind sensors, or wireless remote controls.

KEY FEATURES
MODERN AND STREAMLINED
The GPSMAP 1523xsv features sleek, thin bezels and a full-glass front. Its ultra-wide, high-res touchscreen interface is consistent with the GPSMAP x3 series.

POWERFUL AND CLEAR IMAGE
The wide IPS display offers extended viewing angles, vivid colors, superior sharpness, and outstanding readability—even through polarized sunglasses.

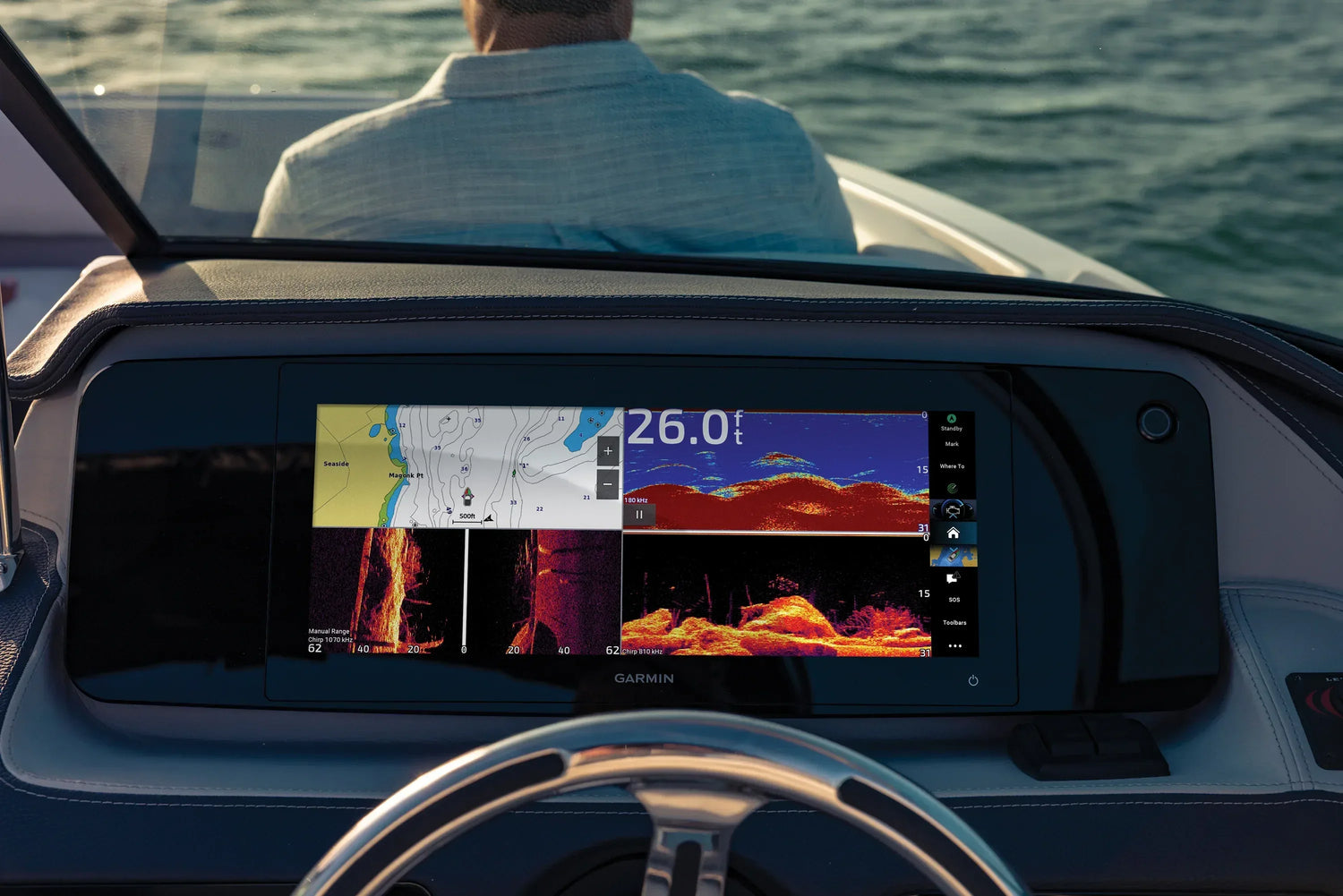

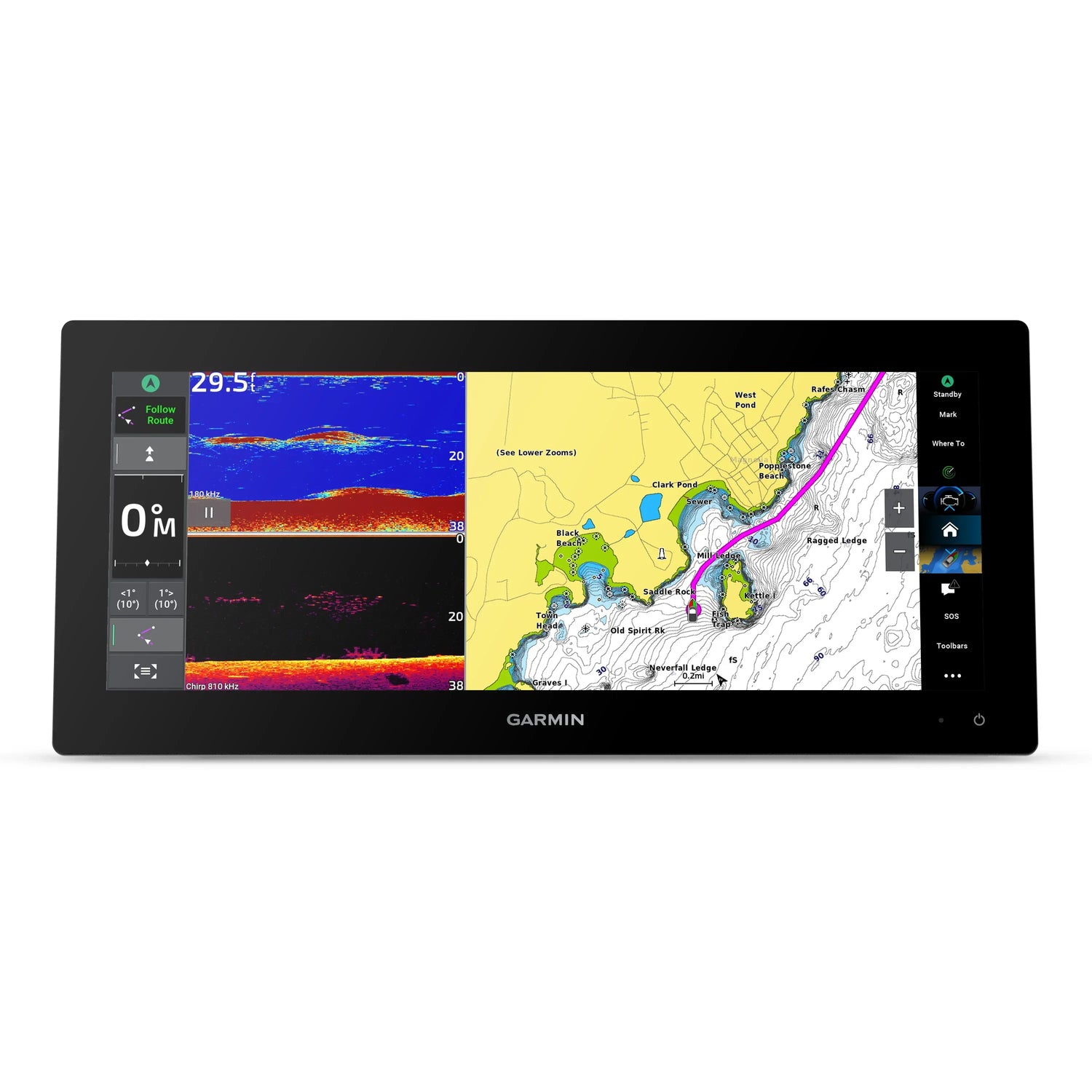

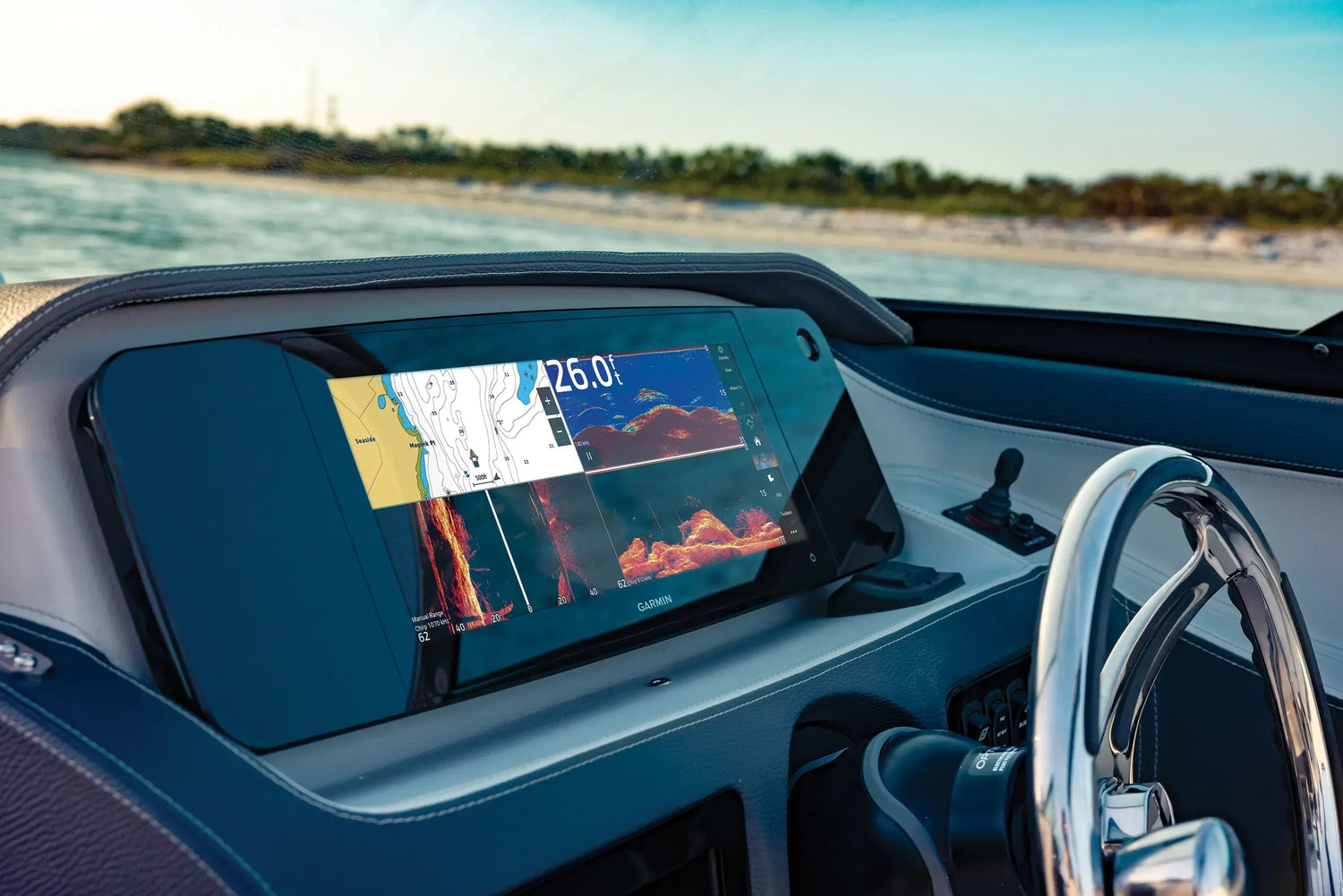

MULTI-VIEW DISPLAY

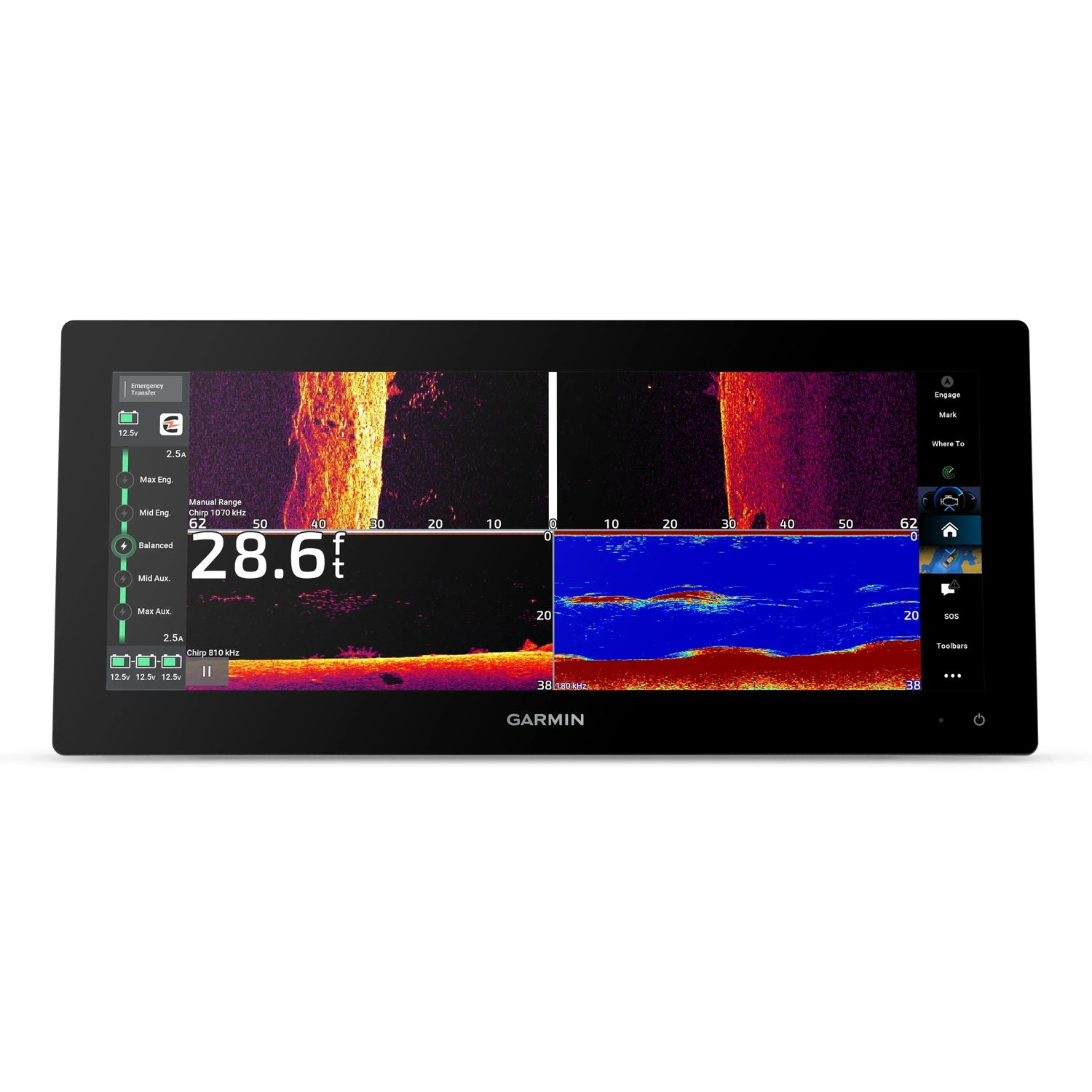

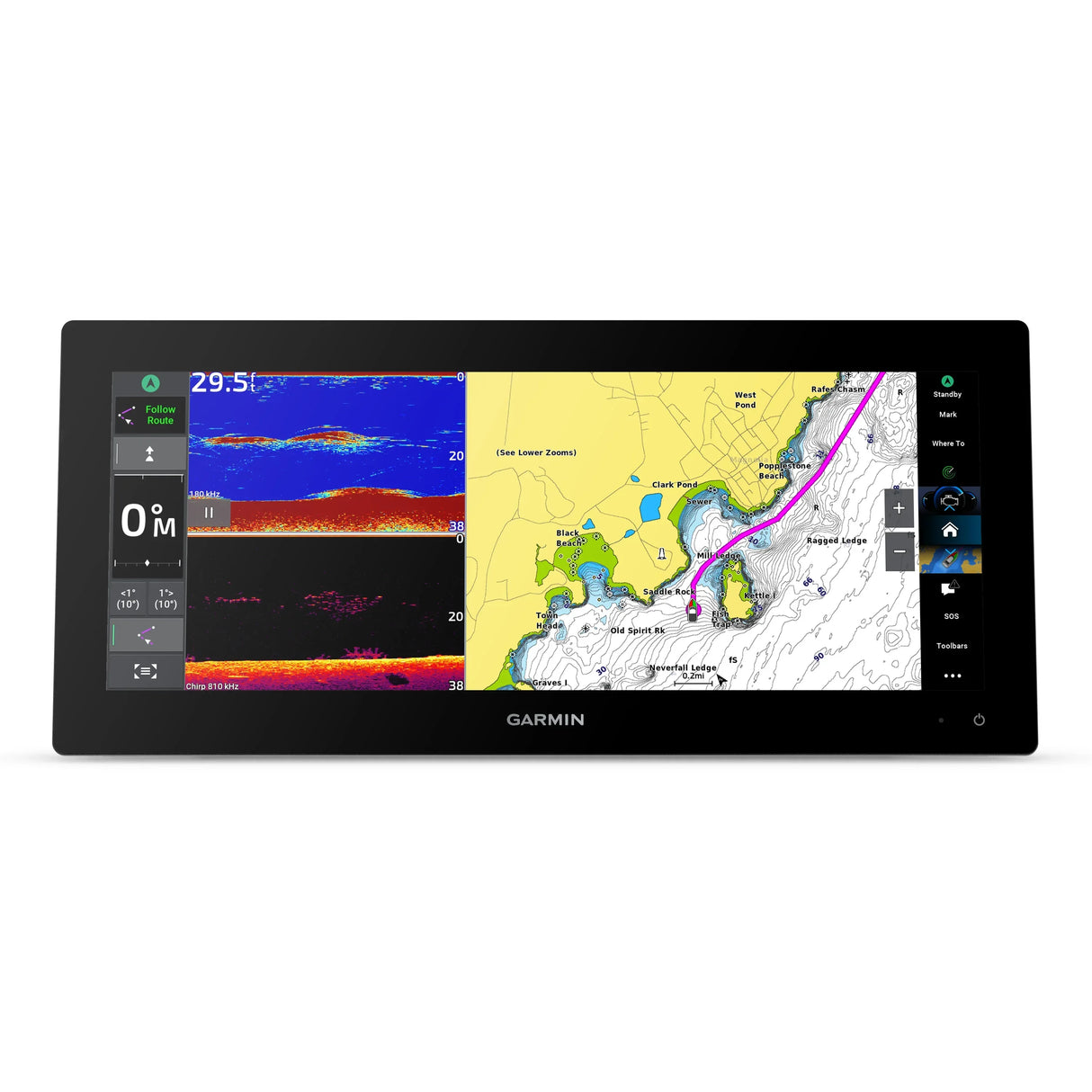

Enjoy split-screen views across the broad surface area. Easily arrange your data exactly the way you prefer.

LIVE SONAR SUPPORT
Pair with Panoptix or LiveScope sonar (transducer sold separately) for real-time views around your boat.

TWO MOUNTING OPTIONS

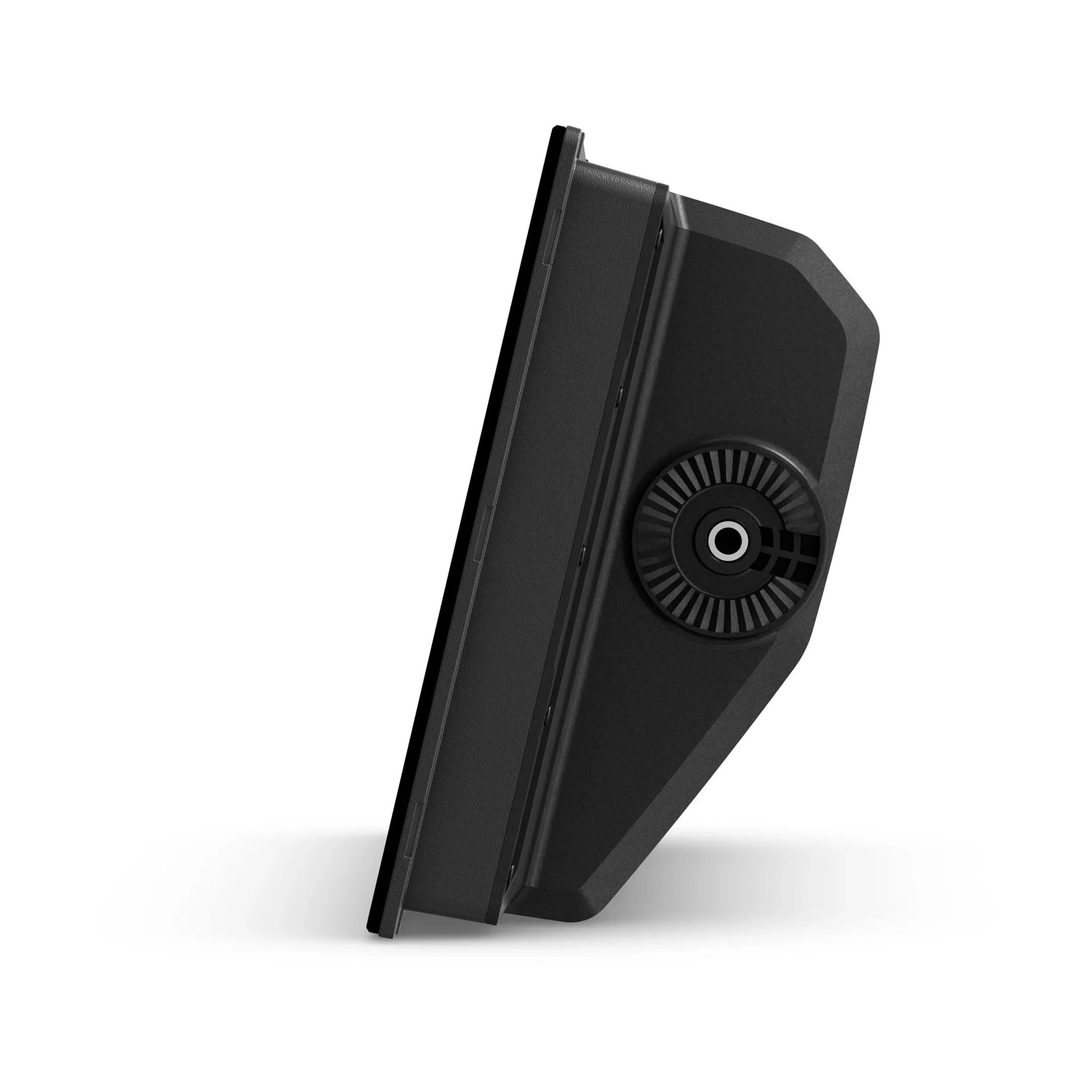

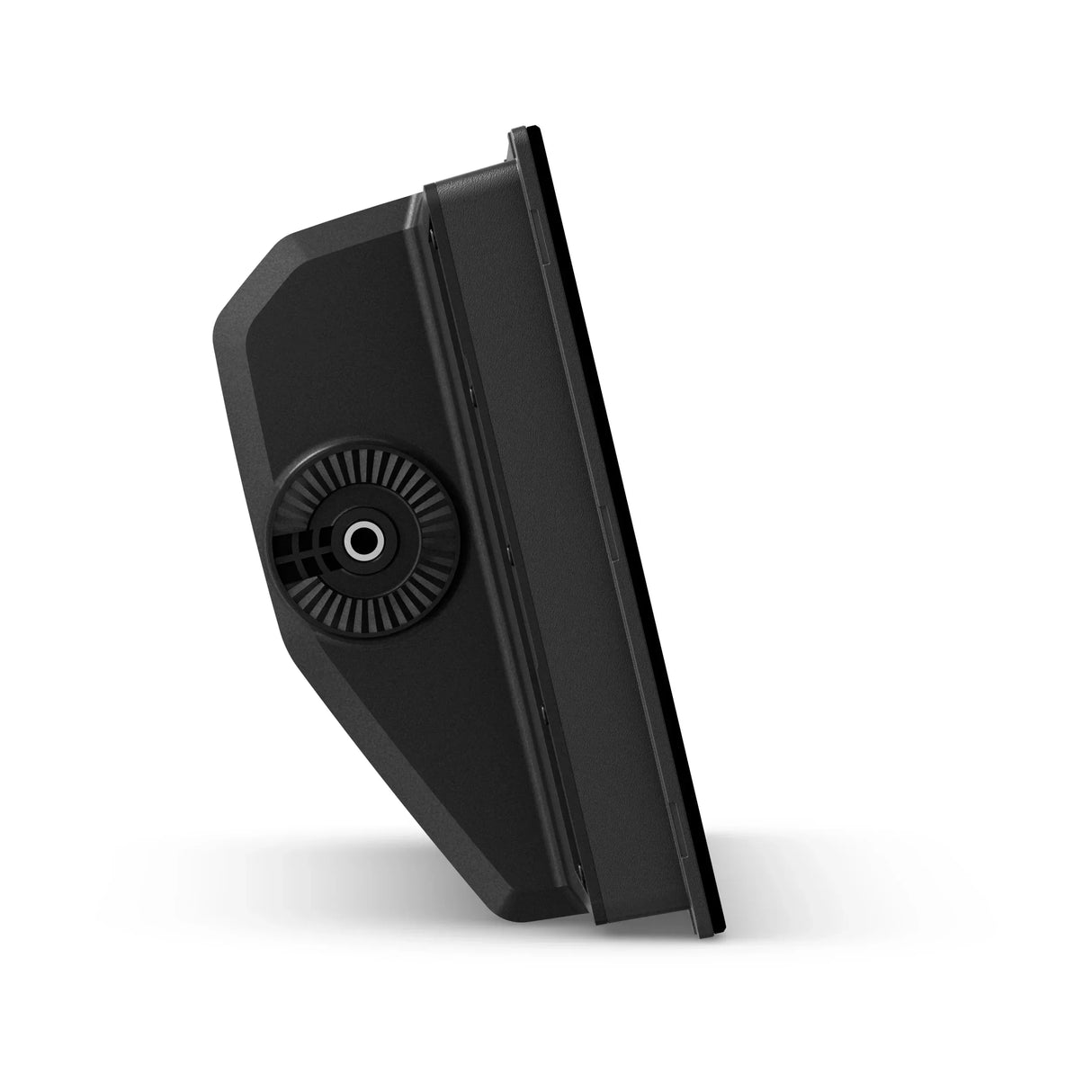

Surface mounting with a quick-release bracket gives a “floating” look. Rear flush mounting is ideal for flat or recessed installs.

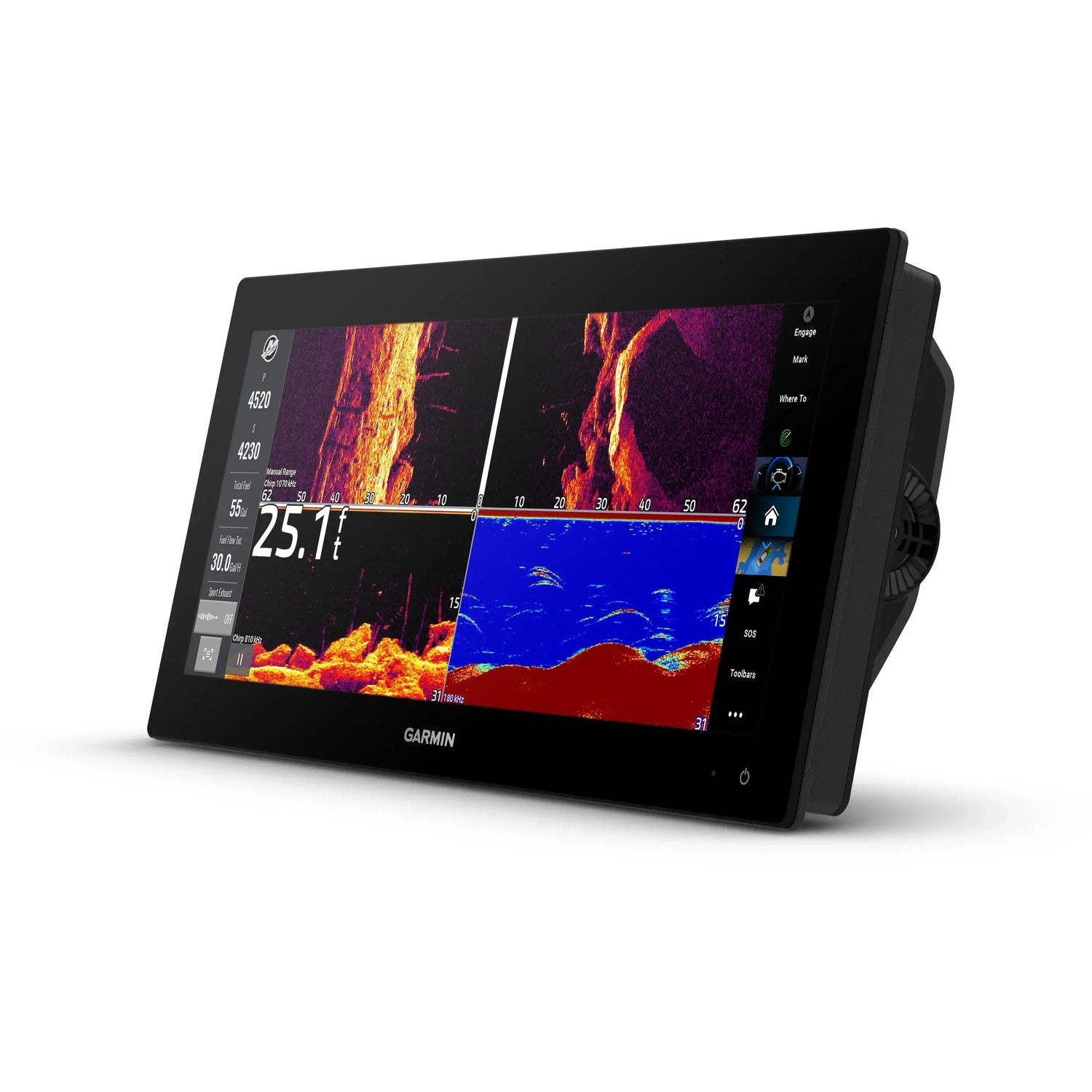

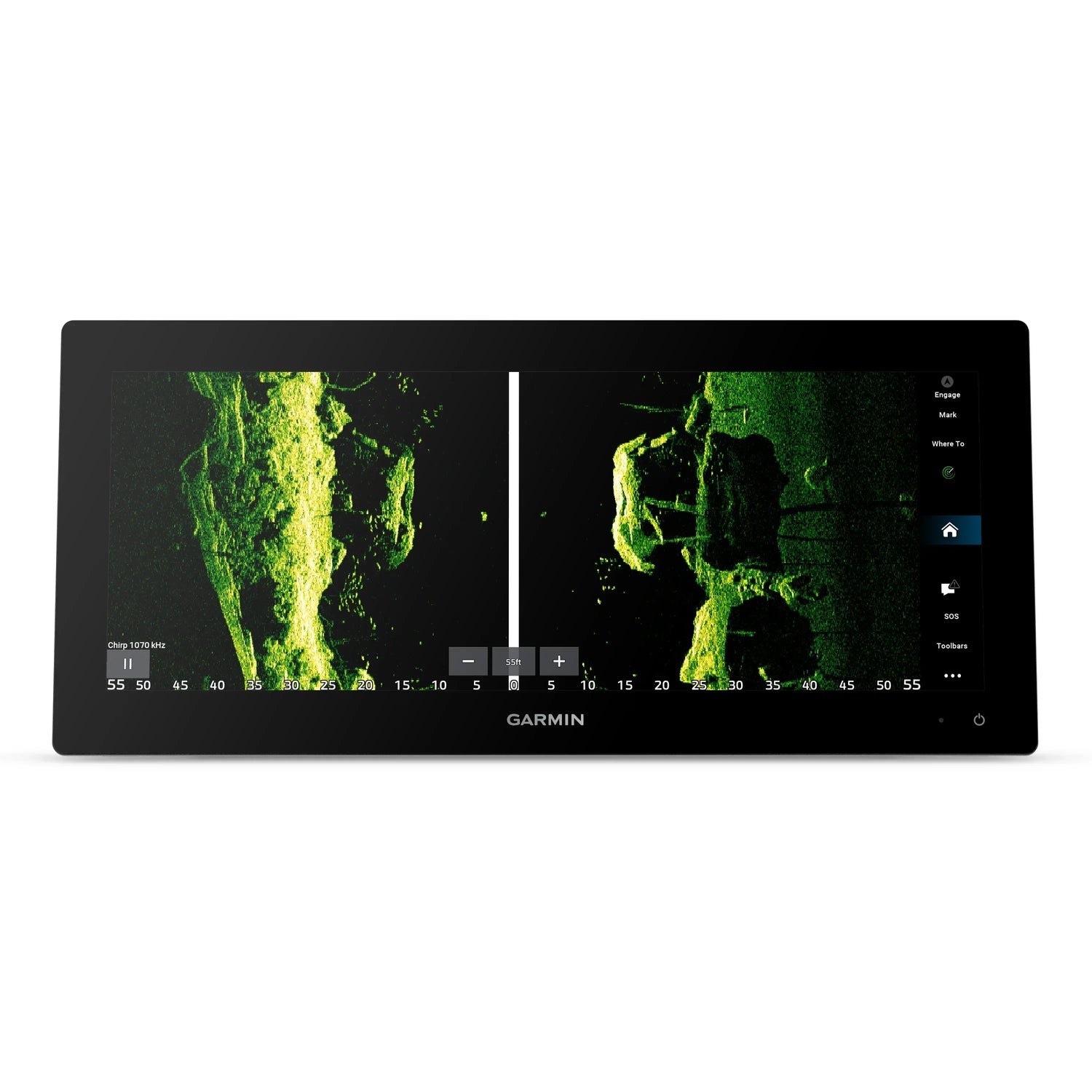

TRADITIONAL & SCANNING SONAR

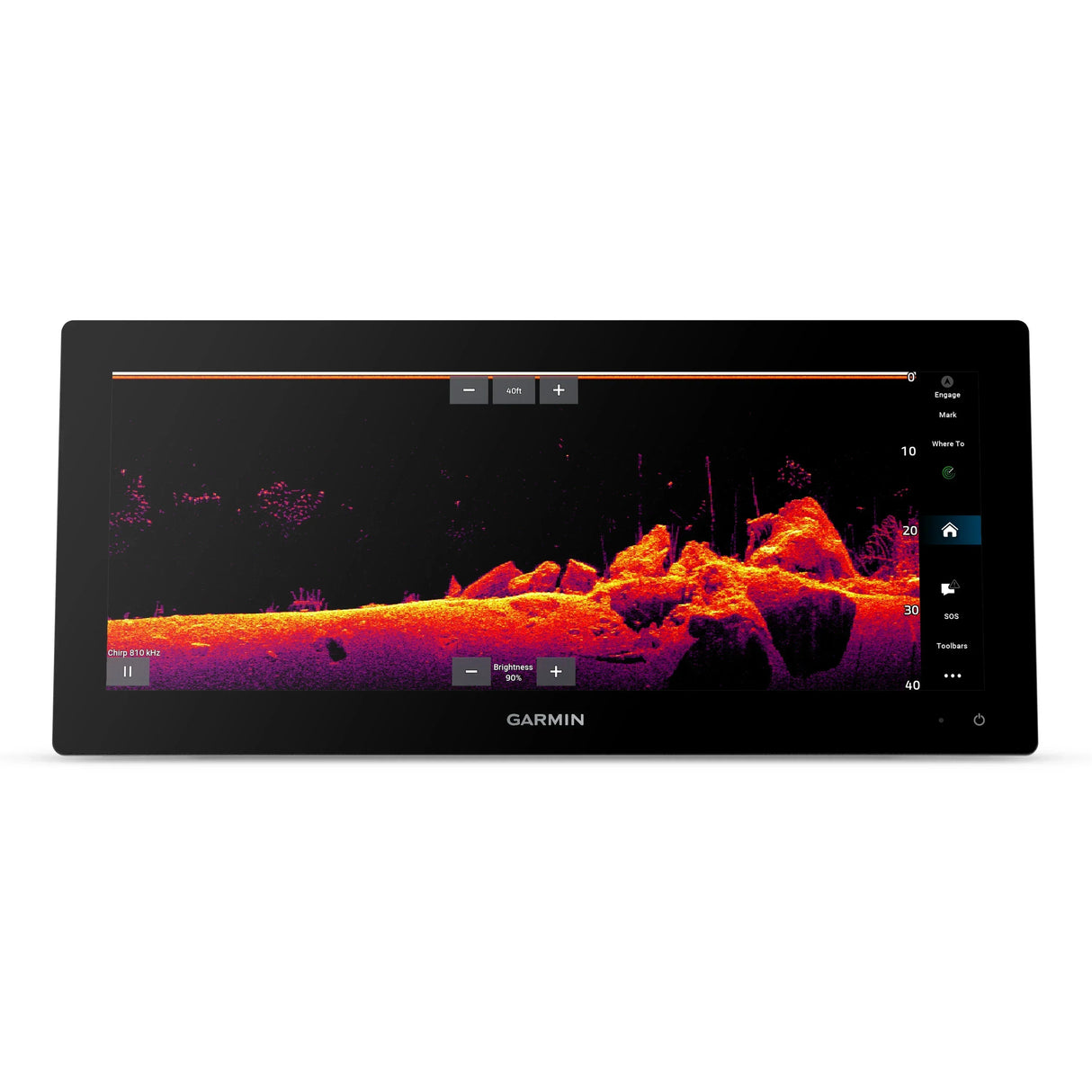

Supports traditional 1 kW CHIRP sonar for high resolution, plus Ultra High-Definition ClearVü and SideVü sonar with crisp, high-contrast colors that help distinguish fish from structure (transducer sold separately).

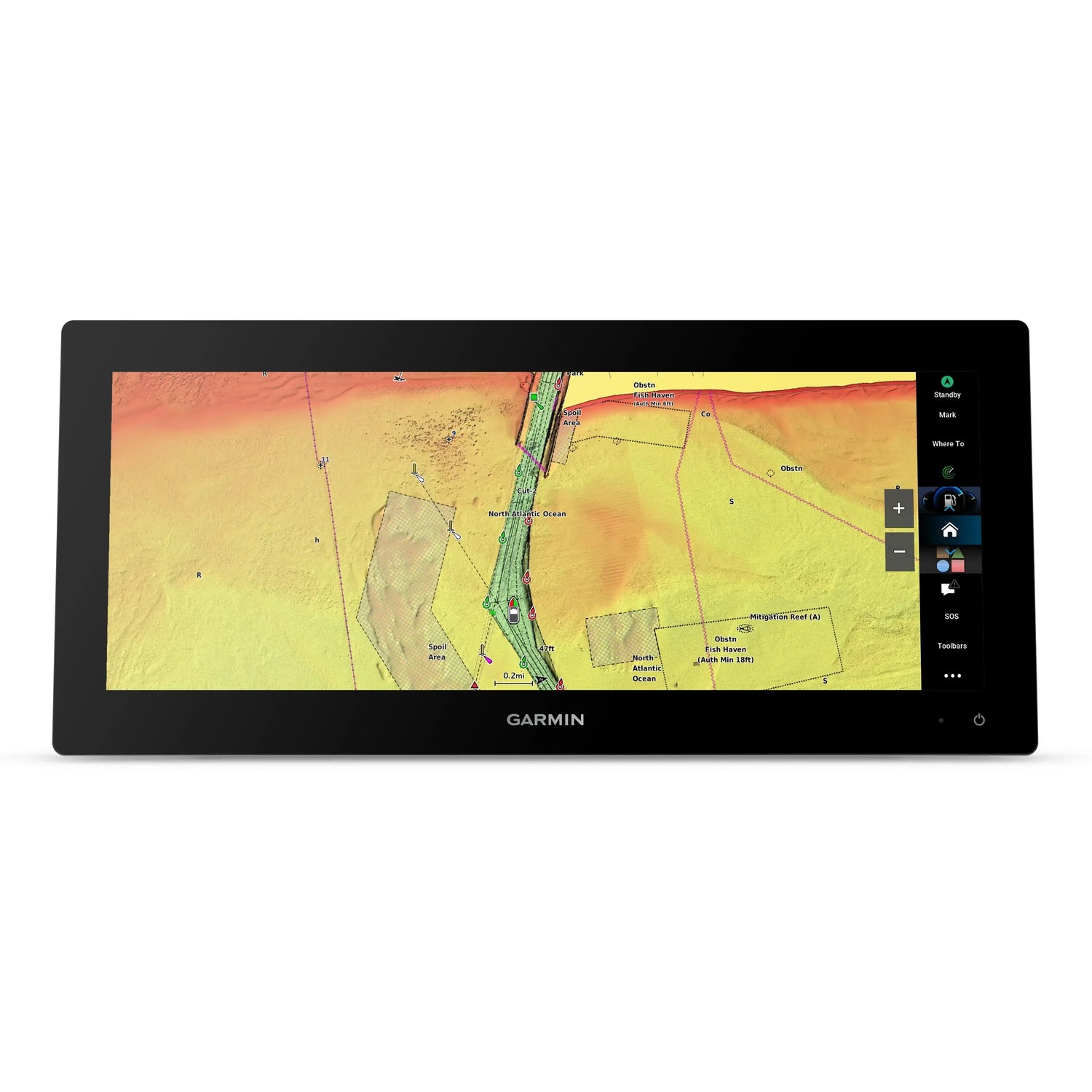

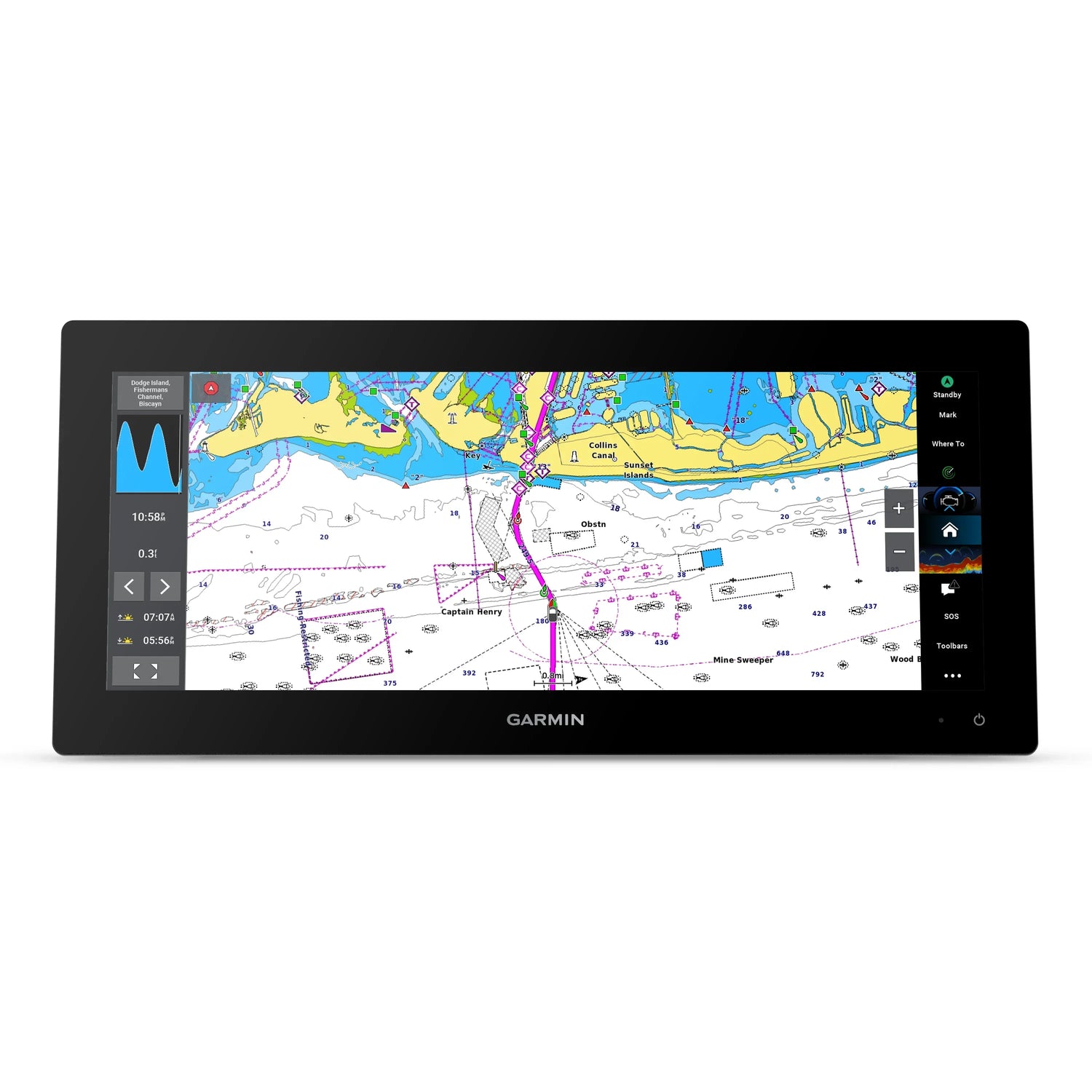

CHARTS
Navigate using optional Garmin Navionics+ charts, which include Auto Guidance+ technology and daily updates (subscription required).

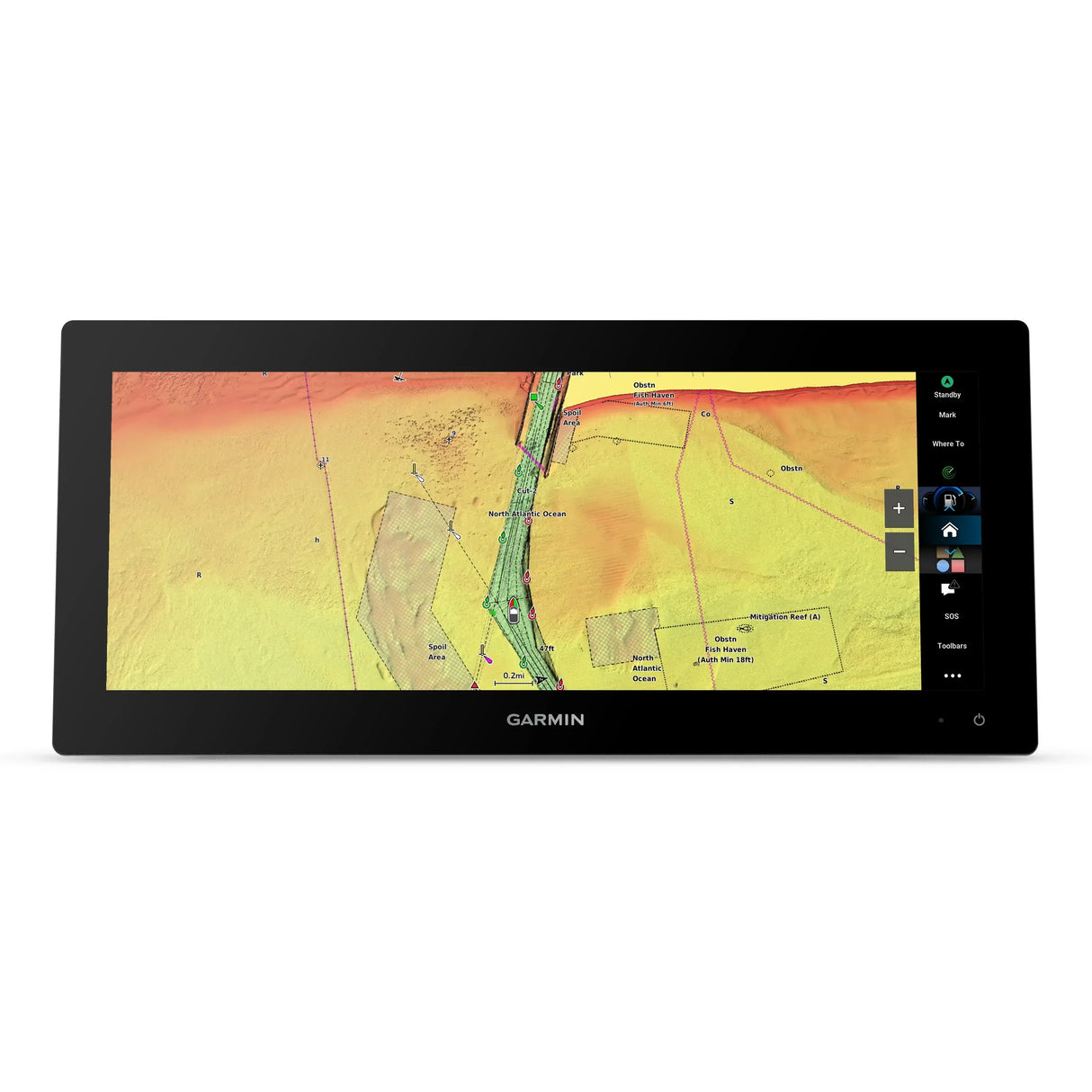

PREMIUM CHARTS
With a Garmin Navionics Vision+ subscription, access downloadable HD relief shading, satellite imagery, sonar images, and more.

GARMIN SAILASSIST FUNCTIONS
Includes laylines, start line guidance, expanded wind rose, VMG to destination, true wind fields, tide/current/time data, wind angle, set & drift, wind speed, and more.

POLAR DIAGRAMS
Visualize key sailing data like speed at various wind angles and optimize sail trim accordingly.

GARMIN MARINE NETWORK
Share data—like charts, waypoints, radar images, and camera feeds—between multiple Garmin devices onboard.

NMEA 2000® AND 0183 NETWORKS
Connect compatible autopilots, digital switching, instruments, Fusion® audio, engine data, VHF, AIS, and more.

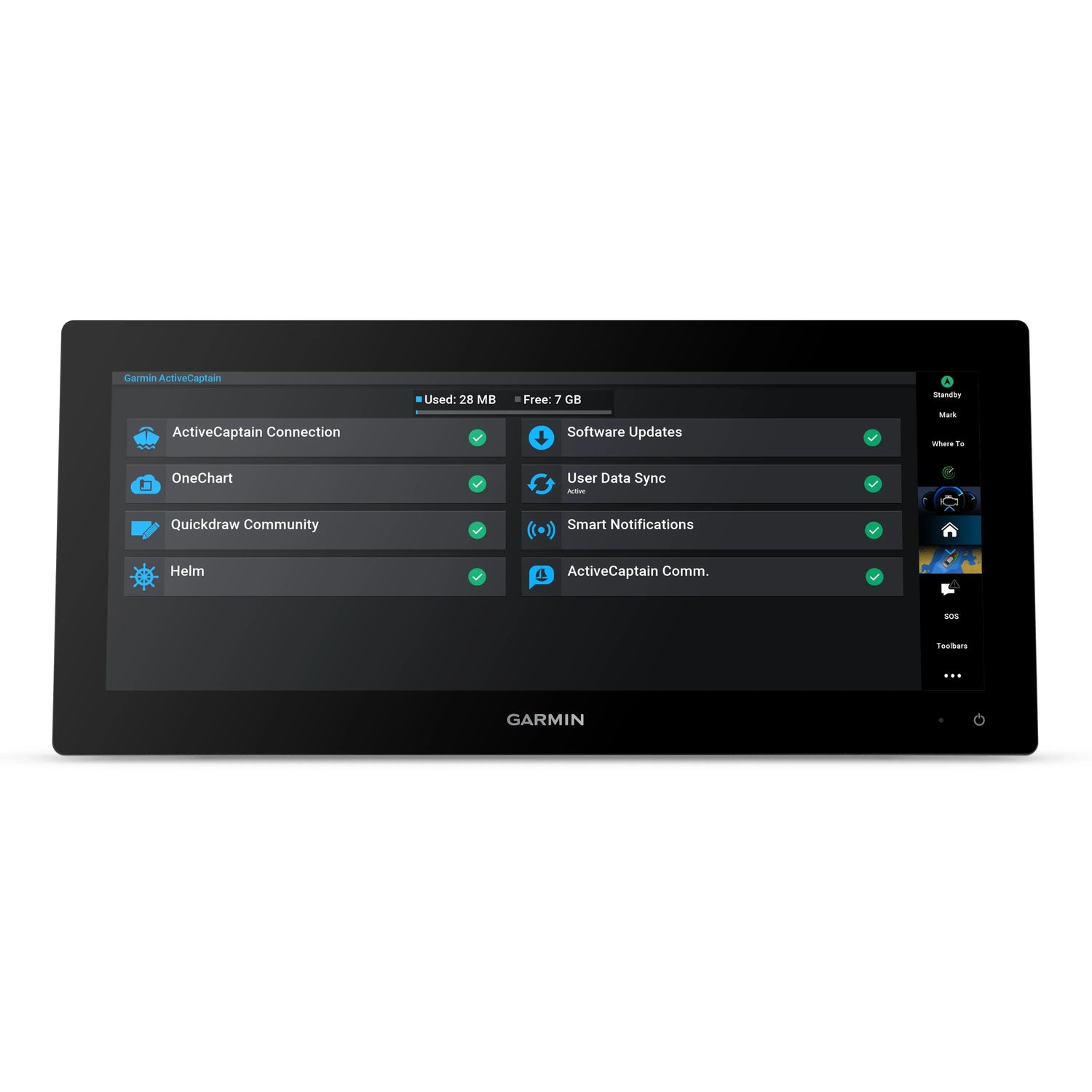

ACTIVECAPTAIN APP
With built-in Wi‑Fi, the device pairs with the free app for features like OneChart, smart notifications, software updates, Helm remote control, and Quickdraw Community.

BUILT-IN ANT® TECHNOLOGY
Supports quatix® smartwatches, gWind Wireless 2 sensors, GNX Wind instruments, and wireless remotes.

ENGINE INTEGRATION
Compatible with select Yamaha® and Mercury® engines.

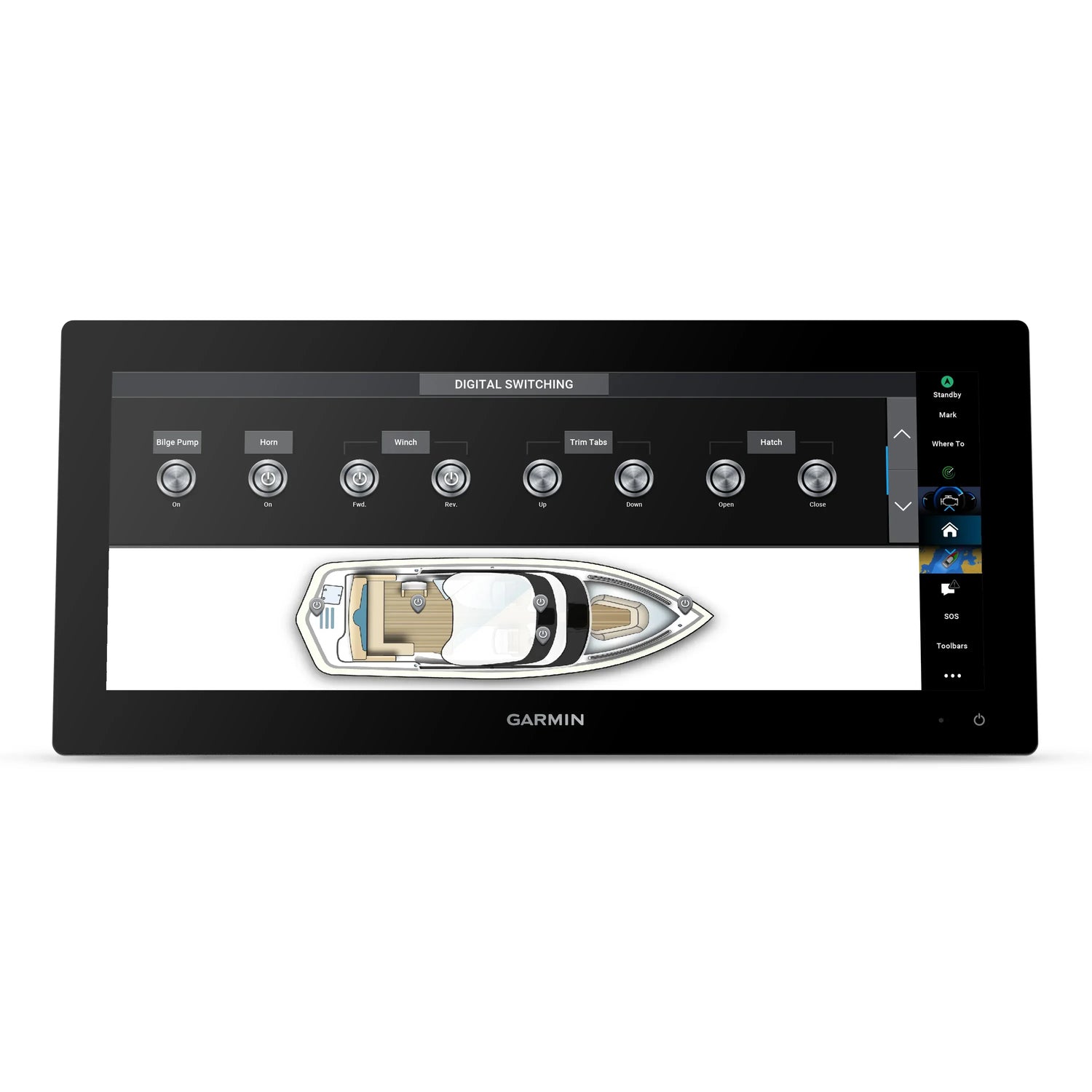

ONEHELM FUNCTIONALITY
Access Garmin EmpirBus digital switching and third-party systems directly from the plotter.

inReach® MESSAGING
When paired with an inReach satellite communicator, you can write and send custom messages directly from the chartplotter. Supports group messaging, contact imports, and more.

POWER-POLE® SHALLOW ANCHOR FEATURES
When connected to a Force® trolling motor and Power‑Pole shallow water anchor, enjoy smart functions like anchor lock, anchor jog, auto retraction, and drift detection for more fishing, less steering.

TROLLING MOTOR INTEGRATION
Optional Force trolling motor support provides enhanced control and maneuverability for fishing.

INCLUDED IN THE BOX
• Chartplotter
• Preloaded microSD card
• Power cable
• NMEA 2000® T-connector and 2m backbone cable
• Slim flush mount kit
• Protective cover
• 8-pin to 12-pin transducer adapter cable
• User manual

TECHNICAL SPECIFICATIONS
• Dimensions: 38.9 × 17.9 × 8.3 cm
• Display size: 34.6 × 12.9 cm (36.8 cm diagonal)
• Resolution: 1920 × 720 px
• Display type: Ultra-wide IPS
• Weight: 3.26 kg
• Memory card slots: 2 × microSD

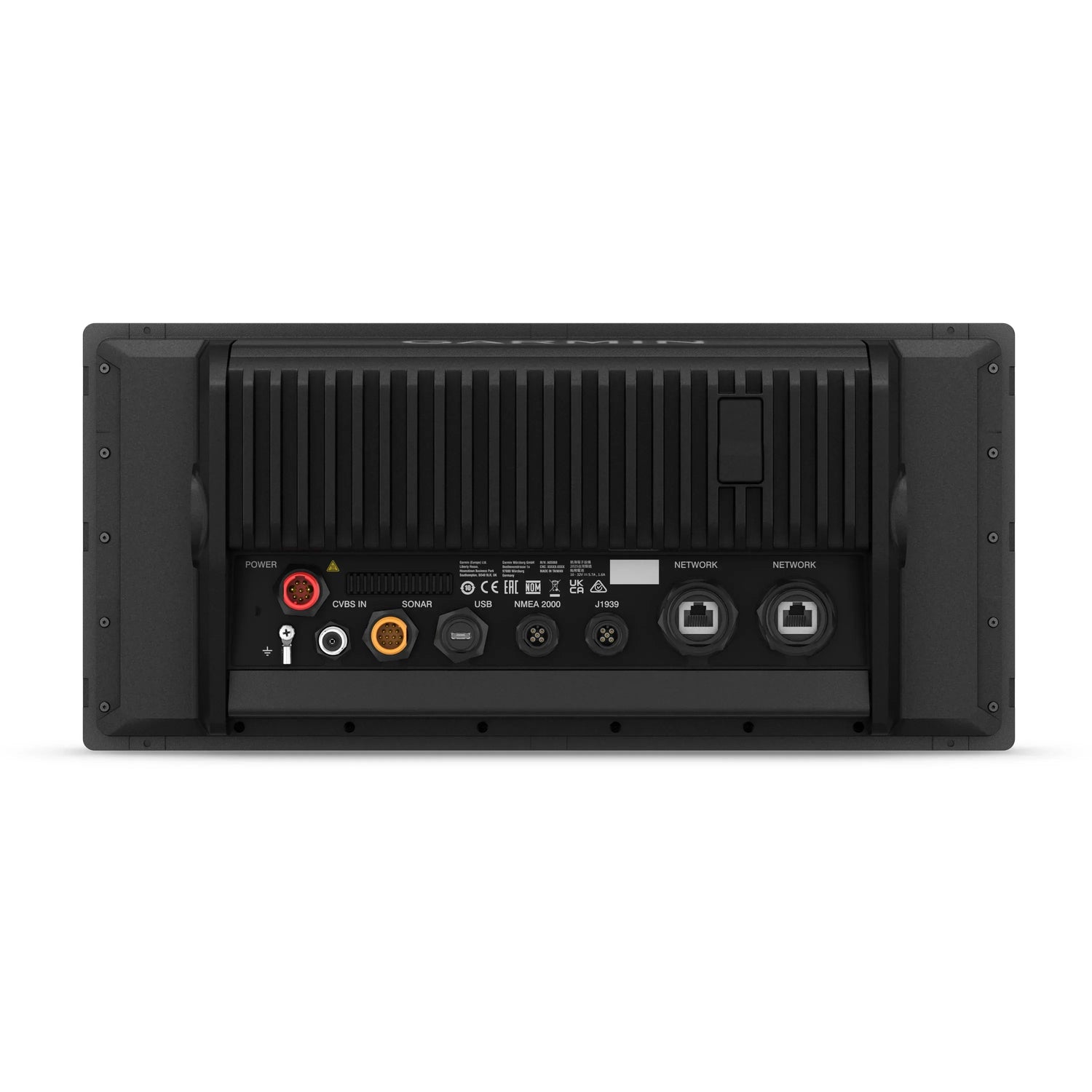

Connections:
• 2 × Garmin Marine Network ports
• 1 × J1939 port
• 1 × NMEA 2000® port
• 1 × BNC video in
• 1 × USB port
• 12-pin transducer port

ACTIVECAPTAIN COMPATIBILITY
With the free all-in-one app, manage your boat experience from virtually anywhere.
When the GPSMAP 1523xsv is paired with a compatible smartphone, you gain access to software updates, Quickdraw Community data, and much more.
