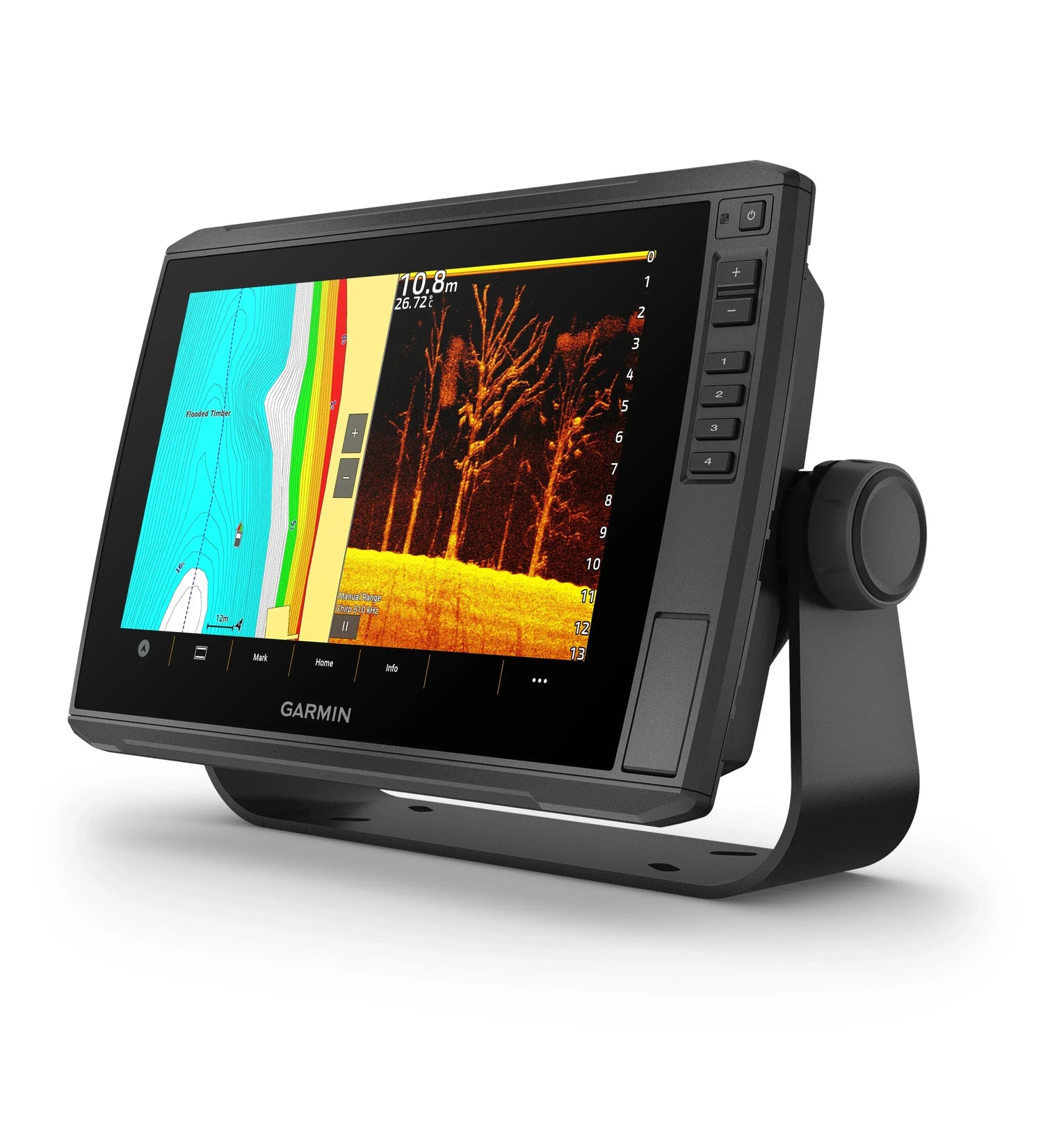

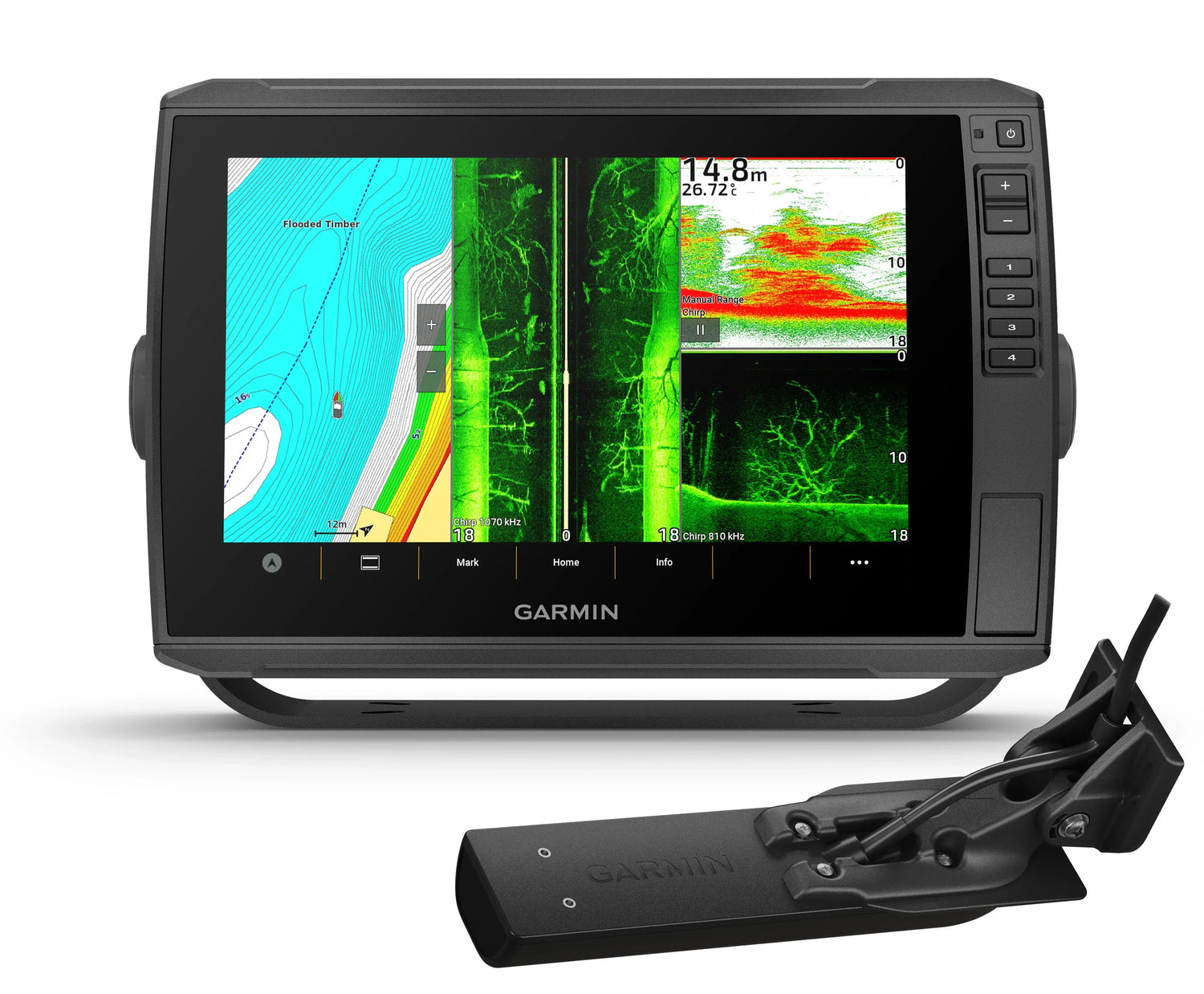

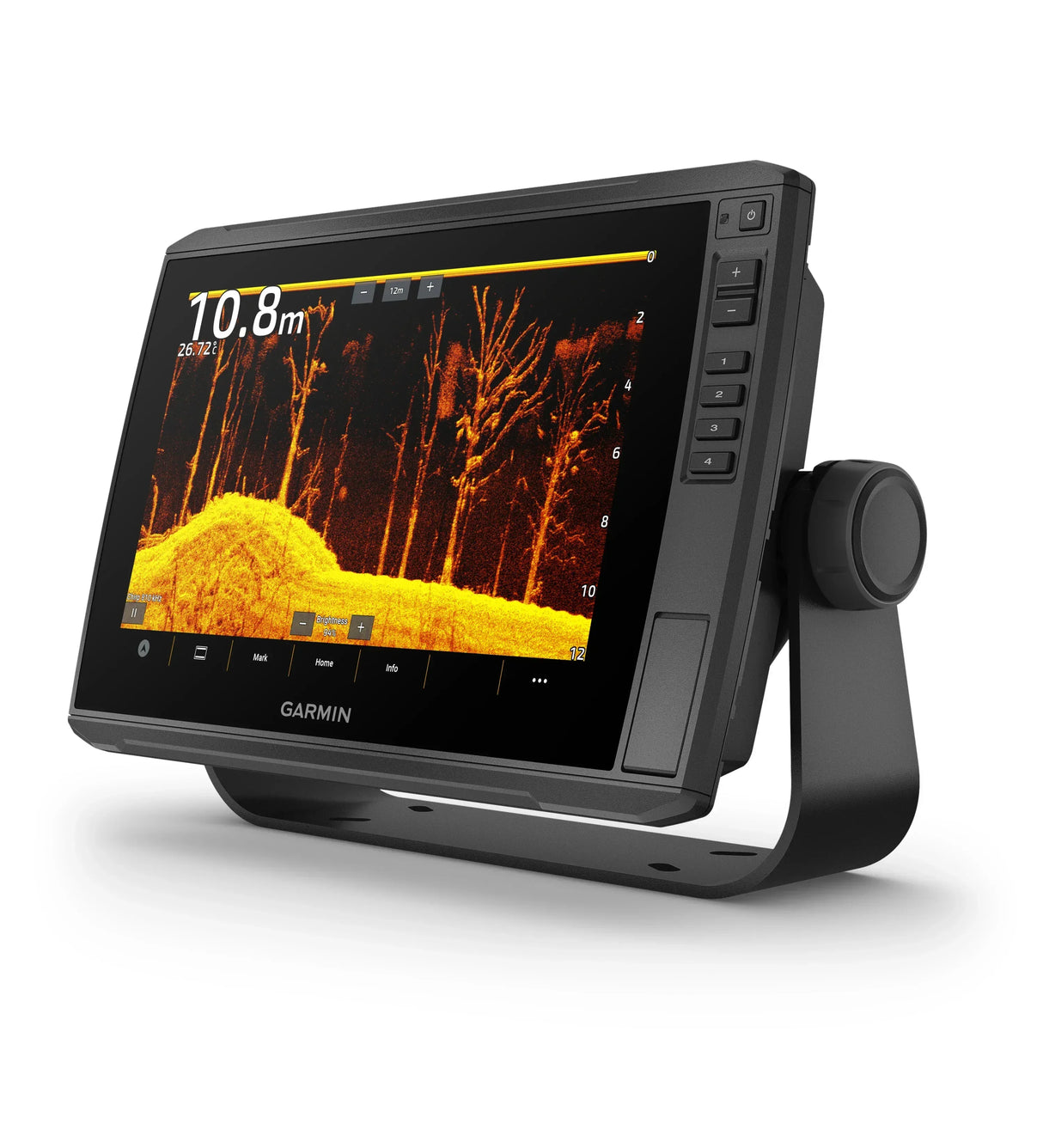

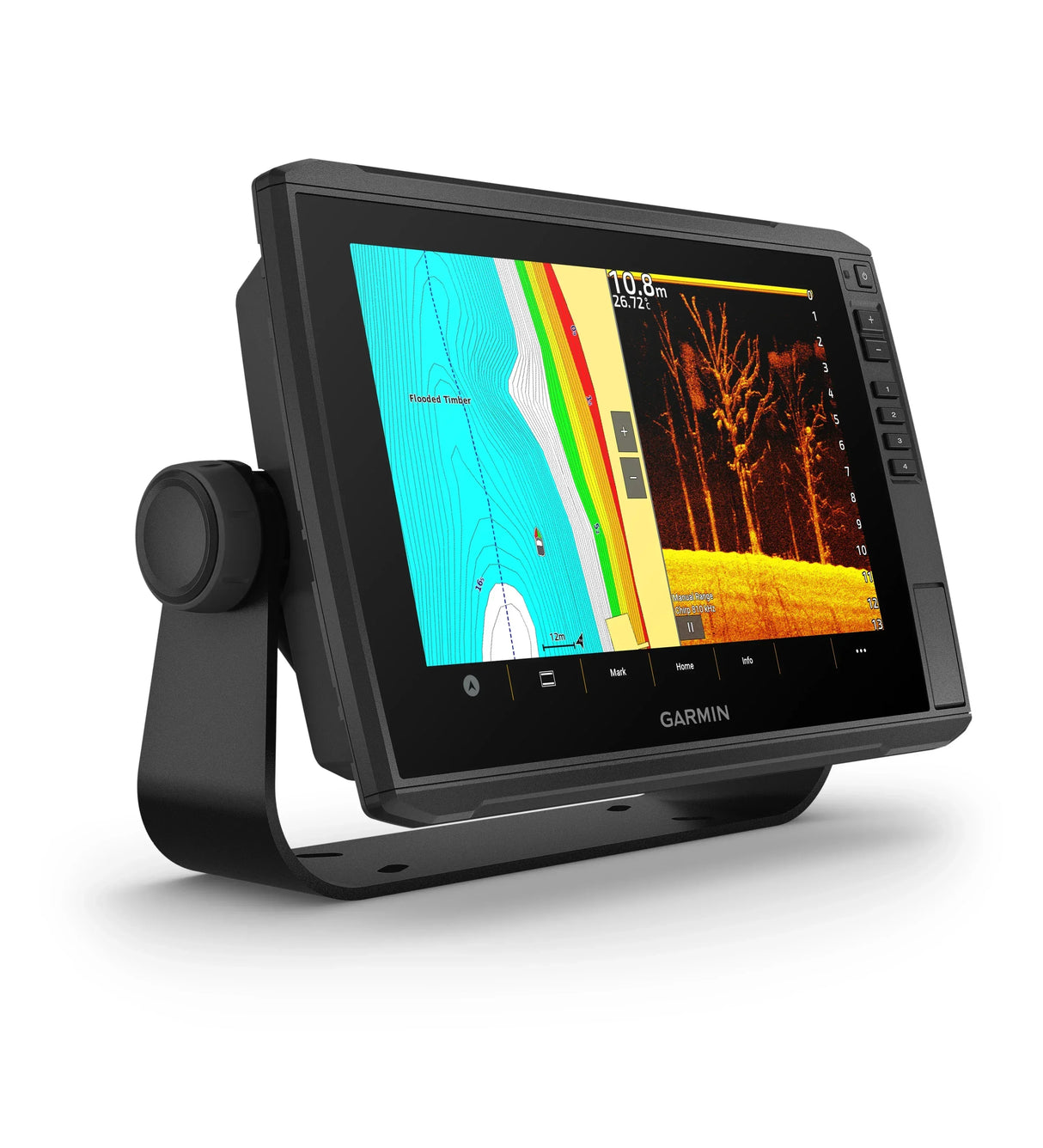

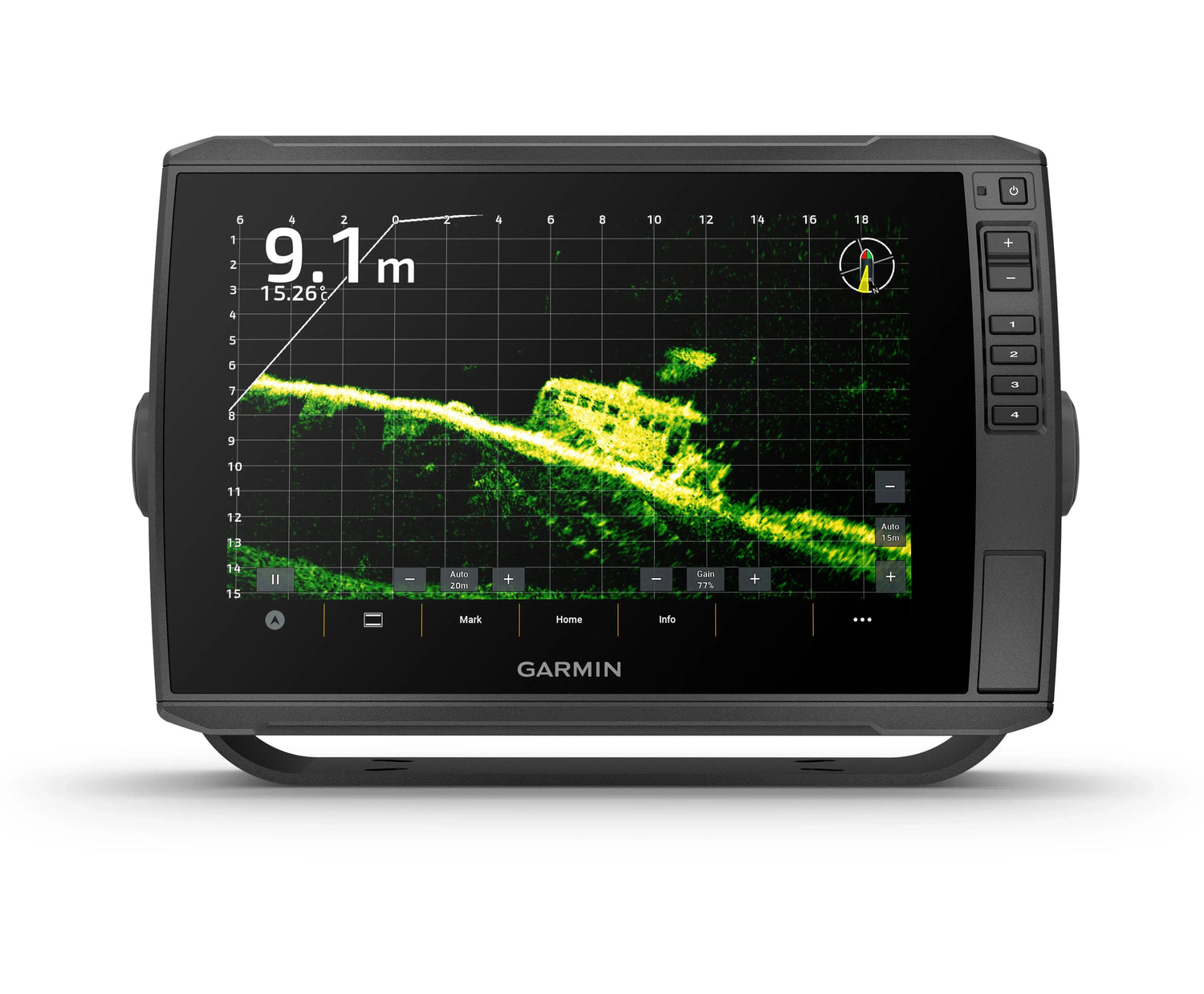

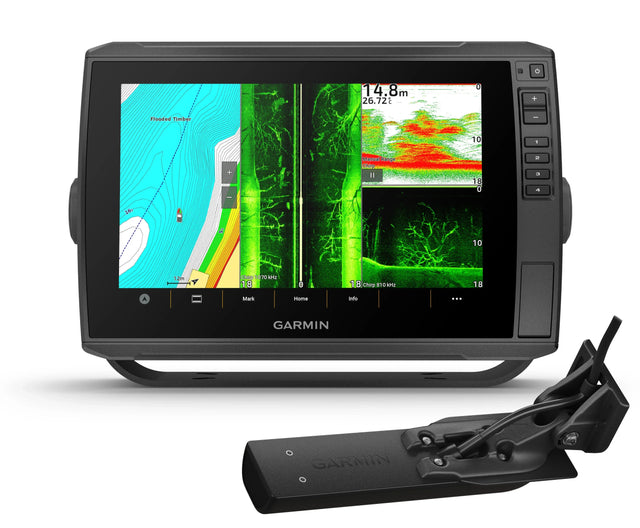

Garmin ECHOMAP Ultra 2 102sv + GT56 Transducer

Maximize your time on the water with the Garmin ECHOMAP Ultra 2 102sv combination device and the GT56 transducer. This version includes all the tools you need for fish finding and general fishing. It features a 10" touchscreen with buttons and an IPS (in-plane switching) display, with optional Garmin Navionics+™ charts available. It also supports all LiveScope™ sonars, highly accurate scanning ClearVü™ and SideVü™ sonars, as well as the traditional Garmin CHIRP sonar (sold separately). It includes Quickdraw Contours software and supports Garmin Navionics+ and Garmin Navionics Vision+™ charts with depth shading and Auto Guidance+™ technology (for planning purposes only; not a substitute for safe navigation). By establishing a wireless connection with the Force® trolling motor, you can create and track routes, navigate to waypoints, manage speed, and check battery life.

Brand New Features:
• Multi-Frequency GPS – with fast 10 Hz updates to enhance location accuracy and signal reception, especially in areas where GPS signals may reflect or be weak.
• Wireless Connectivity – Share sonar data, waypoints, and routes wirelessly between ECHOMAP UHD2 or ECHOMAP Ultra 2 chartplotters.
• Easier to Use – ECHOMAP Ultra 2 chartplotter features a more user-friendly interface with a modern operating system, updated graphics, and new menus and home screen.
• Screen Recording – The screen recording function is used with the ActiveCaptain® app on a compatible smartphone. It captures a screenshot from the chartplotter's display, and it can also capture and share screenshots of your catch (including LiveScope™ sonar images if the transducer is installed).

Other Features:
• IPS touchscreen with buttons provides all the tools you need for fish finding and catching.

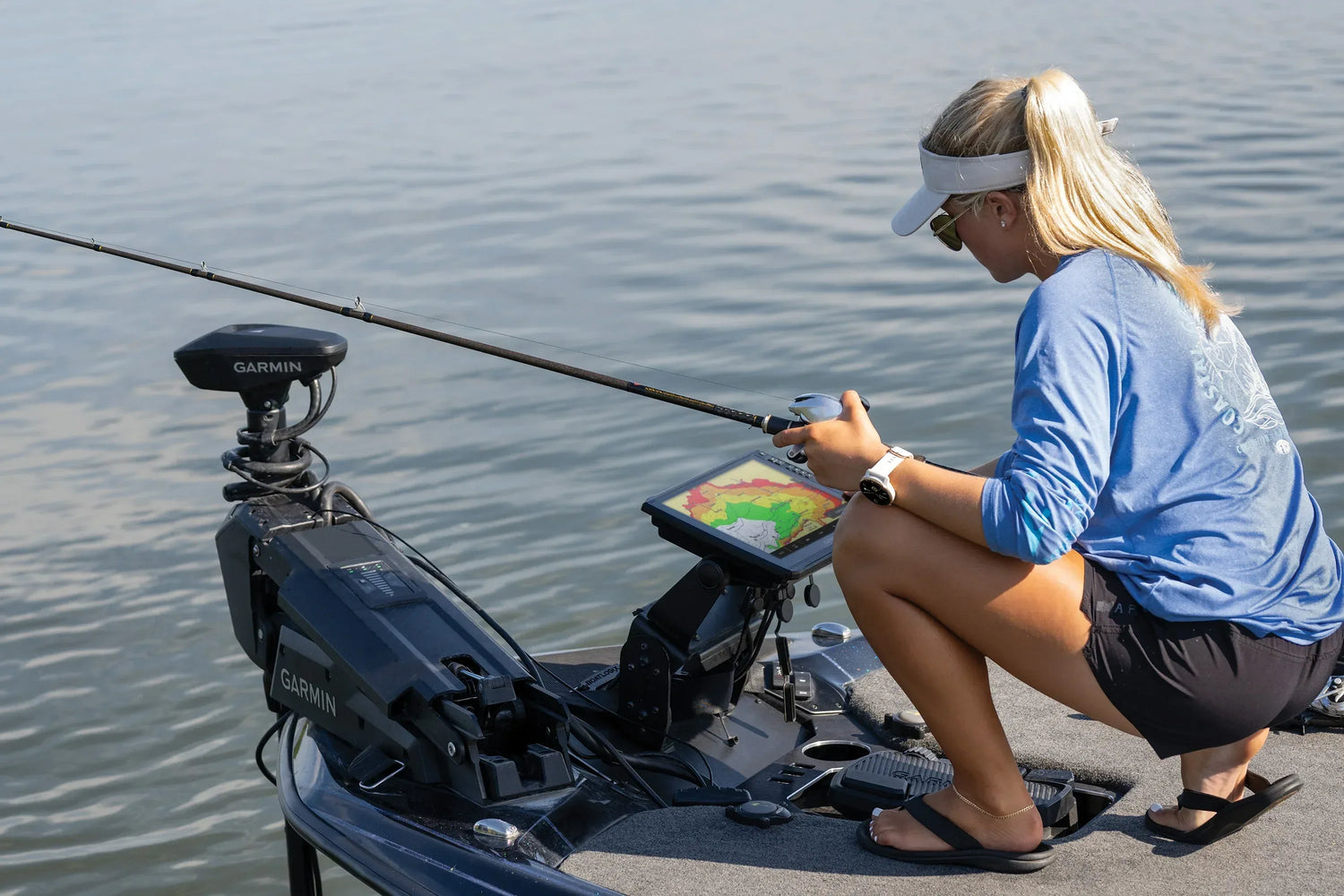

• Integration with the Force trolling motor allows for wireless connection to create and track routes, navigate to waypoints, adjust speed, and monitor battery life.
• Accurate sonar imaging with the included GT56 transducer for traditional Garmin CHIRP sonar, Ultra High-Definition ClearVü™, and SideVü™ sonars that provide almost photographic images of what's below and to the sides of your boat.
• Compatible with LiveScope sonar for real-time fish viewing using the separately sold LiveScope scanning sonar.
• Maps support includes Garmin Navionics+ and Garmin Navionics Vision+ charts, available with a one-year subscription, and Auto Guidance+™ technology (for planning purposes only; not a substitute for safe navigation).
• Bright colors make it easy to identify underwater objects and structures with the bright color combinations of scanning sonars.
• Quickdraw Contours mapping software creates custom fishing maps directly from the screen during your fishing trip.
• The ActiveCaptain mobile app allows device pairing through Wi-Fi and offers access to OneChart™ for purchasing and downloading new charts, as well as smart notifications*, software updates, Garmin Quickdraw™ Community data, and more.
• NMEA 2000 network support for autopilot, Fusion® audio systems, engine data, digital switches, and more.

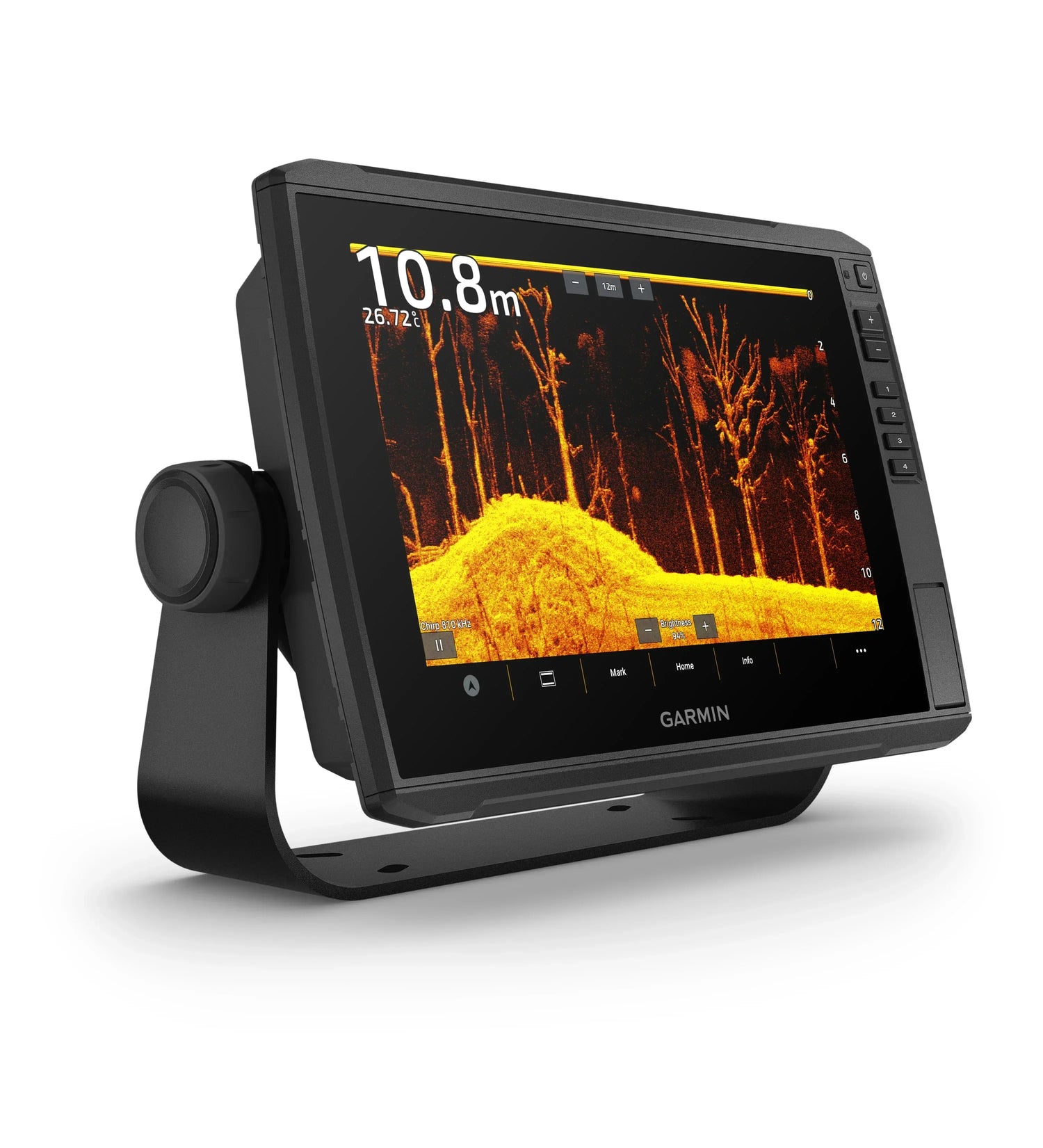

• Quick-release mount makes it easy to attach and detach the device.

Technical Specifications:
• Device Dimensions: 295 x 195 x 98 mm.
• Screen Type and Resolution (px): IPS, WXGA – 1280x800.

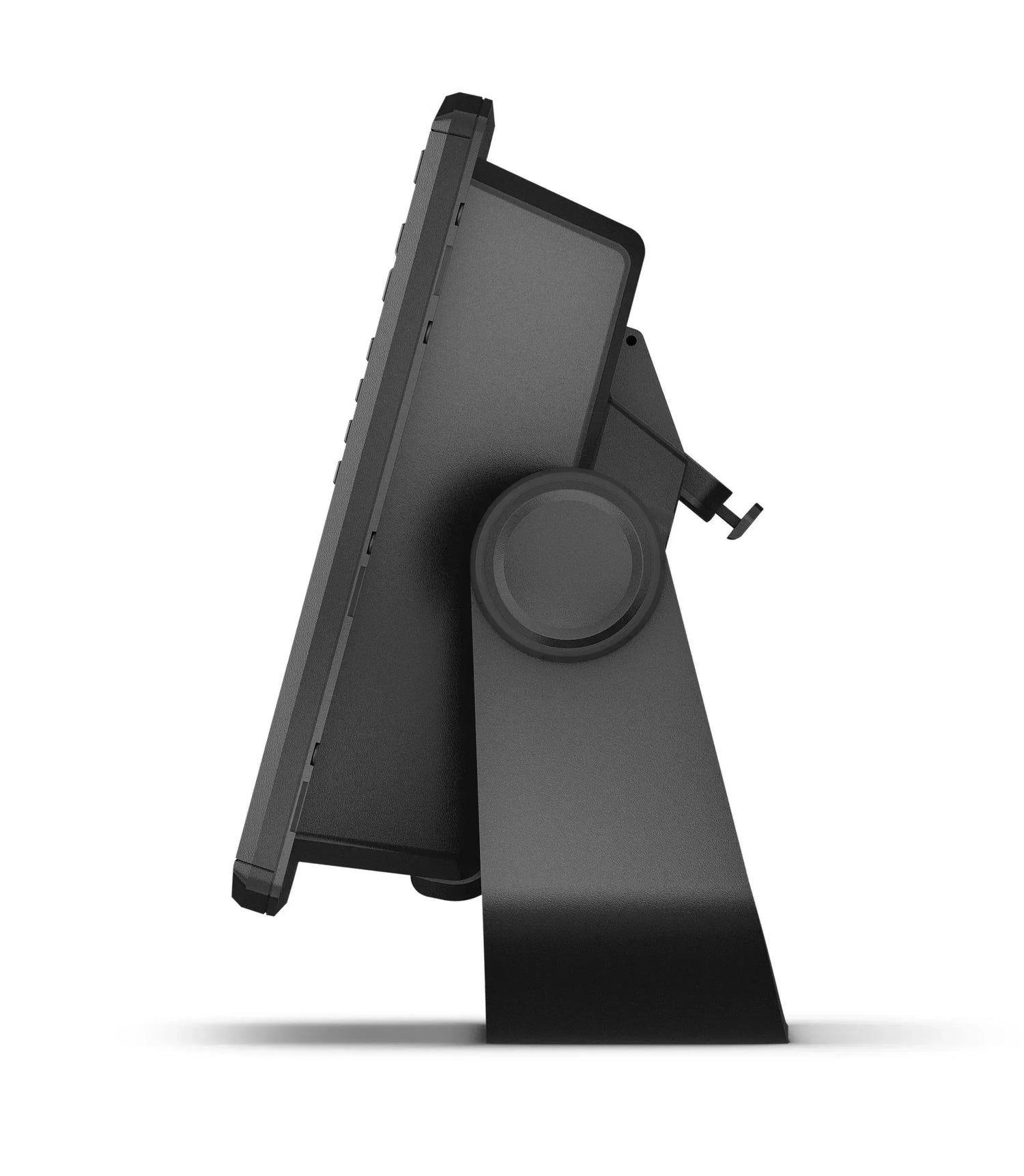

• Installation Options: Mounting bracket and quick-release dock (included).
• GPS Receiver: Dual-frequency L1/L5, 10 Hz GPS/GLONASS/Galileo.
• Preloaded Garmin Navionics+ charts.
• Supported Sonar Frequencies: Internal (single-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP), 260/455/800/1000/1200 kHz scanning (ClearVü™ and SideVü™).
• Sonar Transmit Power: 600 W CHIRP, 500 W scanning (ClearVü and SideVü).
• Auto Guidance+™ technology with separately sold Garmin Navionics+ charts.
• Support for LiveScope™ sonar system.
• Garmin Quickdraw™ Contours mapping software.
• Memory Card Slots: 2 microSD™ cards.

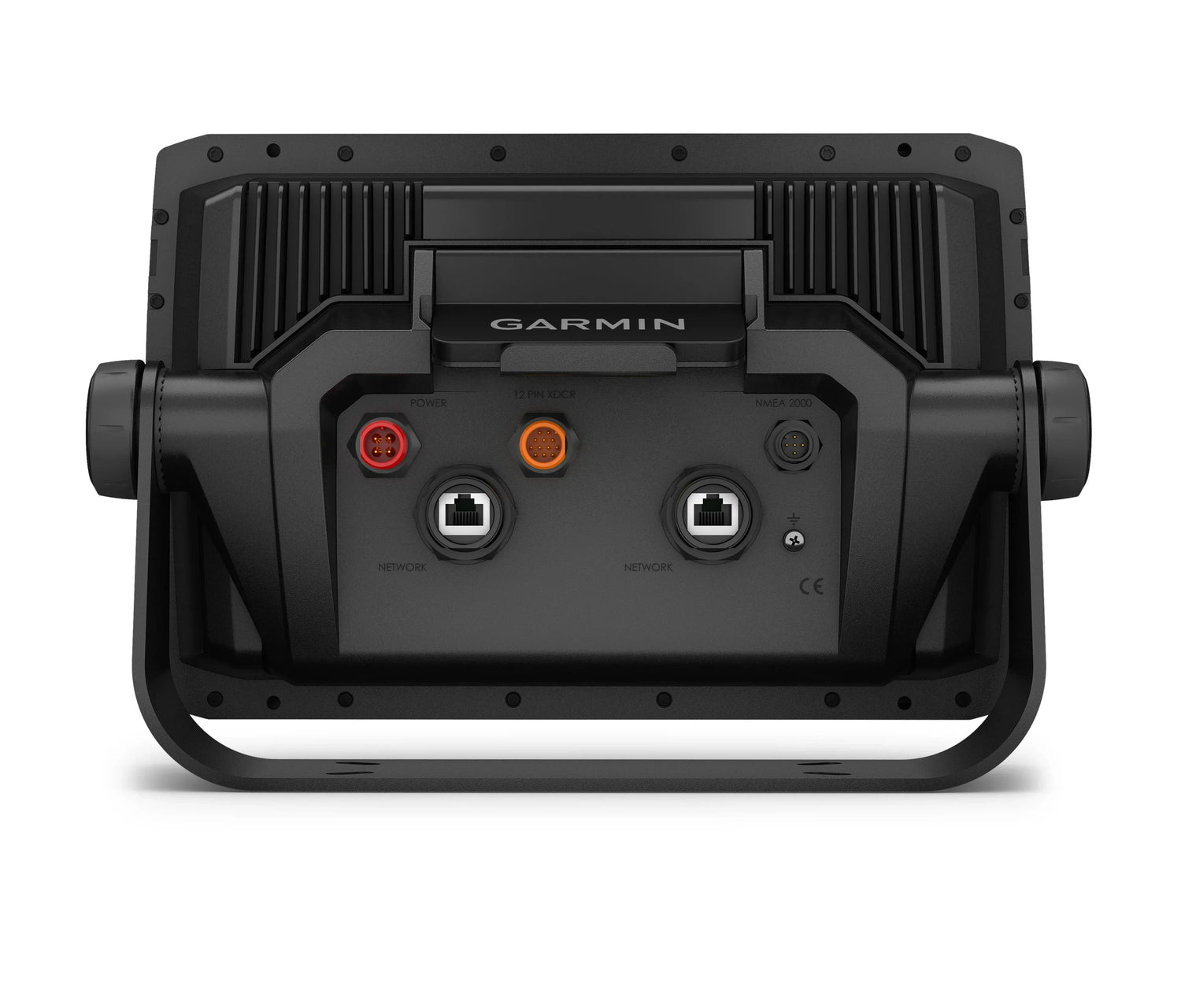

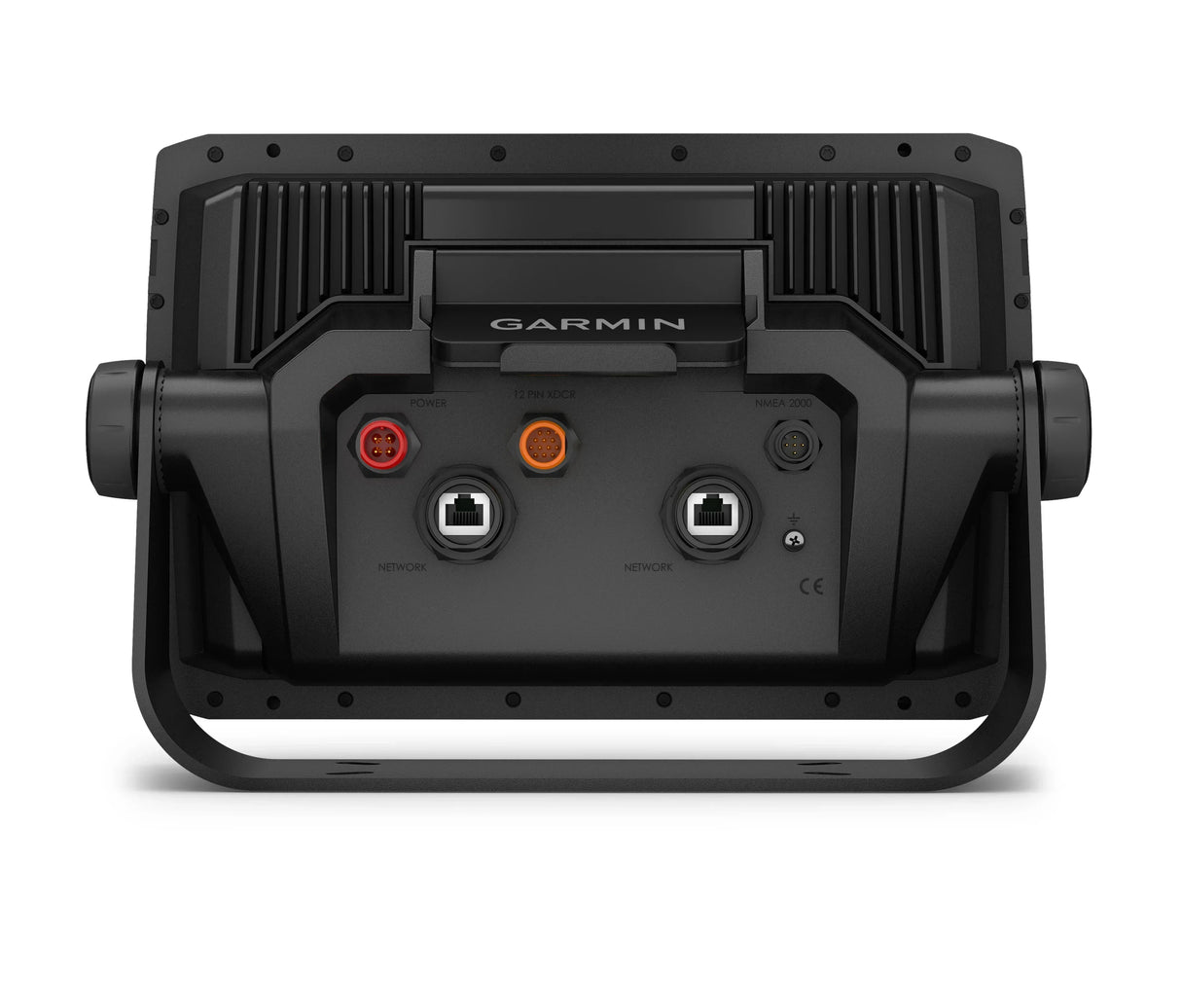

• Connections: Wireless, NMEA 2000®, 2x Marine Network, 1 x 12-pin sonar, 1 x 4-pin power.

Package Contents:
• ECHOMAP Ultra 2 102sv chartplotter with world base maps.
• GT56UHD-TM transducer.
• Power/data cable.
• Mounting bracket and quick-release dock.
• Protective cover.
• Accessories and user manual.

*Pairable with a compatible smartphone; for more information, visit Garmin.com/ble

Languages: Arabic, Brazilian, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Slovakian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Ukraine
