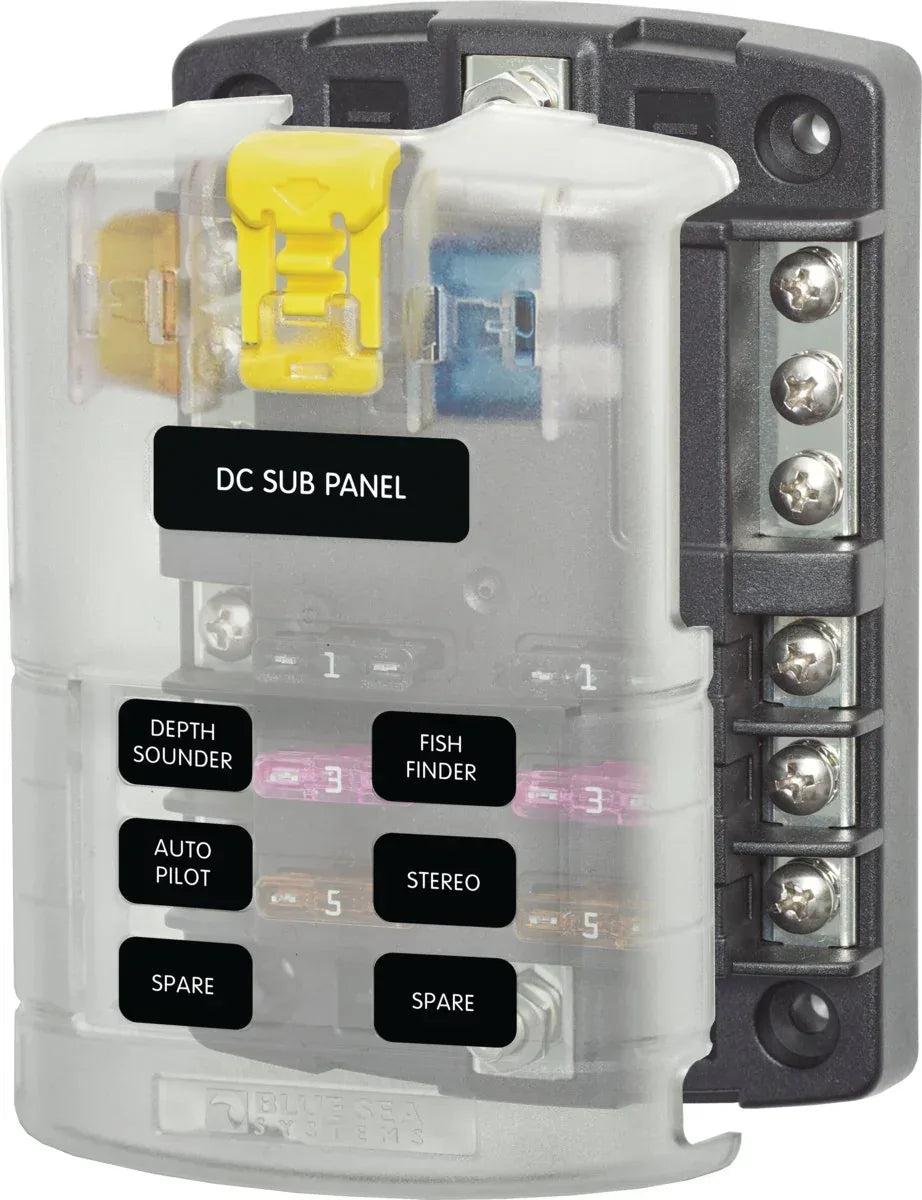

Blue Sea Fuse Box for 6 Fuses

Welcome to our renewed online store!

(18942) reviews
Blue Sea Systems

Blue Sea Fuse Box for 6 Fuses

ST blade fuse box, 6 fuses, negative rail + cover. Combines power distribution and fusible links in one case.• Positive rail equipped with #10-32 pin• Suitable for 24-hour circuits• Available with or without cover• The button-operated cover protecting the fuses meets ABYC/USCG requirements for insulation and has a slot for two spare fuses, space for an ID tag that can be used for Blue Sea Systems' Small Format tag for identifying the circuit• The fuse box with covers has 20 ID tags to which you can enter the name of the circuit• Tin-plated copper rail and fuse holders• Compatible with both ring or fork terminal connectors• Compatible with fast blade fuses (ATO® and ATC®)• Fuses sold separatelyTECHNICAL SPECIFICATIONS:Number of circuits: 6Maximum current: 100A per box | 30A per circuitMaximum voltage: 32V DCInstallation: M4 screwsNegative rail: #10-32 pinPositive rail: #10-32 pinRecommended tightening torque: 2.71 NmTightening torque for screw connection: 1.69 NmScrew connection type: #8-32 screws with star washerWeight: 0.25 kg
69,99 €

Delivery 3-7 business days

View shipping methods

Secure payment methods

View payment methods

Additional details

Description

ST blade fuse box, 6 fuses, negative rail + cover. Combines power distribution and fusible links in one case.

• Positive rail equipped with #10-32 pin
• Suitable for 24-hour circuits
• Available with or without cover
• The button-operated cover protecting the fuses meets ABYC/USCG requirements for insulation and has a slot for two spare fuses, space for an ID tag that can be used for Blue Sea Systems' Small Format tag for identifying the circuit
• The fuse box with covers has 20 ID tags to which you can enter the name of the circuit
• Tin-plated copper rail and fuse holders
• Compatible with both ring or fork terminal connectors
• Compatible with fast blade fuses (ATO® and ATC®)
• Fuses sold separately

TECHNICAL SPECIFICATIONS:
Number of circuits: 6
Maximum current: 100A per box | 30A per circuit
Maximum voltage: 32V DC
Installation: M4 screws
Negative rail: #10-32 pin
Positive rail: #10-32 pin
Recommended tightening torque: 2.71 Nm
Tightening torque for screw connection: 1.69 Nm
Screw connection type: #8-32 screws with star washer
Weight: 0.25 kg
