Garmin LiveScope Plus System

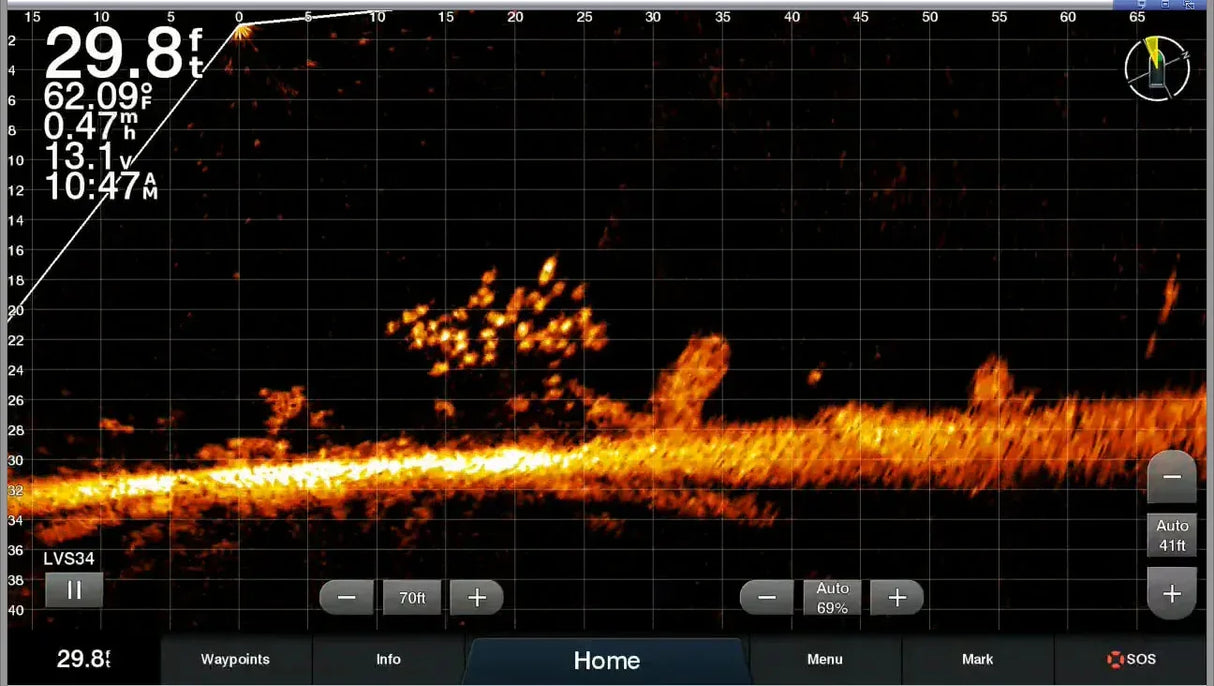

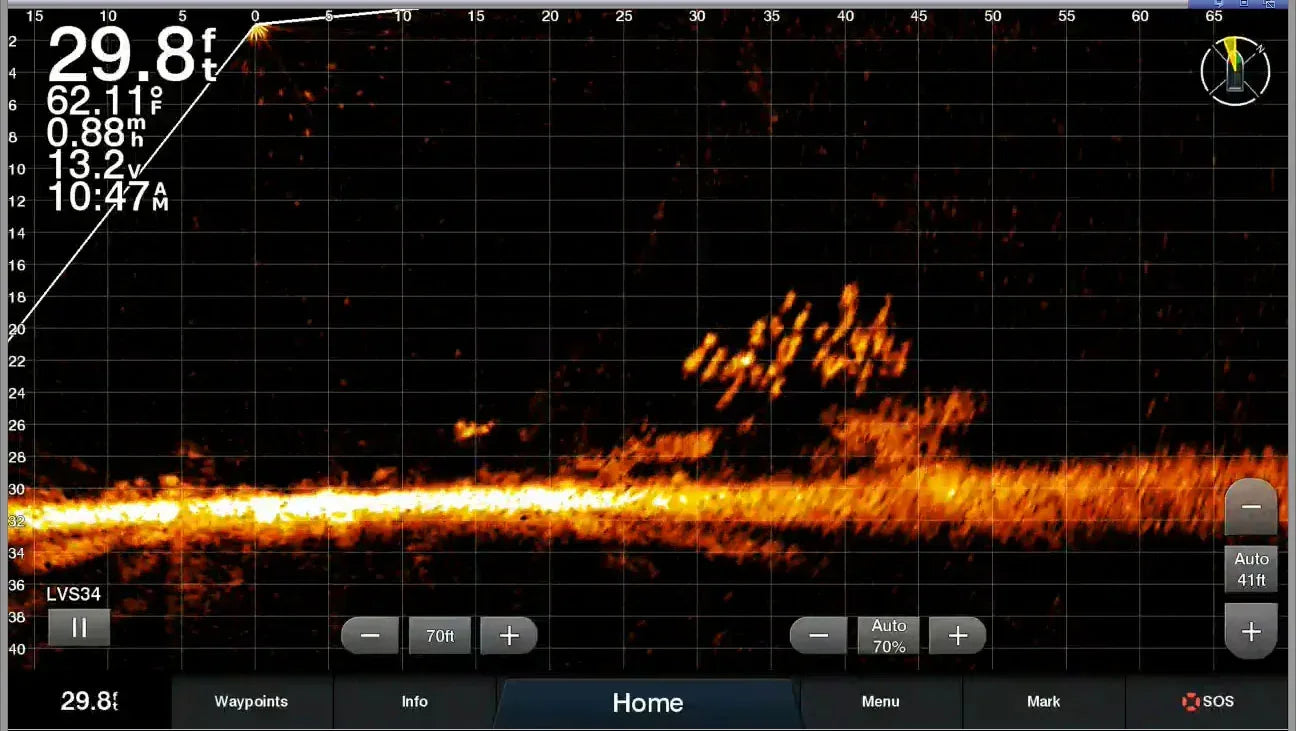

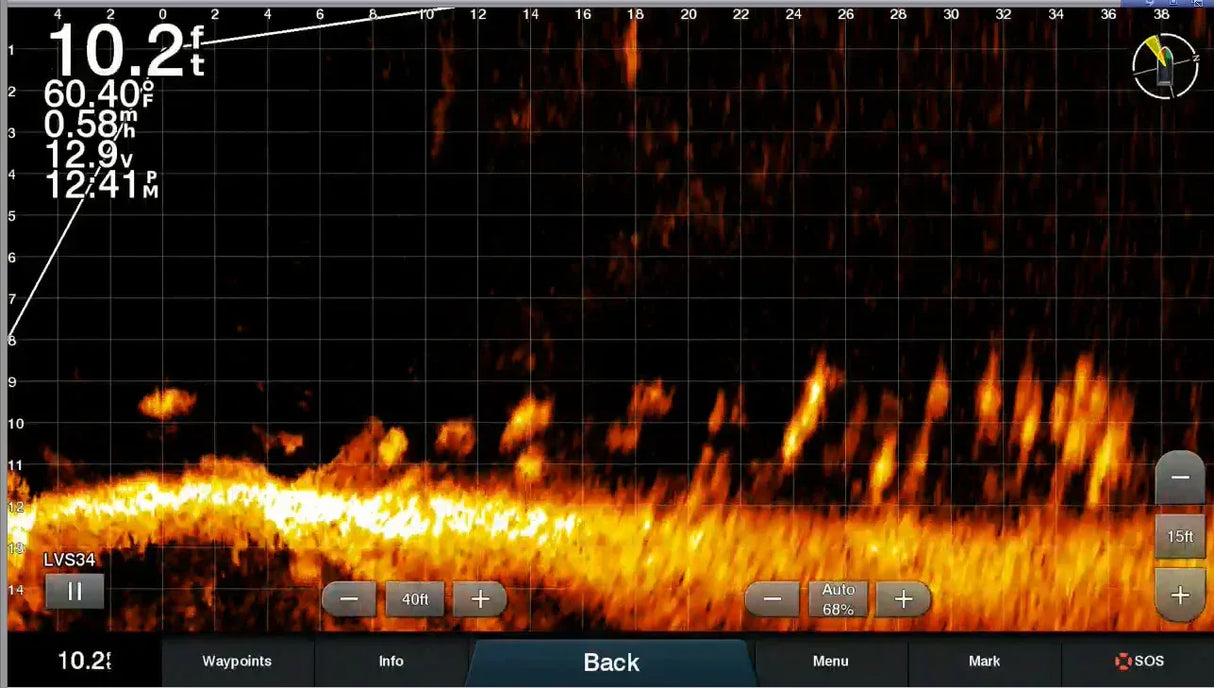

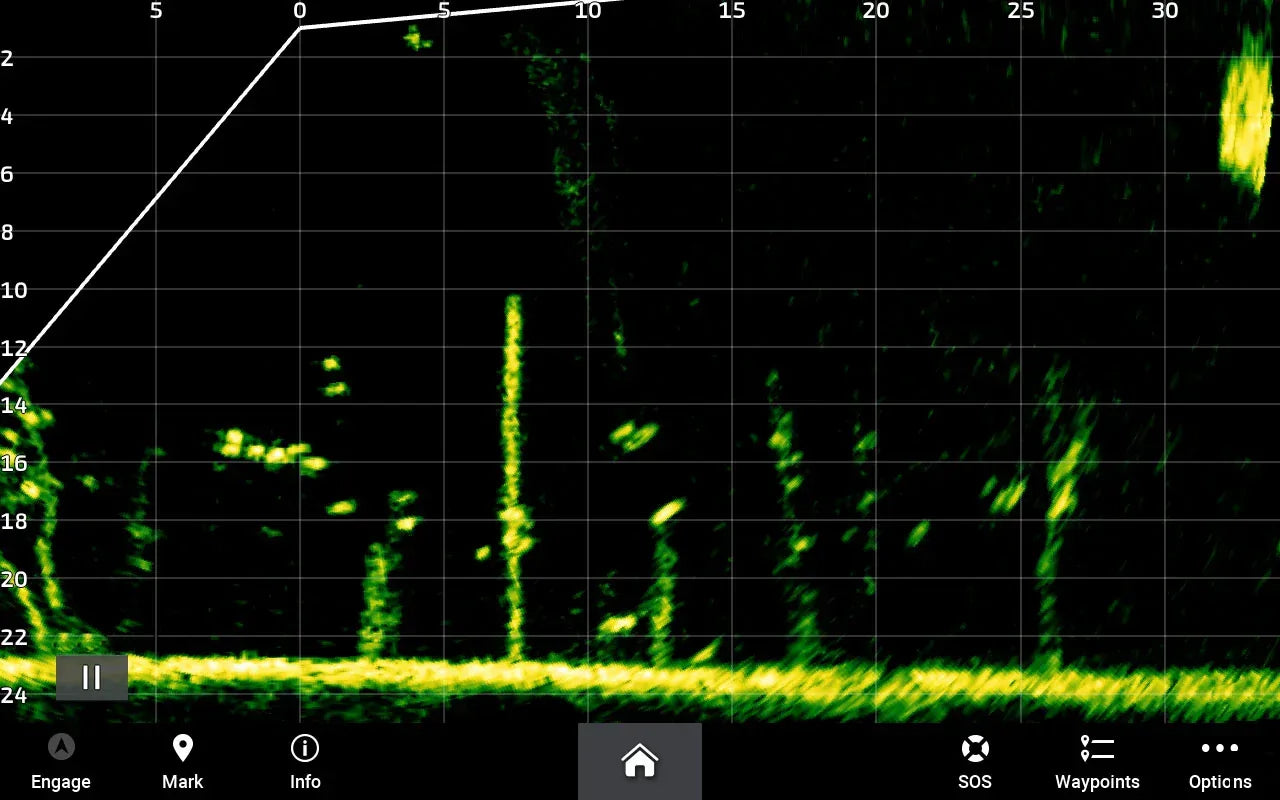

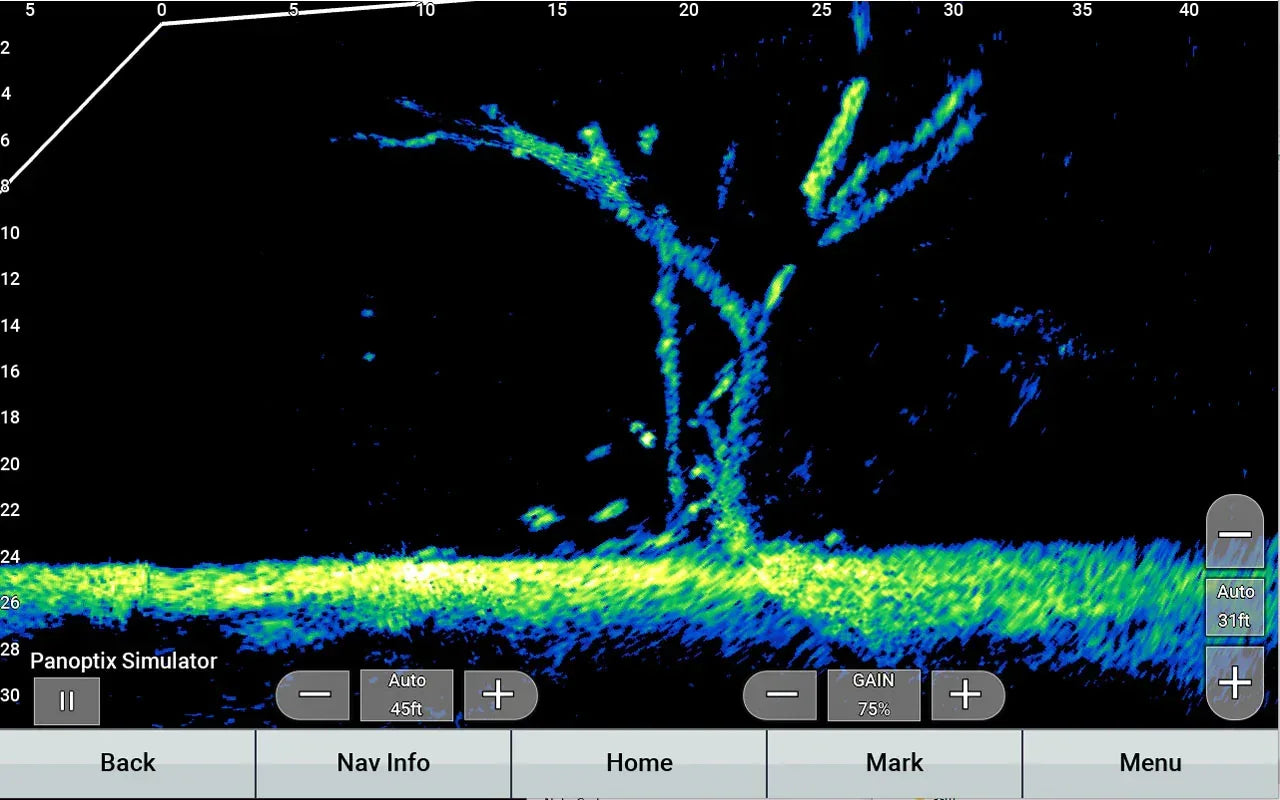

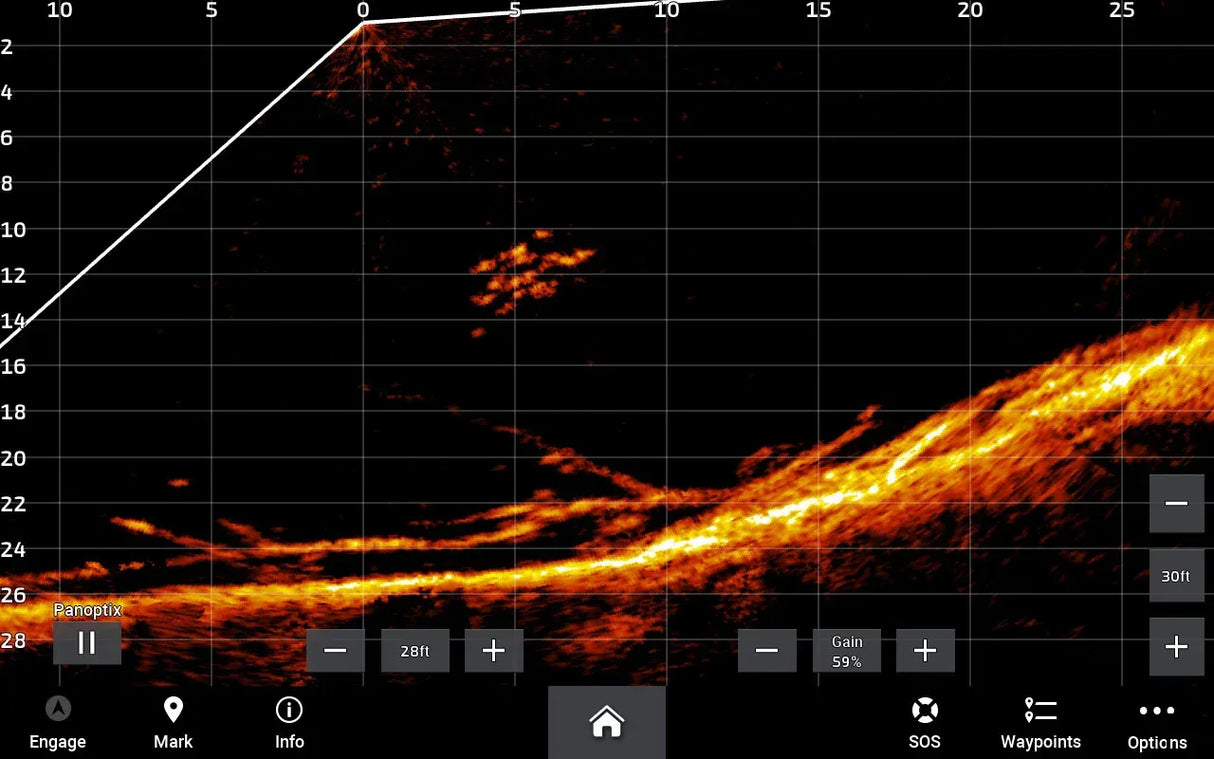

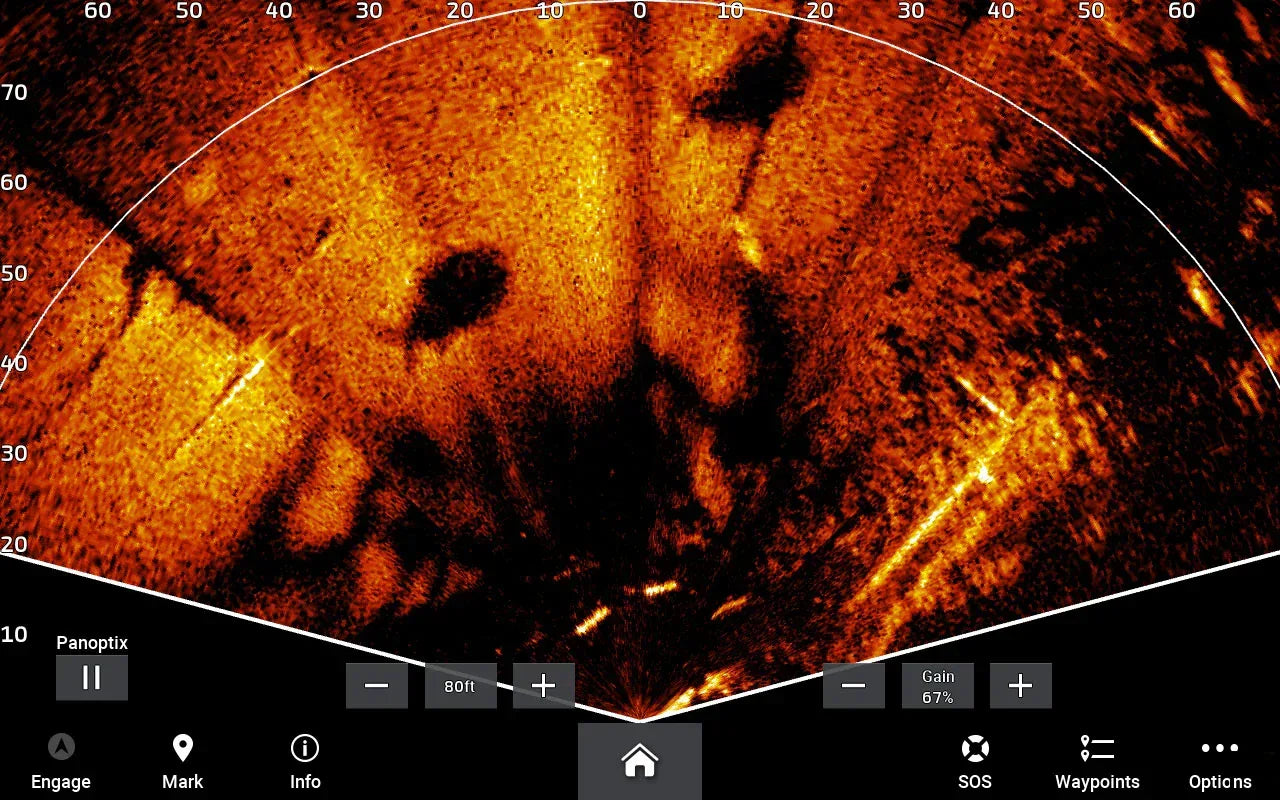

Garmin LiveScope Plus System offers astonishingly detailed live sonar images and is the latest addition to Garmin's real-time sonar range. The new system produces images with improved clarity and target separation. The system allows you to easily distinguish underwater structures, lures, and the fish swimming around the boat in real time. It’s easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat, LiveScope Down to see directly below your boat, and choose the perspective mode for a top-down view. The view automatically updates on your compatible Garmin chartplotter. Attitude Heading Reference System (AHRS) stabilization keeps your sonar view steady, even in rough conditions. The LiveScope Plus System comes with mounting hardware for the barrel or shaft of a trolling motor and a mount designed for the perspective mode.

• Up to 35% better target separation
• Sharp and clear sonar images with very little interference (less “ghost images”)
• The new sonar transducer can be used with an existing LiveScope System black box (GLS 10), and updating your equipment is easy
• Get maximum contrast and clarity in your images with vivid color palettes
• Compatible with Garmin Force trolling motors and other electric trolling motors
• All three modes can be used with the perspective mode mount included in the box.


Included in the box:

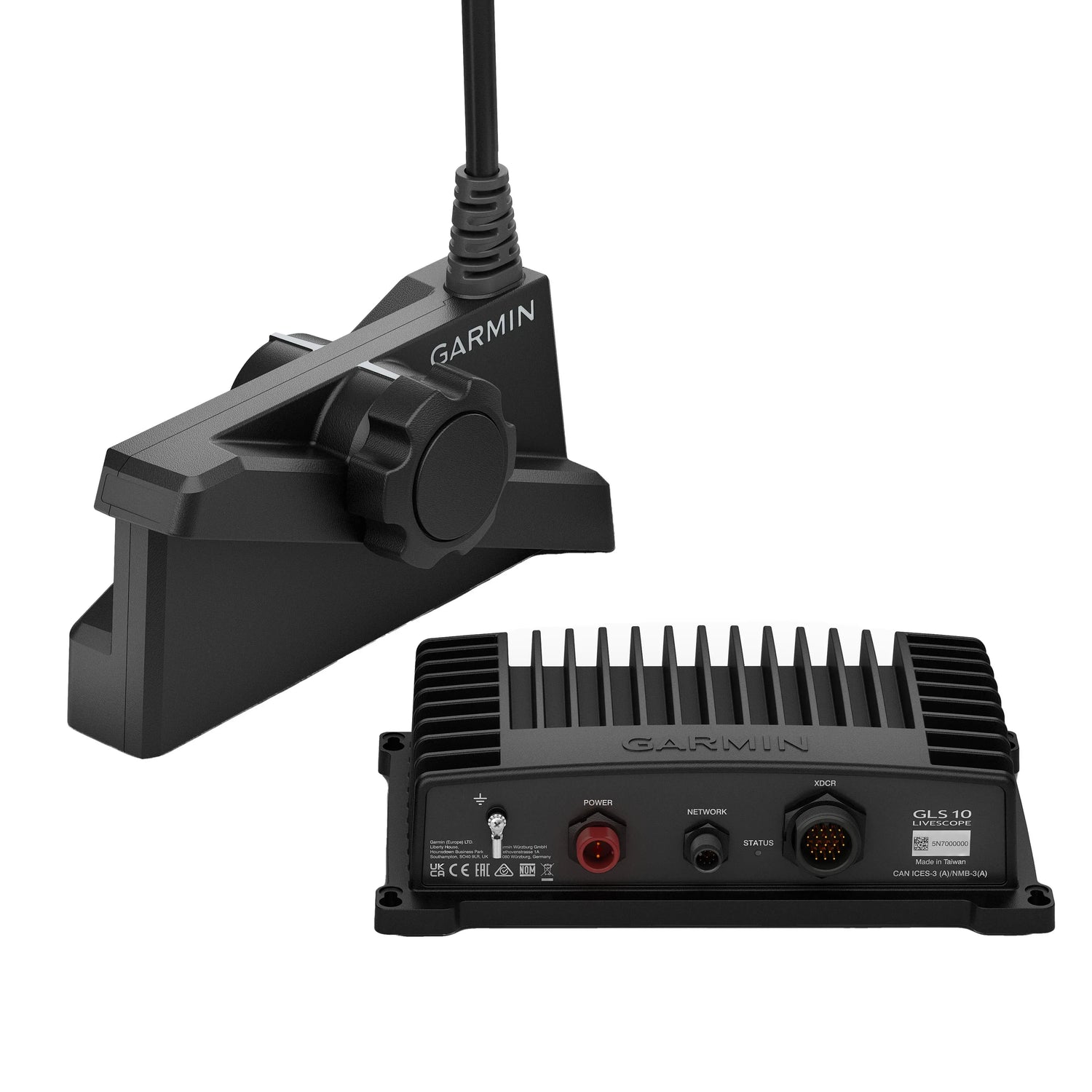

• GLS 10 black box
• Panoptix LVS34 transducer

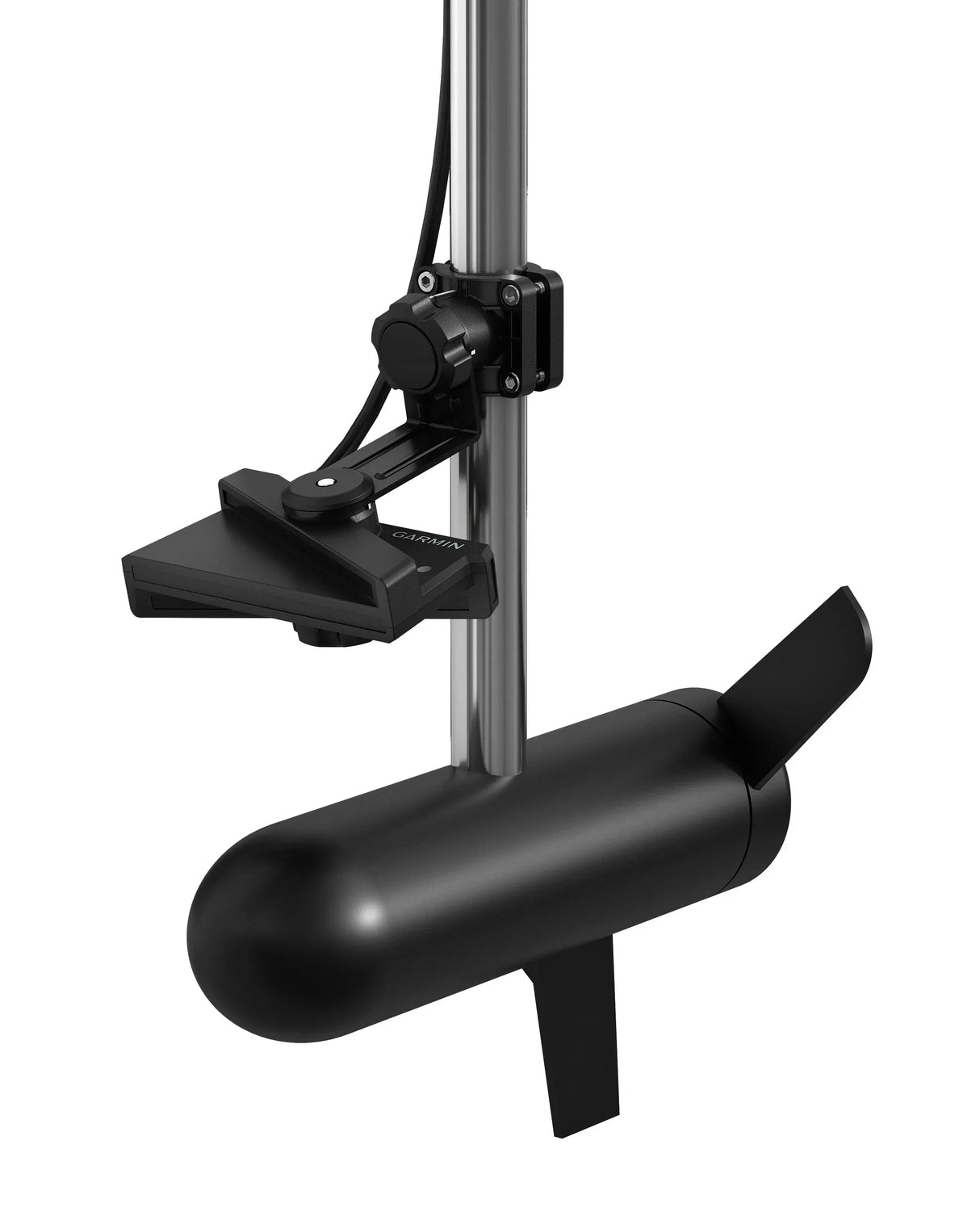

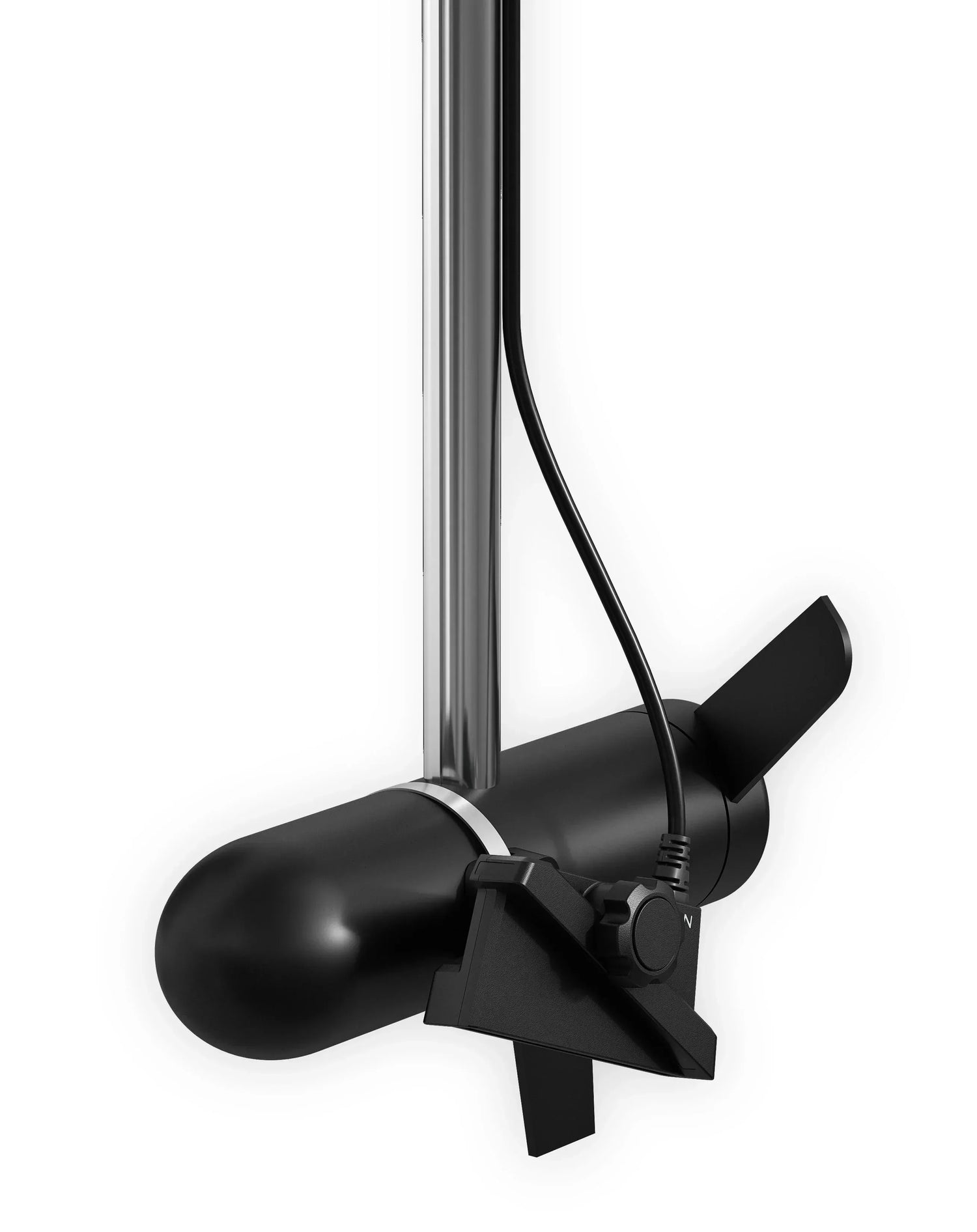

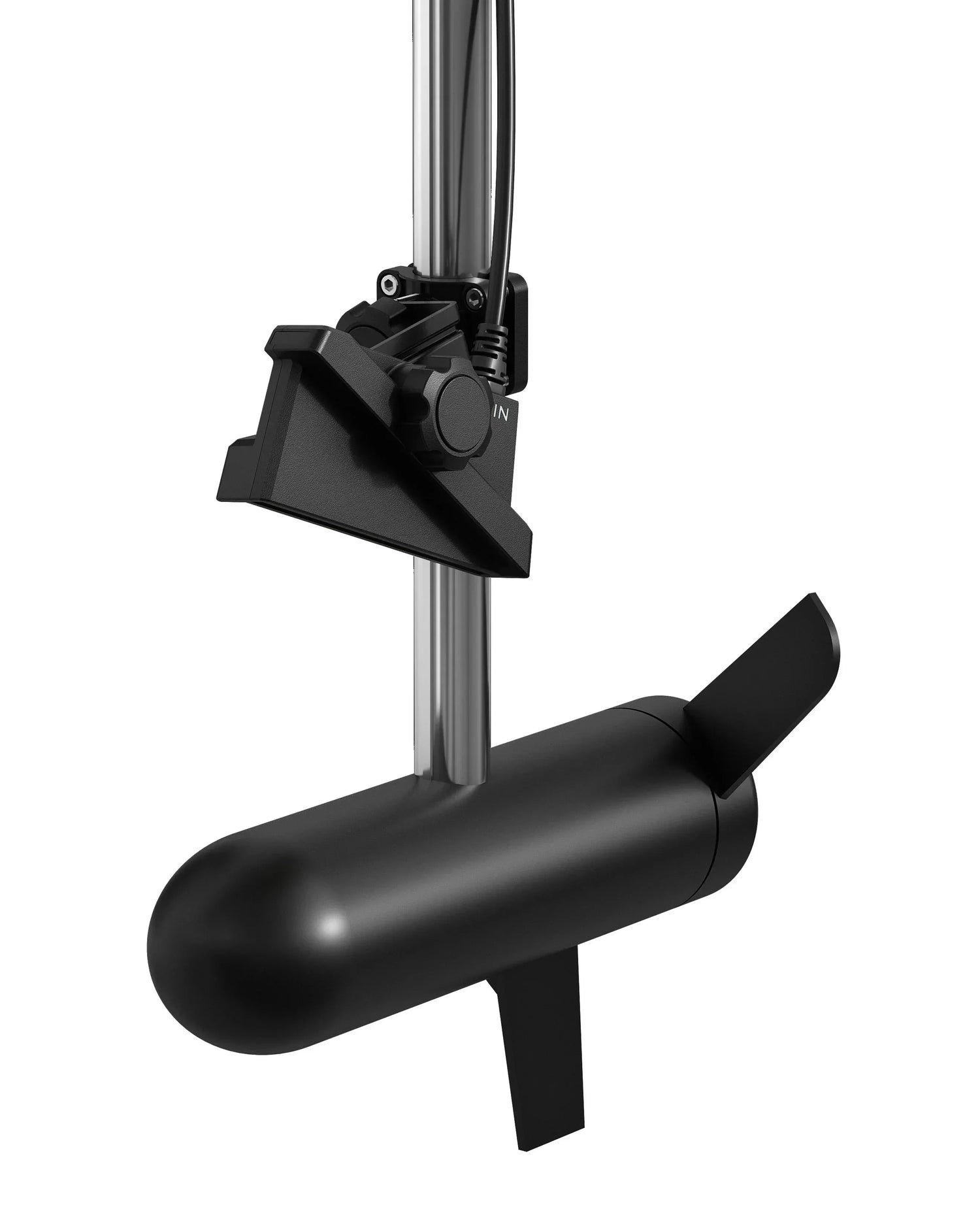

• Trolling motor barrel or shaft mount hardware
• Perspective mount
• Power cable
• Network cable
• Network adapter cable
• User manual


Technical specifications:
• Frequency: 530–1,100 kHz
• Transmit power: 500 W
• 10–32V, typical 21 W, max. 58 W
• GLS 10 Black Box: 162 x 75 x 43 mm
• Garmin Marine Network ports: 1
• Cable length: 3.6 meters (12 feet)


Supported devices: GPSMAP 8400/8600 series MFD devices, GPSMAP 7400/7600, 1002/1202, GPSMAP 1202/1202xsv Touch, 702/902 series chartplotters, X2 Plus series, ECHOMAP Plus 70cv/70sv, and ECHOMAP UHD and 90sv chartplotter/sonar combinations.
