Simrad NSS12 Evo3S Combination Device

Make the most of your boating experience with Simrad NSS evo3. Navigate, find fish, and review boating data using the NSS evo3 system. SolarMAX® IPS displays offer exceptional clarity and ultra-wide viewing angles in any light conditions. Choose between all-weather touchscreen technology or keypad with a rotary dial as the situation demands. The built-in sonar allows you to cruise with a peaceful mind and you can also combine your NSS evo3 device with a ForwardScan® sonar, which offers the safest on-water experience with crystal clear views of the bottom ahead. Find the best spots with StructureScan® HD imaging and a CHIRP compatible sonar – just add your preferred transducer. Mirror your display to compatible smart phones and tablets with wireless connectivity and access the NSS evo 3 system from anywhere on board.

The amazingly sharp Simrad NSS evo3 display has enough room for a wide range of maps, radar and sonar images, and a lot more. The NSS evo3 devices are excellently suited for larger motorboats and sport fishing boats. The wireless connectivity and HDMI connection (HDMI included on the 12” & 16" models) allow you to mirror the screen to your smartphone, tablet, or television.

The Simrad NSS evo3 display allows you to control the features the way you want. Use the multitouch compatible intuitive touchscreen controls that are perfect for calm conditions, or select the built-in keypad with the rotary dial during fishing and boat trips. You can control each function with either method, which means that you can always choose the best option for the situation.

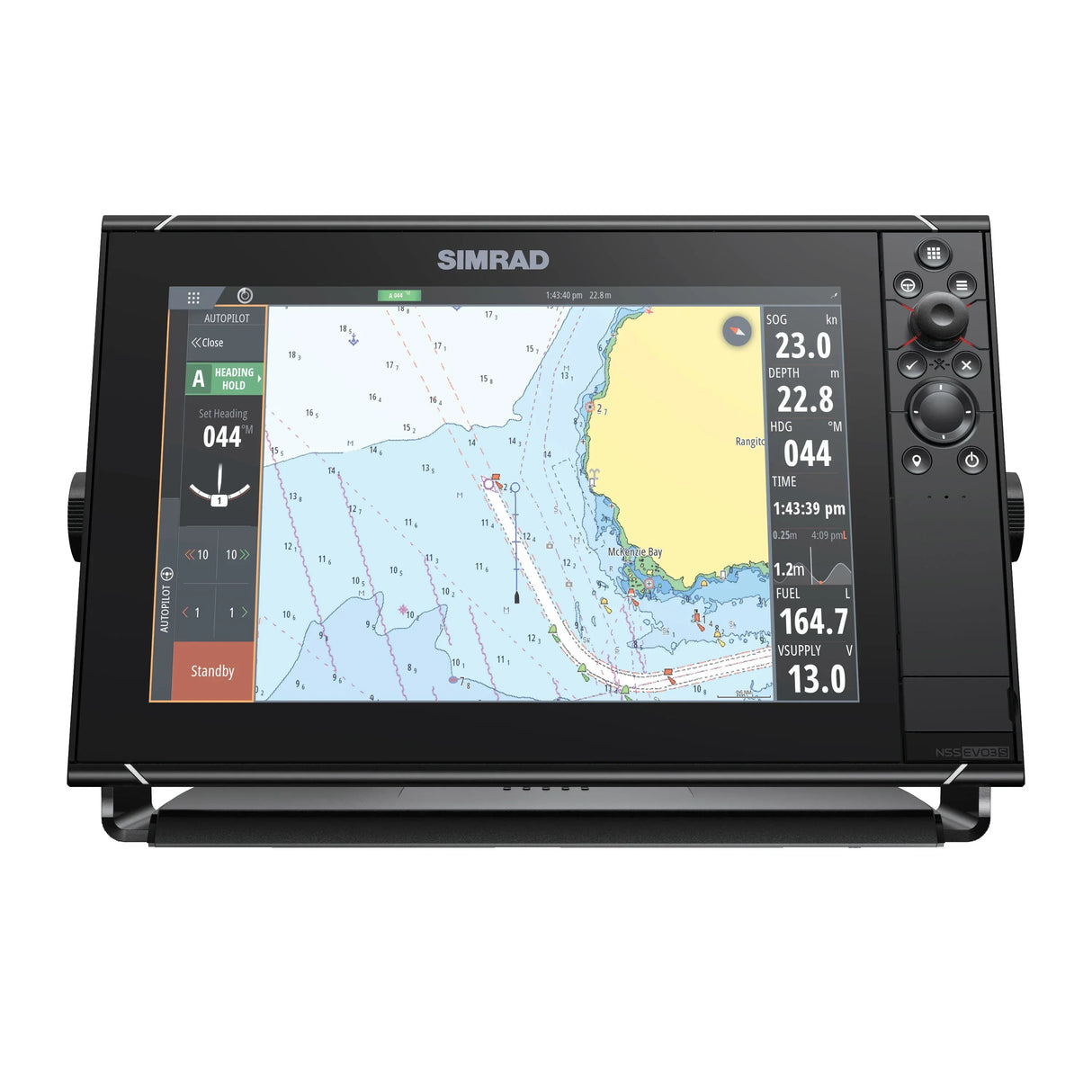

Each NSS evo3 display is a chartplotter with a built-in GPS receiver, which means that you no longer need an external antenna for your boat. Access a wide range of charts to choose the one that is best suited for you to find your favorite spots anywhere in the world. The MAP Easy Routing allows you to navigate your boat as easily as you would your car.

SolarMAX™ IPS technology ensures a clear view in all lighting conditions. The wide viewing angle allows you to see everything you need, even when wearing polarized sunglasses. The all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display. It’s easier than ever to instantly access and control all of your on-board electronics via simple menus and customizable split-screen layouts.

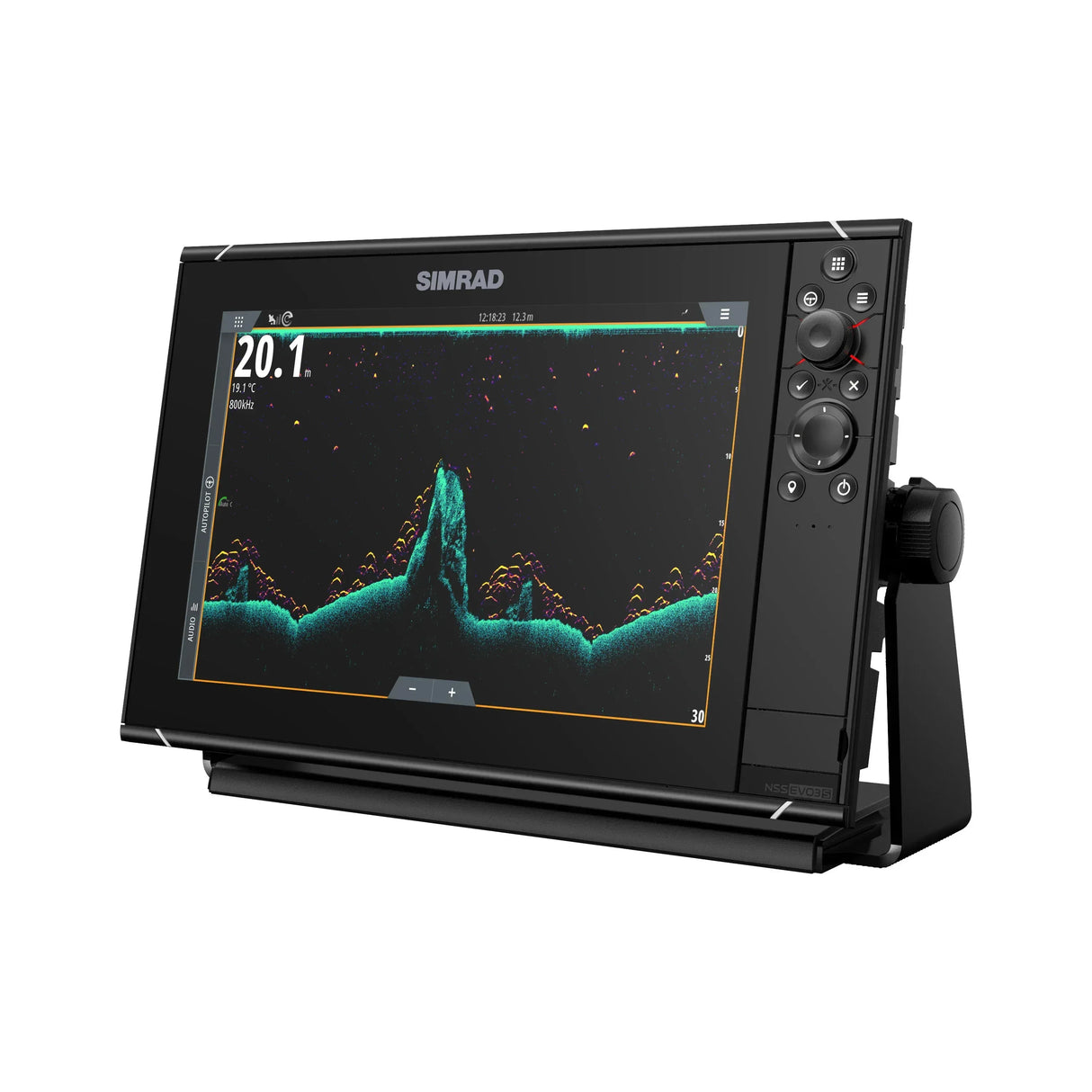

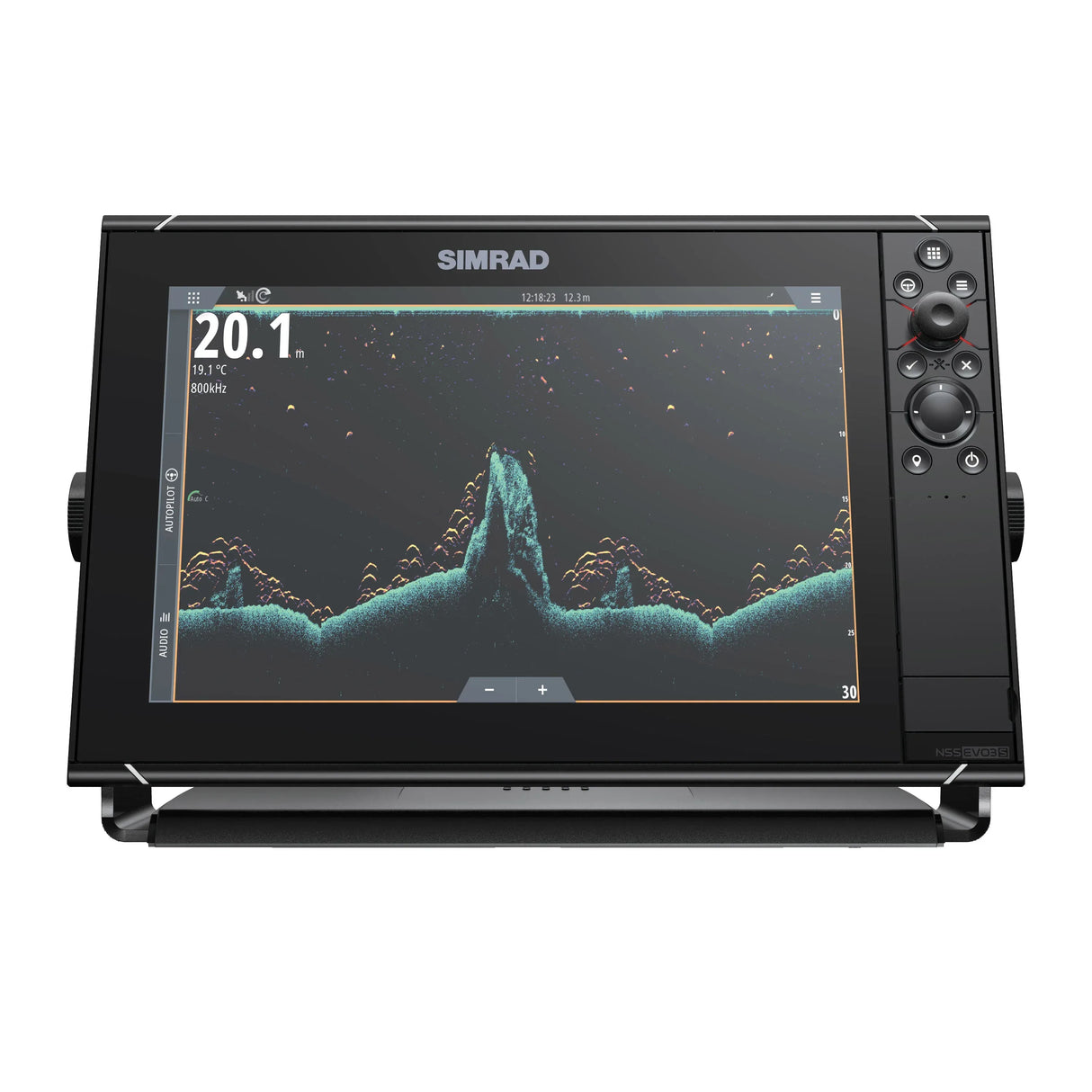

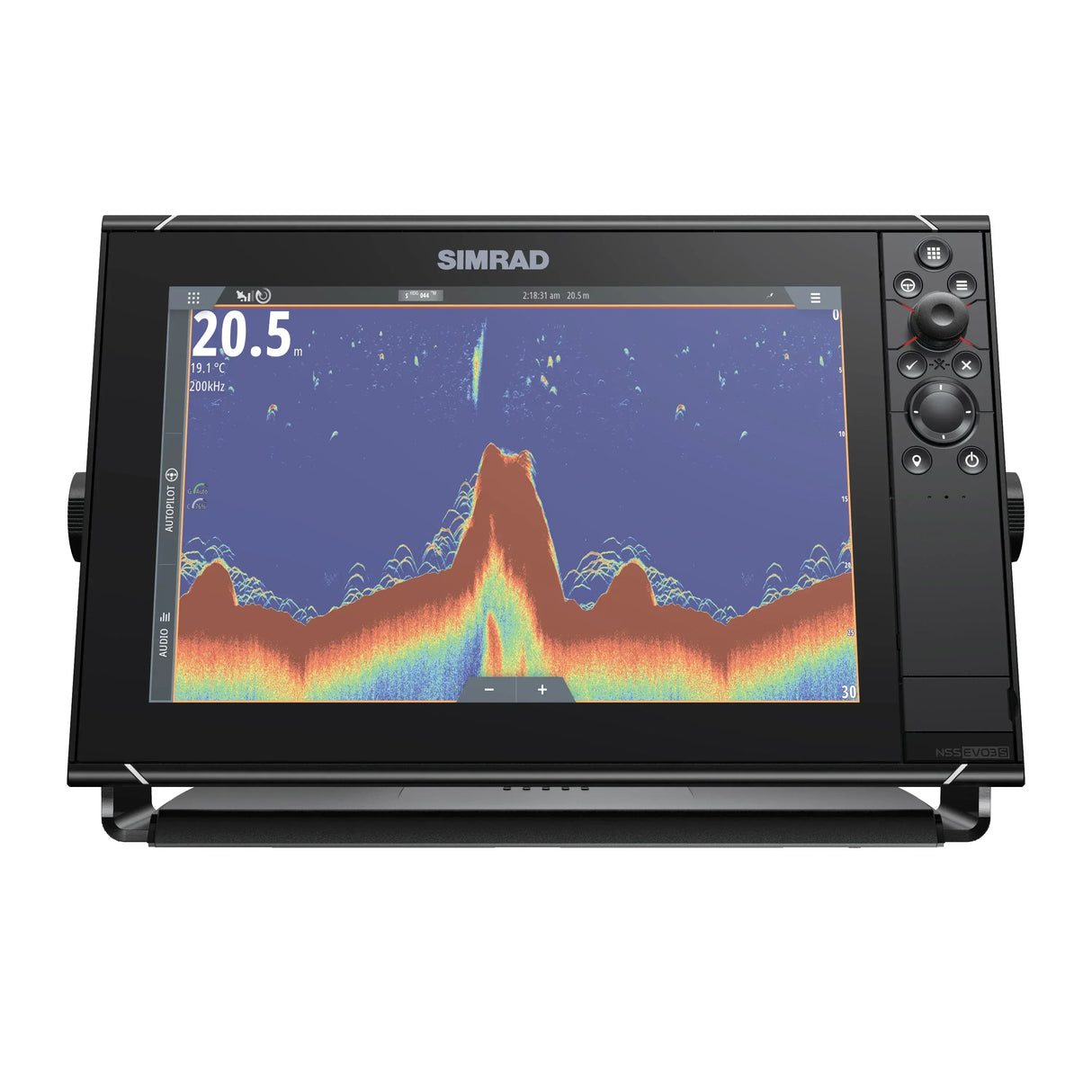

The built-in sonar enables various sports fishing and boating features: just add your preferred transducer. Connect a traditional 2D transducer, CHIRP, or even an Active Imaging™ 3-in-1 transducer that provides all traditional fish-finding sonar functionalities in a single transducer. Active Imaging offers world-class clarity and the target separation of CHIRP Sonar. The SideScan and DownScan Imaging™ technologies provide an incredible level of detail on reefs, drop-offs and wrecks. The device also supports ForwardScan that provides a view of what is in front of the boat up to 8 times farther than your current depth, which means that you can navigate shallow and uncharted waters without worries. CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. The sonar supports dual-channel CHIRP transducers that deliver multiple depth range coverage. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.

Industry-standard connectivity makes it easy to create multi-display systems and link displays to all of your on-board electronics. For example, you can monitor your engine and fuel efficiency and control of your on-board sound system. Expand your system with Simrad modules and accessories, fish smarter with Active Imaging™, see further with legendary HALO™ Pulse Compression radar, and free your hands from the wheel with a fully integrated Simrad autopilot.

Mirror your display to compatible iOS and Android devices and enjoy access to charts, radar, sonar, engine data and more from anywhere on board Review charts and weather radar as you plan your next destination or keep the fish-finder view on display as you cast your lures. Wireless connectivity also allows you to update the software of your device through any base station. This allows you to access the latest functions and support for accessories.

Improve safety on the water by combining your Simrad multi-function display with revolutionary HALO24 and HALO20+ pulse compression dome radars that deliver industry-leading 360-degree sweeps every second at close range, for the ultimate in collision avoidance of stationary and fast-moving targets. With high-quality short, mid and long-range detection, these feature-packed dome antennas ensure targets can be seen vividly even in the toughest environmental conditions. See channel markers from right off the bow to storm cells 24 nautical miles away. These compact dome radars are easy to install, have low power needs, and wake instantly from standby to give you radar coverage exactly when and where you need it.

NOTE! Does not include a transducer. Transducers are sold separately.

Specifications:

• Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan) compatibility
• Built-in CHIRP and Broadband Sounder®
• 2 x Black (9-pin) sonar transducer port (compatible transducers include: Active Imaging™ 3-in-1, Active Imaging™ 2-in-1, TotalScan™ 3-in-1, HST-HDI, HST-WSBL, Airmar TM150, ForwardScan, etc.)
• Smart FishReveal™ targeting
• Compatible with Halo™ pulse compression dome radars
• Compatible with Broadband 3G™/4G™ radars
• Compatible with Navico (Lowrance/Simrad) Outboard Pilot autopilots
• Compatible with ForwardScan transducer
• NMEA 2000®connection (Micro-C) x1
• Ethernet connection x 2
• HDMI output
• C-MAP® Easy Routing-, Navionics Autorouting functions
• Easy-to-use and fast user interface
• SolarMAX™ IPS display with a wide viewing angle
• Integrated wireless Wi-Fi and Bluetooth connectivity
• SonicHub®2 compatible
• NMEA 2000® motor support
• 2 x Micro SD card slot (max. 32GB)
• Storage space: 6,000 waypoints, 500 routes & 50 tracks
• Easy flush-mount or stand
• Waterproofing IPX7
• Screen resolution 800 x 1280
• Fast 10 Hz built-in GPS
• Operating temperature range -15°C...+55°C
• Operating voltage 10–31.2 V DC
• Typical power consumption 2.0A
Language options: Finnish, Swedish, English (UK & US), Afrikaans, Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (Brazil & Portugal)

Included in the box:
• Simrad NSS evo3 combo device and screen shield
• Mount
• Power cable and fuse
• User manuals (Finnish manual available at www.simrad-yachting.com)
