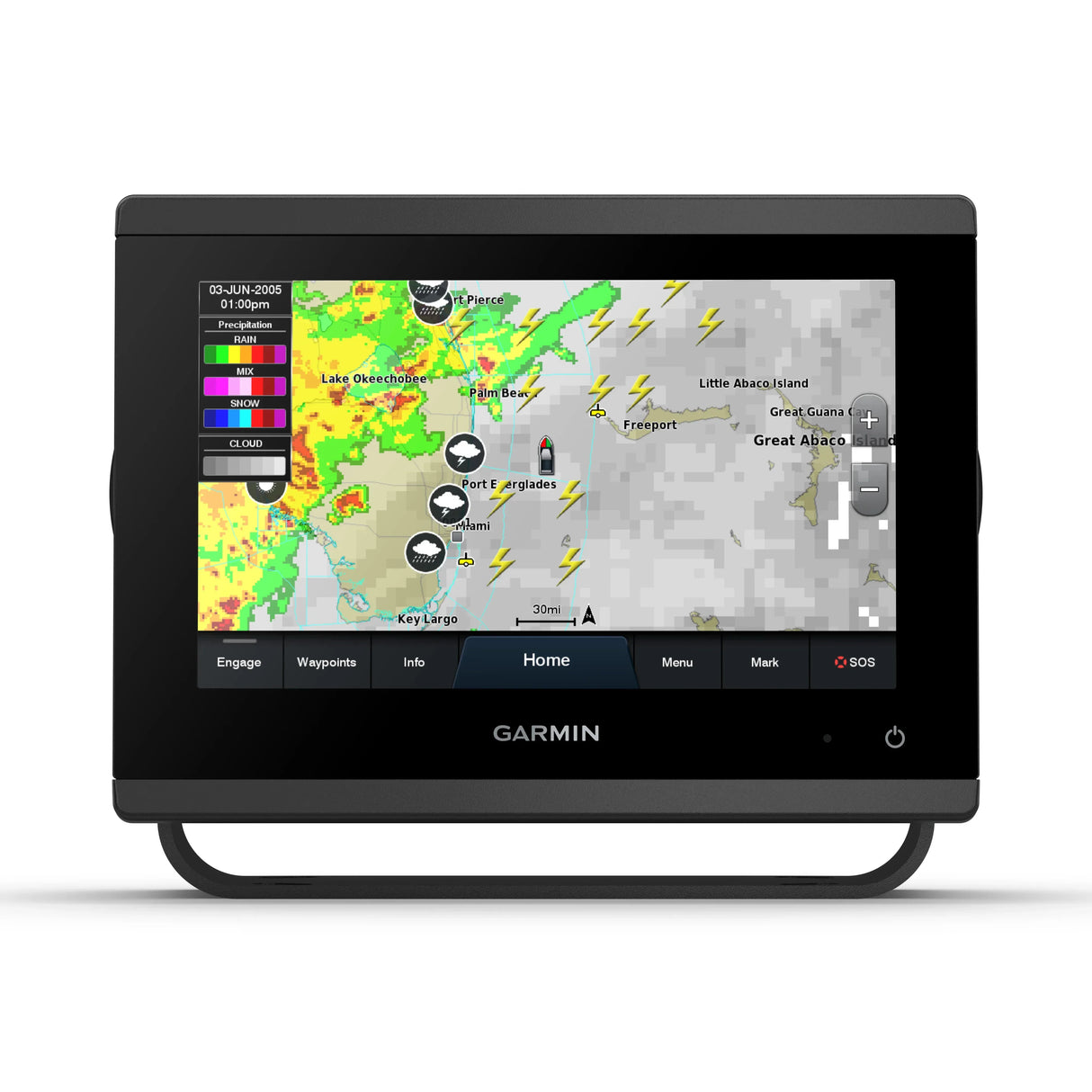

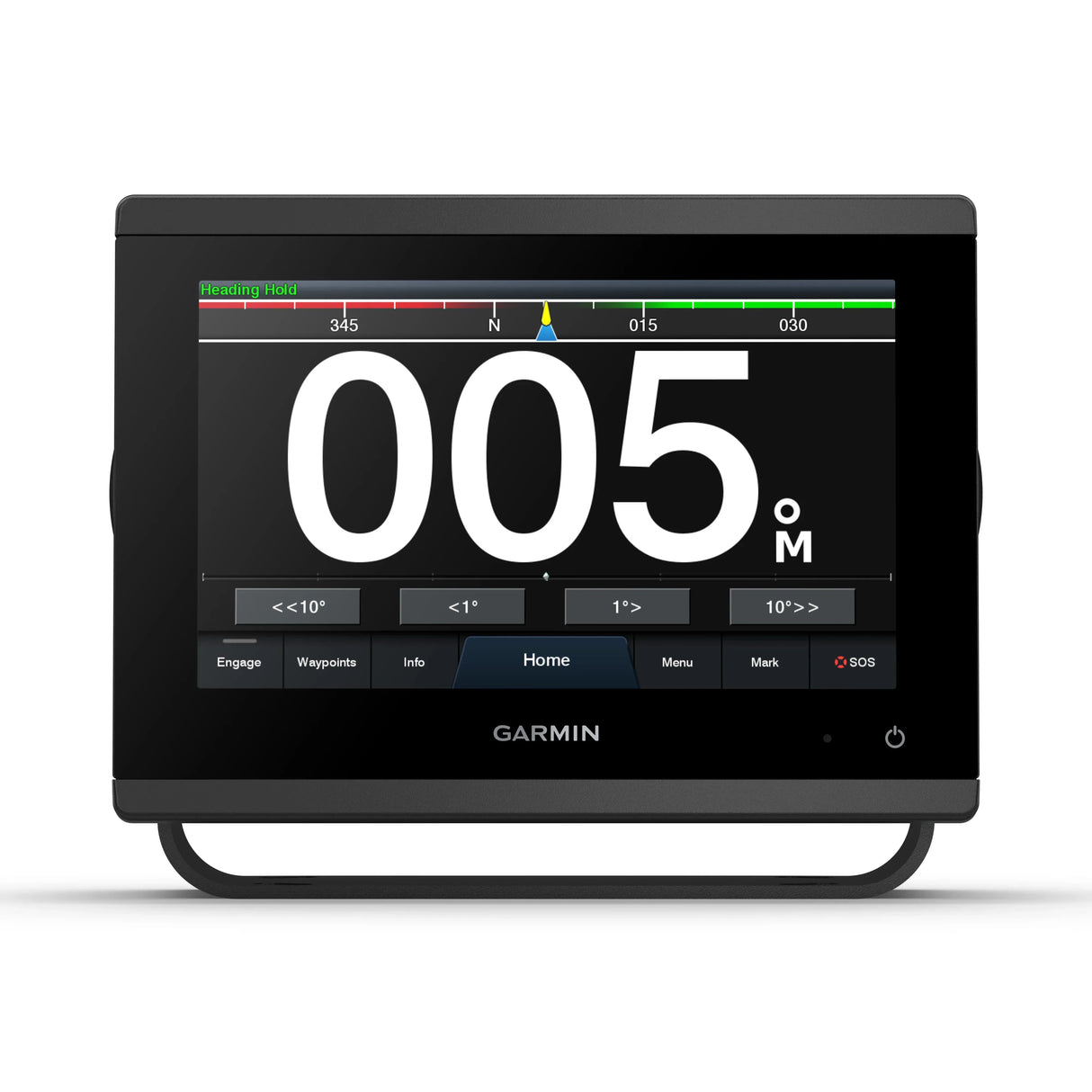

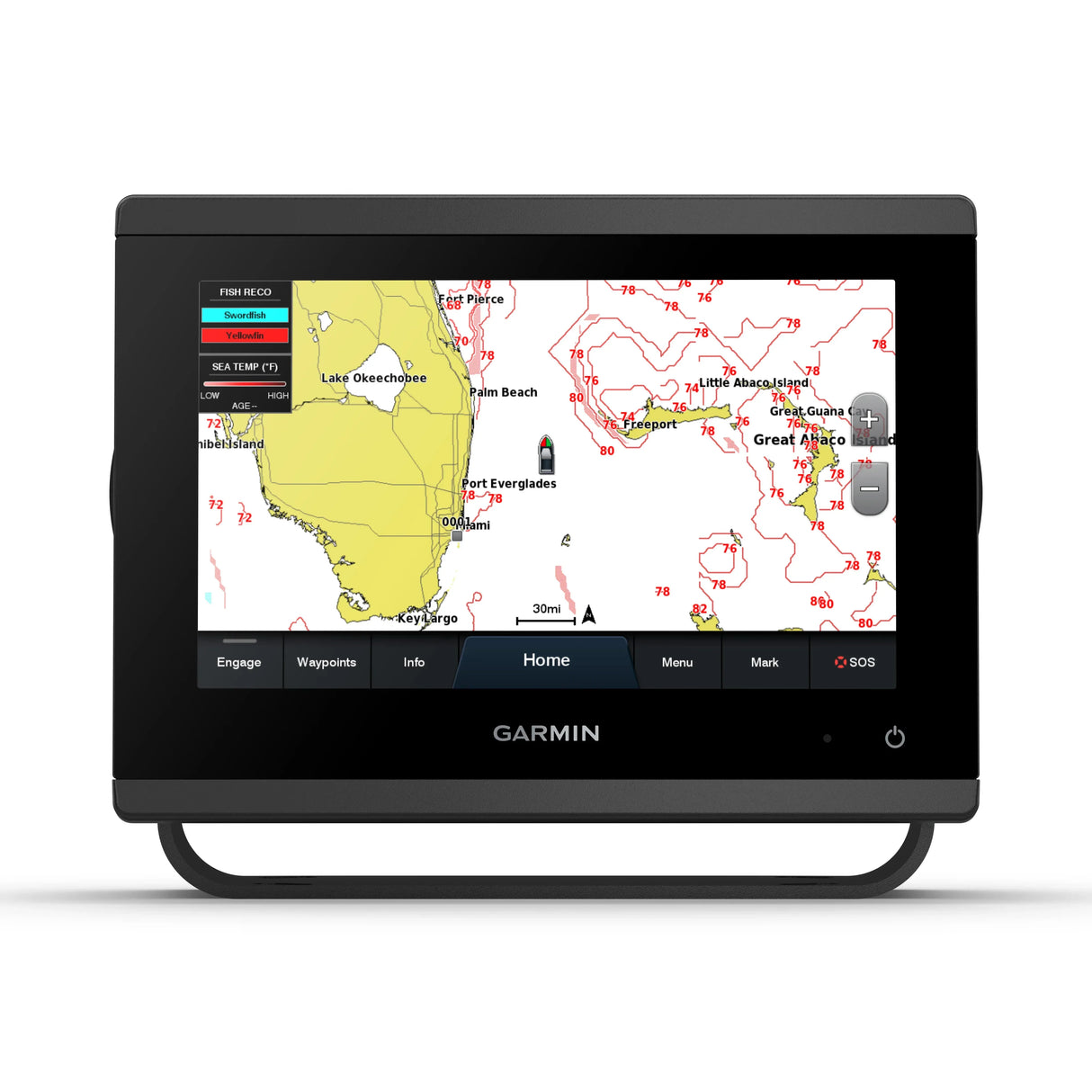

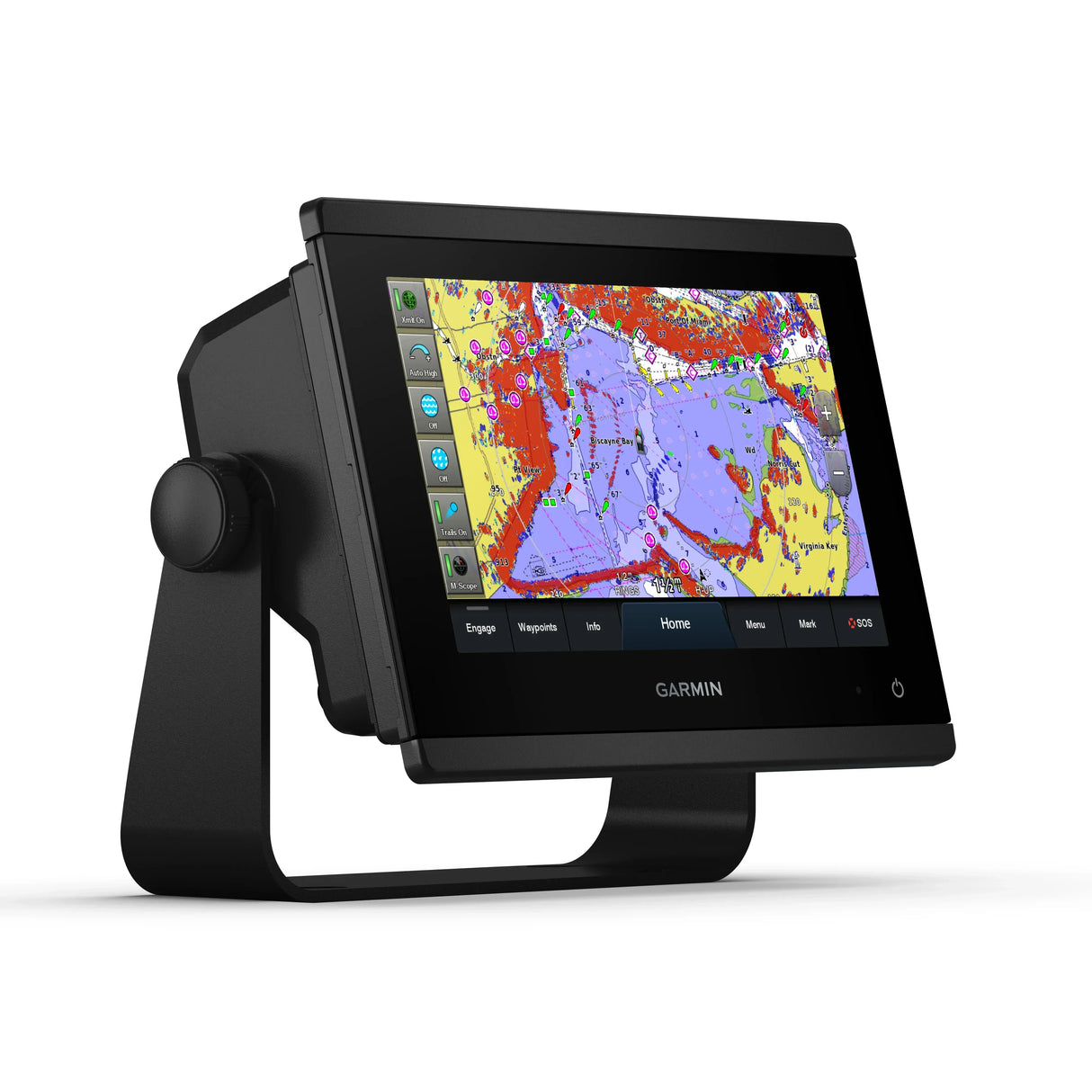

Garmin GPSMAP723xsv Combination Device

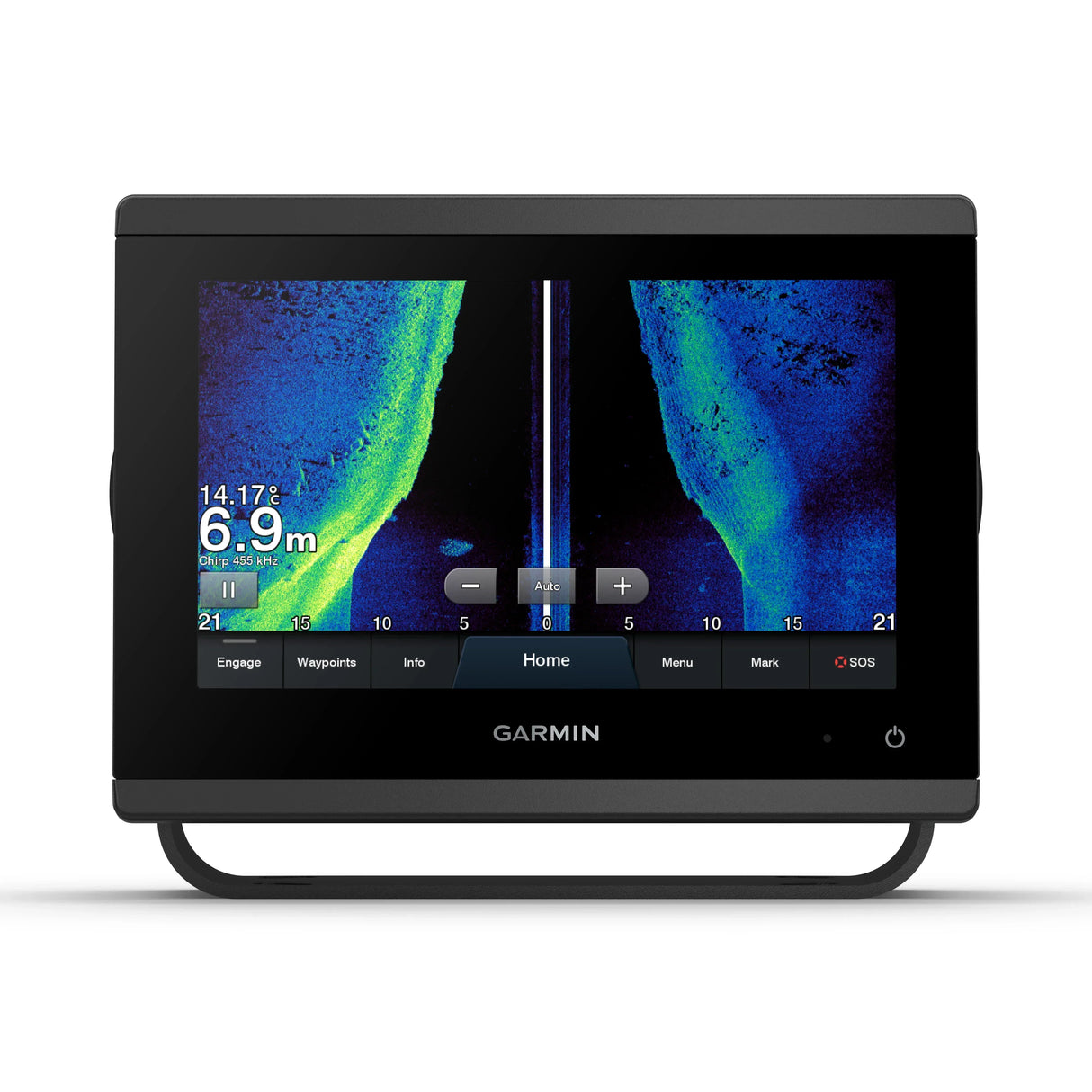

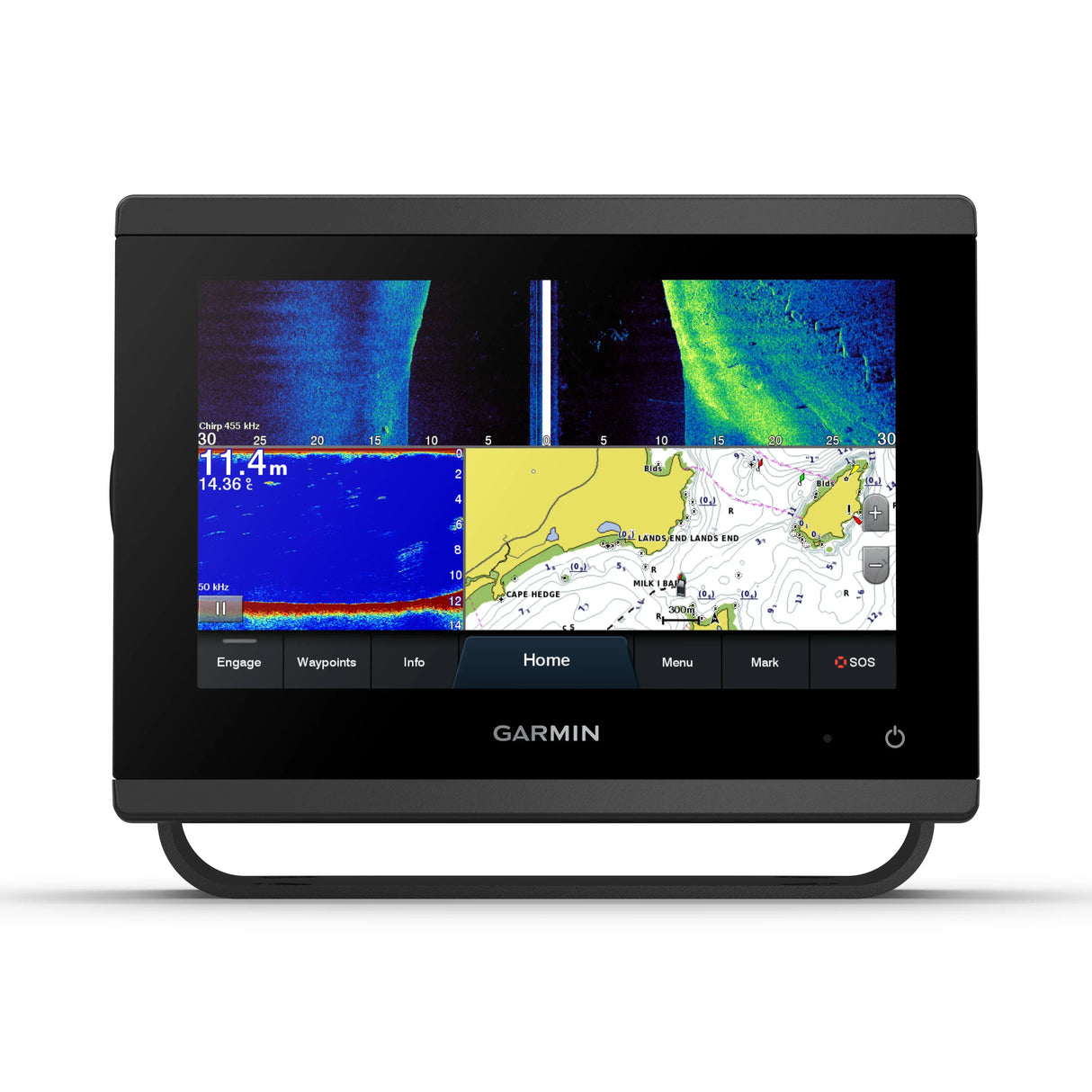

New Garmin GPSMAP chartplotters have sharper displays with more pixels than previous-generation devices. The sonar-equipped models also include built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes and 1 kW CHIRP traditional sonar capabilities. These devices can integrate seamlessly into your Garmin marine system due to their smaller size and improved performance. Support for the Garmin Marine Network allows you to share information, such as maps, user data, radar and IP camera video among different devices. NMEA 2000® and NMEA 0183 networks make it possible to connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

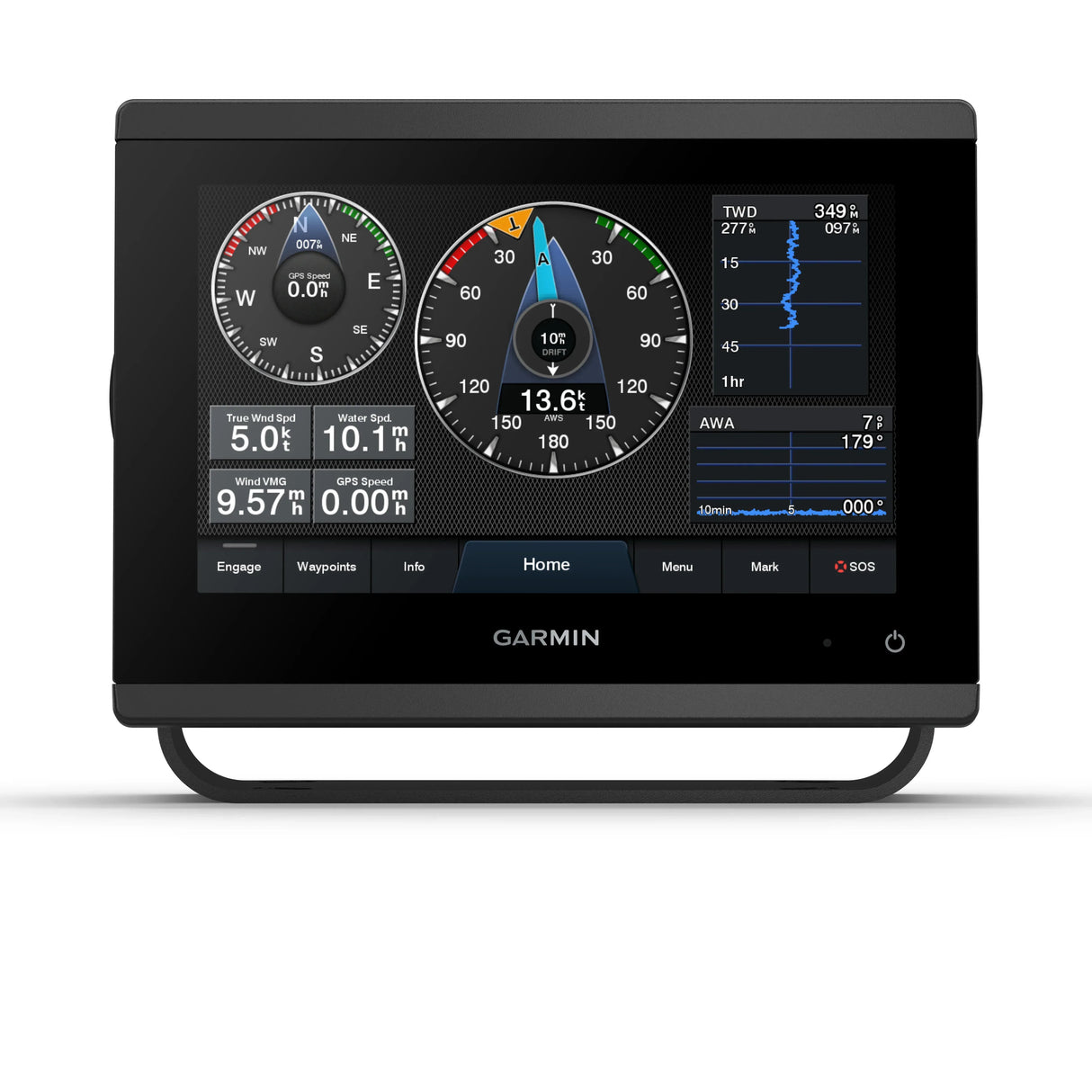

Built-in Wi-Fi® connectivity enables connections with Garmin Helm, BlueChart Mobile, and VIRB action cameras. The free Quickdraw Contours map software allows you to create unique high definition 0.3 meter contours. Share and download maps in the Garmin Quickdraw community. With the Garmin Sailassist™ sailing features you can view laylines, enhanced wind rose, and tide and drift data. Racing assistance includes race start line guidance and countdown.

As the device is Panoptix™ sonar compatible, you can pair it with a FrontVü scanning sonar to help you see and avoid submerged obstacles in real time. Integrated ANT® technology allows you to connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls. BlueChart® g3 Vision® maps (sold separately) offer new Auto Guidance functions, such as automatic guidance, waypoints, route review and modification, recommended speeds, etc.

Specifications:

• Dimensions 19.2 x 14.0 x 7.4 cm, (1.3 kg)
• Waterproofing IPX7
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz high-sensitivity
• Display size 15.4 x 9.1 cm; 17.8 cm diagonal
• Display resolution, 1024 x 600 pixels
• Display type: WSVGA
• Accepts data cards: 2 microSD™
• Track log: 50,000 points; 50 saved tracks
• Preloaded maps: Worldwide basemap
• Routes: 100
• Wireless remote compatible

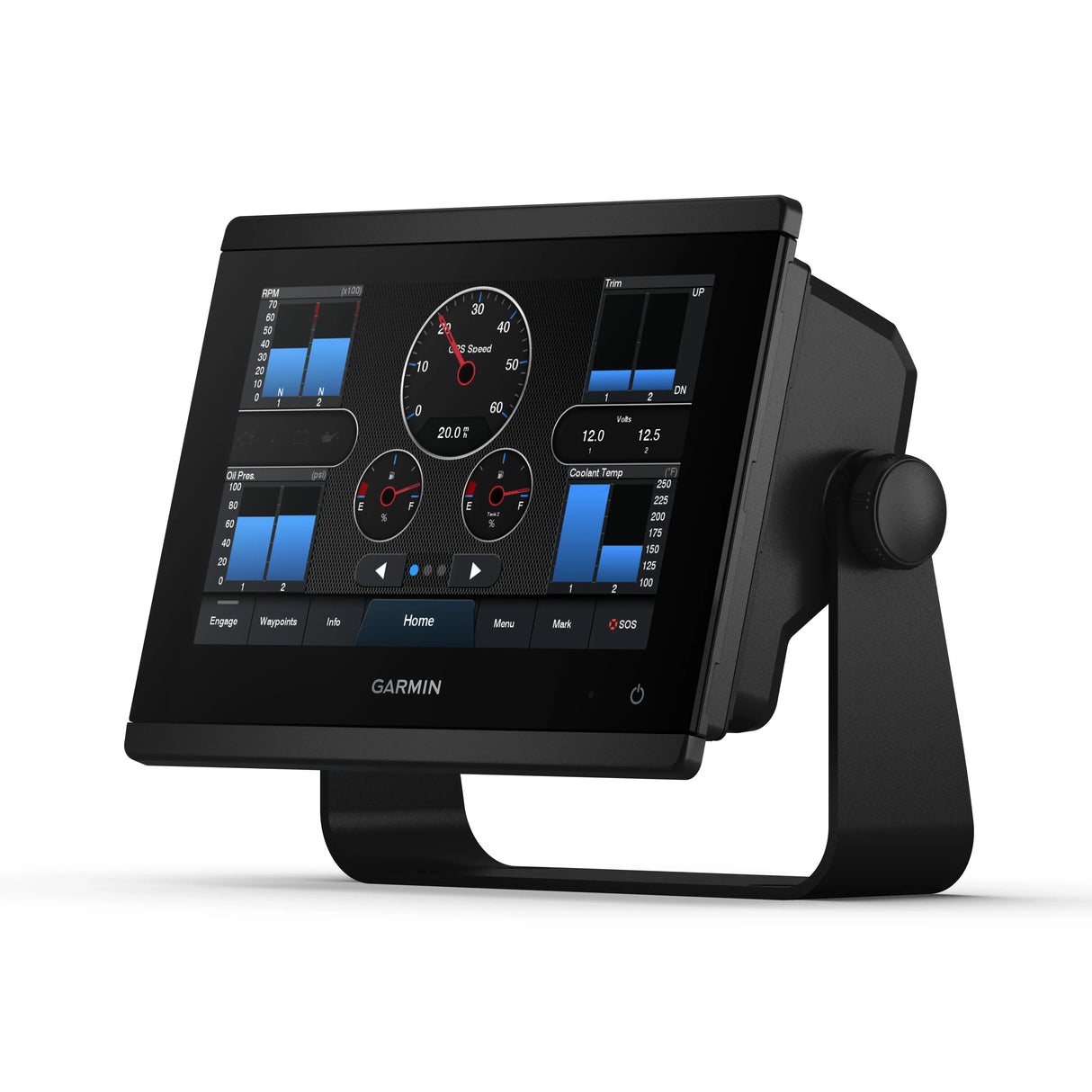

• J1939 compatible
• Dual frequency sonar capability
• Transmit power: 1 kW traditional; 1 kW CHIRP
• Polarized Support
• Water temperature log and graph
• Supports FUSION-Link™ compatible radios
• Power consumption: Max power usage at 10 Vdc: 17.6 W, Typical current draw at 12 Vdc: 1.1 A, Max current draw at 12 Vdc: 1.5 A
• NMEA 0183 outputs: 1 (Differential)
• NMEA 2000® compatible
• Panoptix compatible
• Bottom lock (shows return from the bottom up)
• Built-in CHIRP sonar technology
• NMEA 0183 compatible, NMEA 0183 inputs 1 (Differential)
• Supported frequencies: Traditional: 50/77/83/200 kHz, CHIRP (low, medium, high), ClearVü (260/455/800 kHz)
• Transducer pin numbers: 12-pin (orange)
• Supports AIS (tracks target ships position)
• GSD™ Black Box sonar support
• GCV™ Black Box sonar support
• Sonar history rewind
• Video inputs: 1 BNC
• Built-in SideVü CHIRP
• Built-in ClearVü CHIRP
• ActiveCaptain compatible
• GRID™ (Garmin Remote Input Device) compatible
• Garmin radar compatible
• Supports DSC (displays position data from DSC-capable VHF radio)
• Garmin Marine Network™ ports: 1
• Wireless connections
• Sonar recording
• Dual beam sonar
• Garmin SmartMode compatible (customizable monitor presets)
• Sailing features
• Tide tables

Included in the box:

• GPSMAP 723xsv
• microSD™ card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)

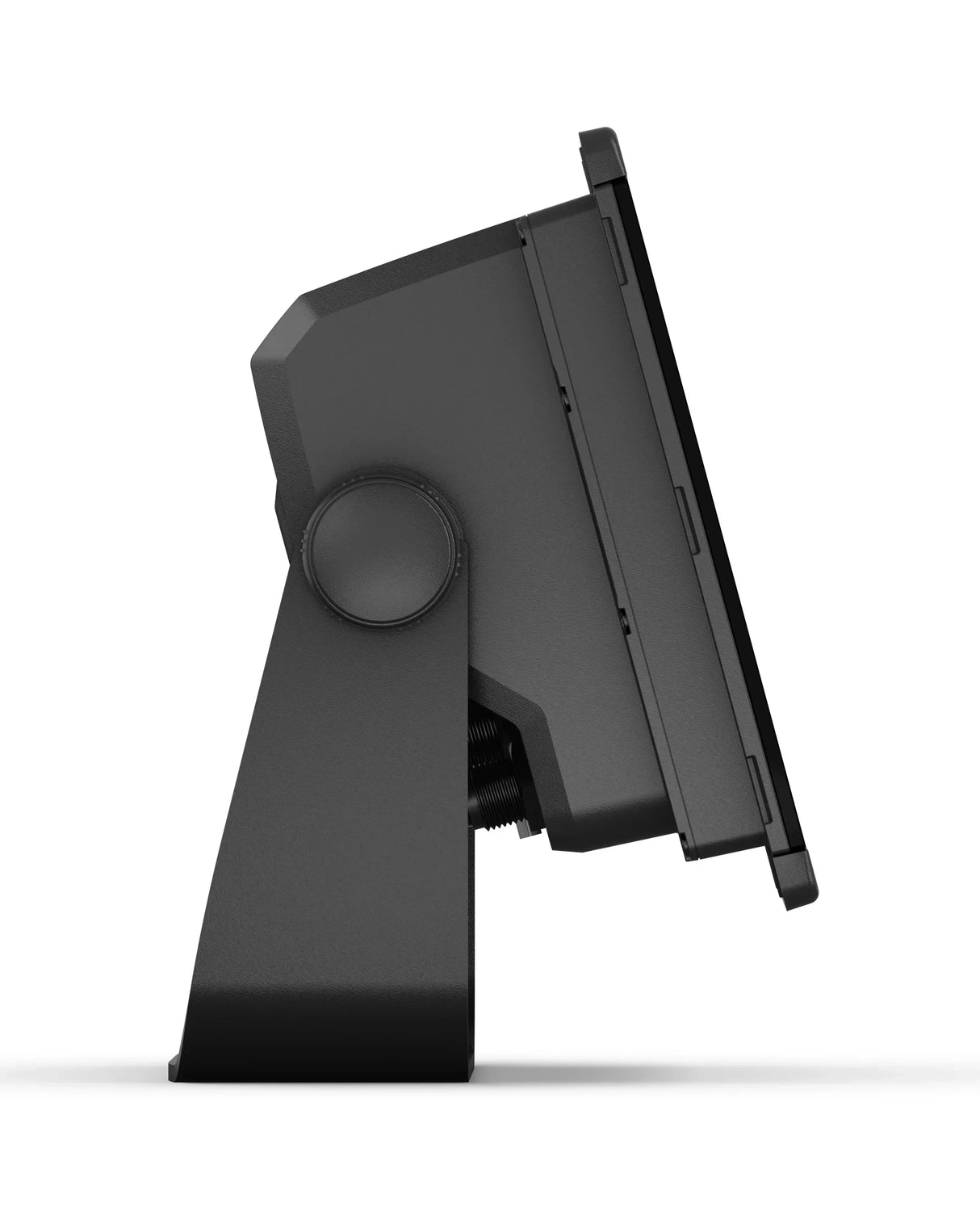

• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers

Language options: Arabic, Brazilian Portuguese, Bulgarian, Croatian, Chinese (simplified), Chinese (traditional), Czech, Dutch, Danish, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Thai, Turkish
